Description

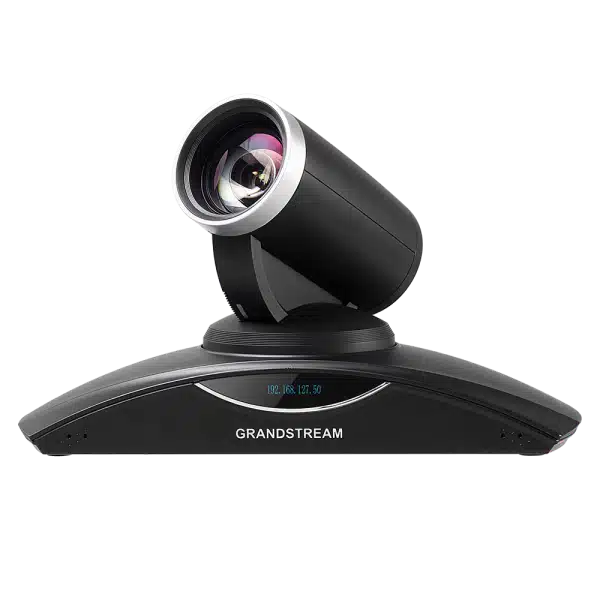

Grandstream GVC Series GVC3200 Full-HD PTZ Video Conferencing System (Model: GVC3200) is a Full-HD Enterprise Video Conferencing System engineered for enterprise boardrooms, large conference rooms, executive suites, and university lecture halls. Equipped with a 12x optical zoom PTZ camera with wide-angle lens, 1080p Full-HD resolution at 30fps, an embedded 9-way MCU (up to 4-way 1080p, 5-way 720p, or 9-way VGA), and 3 HDMI display outputs for multi-monitor setups.
Operating on Android 4.4, it supports native Android conferencing apps alongside SIP and H.323 protocols. It incorporates dual-band Wi-Fi, Bluetooth 4.0, a Gigabit network port, local USB/SD recording, and a smart thermal fan system, manageable via IP PBX ZeroConfig and the IPVideoTalk cloud platform.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | GVC Series |
| Model / SKU | GVC3200 |
| Capacity / Scale | Embedded 9-way MCU: 4-way 1080p, 5-way 720p, 9-way VGA; Multi-protocol SIP/H.323/Android bridging |

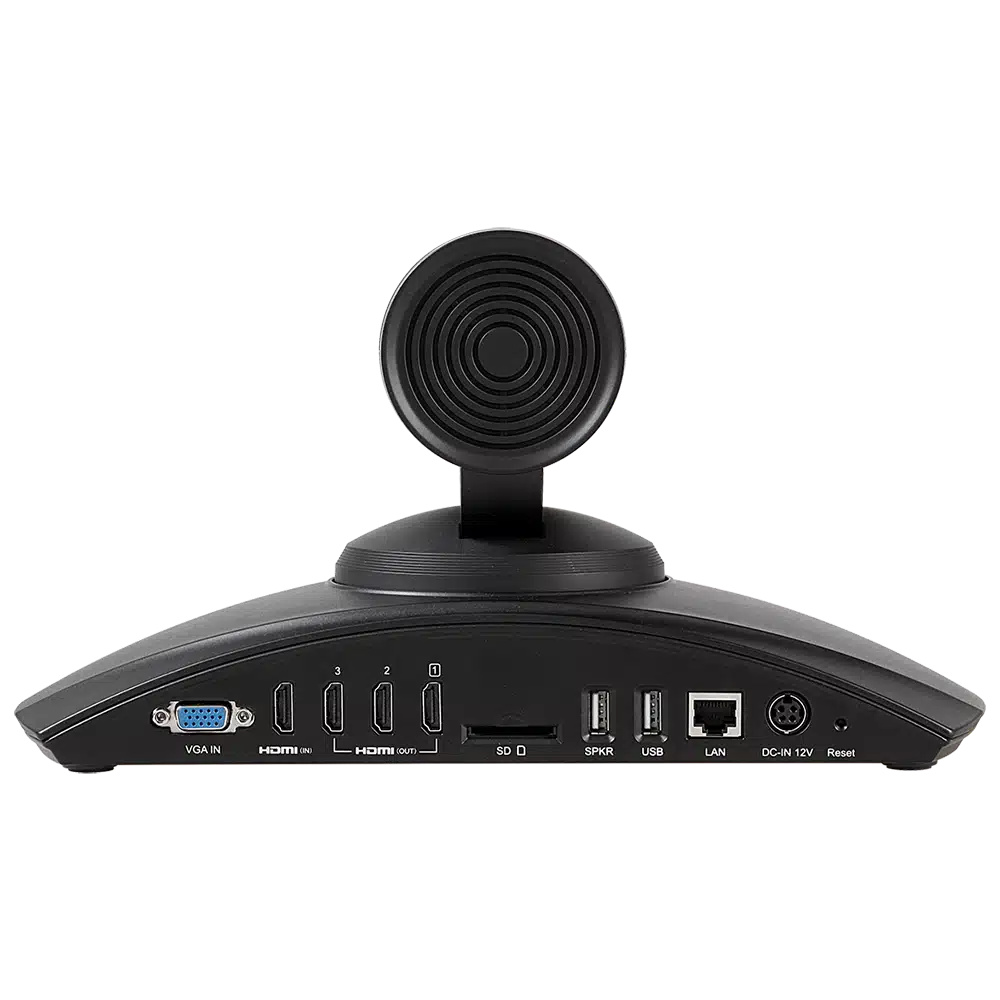

| Network / Telephony Interfaces | 1x Gigabit RJ45 Port; Integrated Dual-Band Wi-Fi (802.11a/b/g/n), Bluetooth 4.0; 3x HDMI Out, 1x HDMI In, 1x VGA In |
| Packet / Voice Processing | H.264 BP/MP/HP; 1080p @ 30fps; 1/3.2" 2 Megapixel CMOS; 12x Optical Zoom PTZ with +/-90° pan, +/-23° tilt |
| Expansion & Peripheral Ports | 1x SD Card Slot, 2x USB 2.0 Ports, 1x External Speaker/MIC Port (RJ45 connection to GAC2500) |
| Operating System / Management | Android 4.4; Web UI, IPVideoTalk Cloud, GDMS, TR-069, HTTP/HTTPS, SSH |
| Power Supply Specifications | External Universal Power Adapter 100-240VAC 50/60Hz, Output 12VDC 5A |
| Maximum Power Consumption | 60W |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Physical Dimensions (L × W × H) | 302.5 × 124 × 184 mm |
| Unit Weight | 1650 g (1.65 kg) |
| Chassis & Display | Integrated motorized PTZ camera housing; LED status ring indicators; OLED system indicator |
| Heat Dissipation / Cooling | Smart speed-adjusting cooling fan architecture |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Operating Relative Humidity | 10% to 90% (Non-condensing) |
| Mounting Capabilities | Desktop, Wall-mount bracket, and TV top-mount |
Key Features & Capabilities
- 12x Optical Zoom PTZ: Motorized pan-tilt-zoom camera with 12x optical zoom captures every participant across large boardrooms.
- Embedded 9-Way MCU: Integrated hardware conferencing MCU hosts up to 9-way mixed-protocol video meetings without external bridges.
- Triple HDMI Display Outputs: 3 independent HDMI outputs support simultaneous active speaker, gallery view, and presentation displays.
- Multi-Protocol Bridging: Seamlessly bridges SIP video calls, H.323 protocols, and third-party Android apps into unified conferences.
- Enterprise Encryption: Secured via TLS and SRTP encryption, 802.1x network access control, and encrypted media streams.
- Dual-Band Wi-Fi Freedom: Integrated dual-band Wi-Fi eliminates ethernet cabling across executive conference room tables.
Recommended Applications
The Grandstream GVC Series GVC3200 Full-HD PTZ Video Conferencing System is designed for enterprise and commercial deployment scenarios, including:
- Corporate executive boardrooms requiring multi-screen Full-HD video collaboration
- Large enterprise meeting spaces hosting hybrid multi-protocol video conferences
- University auditoriums and distance learning lecture halls
- Healthcare telemedicine suites conducting remote specialist consultations
- Multi-location corporate town halls requiring simultaneous multi-party video conferencing
Installation & Operating Environment
The Grandstream GVC Series GVC3200 Full-HD PTZ Video Conferencing System features a Desktop, Wall-mount bracket, and TV top-mount enclosure measuring 302.5 × 124 × 184 mm and weighing 1650 g (1.65 kg). It operates across an environmental temperature range of 0°C to 40°C (32°F to 104°F) and relative humidity of 10% to 90% (Non-condensing). Powered via External Universal Power Adapter 100-240VAC 50/60Hz, Output 12VDC 5A, it ensures dependable continuous operation and structured integration into commercial networking racks and office work environments.
