Description

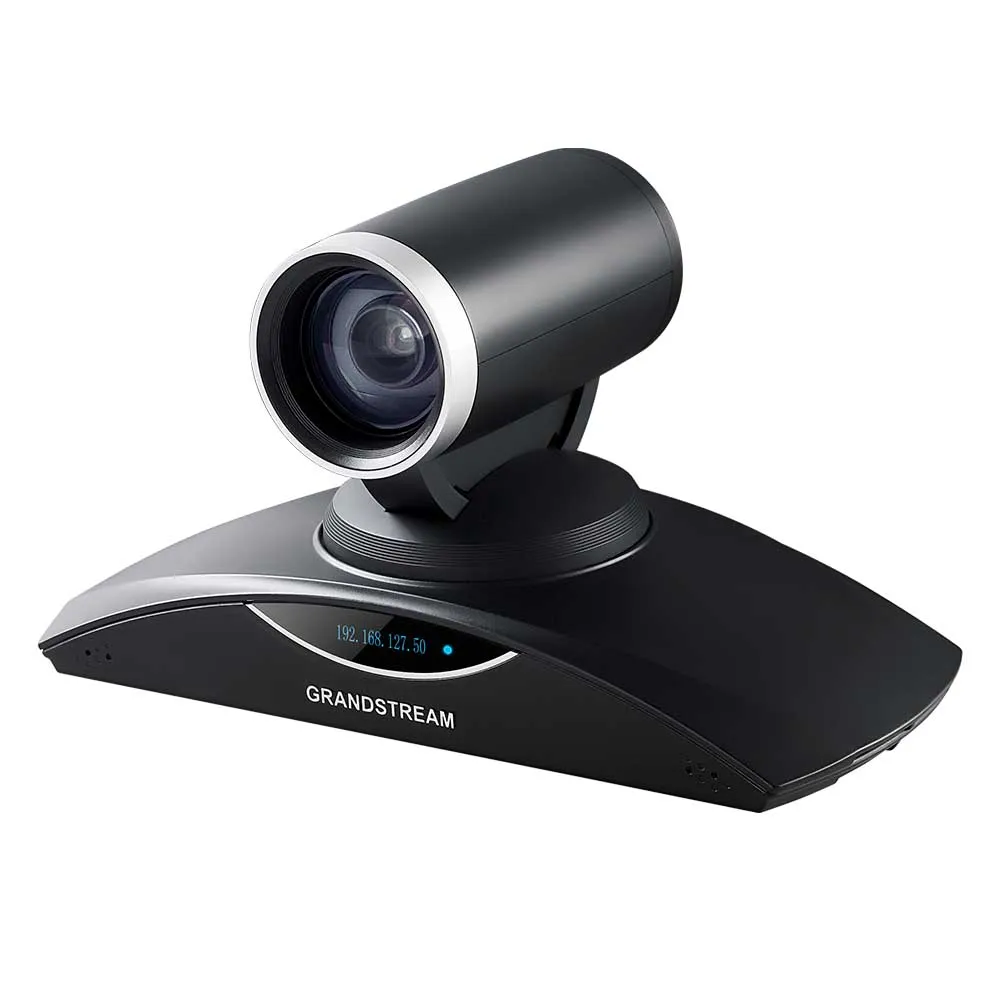

Grandstream GVC Series GVC3202 Full-HD PTZ Video Conferencing System (Model: GVC3202) is a Full-HD Medium-Room Video Conferencing System engineered for small-to-medium meeting rooms, departmental conference suites, and corporate huddle rooms. Featuring a 9x optical zoom PTZ camera, 1080p Full-HD video capture at 30fps, an embedded 3-way MCU (up to 2-way 1080p or 3-way 720p), 2 HDMI display outputs, and a Gigabit Ethernet port.
Powered by Android 4.4, it supports direct application installation from the Google Play Store and bridges SIP, H.323, and web platforms into single calls. It features Bluetooth 4.0 for remote and audio pairing, local USB/SD conference recording, and smart cooling, managed via GDMS and IPVideoTalk.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | GVC Series |
| Model / SKU | GVC3202 |
| Capacity / Scale | Embedded 3-way MCU: 2-way 1080p or 3-way 720p; Multi-protocol SIP/H.323/Android bridging |

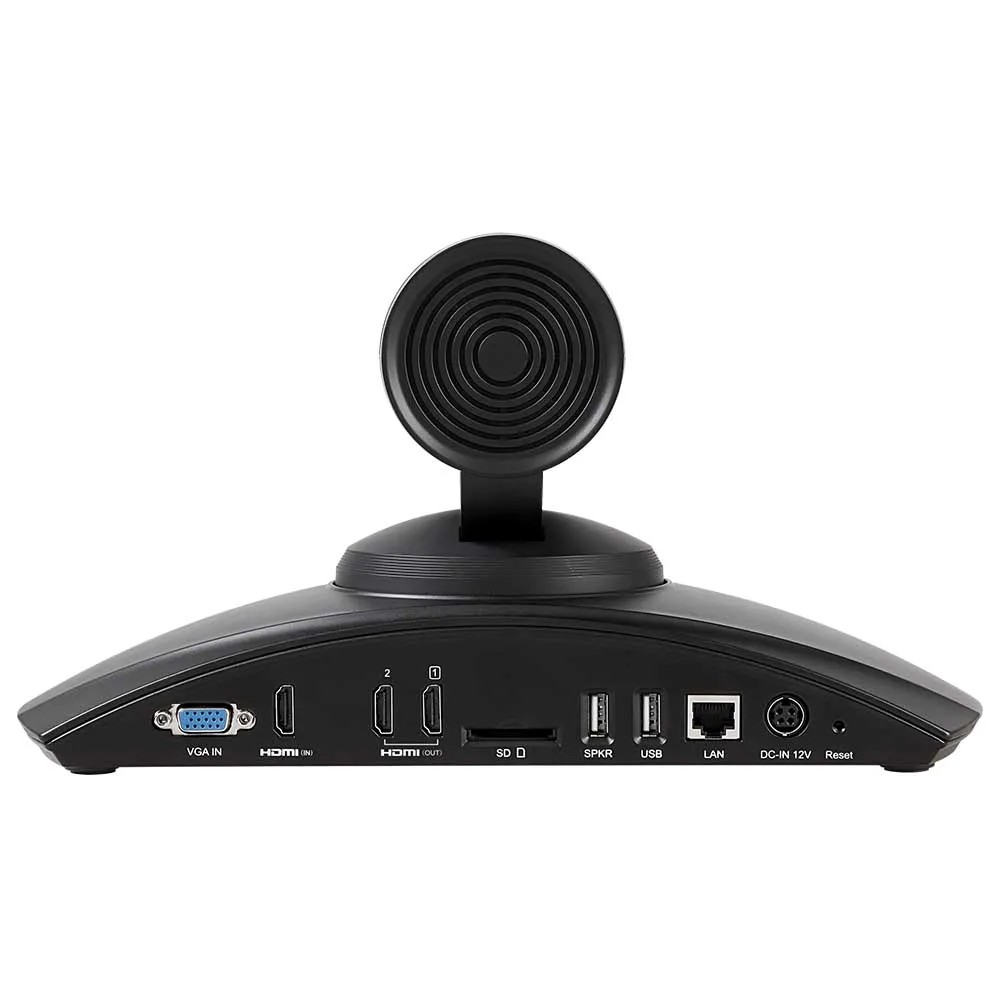

| Network / Telephony Interfaces | 1x Gigabit RJ45 Port; Integrated Bluetooth 4.0; 2x HDMI Out, 1x HDMI In, 1x VGA In |
| Packet / Voice Processing | H.264 BP/MP/HP; 1080p @ 30fps; 1/3.2" 2 Megapixel CMOS; 9x Optical Zoom PTZ with +/-90° pan, +/-23° tilt |
| Expansion & Peripheral Ports | 1x SD Card Slot, 2x USB 2.0 Ports, 1x External Speaker/MIC Port (RJ45 interface to GAC2500) |
| Operating System / Management | Android 4.4; Web UI, IPVideoTalk Cloud, GDMS, TR-069, HTTP/HTTPS |
| Power Supply Specifications | External Universal Power Adapter 100-240VAC 50/60Hz, Output 12VDC 5A |
| Maximum Power Consumption | 60W |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Physical Dimensions (L × W × H) | 302.5 × 124 × 184 mm |
| Unit Weight | 1650 g (1.65 kg) |
| Chassis & Display | Motorized PTZ camera housing; LED status ring indicator; OLED status screen |
| Heat Dissipation / Cooling | Smart speed-adjusting cooling fan architecture |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Operating Relative Humidity | 10% to 90% (Non-condensing) |
| Mounting Capabilities | Desktop, Wall-mount bracket, and TV top-mount |
Key Features & Capabilities
- 9x Optical Zoom PTZ: Precision motorized PTZ camera with 9x optical zoom delivers razor-sharp focus on conference participants.
- Built-In 3-Way MCU: Onboard video MCU hosts up to 3-way hybrid conferences without requiring an external video server.
- Dual HDMI Display Outputs: Dual HDMI outputs support dual-monitor setups for dedicated active video and shared content displays.
- Cross-Protocol Bridging: Bridges SIP video streams, H.323 infrastructure, and Android apps directly into common conference sessions.
- Gigabit Network Speeds: Dedicated auto-sensing Gigabit Ethernet interface guarantees fluid high-definition video streaming.
- Bluetooth Multi-Control: Integrated Bluetooth 4.0 enables seamless pairing with the included multi-touch remote and audio accessories.
Recommended Applications
The Grandstream GVC Series GVC3202 Full-HD PTZ Video Conferencing System is designed for enterprise and commercial deployment scenarios, including:
- Medium-sized enterprise meeting rooms requiring dual-screen presentation and video
- Departmental collaboration suites conducting cross-branch video meetings
- Corporate branch offices connecting to headquarters via SIP and H.323
- Legal mediation rooms requiring local SD card recording of video sessions
- Huddle spaces requiring direct integration with Android-based video collaboration apps
Installation & Operating Environment
The Grandstream GVC Series GVC3202 Full-HD PTZ Video Conferencing System features a Desktop, Wall-mount bracket, and TV top-mount enclosure measuring 302.5 × 124 × 184 mm and weighing 1650 g (1.65 kg). It operates across an environmental temperature range of 0°C to 40°C (32°F to 104°F) and relative humidity of 10% to 90% (Non-condensing). Powered via External Universal Power Adapter 100-240VAC 50/60Hz, Output 12VDC 5A, it ensures dependable continuous operation and structured integration into commercial networking racks and office work environments.
