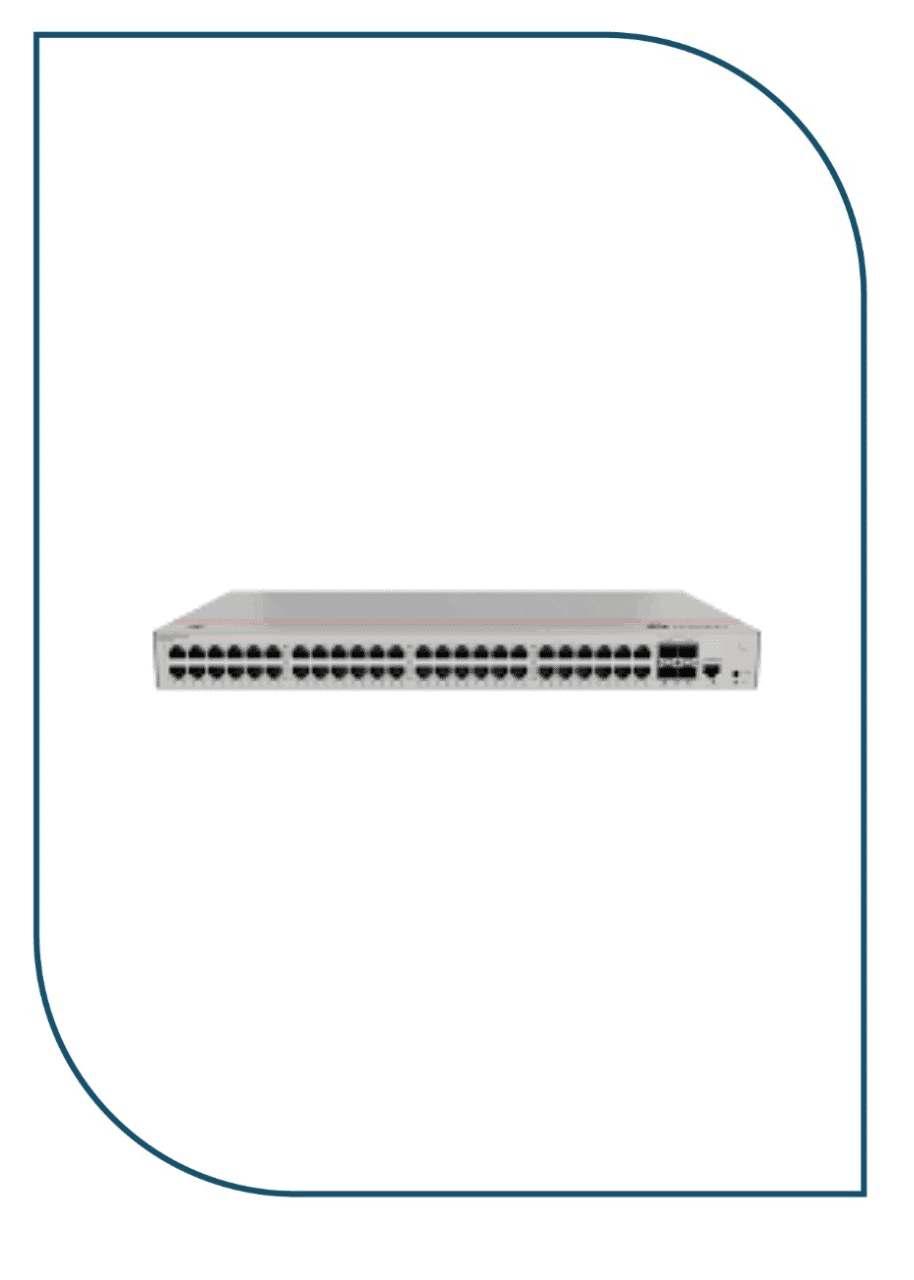

Huawei eKitEngine S220-48P4X Smart Managed PoE+ Switch (Model: S220-48P4X) is an enterprise 48-port Gigabit switch engineered with built-in AC power, a 380W PoE budget, and four 10-Gigabit SFP+ optical uplinks to deliver high-capacity power and 10G optical transport. It features 48 fixed 10/100/1000BASE-T Gigabit Ethernet ports compliant with IEEE 802.3at/af PoE+ with a 380W dedicated budget, and 4 dedicated 10GE SFP+ optical slots, delivering a switching bandwidth of 176 Gbps and a packet forwarding rate of 131 Mpps.
Housed in a standard 1U 19-inch rackmount metal chassis with internal AC power, the switch delivers enterprise Layer 2 management features including 802.1Q VLANs, Link Aggregation (LACP), Port Isolation, and IGMP Snooping with full cloud management via Huawei eKit.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine S220 Series |
| Model / SKU | S220-48P4X |
| Management Interface | Huawei eKit Cloud Platform, Mobile App, Web GUI |
| Downlink Ports | 48 × 10/100/1000BASE-T Gigabit Ethernet Ports (802.3at/af PoE+) |
| PoE Power Budget | 380W Dedicated PoE+ Power Budget |
| Uplink Interfaces | 4 × 10GE SFP+ Dedicated High-Speed Optical Slots |
| Switching Bandwidth | 176 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 131 Mpps |
| Layer 2 Management | 802.1Q VLANs, Link Aggregation (LACP), Port Mirroring, Loop Protection, IGMP Snooping |

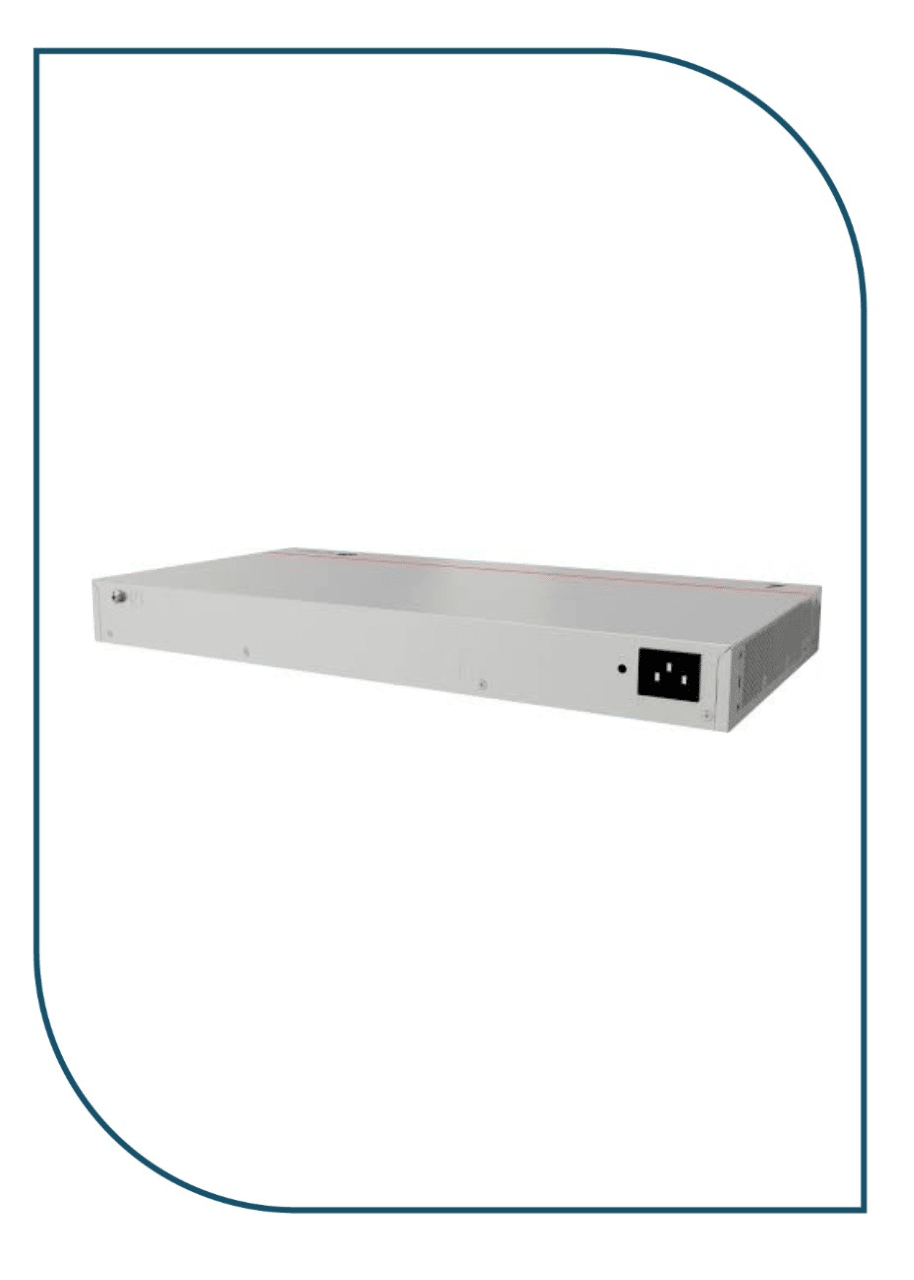

| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal AC Power |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Heavy-Duty Steel Enclosure |
| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- Quad 10G SFP+ Optical Uplinks: 4 dedicated 10GE SFP+ optical slots eliminate network bottlenecks to campus core backbones.
- High-Density 380W PoE+ Power: 48 Gigabit PoE+ ports deliver stable 802.3at/af power for dense APs, cameras, and VoIP phones.
- Wire-Speed Performance: Generates 176 Gbps switching bandwidth and 131 Mpps forwarding rate for high-concurrency traffic flows.
- Cloud & App Management: Remote network monitoring, topology visualization, and port management via Huawei eKit App.
- Layer 2 Management Suite: Full support for 802.1Q VLANs, LACP port trunking, spanning tree protocols, and IGMP snooping.
- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKitEngine S220-48P4X Smart Managed PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:
- Connecting 48 PoE endpoints to campus core networks over four high-speed 10G SFP+ optical fiber uplinks.
- Supplying high-power PoE+ and 10G optical backhaul for dense enterprise Wi-Fi 6 and Wi-Fi 7 wireless networks.
- Centralizing power and multi-gigabit video streaming for up to 48 commercial CCTV security cameras.
- Providing cloud-managed enterprise access with VLAN segmentation, ACL security policies, and DHCP services.
- Deploying high-density PoE access across corporate offices, healthcare facilities, and universities.
Installation & Operating Environment
The Huawei eKitEngine S220-48P4X Smart Managed PoE+ Switch features a standard 1U 19-inch rackmount metal chassis supplied with mounting brackets and rubber feet for immediate rack cabinet installation. Driven by an internal universal AC power supply, it maintains efficient thermal management and dependable continuous operation in enterprise facilities.
