Description
Aruba Instant On AP12 (EG) Dual-Band Wi-Fi 5 Indoor Access Point (Part Number: R2X02A) is a business-grade 802.11ac Wave 2 dual-radio indoor access point engineered to provide high-density wireless connectivity for growing small businesses, medical practices, boutique hotels, and tech startups. Operating under the Egypt (EG) regulatory profile, it delivers a real-world maximum aggregate data rate of 1.6 Gbps, powered by 3×3:3 MU-MIMO on the 5 GHz band (up to 1,300 Mbps) and 2×2:2 MIMO on the 2.4 GHz band (up to 300 Mbps). Multi-user MIMO architecture ensures smooth streaming and fast data transfers across multiple client devices concurrently.
The AP12 (EG) includes built-in Smart Mesh Wi-Fi technology to effortlessly extend wireless coverage to hard-to-wire locations without Ethernet cabling. It features an integrated Bluetooth Low Energy (BLE) radio for easy device onboarding and location services. Supporting WPA2/WPA3 enterprise encryption, built-in guest portal authorization, and automatic software updates, the AP12 is easily set up and administered from any smartphone via the Aruba Instant On mobile application or web portal.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Aruba Instant On Access Points |
| Model / SKU | Aruba Instant On AP12 (Part Number: R2X02A) |
| Regulatory Domain | Egypt (EG) |
| Wireless Standards | IEEE 802.11ac Wave 2, IEEE 802.11a/b/g/n |
| MIMO Configuration | 3×3:3 MU-MIMO on 5 GHz, 2×2:2 MIMO on 2.4 GHz |
| Maximum Aggregate Speed | 1.6 Gbps (1300 Mbps on 5 GHz + 300 Mbps on 2.4 GHz) |
| Recommended Client Capacity | Up to 75 active devices per access point |
| Wired Uplink Port | 1× 10/100/1000BASE-T Gigabit Ethernet RJ-45 (PoE-PD) |
| Integrated Bluetooth Radio | Bluetooth Low Energy (BLE) radio for onboarding and location |
| Mesh Wi-Fi Support | Built-in Smart Mesh technology for wireless network extension |
| Security Standards | WPA2, WPA3-Personal, WPA3-Enterprise, Enhanced Open (OWE) |
| Management Interface | Aruba Instant On Mobile App (Android/iOS) and Cloud Web Portal |
RF, Antenna & Power Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Antenna Architecture | Integrated downtilt omnidirectional antennas |
| Peak Antenna Gain | 3.9 dBi in 2.4 GHz, 5.4 dBi in 5 GHz |
| Conducted Transmit Power | +21 dBm in 5 GHz, +21 dBm in 2.4 GHz (max per chain) |
| Power over Ethernet (PoE-PD) | IEEE 802.3af (PoE Class 3) |
| Direct DC Power Option | 12 V DC nominal (±5%), circular plug (adapter sold separately) |
| Max Power Consumption | 13.0 W (PoE) / 12.0 W (DC) |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Dimensions (W × D × H) | 157 mm × 157 mm × 34 mm (6.18 in × 6.18 in × 1.34 in) |
| Unit Weight | 483 g (1.06 lbs) |
| Mounting Compatibility | Ceiling tile rail mount and solid flat surface mount bracket included |
| Operating Temperature Range | 0°C to +40°C (+32°F to +104°F) |
| Operating Humidity Range | 5% to 93% relative humidity (non-condensing) |
| Mean Time Between Failures (MTBF) | 1,116,000 hours (127 years) at +25°C |
| Environmental Certifications | UL 2043 plenum rating for installation in environmental air handling spaces |
Key Features & Capabilities
- Fast 802.11ac Wave 2 Wi-Fi: 3×3:3 MU-MIMO architecture delivers aggregate speeds up to 1.6 Gbps for seamless multimedia streaming.
- Smart Mesh Extension: Extends wireless network reach to out-of-reach areas without running expensive Ethernet cables.
- Effortless Mobile Setup: Complete network configuration and remote monitoring directly from the free Aruba Instant On smartphone app.
- Customizable Guest Access: Built-in captive portal with customizable logo, branding, and social login terms of service.
- WPA3 Enterprise Encryption: Latest wireless security standard safeguards sensitive business and customer communication.
- Plenum-Rated Durability: UL 2043 certification ensures compliance for installation above suspended acoustic ceiling spaces.
Recommended Applications
The Aruba Instant On AP12 (EG) Dual-Band Wi-Fi 5 Indoor Access Point is engineered for growing commercial workspaces, including:
- Medical clinics and legal practices requiring robust, segregated guest and private staff Wi-Fi.
- Boutique cafes and casual restaurants providing branded public Wi-Fi portals for patrons.
- Tech startup offices and coworking hubs connecting high volumes of laptops and mobile phones.
- Retail shops needing reliable wireless coverage for handheld inventory and barcode scanners.
- Ceiling plenum air spaces requiring fire-resistant UL 2043 certified network hardware.
Installation & Operating Environment

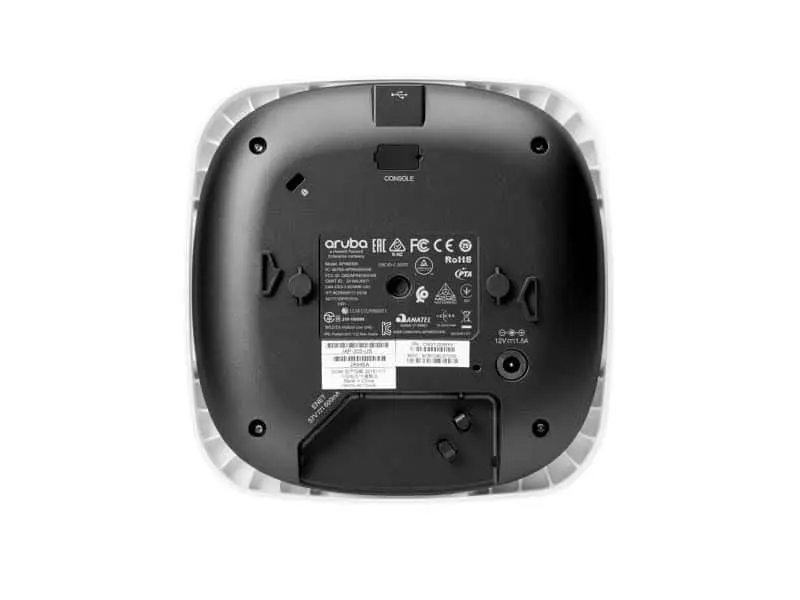

The Aruba Instant On AP12 (EG) access point features an attractive, low-profile white enclosure measuring 157 mm × 157 mm × 34 mm and weighing 483 g. The included dual-mount bracket attaches directly to 9/16-inch or 15/16-inch ceiling T-rails as well as solid flat walls or ceilings. Engineered for continuous operation from 0°C to +40°C and 5% to 93% non-condensing relative humidity, it is powered using standard 802.3af PoE or an optional external 12V DC power supply, ensuring clean aesthetics and rock-solid uptime.
