Description
Grandstream GXV Series GXV3370 7-Inch Android IP Video Phone (Model: GXV3370) is a Enterprise Smart Video Phone for Android engineered for executive offices, telemedicine suites, video collaboration rooms, and security monitoring desks. Provides 16 lines with up to 16 SIP accounts, a 7-inch 1024×600 capacitive 5-point touch screen, built-in tiltable mega-pixel camera with privacy shutter (720p @ 30fps), 3-way 720p video conferencing, and 7-way audio conferencing.
Powered by Android 7.0, it allows direct access to the Google Play Store for productivity and conferencing apps. It features dual switched Gigabit ports with integrated PoE/PoE+, dual-band Wi-Fi (802.11a/b/g/n), Bluetooth 4.0+EDR, HDMI output, and zero-touch deployment via GDMS.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | GXV Series |
| Model / SKU | GXV3370 |
| Capacity / Scale | 16 Lines, 16 SIP Accounts, 3-way 720p HD Video Conferencing, 7-way Audio Conferencing |
| Network / Telephony Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit RJ45 Ports with integrated PoE/PoE+; Wi-Fi; Bluetooth 4.0 |
| Packet / Voice Processing | H.264 BP/MP/HP; 720p @ 30fps; Opus, G.722, G.711u/a, G.729A/B; Advanced Acoustic Echo Cancellation |
| Expansion & Peripheral Ports | 1x HDMI Output, 1x USB 2.0 Port, 1x SD Card Slot, 1x 3.5mm Headset Jack, 1x RJ9 Headset Jack |
| Operating System / Management | Android 7.0; Web UI, GDMS Cloud, TR-069, HTTP/HTTPS, ZeroConfig |
| Power Supply Specifications | Universal Power Adapter included: Input 100-240VAC 50/60Hz; Output 12VDC 1.5A; Integrated PoE/PoE+ (802.3at) |
| Maximum Power Consumption | 18W |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Physical Dimensions (L × W × H) | 252 × 211 × 84 mm |
| Unit Weight | 1040 g (1.04 kg) |
| Chassis & Display | 7.0 inch (1024 × 600) capacitive 5-point touch screen TFT LCD; Built-in tiltable camera |
| Heat Dissipation / Cooling | Fanless natural heat dissipation (noise-free operation) |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Operating Relative Humidity | 10% to 90% (Non-condensing) |

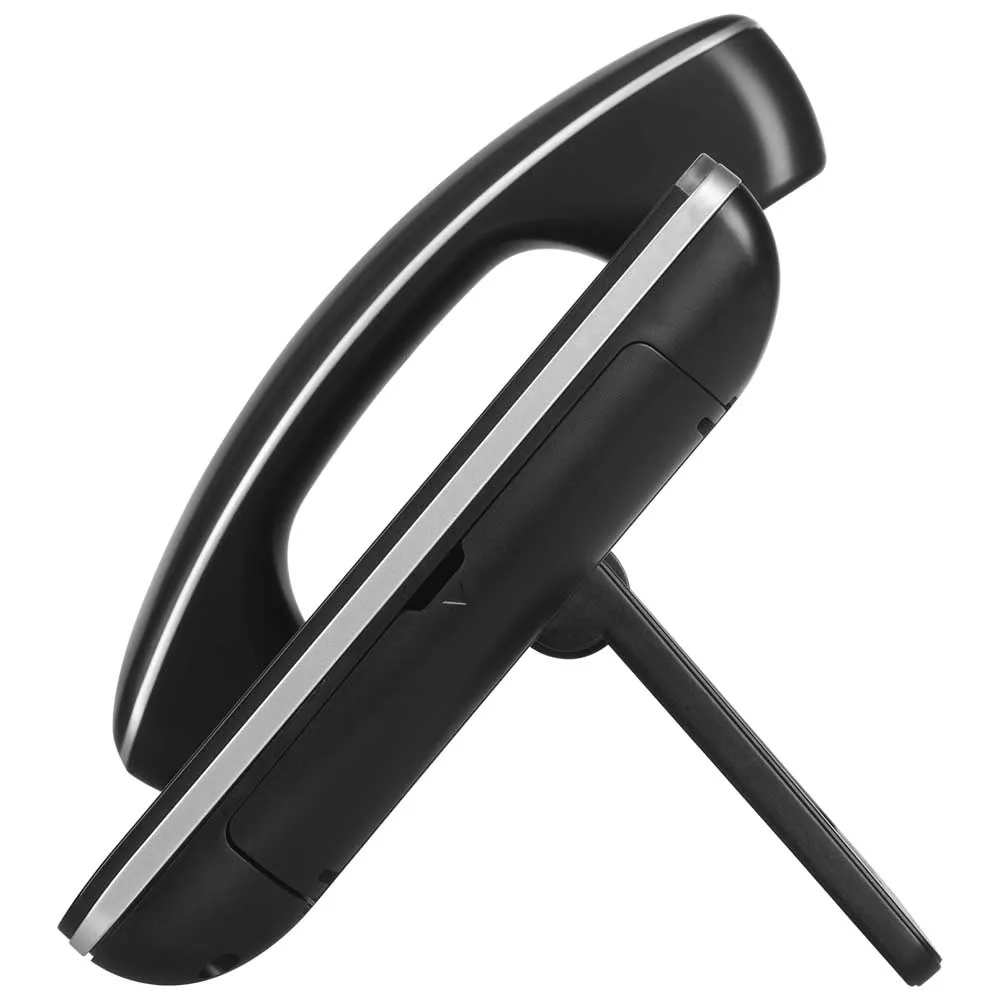

| Mounting Capabilities | Desktop stand (2 positions) and Wall-mount |
Key Features & Capabilities

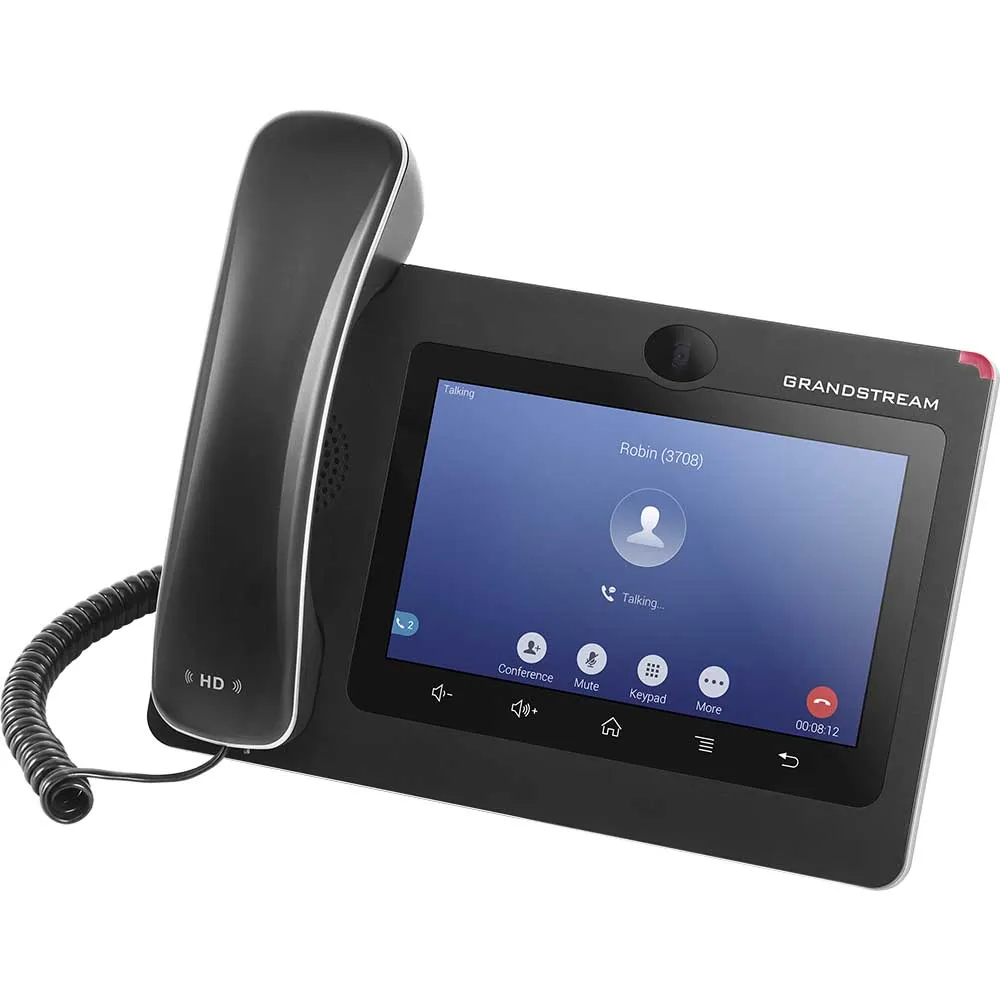

- 7-Inch Capacitive Touchscreen: High-resolution 1024×600 capacitive 5-point touch display provides tablet-like responsiveness.
- 720p HD Tiltable Camera: Integrated megapixel camera with privacy shutter delivers crisp 720p 30fps video collaboration.
- Android 7.0 Operating System: Full access to Android apps from the Google Play Store enhances enterprise productivity.
- Dual Gigabit Interfaces with PoE+: Dual Gigabit network ports with integrated PoE/PoE+ ensure rapid data transmission and simplified wiring.
- Wireless Collaboration: Integrated dual-band Wi-Fi eliminates Ethernet cables; Bluetooth 4.0 connects headsets and mobile phones.
- HDMI Display Output: Onboard HDMI output allows mirroring video calls onto large external conference room monitors.
Recommended Applications
The Grandstream GXV Series GXV3370 7-Inch Android IP Video Phone is designed for enterprise and commercial deployment scenarios, including:
- Executive office suites requiring personal Full-HD video and voice collaboration
- Telemedicine consultation suites connecting medical specialists with remote patients
- Door intercom and security monitoring stations streaming live IP camera video feeds
- Remote knowledge workers requiring seamless Android app and unified communications integration
- Financial advisory offices conducting face-to-face client video meetings
Installation & Operating Environment
The Grandstream GXV Series GXV3370 7-Inch Android IP Video Phone features a Desktop stand and Wall-mount enclosure measuring 252 × 211 × 84 mm and weighing 1040 g (1.04 kg). It operates across an environmental temperature range of 0°C to 40°C (32°F to 104°F) and relative humidity of 10% to 90% (Non-condensing). Powered via Universal Power Adapter included: Input 100-240VAC 50/60Hz; Output 12VDC 1.5A; Integrated PoE/PoE+ (802.3at), it ensures dependable continuous operation and structured integration into commercial networking racks and office work environments.
