Description
HPE OfficeConnect 1420 16G Unmanaged Gigabit Switch (Part Number: JH016A) is an enterprise-grade, unmanaged Layer 2 Gigabit Ethernet switch engineered for small businesses, commercial shops, and branch offices requiring reliable, plug-and-play wired connectivity with zero management complexity. It features 16 autosensing 10/100/1000BASE-T Gigabit RJ-45 copper ports that automatically negotiate speed and duplex mode. Delivering a non-blocking switching throughput of 32 Gbps and a packet forwarding rate of up to 23.8 Mpps, it provides seamless wired connectivity for workstations, network printers, NAS storage, and video equipment.
The 1420 16G features an innovative fanless thermal architecture that operates with complete 0 dB acoustic silence, making it suitable for deployment in open collaborative office areas, conference rooms, and reception counters. It incorporates automatic IEEE 802.1p traffic prioritization (QoS) to ensure latency-sensitive voice and video streams receive priority forwarding. Designed for eco-friendly operations, it complies with IEEE 802.3az Energy Efficient Ethernet standards to automatically conserve electricity on idle ports and short cable runs.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | HPE OfficeConnect 1420 Switch Series |
| Model / SKU | HPE 1420-16G Switch (Part Number: JH016A) |
| Switching Architecture | Unmanaged Layer 2 Gigabit Ethernet Switch |
| Gigabit Copper Ports | 16× RJ-45 autosensing 10/100/1000BASE-T ports (IEEE 802.3ab) |
| PoE Capability | Non-PoE model (data-only switching) |
| Switching Capacity | 32 Gbps |
| Throughput (Forwarding Rate) | Up to 23.8 Mpps (64-byte packets) |
| Latency | 1000 Mb Latency: < 8.0 μs (FIFO 64-byte packets) |
| Acoustic Level | 0 dB (Fanless silent operation) |
| MAC Address Table Size | 8,192 entries |
| Packet Buffer Size | 512 KB |
| Configuration & Setup | Plug-and-play unmanaged operation (zero configuration required) |
Switch Port, Stacking & Power Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Port Density | 16 Gigabit RJ-45 copper ports |
| PoE Capability | Non-PoE |
| Maximum Power Consumption | 12.0 W |
| Input Voltage Rating | 100 – 240 V AC auto-ranging internal power supply, 50/60 Hz |
| Acoustic Noise | Fanless silent operation (0 dB) |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet (EEE) compliant |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Dimensions (W × D × H) | 266.0 mm × 162.0 mm × 44.0 mm (10.47 in × 6.38 in × 1.73 in, 1U rackmount) |
| Unit Weight | 1.20 kg (2.65 lbs) |
| Mounting Options | 19-inch rack-mount (brackets included), wall mount, or tabletop |
| Operating Temperature Range | 0°C to +40°C (+32°F to +104°F) |
| Operating Humidity Range | 15% to 95% relative humidity at 40°C (non-condensing) |
| Mean Time Between Failures (MTBF) | 1,280,000 hours (146 years) |
| Safety & Compliance | UL 60950-1, IEC 60950-1, EN 60950-1, FCC Class A, CE Mark, RoHS compliant |
Key Features & Capabilities
- Plug-and-Play Simplicity: Unmanaged zero-configuration operation delivers instant high-speed Gigabit connectivity out of the box.
- Fanless Silent Operation: Complete 0 dB acoustic silence makes it perfect for deployment in noise-sensitive open office environments.
- Wire-Speed Gigabit Performance: 32 Gbps switching capacity ensures seamless local data transfers without bottlenecking network flow.
- Automated Traffic Prioritization: Built-in IEEE 802.1p Quality of Service automatically prioritizes time-critical voice and video data.
- Energy Efficient Ethernet: Complies with IEEE 802.3az standards to automatically reduce energy consumption on inactive ports.
- Flexible Mounting Architecture: Ships complete with mounting brackets for equipment racks, walls, or tabletop placement.
Recommended Applications
The HPE OfficeConnect 1420 16G Unmanaged Gigabit Switch is engineered for straightforward small commercial deployments, including:
- Small business offices seeking unmanaged plug-and-play Gigabit wired connections for employee computers.
- Retail shops, boutiques, and bakeries connecting POS terminals, barcode scanners, and thermal receipt printers.
- Conference rooms and executive suites requiring completely silent network hardware.
- Security desks and reception lobbies connecting desktop surveillance monitors and local workstations.
- Compact 10-inch or standard 19-inch equipment racks and telecommunications cabinets.
Installation & Operating Environment

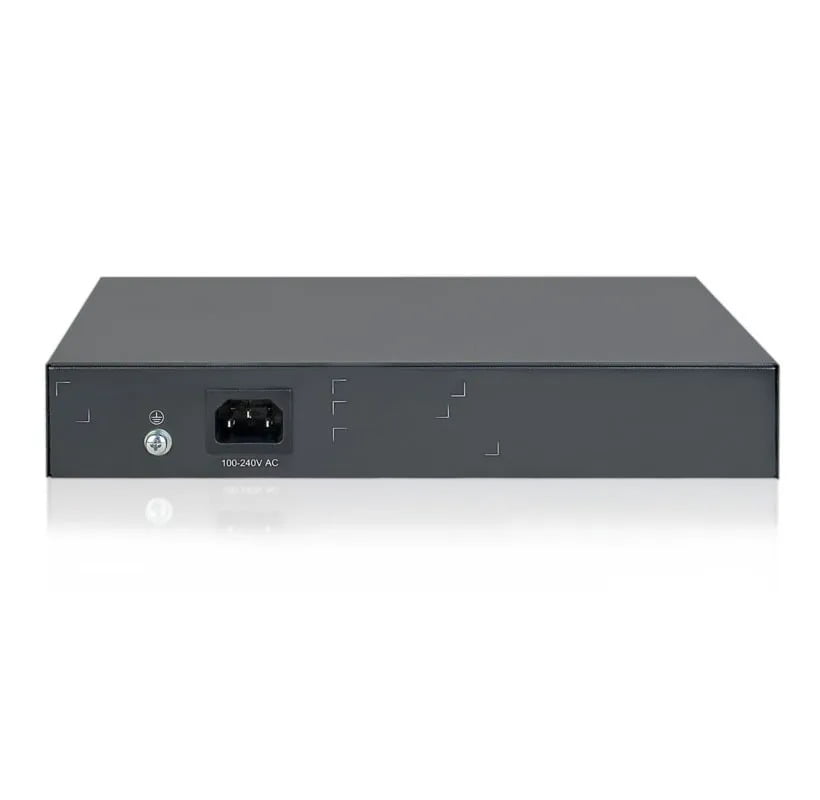

The HPE OfficeConnect 1420 16G switch features a compact, fanless steel chassis measuring 266.0 mm × 162.0 mm × 44.0 mm and weighing 1.20 kg. It comes complete with 19-inch rackmount brackets, wall-mounting screws, and rubber feet for tabletop installations. Designed for continuous enterprise service between 0°C and +40°C and 15% to 95% non-condensing relative humidity, its integrated internal power supply (100-240V AC) consumes a maximum of only 12W, providing reliable, energy-saving network performance.
