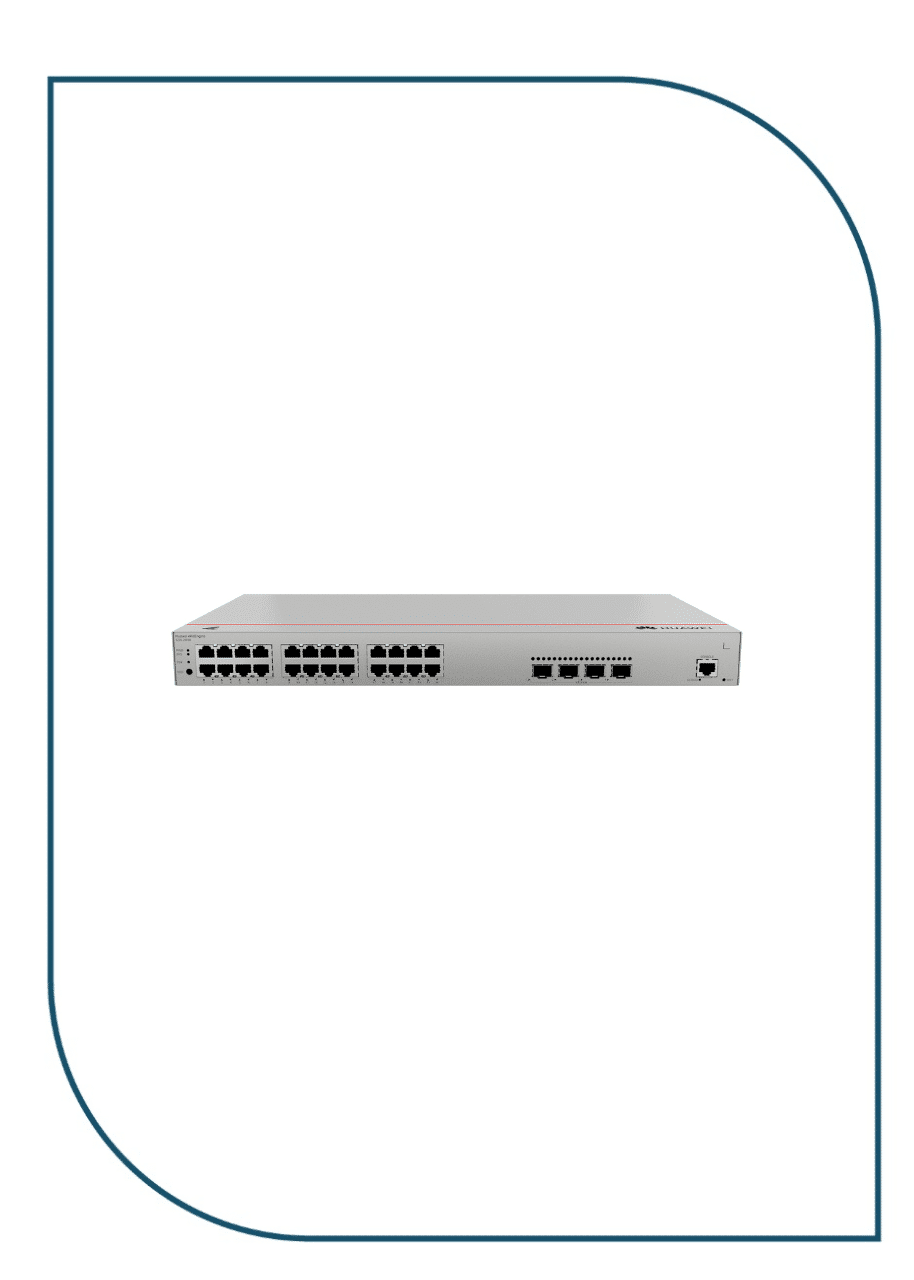

Huawei eKitEngine S220-24P4X Smart Managed PoE+ Switch (Model: S220-24P4X) is a high-bandwidth enterprise access switch engineered with built-in AC power, 400W of PoE+ capacity, and four 10-Gigabit SFP+ optical uplinks to deliver high-capacity power and 10G optical connectivity. It incorporates 24 fixed 10/100/1000BASE-T Gigabit Ethernet ports compliant with IEEE 802.3at/af PoE+ with a 400W dedicated budget, and 4 dedicated 10GE SFP+ optical slots, delivering a switching bandwidth of 128 Gbps and a packet forwarding rate of 95 Mpps.
Housed in a standard 1U 19-inch rackmount metal chassis with internal AC power, the switch delivers enterprise Layer 2 management features including 802.1Q VLANs, Link Aggregation (LACP), Port Isolation, and IGMP Snooping with full cloud management via Huawei eKit.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine S220 Series |
| Model / SKU | S220-24P4X |
| Management Interface | Huawei eKit Cloud Platform, Mobile App, Web GUI |
| Downlink Ports | 24 × 10/100/1000BASE-T Gigabit Ethernet Ports (802.3at/af PoE+) |
| PoE Power Budget | 400W Dedicated PoE+ Power Budget |
| Uplink Interfaces | 4 × 10GE SFP+ Dedicated High-Speed Optical Slots |
| Switching Bandwidth | 128 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 95 Mpps |
| Layer 2 Management | 802.1Q VLANs, Link Aggregation (LACP), Port Mirroring, Loop Protection, IGMP Snooping |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal AC Power |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Heavy-Duty Steel Enclosure |
| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- Quad 10G SFP+ Optical Uplinks: 4 dedicated 10GE SFP+ optical slots provide high-speed uplinks to core network backbones.
- Massive 400W PoE+ Power: 24 Gigabit PoE+ ports deliver stable 802.3at/af power for high-density APs, cameras, and VoIP phones.
- Wire-Speed Performance: Generates 128 Gbps switching bandwidth and 95 Mpps forwarding rate for high-throughput enterprise traffic.
- Cloud & App Management: Remote network monitoring, topology visualization, and port management via Huawei eKit App.
- Layer 2 Management Suite: Full support for 802.1Q VLANs, LACP port trunking, spanning tree protocols, and IGMP snooping.
- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKitEngine S220-24P4X Smart Managed PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:
- Connecting 24 PoE endpoints to campus core networks over four high-speed 10G SFP+ optical fiber uplinks.
- Supplying high-power PoE+ and 10G optical backhaul for dense enterprise Wi-Fi 6 and Wi-Fi 7 wireless deployments.
- Centralizing power and multi-gigabit video streaming for 24 commercial CCTV security cameras.
- Providing cloud-managed enterprise access with VLAN segmentation, ACL security policies, and DHCP services.
- Deploying high-density PoE access across corporate offices, healthcare facilities, and universities.
Installation & Operating Environment
The Huawei eKitEngine S220-24P4X Smart Managed PoE+ Switch features a standard 1U 19-inch rackmount metal chassis supplied with mounting brackets and rubber feet for immediate rack cabinet installation. Driven by an internal universal AC power supply, it maintains efficient thermal management and dependable continuous operation in enterprise facilities.
