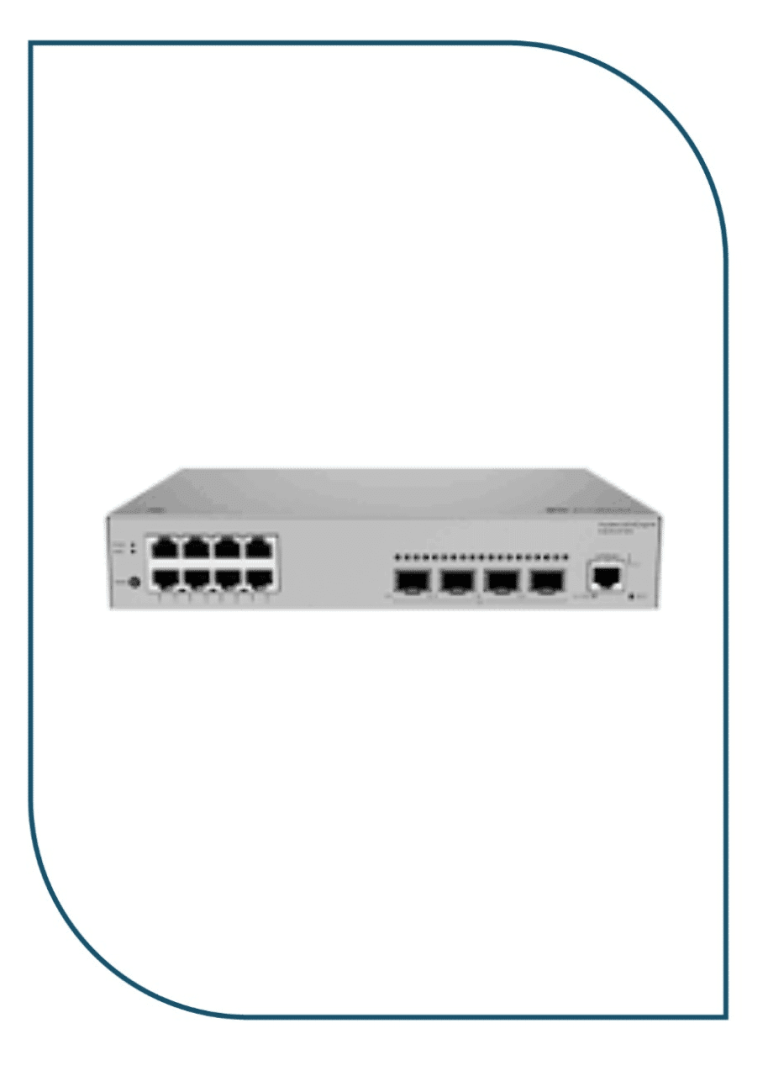

Huawei eKitEngine S220-8P4S Smart Managed PoE+ Switch (Model: S220-8P4S) is a versatile 8-port Gigabit switch engineered with 125W of PoE+ power, built-in AC supply, and four optical SFP uplinks to provide reliable power and data for smart office networks. It features 8 fixed 10/100/1000BASE-T Gigabit Ethernet ports compliant with IEEE 802.3at/af PoE+ sharing a 125W dedicated budget, and 4 dedicated GE SFP optical transceiver slots, achieving 24 Gbps switching bandwidth and 18 Mpps packet forwarding throughput.
Housed in a standard 1U 19-inch rackmount metal chassis with internal AC power, the switch delivers enterprise Layer 2 management features including 802.1Q VLANs, Link Aggregation (LACP), Port Mirroring, and IGMP Snooping with full cloud management via Huawei eKit.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine S220 Series |
| Model / SKU | S220-8P4S |
| Downlink Ports | 8 × 10/100/1000BASE-T Gigabit Ethernet Ports (802.3at/af PoE+) |
| PoE Power Budget | 125W Dedicated PoE+ Power Budget (Up to 30W per Port) |
| Uplink Interfaces | 4 × GE SFP Dedicated Optical Slots |
| Switching Capacity | 24 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 18 Mpps |
| Power Supply | Built-In Universal AC Power Supply |
| Smart Management | Huawei eKit Cloud Platform, Mobile App, Web GUI, VLANs, QoS |
| Form Factor | Standard 1U Rackmount / Desktop Enclosure |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Compact Desktop / 1U Rackmount Compatible |
| Heat Dissipation Mode | Fanless, Natural Heat Dissipation |
| Acoustic Profile | Noise-Free Operation |
| Chassis Construction | Heavy-Gauge Steel Enclosure |
| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- 125W Dedicated PoE+ Budget: 8 Gigabit PoE+ ports deliver up to 30W per port with a 125W total budget to power APs and PTZ cameras.
- Wire-Speed Performance: Generates 24 Gbps switching bandwidth and 18 Mpps forwarding rate for smooth commercial network operation.
- Quad SFP Optical Uplinks: 4 dedicated GE SFP optical slots provide reliable fiber backhaul and network redundancy.
- Cloud & App Management: Remote network monitoring, topology visualization, and port management via Huawei eKit App.
- Layer 2 Management Suite: Full support for 802.1Q VLANs, LACP port trunking, spanning tree protocols, and IGMP snooping.
- Standard 1U Metal Chassis: 19-inch rackmount metal enclosure includes complete mounting brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKitEngine S220-8P4S Smart Managed PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:
- Powering 8 high-definition security cameras with 125W dedicated PoE+ budget in IP video surveillance.
- Supplying PoE+ power and Gigabit throughput to office wireless access points.
- Clean single-cable power and data distribution for corporate IP phones.
- Four SFP optical ports providing redundant fiber links to core switches.
- Deploying high-capacity power and data distribution across commercial facilities, hotels, and clinics.
Installation & Operating Environment
The Huawei eKitEngine S220-8P4S Smart Managed PoE+ Switch features a standard 1U 19-inch rackmount metal chassis supplied with a complete bracket kit and rubber feet for seamless installation in commercial server racks. Powered by an internal universal AC power supply, it maintains efficient thermal balance and reliable uptime in enterprise networking racks.
