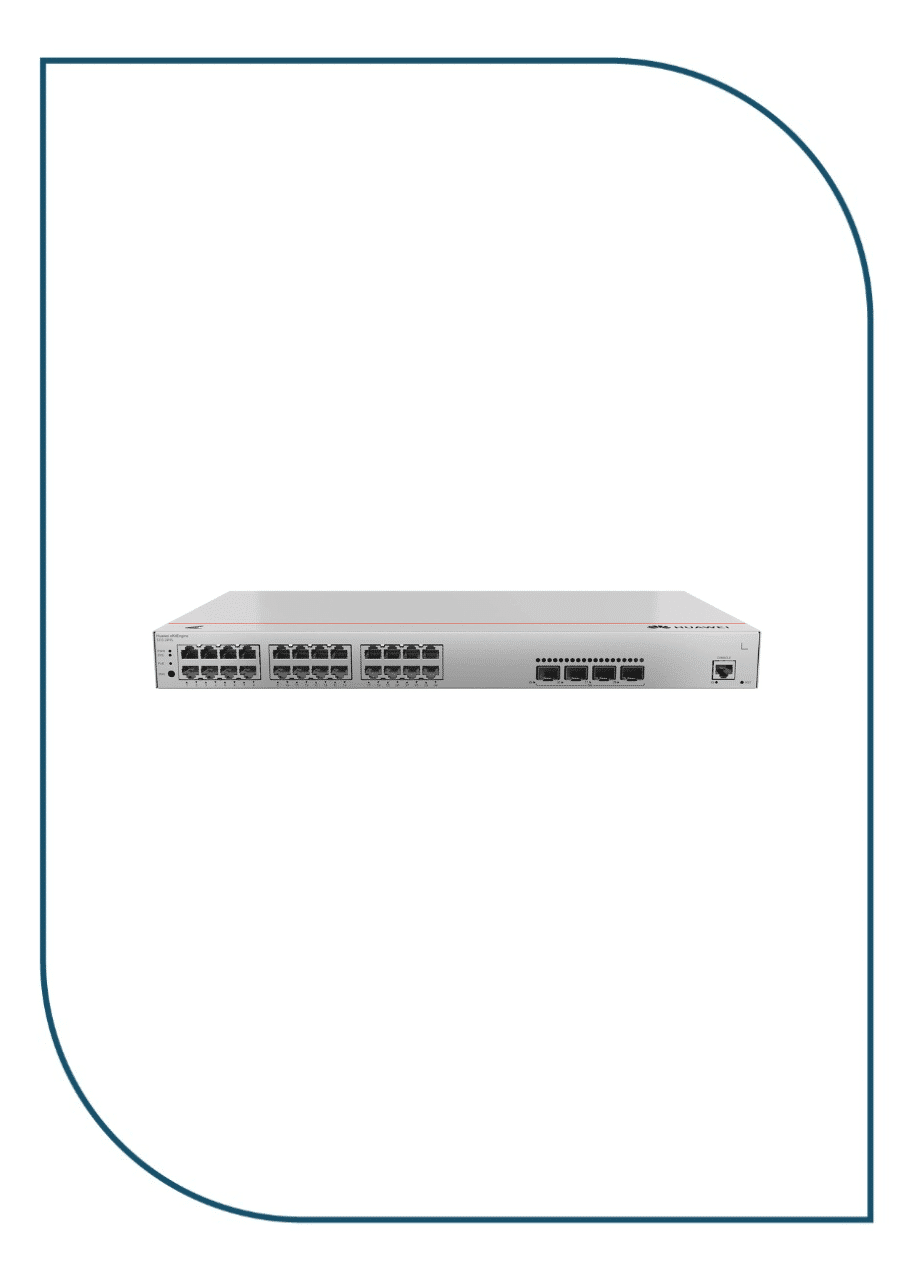

Huawei eKitEngine S310-24P4S Managed PoE+ Switch (Model: S310-24P4S) is an enterprise Layer 2+ access switch engineered with 400W of PoE+ capacity and four optical SFP uplinks to deliver high-capacity power and data for commercial business networks. It features 24 fixed 10/100/1000BASE-T Gigabit Ethernet ports compliant with IEEE 802.3at/af PoE+ providing up to 30W per port with a 400W dedicated budget, and 4 dedicated GE SFP optical transceiver slots, achieving 56 Gbps switching bandwidth and 42 Mpps packet forwarding throughput.
Housed in a standard 1U 19-inch rackmount metal chassis with internal AC power, the switch delivers enterprise Layer 2+ features including Static Routing, 802.1Q VLANs, Link Aggregation (LACP), STP/RSTP/MSTP, IGMP Snooping, and Access Control Lists (ACLs). Management is supported across the Huawei eKit Cloud Platform, Web GUI, full CLI via SSH/Console, and SNMP.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine S310 Series |
| Model / SKU | S310-24P4S |
| Management Interface | Huawei eKit Cloud Platform, Web GUI, Full CLI via SSH/Console, SNMP |
| Downlink Ports | 24 × 10/100/1000BASE-T Gigabit Ethernet Ports (802.3at/af PoE+) |
| PoE Power Budget | 400W Dedicated PoE+ Power Budget (Up to 30W per Port) |
| Uplink Interfaces | 4 × GE SFP Dedicated Optical Slots |
| Switching Bandwidth | 56 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 42 Mpps |
| Layer 2+ Capabilities | Static Routing, 802.1Q VLANs, LACP, STP/RSTP/MSTP, IGMP Snooping, ACLs |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal AC Power |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Industrial-Grade Steel Housing |

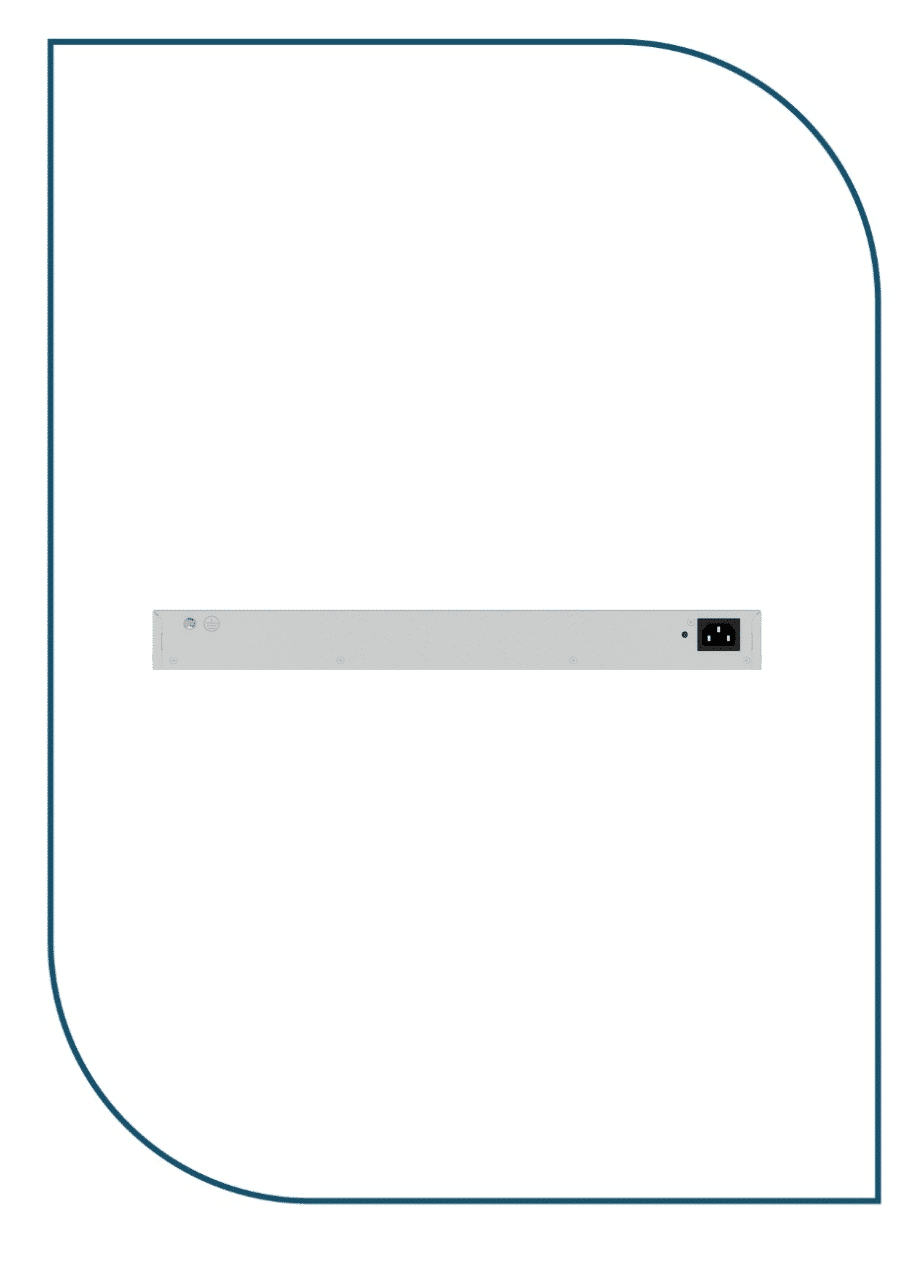

| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- Heavy-Duty 400W PoE+ Power: 24 Gigabit PoE+ ports deliver up to 30W per port with a 400W dedicated budget to power APs and PTZ cameras.
- Wire-Speed Performance: Generates 56 Gbps switching bandwidth and 42 Mpps forwarding rate for smooth commercial network operation.
- Quad SFP Optical Uplinks: 4 dedicated GE SFP optical slots provide reliable fiber backhaul and network redundancy.
- Layer 2+ Static Routing: Hardware-based IPv4 static routing simplifies traffic flow between departmental subnets.
- Comprehensive Management: Full CLI via SSH/Console, SNMP monitoring, Web GUI, and cloud management via Huawei eKit.
- Standard 1U Metal Chassis: 19-inch rackmount metal enclosure includes complete mounting brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKitEngine S310-24P4S Managed PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:
- High-power PoE+ deployments utilizing 400W budget powering 24 PoE+ APs, PTZ cameras, and video phones.
- Enterprise departmental switching requiring Layer 2+ static routing and VLAN segmentation for corporate offices.
- Commercial CCTV surveillance supplying stable PoE+ power to 24 cameras with fiber uplinks to NVRs.
- Cloud-managed multi-site IT enabling remote configuration, monitoring, and firmware updates via Huawei eKit.
- Deploying high-capacity power and data distribution across commercial facilities, hotels, and clinics.
Installation & Operating Environment
The Huawei eKitEngine S310-24P4S Managed PoE+ Switch features a standard 1U 19-inch rackmount metal chassis supplied with a complete bracket kit and rubber feet for seamless installation in commercial server racks. Powered by an internal universal AC power supply, it maintains efficient thermal balance and reliable uptime in enterprise networking racks.
