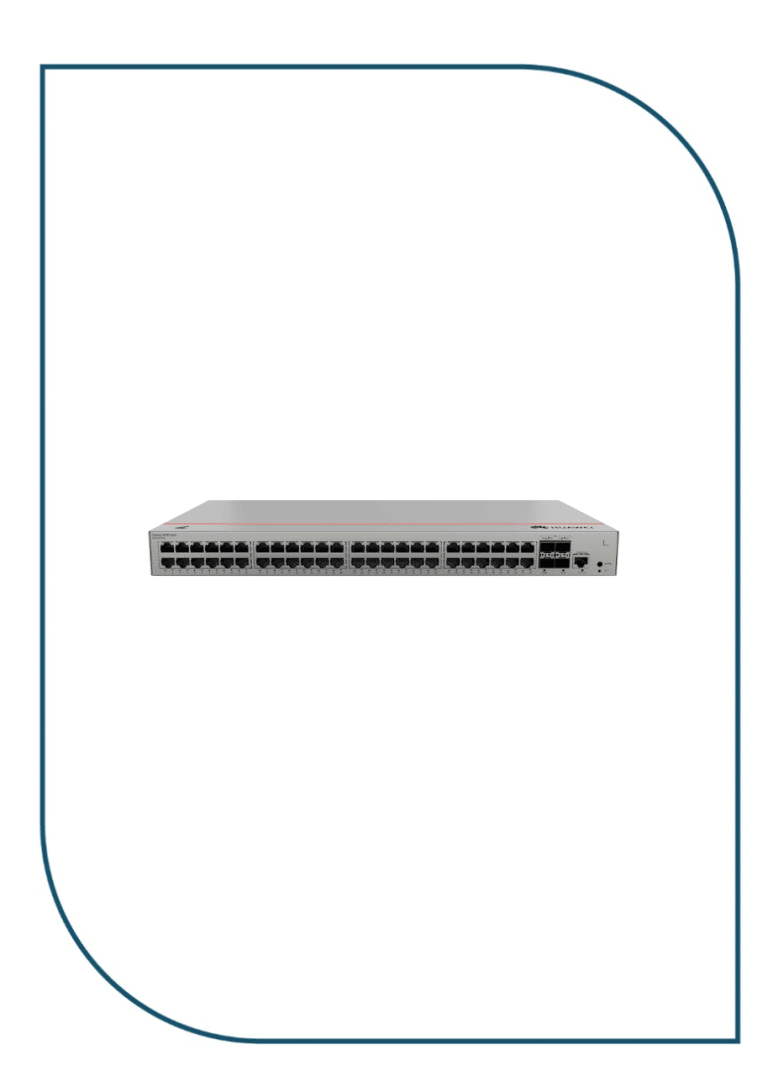

Huawei eKitEngine S310-48P4S Managed PoE+ Switch (Model: S310-48P4S) is a high-density 48-port Gigabit switch engineered with 380W of PoE+ capacity and four optical SFP uplinks to deliver high-capacity power and data for commercial business networks. It provides 48 fixed 10/100/1000BASE-T Gigabit Ethernet ports compliant with IEEE 802.3at/af PoE+ sharing a 380W dedicated budget, and 4 dedicated GE SFP optical transceiver slots, delivering 104 Gbps switching bandwidth and 77 Mpps forwarding throughput.
Housed in a standard 1U 19-inch rackmount metal chassis with internal AC power, the switch delivers enterprise Layer 2+ capabilities including Static Routing, 802.1Q VLANs, Link Aggregation (LACP), STP/RSTP, and IGMP Snooping. Management is supported through the Huawei eKit Cloud Platform, Web GUI, full CLI via SSH/Console, and SNMP.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine S310 Series |
| Model / SKU | S310-48P4S |
| Management Interface | Huawei eKit Cloud Platform, Web GUI, Full CLI via SSH/Console, SNMP |
| Downlink Ports | 48 × 10/100/1000BASE-T Gigabit Ethernet Ports (802.3at/af PoE+) |
| PoE Power Budget | 380W Dedicated PoE+ Power Budget |
| Uplink Interfaces | 4 × GE SFP Dedicated Optical Slots |
| Switching Bandwidth | 104 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 77 Mpps |
| Layer 2+ Capabilities | Static Routing, 802.1Q VLANs, Link Aggregation (LACP), STP/RSTP, IGMP Snooping |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal AC Power |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Heavy-Gauge Steel Enclosure |
| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- High Port Density PoE+: 48 Gigabit PoE+ ports deliver stable 802.3at/af power and data with a 380W dedicated budget.
- Wire-Speed Performance: Generates 104 Gbps switching bandwidth and 77 Mpps forwarding rate for high-concurrency commercial networks.
- Quad SFP Optical Uplinks: 4 dedicated GE SFP optical slots enable redundant fiber uplinks to core network switches.
- Layer 2+ Static Routing: Hardware-based IPv4 static routing simplifies traffic flow between departmental subnets.
- Comprehensive Management: Full CLI via SSH/Console, SNMP monitoring, Web GUI, and cloud management via Huawei eKit.
- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets and screws.
Recommended Applications
The Huawei eKitEngine S310-48P4S Managed PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:
- Powering up to 48 desktop IP phones with Voice VLAN QoS traffic prioritization in corporate offices.
- Consolidating 48 IP security cameras onto a single managed power switch for commercial CCTV surveillance.
- Supplying PoE+ power and Gigabit throughput to distributed office Wi-Fi 6 wireless access points.
- Simplified mass provisioning and remote diagnostics for multi-branch IT via the Huawei eKit App.
- Deploying high-density PoE access across hospitality facilities, medical clinics, and school campuses.
Installation & Operating Environment
The Huawei eKitEngine S310-48P4S Managed PoE+ Switch features a standard 1U 19-inch rackmount metal chassis supplied with mounting brackets and screws for immediate rack cabinet installation. Powered by an internal universal AC power supply, it maintains efficient thermal management and dependable continuous operation in enterprise facilities.
