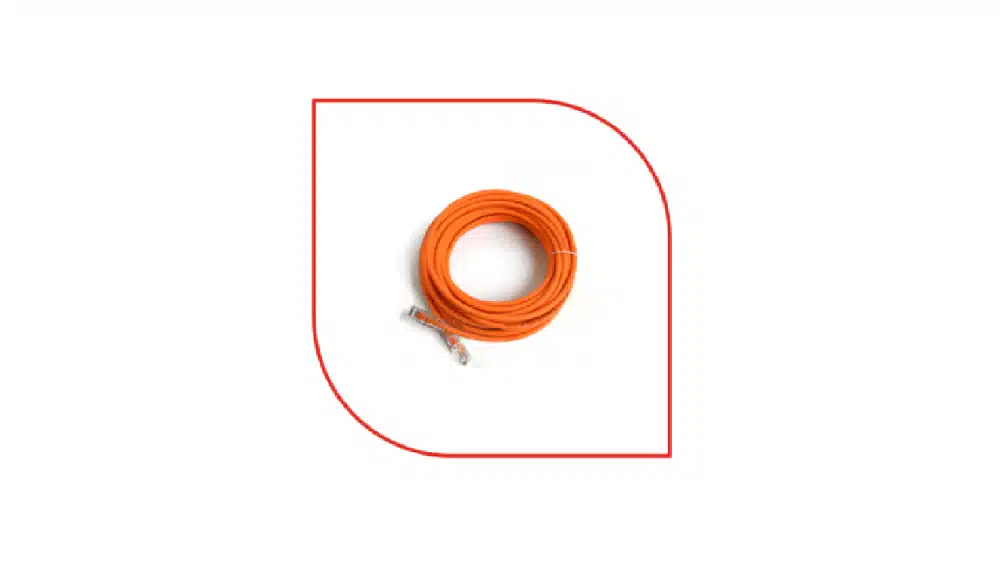

ProLink CAT6 Patch Cord 5m LSZH Orange (Model: PL-PC-U6-5OR) is a professional Category 6 U/UTP Ethernet patch cord designed for structured cabling systems. It is intended to connect network equipment with patch panels and telecommunications outlets, providing reliable Ethernet connectivity across enterprise LAN infrastructure.
Built to meet the performance requirements of Category 6 Class E according to ISO/IEC 11801, this cable maintains a characteristic impedance of 100 ohms and supports reliable Ethernet data transmission at frequencies up to 250 MHz. It is fully backward compatible with Cat5e infrastructure, making it suitable for network upgrades and new installations.
Technical Specifications
| Component / Property | Technical Value |
|---|---|
| Product Name | ProLink CAT6 Patch Cord 5m LSZH Orange |
| Manufacturer SKU | PL-PC-U6-5OR |
| Cable Architecture | 4-Pair U/UTP (Unshielded) |
| Cable Category | Category 6, Class E (Up to 250 MHz) |
| Wiring Standard | T568B |
| Cable Length | 5 Meters |
| Conductor Specification | AWG23/7 |
| Jacket Material | LSZH (Low Smoke Zero Halogen), Orange |
| Maximum Outer Diameter | 6.0 mm |
| Connector Standard | IEC 60603-7 Compliant |
| Contact Material | Phosphor bronze (CuSn6) |
| Contact Plating | 0.7 µm selective gold plate |
| Plug Housing | Polycarbonate |
| Characteristic Impedance | 100 ohms |
Electrical Characteristics
| Electrical Parameter | Value |
|---|---|
| Current Rating | 1.5A (maximum @ 25°C) |
| Voltage Rating | 150 VAC (maximum) |
| Dielectric Withstanding | 1000 VAC, 1 min (60 Hz) |
| Insulation Resistance | 250 MOhm (minimum) |
Key Features
- Category 6 Performance: Meets the performance requirements of Category 6 Class E (250MHz) in accordance with ISO/IEC 11801 for reliable Ethernet connectivity.
- Reliable Electrical Conductivity: Phosphor bronze (CuSn6) contacts with 0.7 µm selective gold plating provide dependable electrical conductivity and long-term connector durability.
- Wide-Function Strain Relief: Integrated strain relief helps protect the cable termination while supporting cable identification through labeling or color coding.
- Backward Compatibility: Compatible with existing Cat5e structured cabling systems, simplifying network upgrades without replacing installed infrastructure.
- Enhanced Fire Safety: The LSZH (Low Smoke Zero Halogen) jacket helps reduce the emission of dense smoke and corrosive gases during fire, making it suitable for enclosed environments.
- Factory-Tested Quality: Each patch cord is individually tested and quality marked before shipment to help ensure compliance with the manufacturer’s published specifications.
Recommended Applications
- Structured cabling systems.
- Enterprise LAN infrastructure.
- Structured cabling installations using color-coded cable management.
- Patch panels and telecommunications outlets.
- Server rooms and network cabinets.
- Office and commercial Ethernet installations.
- Gigabit Ethernet network connections.
- Category 6 and legacy Cat5e network deployments.
