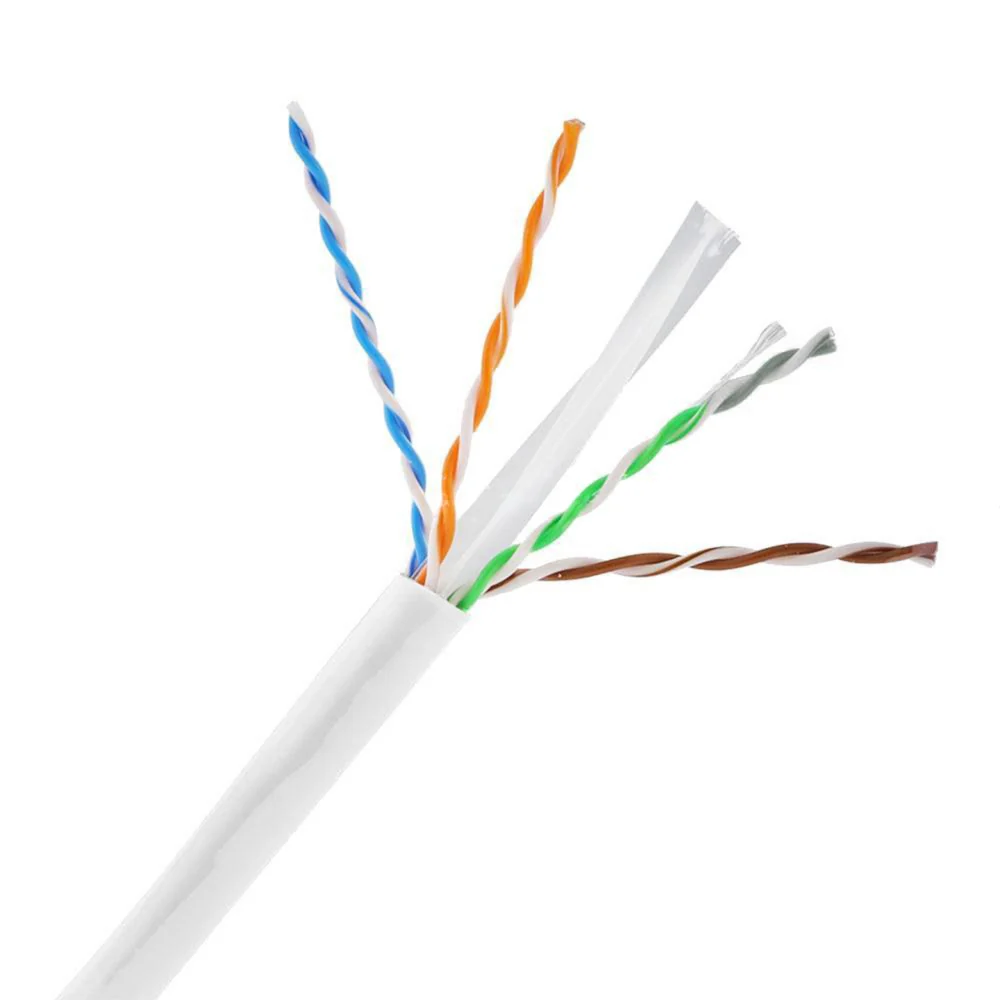

The ProLink CAT6 U/UTP PVC Cable (Model: PL-C6-PVC-W) is a professional structured cabling solution designed for campus, riser, and horizontal network deployments. Housed in a durable white PVC jacket, the cable features four pairs of AWG23 solid copper wire separated by a non-metallic cross separator (spline) designed to reduce pair-to-pair crosstalk. Unlike standard indoor cables, this ProLink model is filled with a specialized compound to prevent water penetration, helping maintain electrical performance even in continuous wet conditions.
It fully complies with ISO/IEC 11801 and EN 50288-6-1 standards, supporting Gigabit Ethernet applications as well as IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) deployments.
Technical Specifications
| Engineering Parameter | Datasheet Certified Value |
|---|---|
| Product Model / SKU | PL-C6-PVC-W |
| Conductor Specification | Solid copper wire AWG23 (Ø 0.58mm) |
| Insulation Material | Polyethylene (≤ Ø 1.1 mm) |
| Cable Core Setup | 4 pairs to the core with a non-metallic cross separator (spline) |
| Outer Jacket | White PVC |
| Nominal Outer Diameter | 7.2 mm |
| Environmental Protection | Compound-filled for migration and water protection (IEC 60794-1-2F5, method B) |

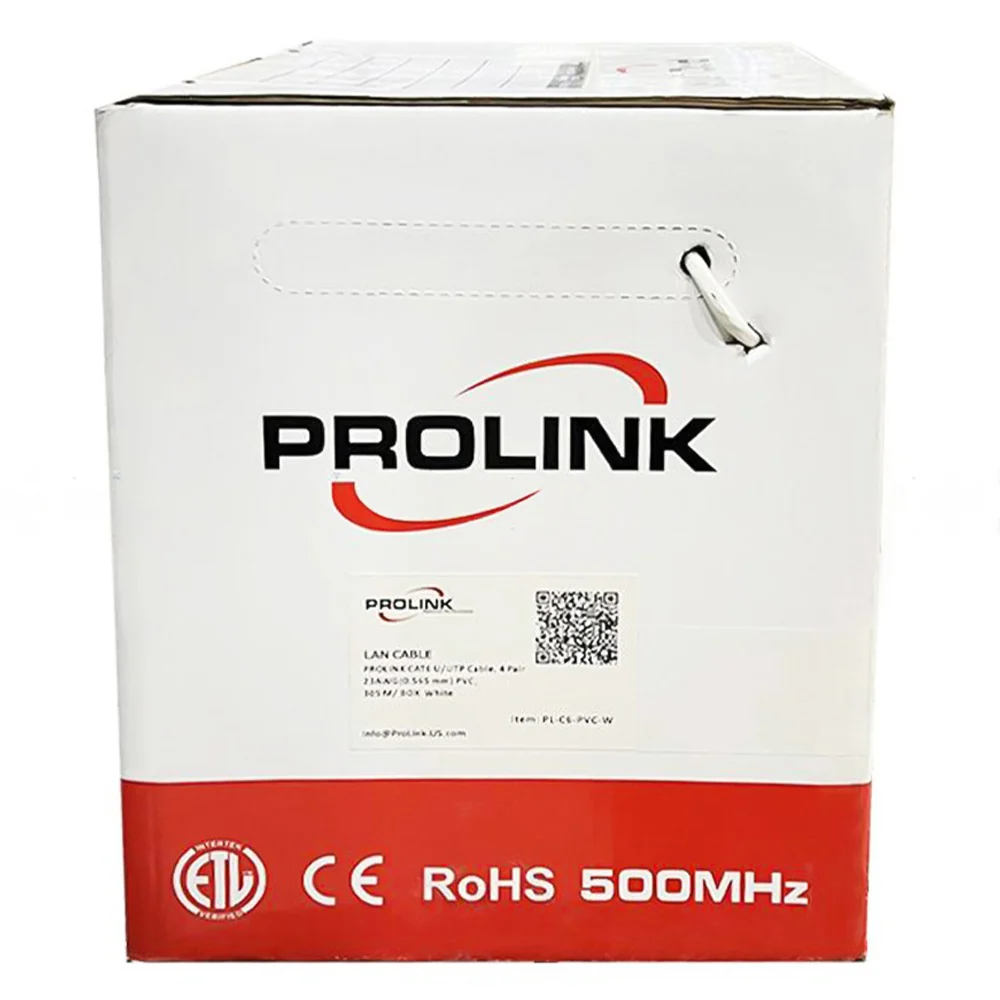

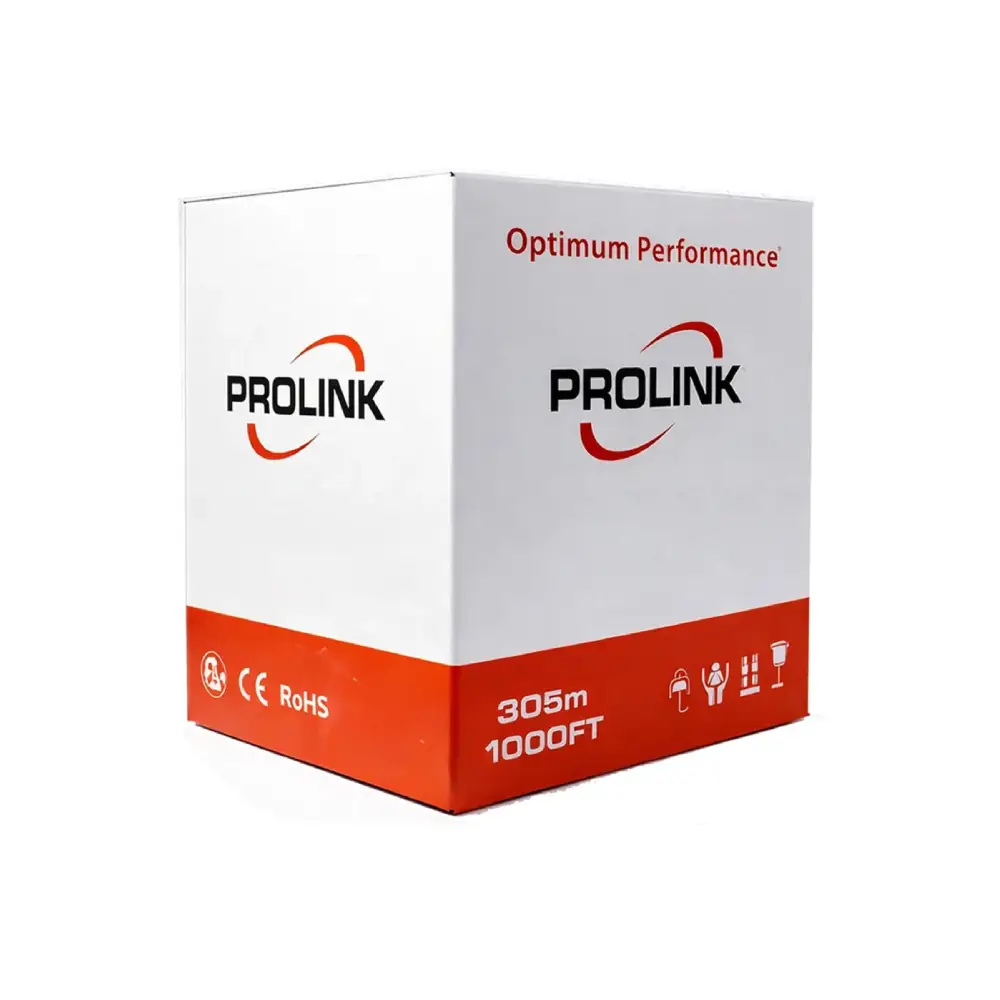

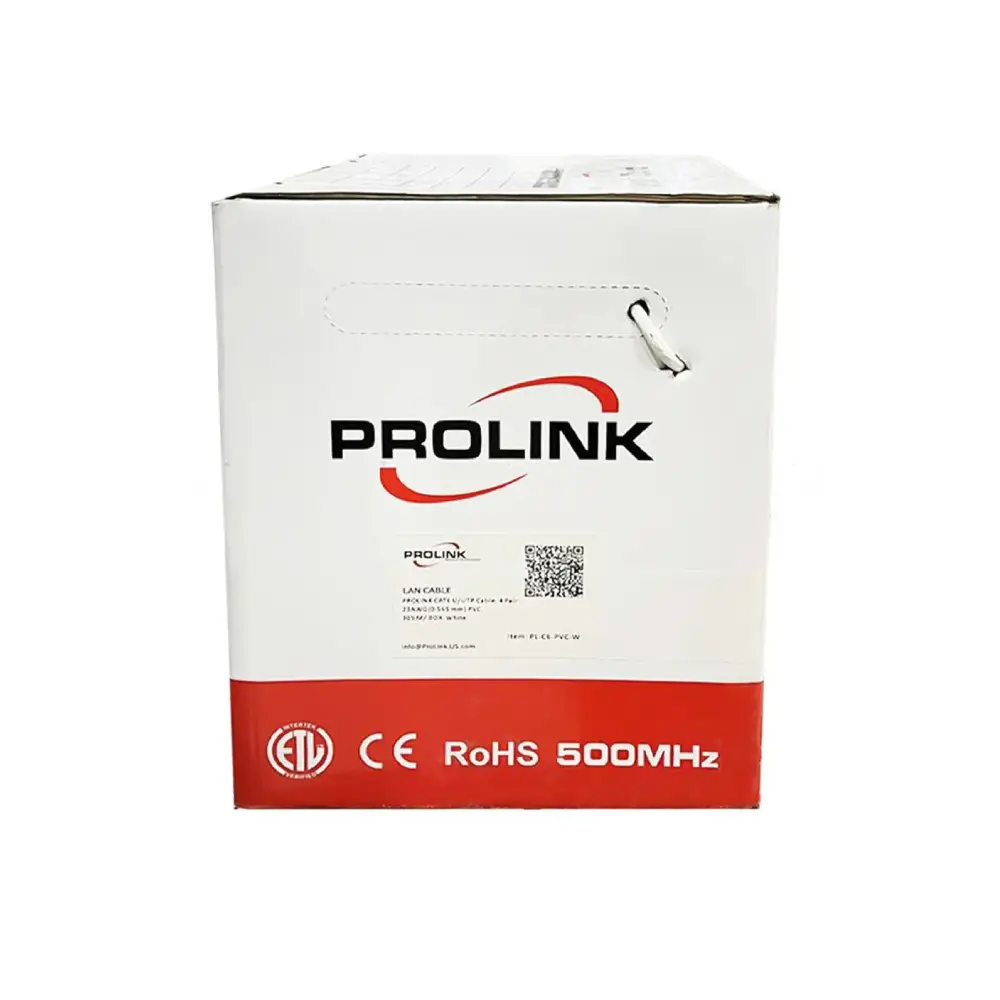

| Packaging | Drum 305 (305 meters) |
| Cable Weight | 20 kg/km |
Typical Deployment Environments
The ProLink CAT6 U/UTP PVC Cable is suitable for structured cabling installations in enterprise offices, educational institutions, commercial buildings, campus networks, telecommunications rooms, and data infrastructure projects requiring reliable Gigabit Ethernet connectivity.
Mechanical & Thermal Properties
| Property | Value |
|---|---|
| Tensile Force | 100 N |
| Bending Radius (Operation) | ≥ 33 mm (without load) |
| Bending Radius (Installation) | ≥ 65 mm (with load) |
| Temperature Range (Operation) | -55°C to +60°C |
| Temperature Range (Installation) | -15°C to +50°C |
| Thermal Load | 1884 MJ/km |
Electrical Characteristics (at 20°C ± 5°C)
| Characteristic | Measurement |
|---|---|
| DC Loop Resistance | ≤ 17.6 Ω/100 m |
| Resistance Unbalance | ≤ 2% |
| Test Voltage | DC, 1 min, core/core 1000 V |
| Mean Characteristic Impedance | 100 ± 5 Ω |
| Nominal Velocity of Propagation | Approx. 67% |
| Capacitance Unbalance | ≤ 1500 pF/km |
Network Applications & Standard Compliance
- Topologies: Primary (Campus), Secondary (Riser), and Tertiary (Horizontal) installations.
- Data Protocols: IEEE 802.3: 10Base-T, 100Base-T, and 1000Base-T; IEEE 802.5 16 MB; ISDN; TPDDI; ATM.
- Power over Ethernet: Fully supports IEEE 802.3af-2002 (POE) and IEEE 802.3at (POE+).
- Standards Met: ISO/IEC 11801, EN 50288-6-1, IEC 61156-5, EN 50173-1.
Quality Assurance
Manufactured in accordance with internationally recognized structured cabling standards, the ProLink CAT6 U/UTP PVC Cable is engineered to deliver consistent electrical performance and reliable network connectivity for enterprise Ethernet installations.
