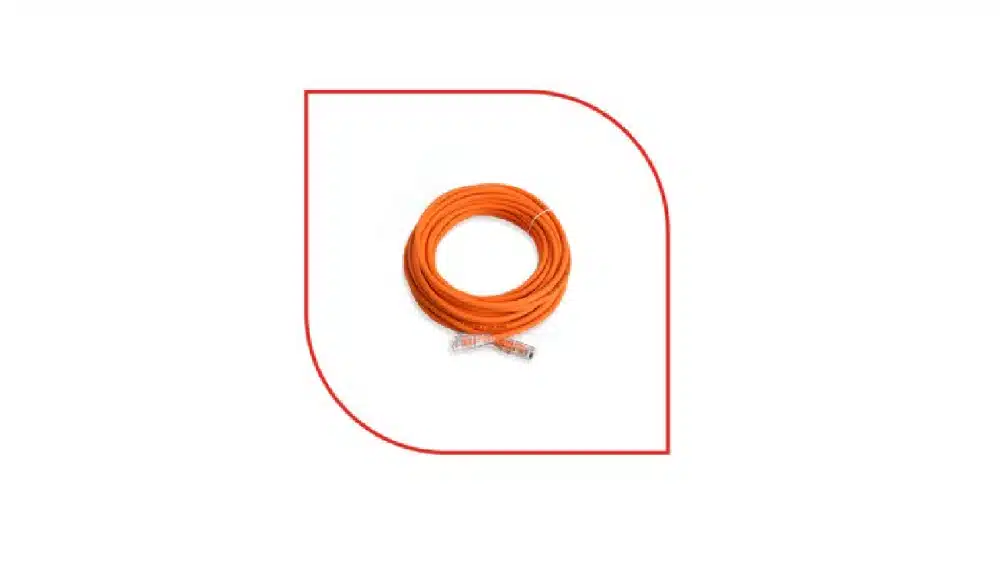

ProLink CAT6A Patch Cord 10m LSZH Orange (Model: PL-PC-U6A-10OR) is a professional Category 6A U/UTP Ethernet patch cord designed for structured cabling systems. It is engineered to connect network equipment with patch panels and telecommunications outlets while supporting high-speed Ethernet applications up to 500 MHz. The Low Smoke Zero Halogen (LSZH) jacket enhances indoor fire safety, while the 10-meter cable length provides flexible deployment for enterprise LAN infrastructure, commercial networks, and data center environments.
Technical Specifications
| Component / Property | Technical Specification |
|---|---|
| Product Name | ProLink CAT6A Patch Cord 10m LSZH Orange |
| Model / SKU | PL-PC-U6A-10OR |
| Cable Length / Color | 10 Meters / Orange |
| Wiring Configuration | T568B Standard |
| Cable Type / Shielding | U/UTP (Unshielded) |
| Conductor Gauge | AWG23/7 Stranded Copper |
| Number of Pairs | 4 Pairs |
| Nominal Impedance | 100 Ohms |
| Outer Cable Diameter | Maximum 6.0 mm |
Mechanical Specifications
| Component / Material | Operational Rating / Property |
|---|---|
| Plug Housing Material | Polycarbonate |
| Contact Blade Material | Phosphor Bronze (CuSn6) |
| Contact Area Plating | 0.7 µm Selective Gold Plate |
| Connector Shield Material | Tin-Plated Brass |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Interface Standard | IEC 60603-7 Compliant |
| Operating Temperature | -10°C to +60°C |
| Integrated Cable Boot | Wide-Function Strain Relief |
Electrical Characteristics
| Electrical Parameter | Standard / Test Rating | Performance Value |
|---|---|---|
| Current Rating | Maximum at 25°C | 1.5 Amps |
| Voltage Rating | Maximum Capacity | 150 VAC |
| Dielectric Withstanding | 1 Minute Test (60 Hz) | 1000 VAC |
| Insulation Resistance | Minimum Threshold | 650 MΩ |
Key Features
- Category 6A Performance: Complies with Category 6A Class E requirements according to ISO/IEC 11801 while supporting operating frequencies up to 500 MHz for reliable high-speed Ethernet connectivity.
- Enhanced LSZH Safety Jacket: The Low Smoke Zero Halogen jacket minimizes toxic gas emissions and dense smoke during fire incidents, improving safety in enclosed environments.
- Backward Compatibility: Fully compatible with Cat5e network infrastructures, allowing seamless migration during network upgrades.
- Wide-Function Strain Relief: Features an integrated strain relief boot that supports color coding and cable labeling for organized cable management.
- Factory-Tested Quality: Each patch cord is individually tested and quality inspected to ensure consistent Category 6A performance and long-term reliability.
Recommended Applications
- Enterprise LAN Infrastructure
- Corporate Data Networks
- High-Density Data Center Server Racks
- Patch Panels and Telecommunications Outlets
- Network Switches, Routers, and Firewalls
- Commercial Office Structured Cabling Systems
- Educational Institutions
- Healthcare Facilities
- Category 6A Network Installations
- Backward-Compatible Cat5e Network Upgrades
Quality Assurance
Manufactured in accordance with internationally recognized structured cabling standards, the ProLink CAT6A Patch Cord 10m LSZH Orange is factory-tested to deliver reliable Category 6A performance, consistent electrical characteristics, and long-term durability for professional networking environments.
