ProRack 12U Outdoor Wall Mount Cabinet (Model: PR-OD6612) is a professional-grade, high-capacity IT enclosure engineered to house, centralize, and safeguard critical network infrastructure hardware in harsh environmental conditions. Measuring 600mm wide by 600mm deep, this robust outdoor cabinet supports up to 800KG static load capacity according to manufacturer specifications and cabinet design. It provides a secure, weatherproof enclosure for patch panels, switches, routers, fiber optic equipment, and industrial networking hardware.
ProRack 12U outdoor cabinet is suitable for industrial Ethernet switches, outdoor routers, fiber optic distribution equipment, wireless access points, surveillance systems, telecom equipment, and edge computing infrastructure.
Premium Visual Security & Build Quality
- Weatherproof Solid Door: Features a high-durability solid front door assembly secured with a premium High-Class Mechanical Lock, ensuring IP65-rated protection against dust, water, and physical tampering.
- Rigid Anti-Corrosion Treatment: The high-grade cold-rolled steel framework undergoes automated chemical surface preparation including degreasing, pickling, phosphating, laundering, and a fine powder coating finish for maximum structural longevity in outdoor environments.
- Fast Flank Access: Engineered with two separate, lockable side panels that can be opened independently, streamlining on-site equipment provisioning and maintenance while maintaining weather resistance.
Thermal Dynamics & Power Architecture
- Active Cooling Array: Integrated with two high-performance active cooling fans that continuously remove warm air from the enclosure, ensuring optimal ventilation for network equipment.
- High-Load Power Management: Includes a heavy-duty Power Distribution Unit (PDU) with 8 power outlets for safely powering multiple network devices.
- Multi-Functional Routing Panels: Features two rear cable routing panels to support clean horizontal and vertical cable organization.

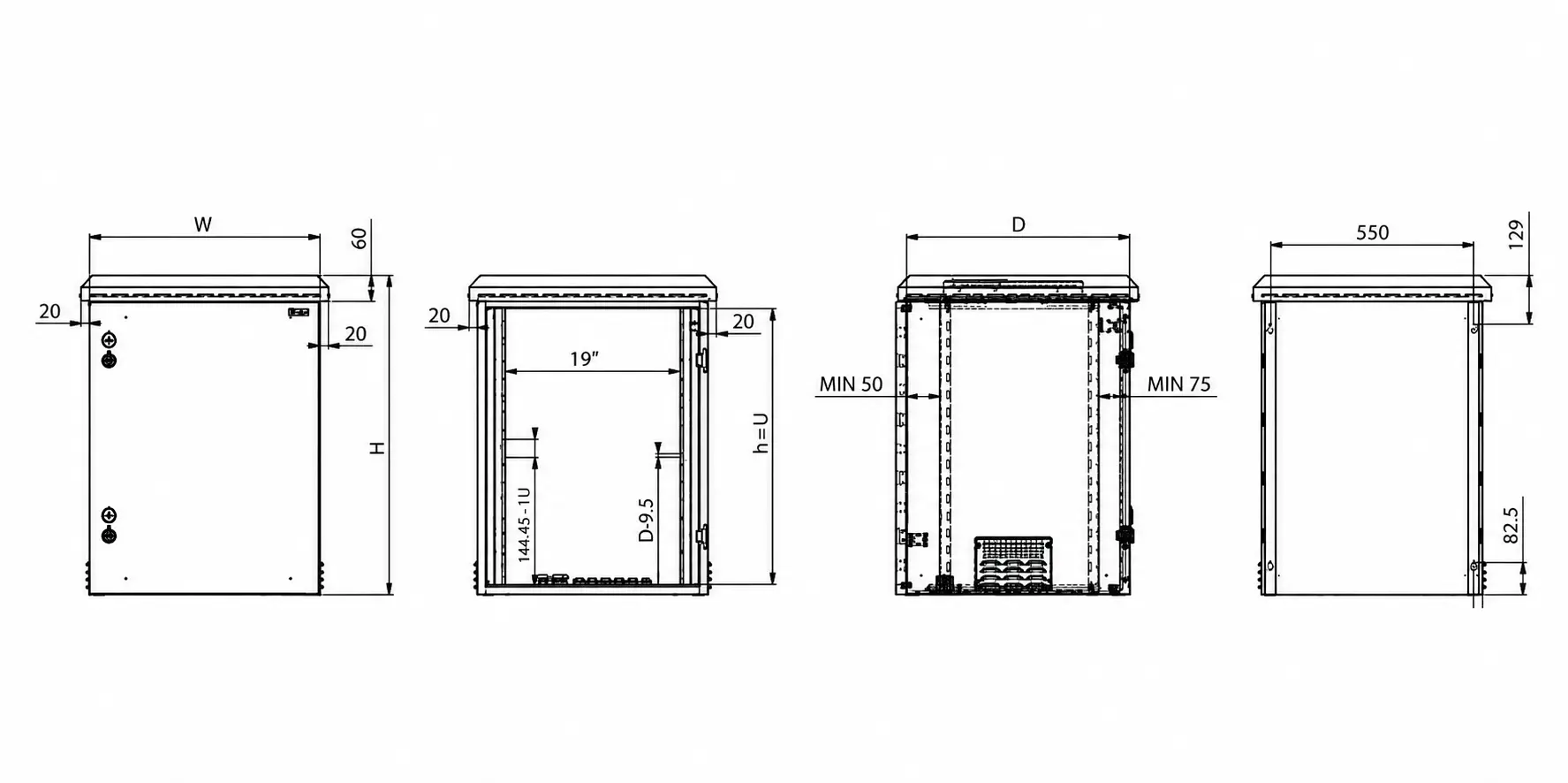

Technical Parameters & Dimensions
| Dimension / Parameter | Operational Specification |
|---|---|
| Model / SKU | ProRack 12U Outdoor (PR-OD6612) |
| Rack Capacity | 12U |
| Width / Depth | 600 mm / 600 mm |
| Overall Physical Height | 648 mm |
| Static Load Capacity | 800 KG |
| Chassis Material | Cold-Rolled Steel |
| Chassis Thickness | 1.5 mm |
| Front Door Material | Solid Steel Door |
| Ingress Protection | IP65 |
| Net Product Weight | 40 KG |
| Gross Product Weight | 43 KG |
| Color Finish | Light Gray Outdoor Powder Coating |
Recommended Applications
- Outdoor IT Infrastructure Cabinets
- Edge Computing
- Telecommunication Networks
- Utility Stations
- CCTV & Security Systems
- Industrial Automation Systems
- Outdoor Network Distribution
Included Accessories & Package Contents
Every standard PR-OD6612 outdoor wall mount cabinet ships with a complete installation kit including the following components:
- Active Accessories: 2 × Cold-Rolled Steel Exhaust Fans and 1 × Cold-Rolled Steel Shelf
- Power Elements: 1 × Power Distribution Unit (PDU) with 8 Power Outlets
- Mounting & Base Hardware: 4 × Casters, 4 × M12 Support Feet, and 20 × Heavy-Duty Cage Nuts
- Structural Panels: 1 × Top Cover, 1 × Bottom Plate, 2 × Main Frames, 2 × Side Panels, 4 × 2.0mm Profile Rails, 6 × Support Beams, and 12 × Junction Boxes
