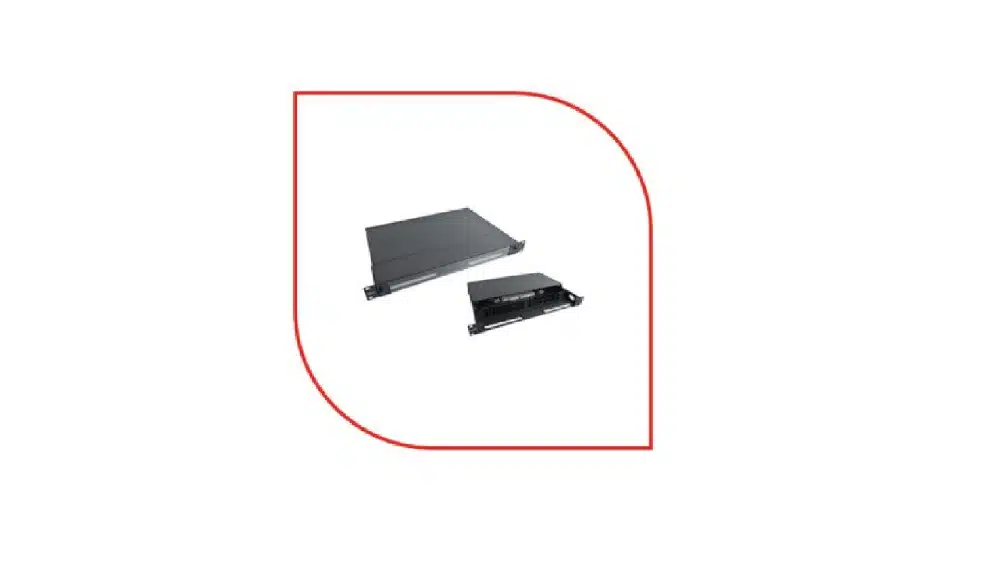

ProLink Fiber Distribution Frame Sliding 24 Port (Model: PL-ODF-24STC) is a 1U 19-inch rack-mountable optical distribution frame (ODF) engineered for fiber optic cable termination, cross-connection, and splicing management. Fabricated from cold-rolled steel in a black finish, this slidable rack-mount ODF features a smooth drawer mechanism with metal sliding fittings and an integrated self-locking function that prevents the tray from dropping during maintenance. Equipped with an internal plastic splice tray that accommodates pigtails, ribbon fibers, and bundle cable distribution, it includes 4 rear cable entry ports and interchangeable front adapter plates for SC, LC, FC, and ST interfaces. It delivers exceptional accessibility and organized fiber routing for enterprise LAN/WAN environments, FTTH deployments, CATV networks, and telecommunications data centers.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | ProLink Fiber System Distribution Frame |
| Model / SKU | PL-ODF-24STC |
| Rack Height Unit | 1U Standard Height |
| Rack Mounting Standard | 19-Inch Standard (Compatible with 19″ and 23″ Optic Distribution Cabinets) |
| Port Capacity | 24 Ports |
| Adapter Compatibility | SC, LC, ST, FC Adapter Panels (Interchangeable Options) |
| Rear Cable Entry Ports | 4 Fiber Cable Entry Ports |
| Supported Fiber Formats | Pigtail, Ribbon, and Bunch / Loose-Tube Cable Distribution |
| Internal Splice Management | Integrated Plastic Splice Tray |
Mechanical & Physical Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Chassis Material | Cold-Rolled Steel |
| Drawer Mechanism | Metal Sliding Fittings with Self-Locking Safety Stop |
| Panel Operation | Front Access Panel Design for Easy Splicing & Patching |
| Finish / Color | Electrostatic Black |
| Design Profile | Standard Size, Lightweight, and Rigid Structural Construction |
Key Features
- Sliding Drawer with Self-Locking Function: Features smooth metal sliding rails with built-in self-locking stops that prevent the drawer from detaching or falling when pulled forward during service.
- Interchangeable Adapter Panels: Accommodates modular front patch panels for SC, LC, FC, and ST adapters, allowing rapid configuration and upgrades.
- Durable Cold-Rolled Steel Chassis: Built from cold-rolled steel to ensure structural integrity and physical protection for internal fiber terminations.
- Integrated Splice & Cable Routing: Internal plastic splice tray provides organized fusion splice storage and bend-radius management for pigtail, ribbon, and bunch fiber cables.
- Versatile Cable Entry: Outfitted with 4 rear cable entry ports for organized multi-cable trunk entries and stress-free clamping.
Compatibility & Recommended Applications
The ProLink Fiber Distribution Frame Sliding 24 Port (PL-ODF-24STC) is designed for structured optical networks and distribution cabinets, including:
- 19-inch and 23-inch optical distribution frames (ODF) and network server cabinets
- Telecommunications central offices and distribution nodes
- Fiber to the Home (FTTH) and FTTX customer access points
- Enterprise LAN and WAN high-speed optical backbones
- CATV and broadcast optical distribution hubs
- Single-mode and multimode fusion splicing and cross-connect patching
Quality Assurance
Manufactured according to international telecommunication standards, the ProLink Fiber Distribution Frame Sliding 24 Port (PL-ODF-24STC) provides consistent mechanical performance, reliable self-locking sliding mechanics, and safe optical fiber protection for enterprise and telecom networks.
