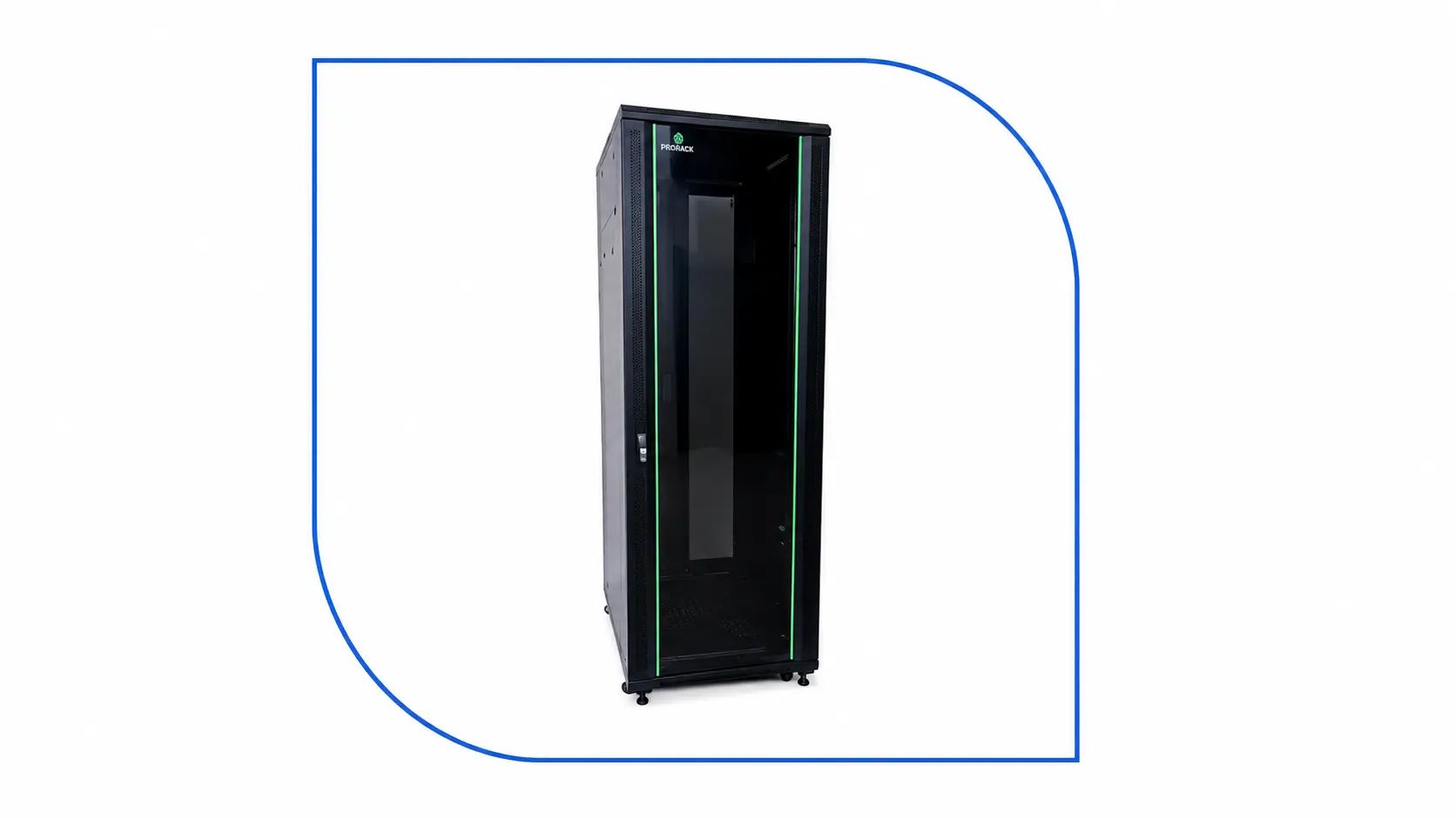

ProRack 27U Standing Server Rack (Model: PR-FV6127) is an enterprise-grade, high-capacity IT enclosure engineered to centralize, organize, and safeguard network infrastructure hardware. Measuring 600mm wide by 1000mm deep, this robust floor-standing cabinet supports up to 800KG static load capacity according to manufacturer specifications and cabinet design.
The cabinet is compatible with standard 19-inch rack-mounted servers, enterprise network switches, routers, fiber optic patch panels, UPS systems, CCTV equipment, network video recorders (NVRs), structured cabling hardware, enterprise storage devices, and rack-mounted power distribution units.
Advanced Thermal Dynamics & Airflow
- Maximum Ventilation:
Outfitted with a curved front vented screen door and a double screen back door, optimizing passive cross-ventilation pathways across high-density computing clusters.
- Active Cooling Array:
Integrated with 4 high-performance active cooling fans embedded directly into the top cover plate to continuously draft warm exhaust away from enclosed network appliances.
- Rigid Anti-Corrosion Treatment:
The high-grade cold-rolled steel framework undergoes a comprehensive automated chemical surface preparation including degreasing, pickling, phosphating, laundering, and a fine powder coating finish for maximum structural longevity.
Secure Access & Infrastructure Mobility
- Four-Way Accessibility:
Features two removable, independently lockable side panels on each flank to streamline structural access during hardware provisioning and cable mapping.
- Clean Power Infrastructure:
Bundled with a built-in Power Distribution Unit (PDU) socket strip providing 8 clean power outlets to minimize trailing wire clutter and consolidate power routing.
- Simultaneous Leveling & Mobility:
Heavy-duty structural casters for site mobility and adjustable M12 leveling support feet can be deployed simultaneously to anchor and balance high-weight enterprise components securely.

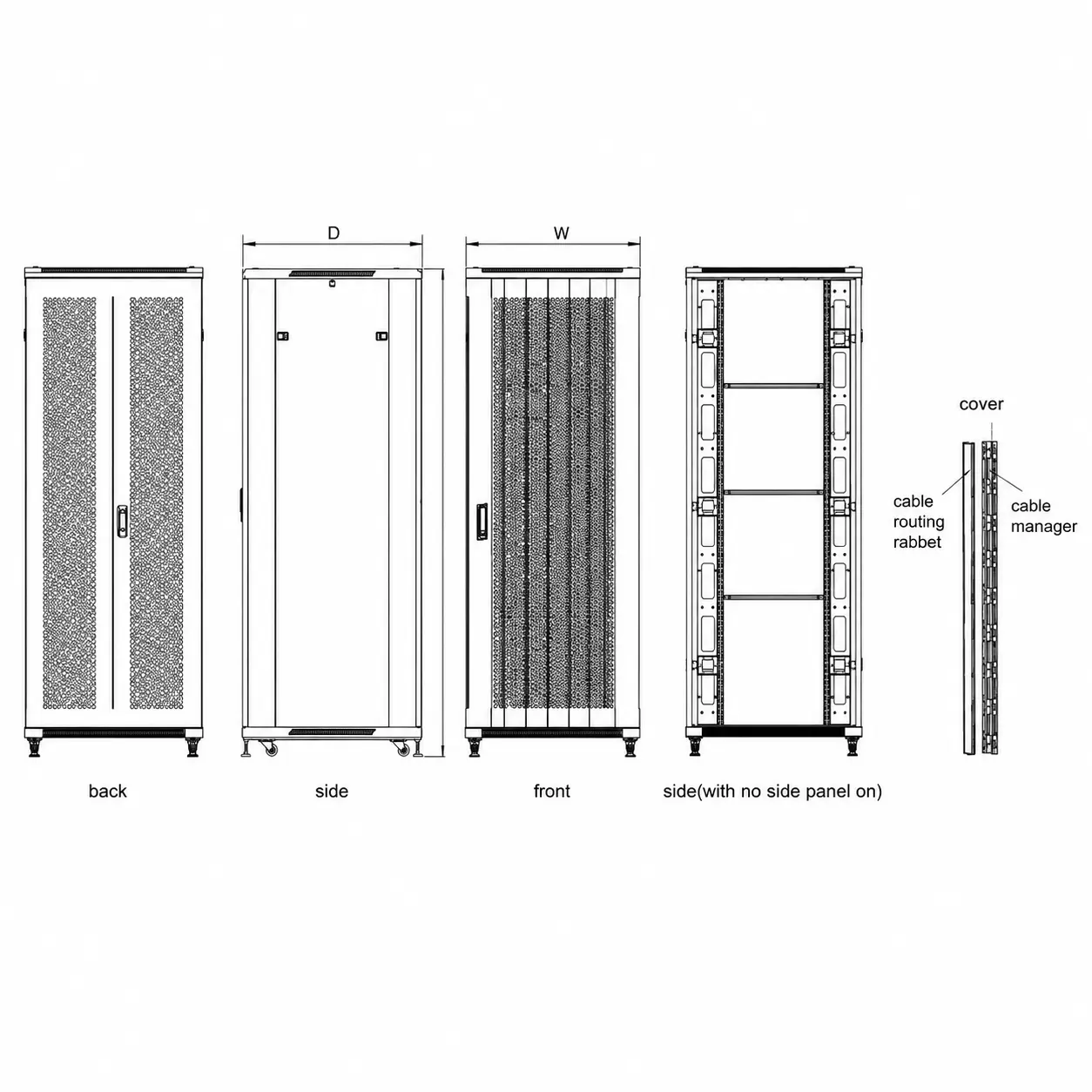

Technical Parameters & Dimensions
The following table summarizes the primary technical specifications and physical dimensions of the ProRack PR-FV6127 Standing Server Rack for quick product comparison, rack planning, and installation.
| Dimension / Parameter | Operational Specification |
|---|---|
| Model / SKU | ProRack 27U 600×1000 (PR-FV6127) |
| Rack Capacity | 27U |
| Width / Depth | 600 mm / 1000 mm |
| Overall Physical Height | 1388 mm |
| Static Load Rating | 800 KG |
| Chassis Material | Industrial Cold-Rolled Steel |
| Front Door Architecture | Curved Vented Screen Door |
| Color Enclosure Code | Black (RAL9005) |
Recommended Applications
- Enterprise Server Rooms
- Data Centers
- Structured Cabling Installations
- Core Network Distribution
- Enterprise IT Infrastructure
- Cloud Computing Environments
- Security & CCTV Systems
- Telecommunication Facilities

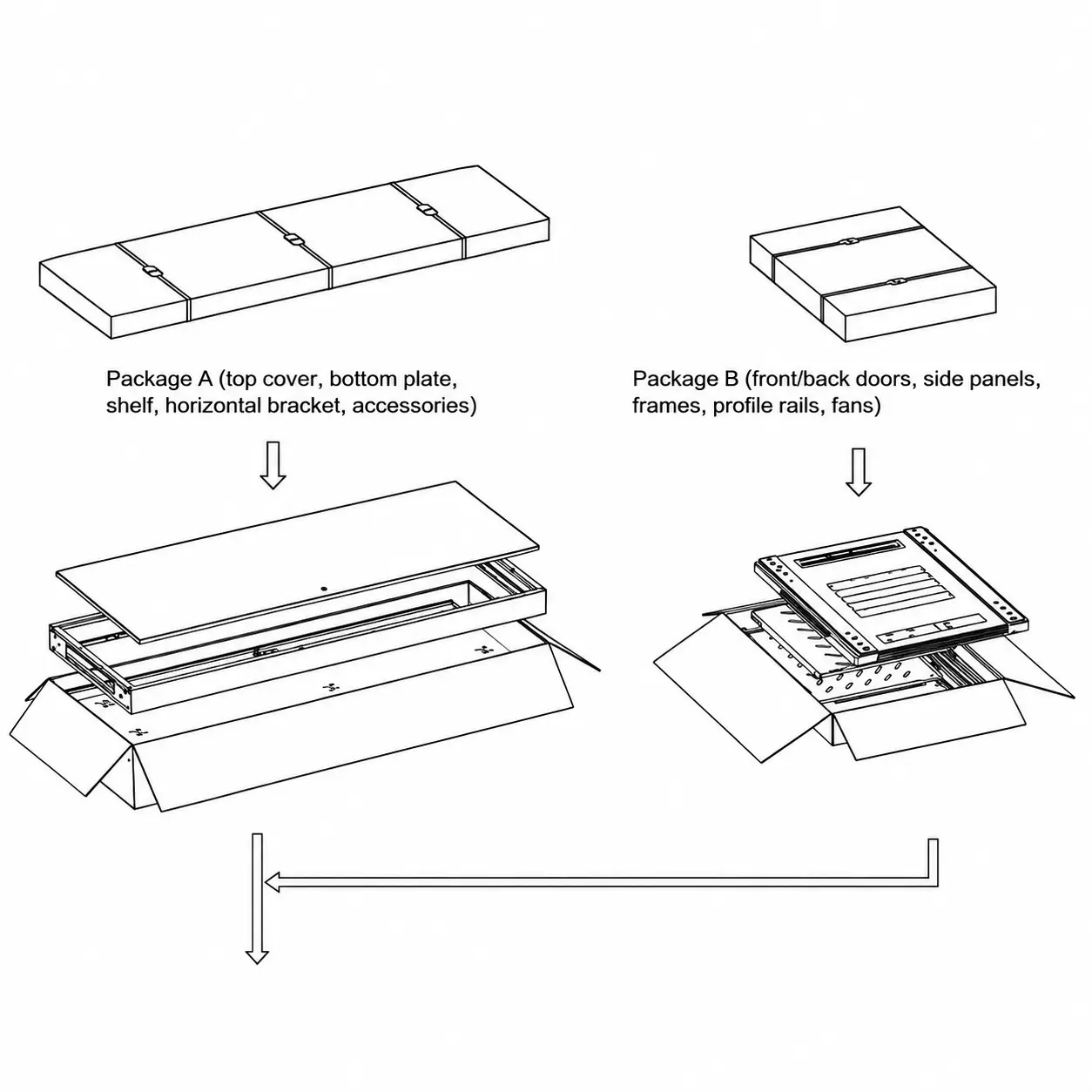

Included Accessories & Package Contents
Every standard ProRack 27U standing server cabinet ships as an all-inclusive integration kit packed with the following internal hardware components:
- Active Accessories: 4 × Cold-Rolled Steel Exhaust Fans and 1 × Rigid Steel Shelf
- Power Elements: 1 × Power Distribution Unit (PDU) Strip with 8 Outlets
- Mounting Hardware: 40 × Heavy-Duty Cage Nuts
- Grounding Gear: 4 × Structural Casters and 4 × M12 Support Feet

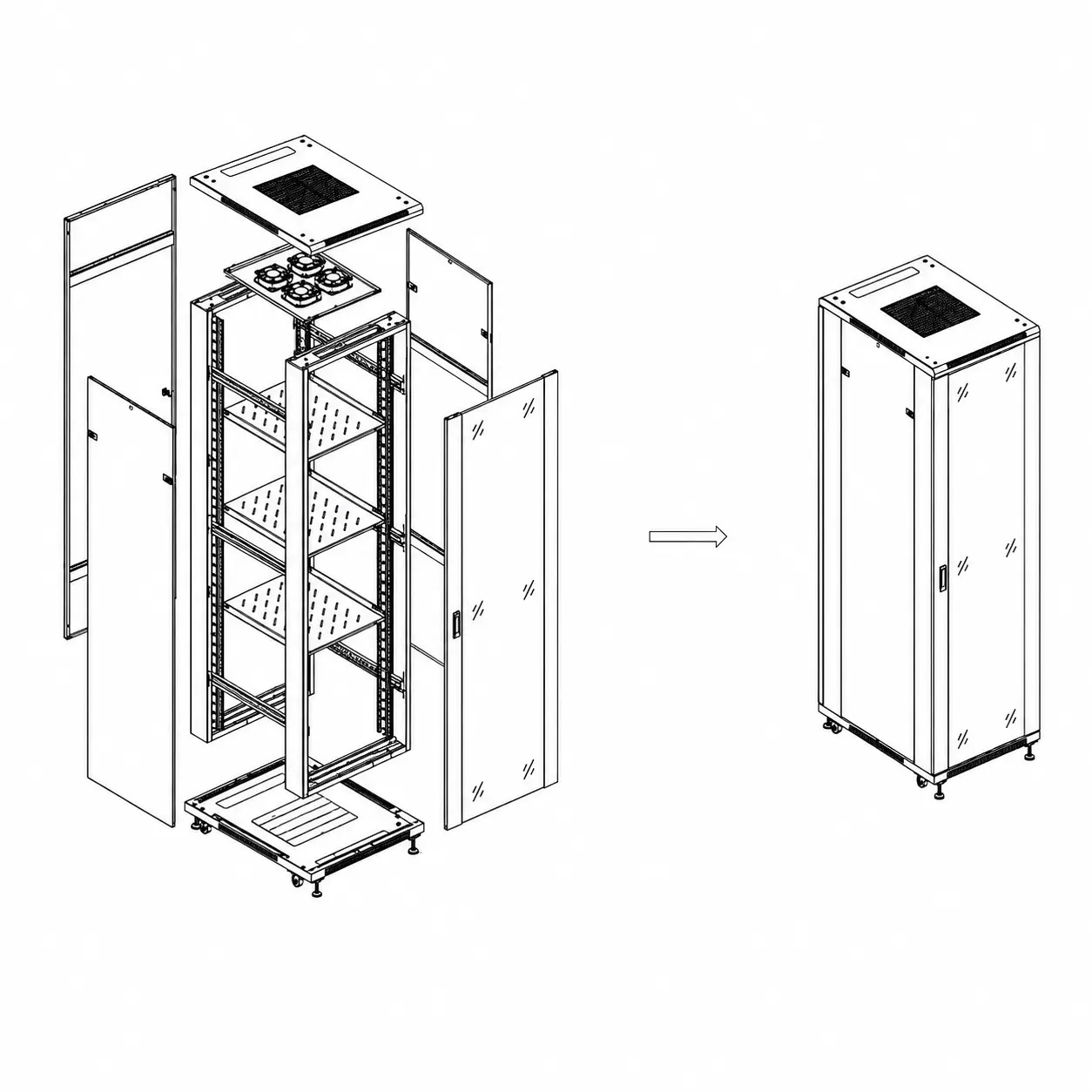

- Chassis Framing: 2 × Main Frames (1.2mm), 4 × Profile Rails (2.0mm), 6 × Support Beams, and 12 × Junction Boxes
