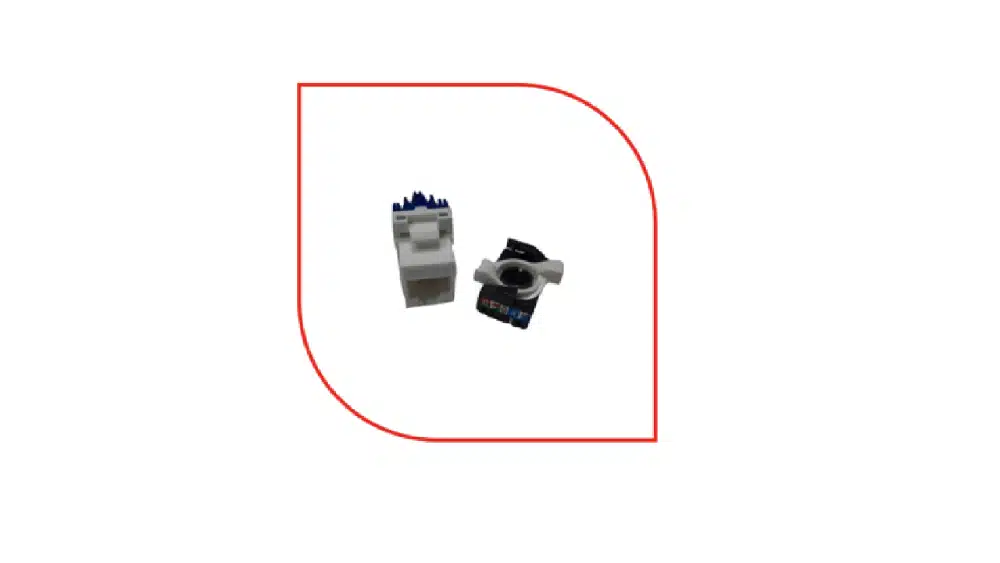

ProLink CAT6 UTP 1G Keystone Jack Mini Type (Model: PL-KJ6-TL) is a professional Category 6 tool-less RJ45 keystone jack designed for structured cabling systems. It provides fast and reliable termination of copper Ethernet cables without requiring specialized punch-down tools. The rotating tool-less connection module simplifies installation while maintaining Category 6 Class E performance up to 500 MHz in accordance with ISO/IEC 11801.
Designed for installation in RJ45 wall outlets, patch panels, and telecommunications distribution points, the PL-KJ6-TL minimizes conductor untwist during termination to help maintain consistent electrical performance. Its reusable design supports multiple re-terminations without compromising connection quality, making it suitable for enterprise LAN installations, commercial buildings, and data center environments.
Technical Specifications
| Component / Property | Technical Value |
|---|---|
| Product Name | ProLink CAT6 UTP 1G Keystone Jack |
| Model / SKU | PL-KJ6-TL |
| Product Type | Tool-less RJ45 Keystone Jack |
| Performance Standard | Category 6 Class E Hardware (500 MHz) |
| Number of RJ45 Ports | 1 |
| Signal Contacts | 8 Contacts |
| Contact Material | CuSn |
| Contact Plating | 1.2 µm Gold over Nickel |
| IDC Plating | Tin-Plated |
| Cutting Blade Material | Stainless Steel |
| Housing Material | Polycarbonate (UL 94 V-0) |
| Cable Strain Relief | Through Cable Tie |
Mechanical Specifications
| Feature | Specification |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 95% (Non-Condensing) |
| Supported Solid Wire | 0.40 mm (AWG26) to 0.65 mm (AWG22) |
| Supported Stranded Wire | AWG26/7 to AWG22/7 |
| Supported Insulation Diameter | 0.8 mm to 1.6 mm |
| Maximum Cable Diameter | 10 mm |
| Mating Cycles | More than 750 |
| Re-Terminations | More than 20 |
Electrical Characteristics
| Electrical Parameter | Specification |
|---|---|
| Current Carrying Capacity | 1 Amp at 60°C |
| Contact Resistance | Less than 5 mΩ (Typical) |
| Insulation Resistance | Greater than 250 MΩ (100 V DC) |
| Voltage Withstanding | 1000 V DC or AC Peak |
Key Features
- Tool-Less Installation: Terminates all eight conductors in a single operation without requiring punch-down tools, reducing installation time while maintaining consistent connection quality.
- Reusable Design: Supports more than 20 re-terminations, allowing wiring corrections without replacing the keystone jack.
- Category 6 Performance: Delivers Category 6 Class E hardware performance up to 500 MHz and is engineered to exceed standard Category 6/Class E link performance requirements.
- Durable Construction: Manufactured with a Polycarbonate (UL 94 V-0) housing, stainless-steel cutting blades, tin-plated IDC contacts, and CuSn contacts with 1.2 µm gold plating over nickel for long-term reliability.
- Consistent Termination Quality: The rotating tool-less connection module maintains consistent conductor positioning, helping reduce installation errors and ensuring repeatable network performance.
Recommended Applications
- Category 6 structured cabling systems
- RJ45 wall outlets
- Patch panels
- Enterprise LAN infrastructure
- Commercial office networks
- Telecommunications rooms
- Server rooms and network cabinets
- Educational institutions
- Hospitals and healthcare facilities
- Government buildings
- Gigabit Ethernet LAN installations
Quality Assurance
Manufactured in accordance with internationally recognized structured cabling standards, the ProLink CAT6 U/UTP 500 MHz Keystone Jack Mini Type is factory-tested to deliver reliable Category 6 performance, consistent electrical characteristics, and long-term durability in professional networking environments.
