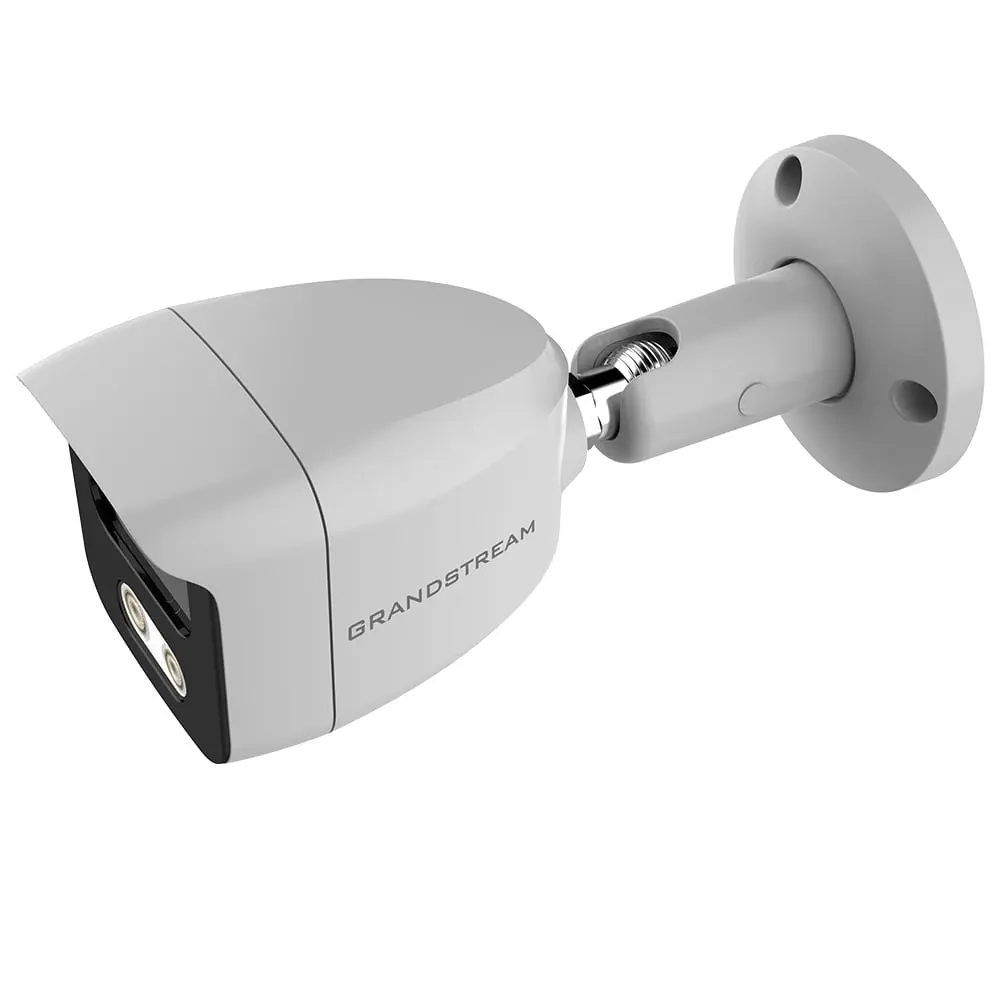

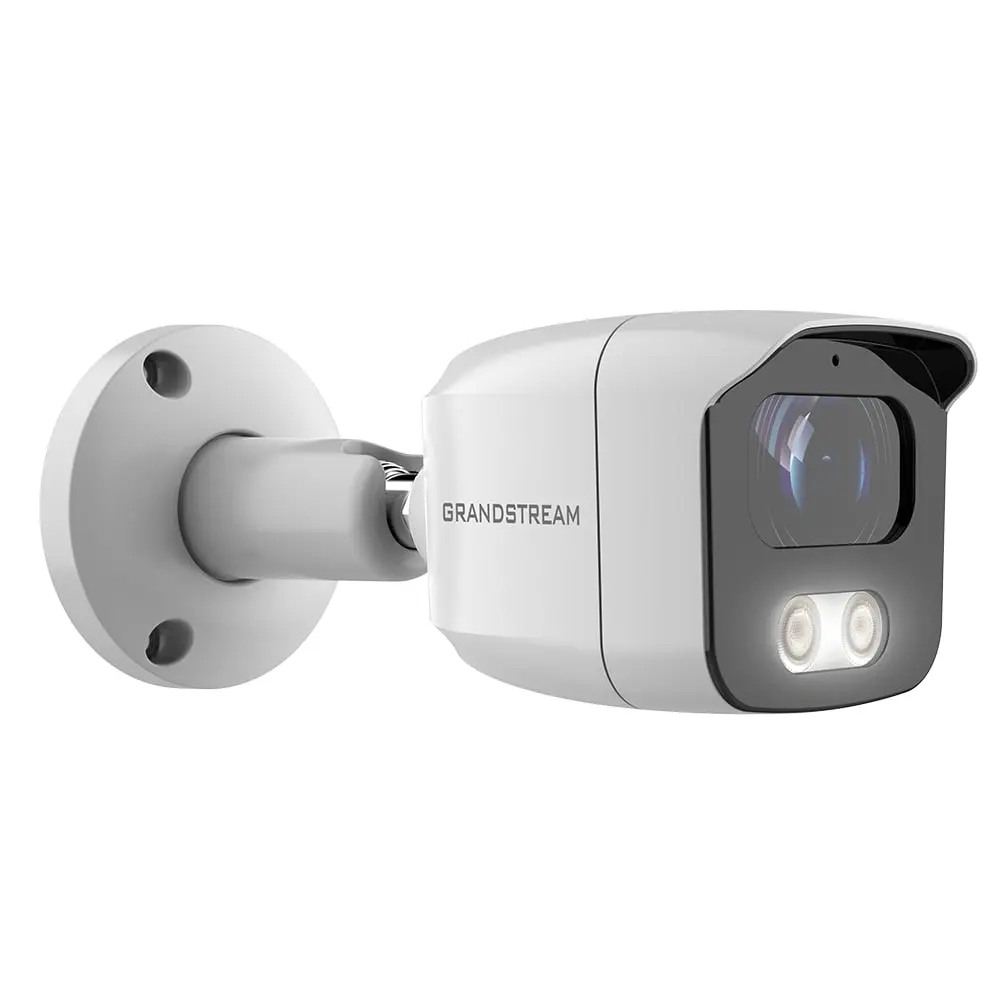

Description
Grandstream GSC Series GSC3615 FHD Weatherproof Bullet IP Camera (Model: GSC3615) is a FHD Weatherproof Bullet IP Camera engineered for commercial perimeters, corporate parking facilities, retail exteriors, and warehouse loading docks. Captures 1080p Full HD video (1920×1080 @ 30fps) with a 1/2.9" 2 Megapixel CMOS sensor, 3.6mm fixed focal lens (85° horizontal field of view), smart infrared night vision up to 20 meters, and integrated IEEE 802.3af PoE.
Encased in an IP67 weatherproof metal bullet housing, it incorporates a built-in microphone for one-way audio capture, motion detection, and SIP/VoIP integration to stream video feeds to IP phones. It complies with ONVIF Profile S and is managed via Grandstream GSurf Pro VMS and Web UI.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | GSC Series |
| Model / SKU | GSC3615 |
| Capacity / Scale | 1080p FHD (1920 × 1080) at 30 fps; 2.0 Megapixel 1/2.9" Progressive Scan CMOS |
| Network / Telephony Interfaces | 1x 10/100 Mbps RJ45 Ethernet Port with integrated PoE (IEEE 802.3af Class 2); 3.5mm Audio In |
| Packet / Voice Processing | H.264, H.265, MJPEG; Multi-stream; Smart IR illumination; Integrated high-sensitivity microphone |
| Expansion & Peripheral Ports | 1x DC 12V Power Jack (5.5mm/2.1mm); 1x Factory Reset Button |
| Operating System / Management | Embedded Linux; ONVIF Profile S, Web UI, GSurf Pro VMS, GDMS, HTTP/HTTPS, RTSP, SIP |
| Power Supply Specifications | PoE (IEEE 802.3af Class 2) or External 12VDC 0.5A power adapter (adapter not included) |
| Maximum Power Consumption | 5.5W |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Physical Dimensions (L × W × H) | 171 × 73 × 73 mm |
| Unit Weight | 430 g (0.43 kg) |
| Chassis & Display | Weatherproof metal bullet casing; IP67 outdoor rating; Integrated IR LED illuminators |
| Heat Dissipation / Cooling | Fanless natural heat dissipation (sealed weatherproof housing) |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Operating Relative Humidity | 10% to 90% (Non-condensing) |
| Mounting Capabilities | Wall mount and Ceiling mount (integrated 3-axis bracket) |
Key Features & Capabilities
- 1080p Full-HD Video: 2-Megapixel CMOS sensor records crystal-clear 1080p resolution at 30 frames per second.
- Smart IR Night Vision: Smart infrared LEDs automatically adjust illumination intensity up to 20 meters in complete darkness.
- IP67 Weatherproof Metal Chassis: Rugged waterproof and dust-tight aluminum housing protects internal optics from harsh weather.
- Audio Surveillance Capture: Built-in omnidirectional microphone provides real-time acoustic monitoring of monitored perimeters.
- SIP Telephony Video Streaming: Directly initiates 2-way SIP audio and video alerts to Grandstream IP video phones upon motion.
- Power over Ethernet (PoE): Integrated 802.3af PoE enables simple single-cable transmission of power and surveillance data.
Recommended Applications
The Grandstream GSC Series GSC3615 FHD Weatherproof Bullet IP Camera is designed for enterprise and commercial deployment scenarios, including:
- Commercial building perimeter and outdoor parking lot security surveillance
- Warehouse loading dock and exterior freight yard activity monitoring
- Retail building exterior walkways, drive-through lanes, and delivery entrances
- Educational campus exterior walkways, sports fields, and entry gates
- Hospitality resort exterior grounds, swimming pools, and outdoor dining patios
Installation & Operating Environment
The Grandstream GSC Series GSC3615 FHD Weatherproof Bullet IP Camera features a Wall mount and Ceiling mount (integrated 3-axis bracket) enclosure measuring 171 × 73 × 73 mm and weighing 430 g (0.43 kg). It operates across an environmental temperature range of -20°C to 50°C (-4°F to 122°F) and relative humidity of 10% to 90% (Non-condensing). Powered via PoE (IEEE 802.3af Class 2) or External 12VDC 0.5A power adapter (adapter not included), it ensures dependable continuous operation and structured integration into commercial networking racks and office work environments.
