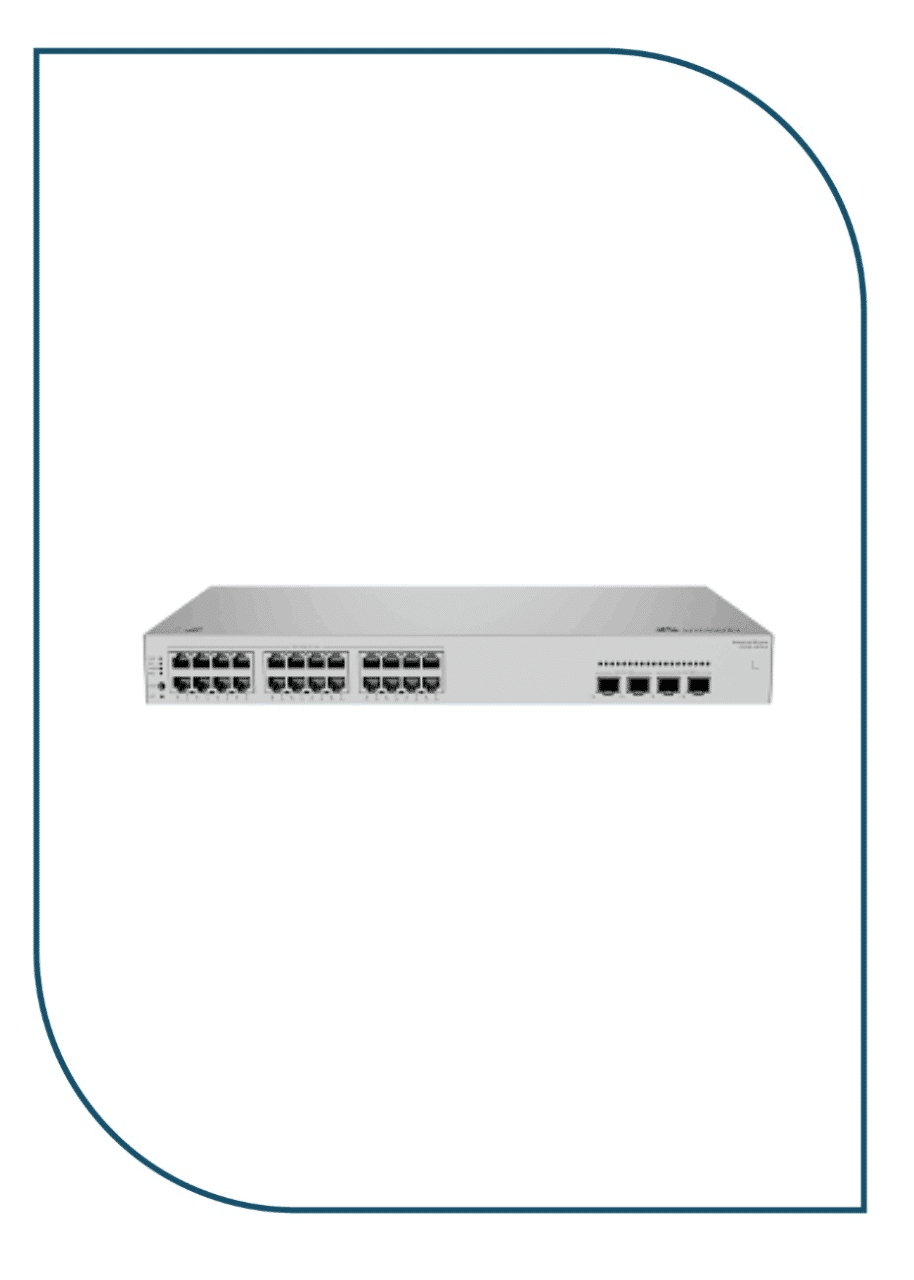

Huawei eKIT S220S-24P4JX Managed PoE+ Switch (Model: S220S-24P4JX) is a high-bandwidth enterprise Layer 2+ switch engineered with 400W of PoE+ power and hybrid 10G/2.5G optical uplinks to deliver high-capacity power and data for commercial business networks. It features 24 fixed 10/100/1000BASE-T Gigabit Ethernet ports compliant with IEEE 802.3at/af PoE+ sharing a 400W dedicated budget, 2 dedicated 10GE SFP+ optical slots, and 2 dedicated 2.5GE SFP optical slots, achieving 98 Gbps switching bandwidth and 73 Mpps forwarding performance.
Housed in a standard 1U 19-inch rackmount metal chassis with internal universal AC power, the switch supports cloud management via the Huawei eKit Mobile App, Web GUI, and full CLI. It delivers Layer 2+ static routing, 802.1Q VLANs, and Port Isolation for enterprise edge security.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKIT S220S Series |
| Model / SKU | S220S-24P4JX |
| Management Interface | Huawei eKit Cloud Platform, Mobile App, Web GUI, Full CLI |
| Downlink Ports | 24 × 10/100/1000BASE-T Gigabit RJ45 Ports (IEEE 802.3at/af PoE+) |
| PoE Power Budget | 400W Dedicated PoE+ Power Budget (Up to 30W per Port) |
| Optical Uplink Ports | 2 × 10GE SFP+ Slots + 2 × 2.5GE SFP Slots (4 Optical Uplinks Total) |
| Switching Bandwidth | 98 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 73 Mpps |
| Layer 2+ Capabilities | Static Routing, 802.1Q VLANs, Link Aggregation, Port Isolation |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal AC Power |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Chassis |
| Heat Dissipation Mode | Smart Thermal Heat Dissipation |
| Acoustic Profile | Controlled Commercial Acoustic Profile |
| Chassis Construction | Industrial-Grade Steel Housing |

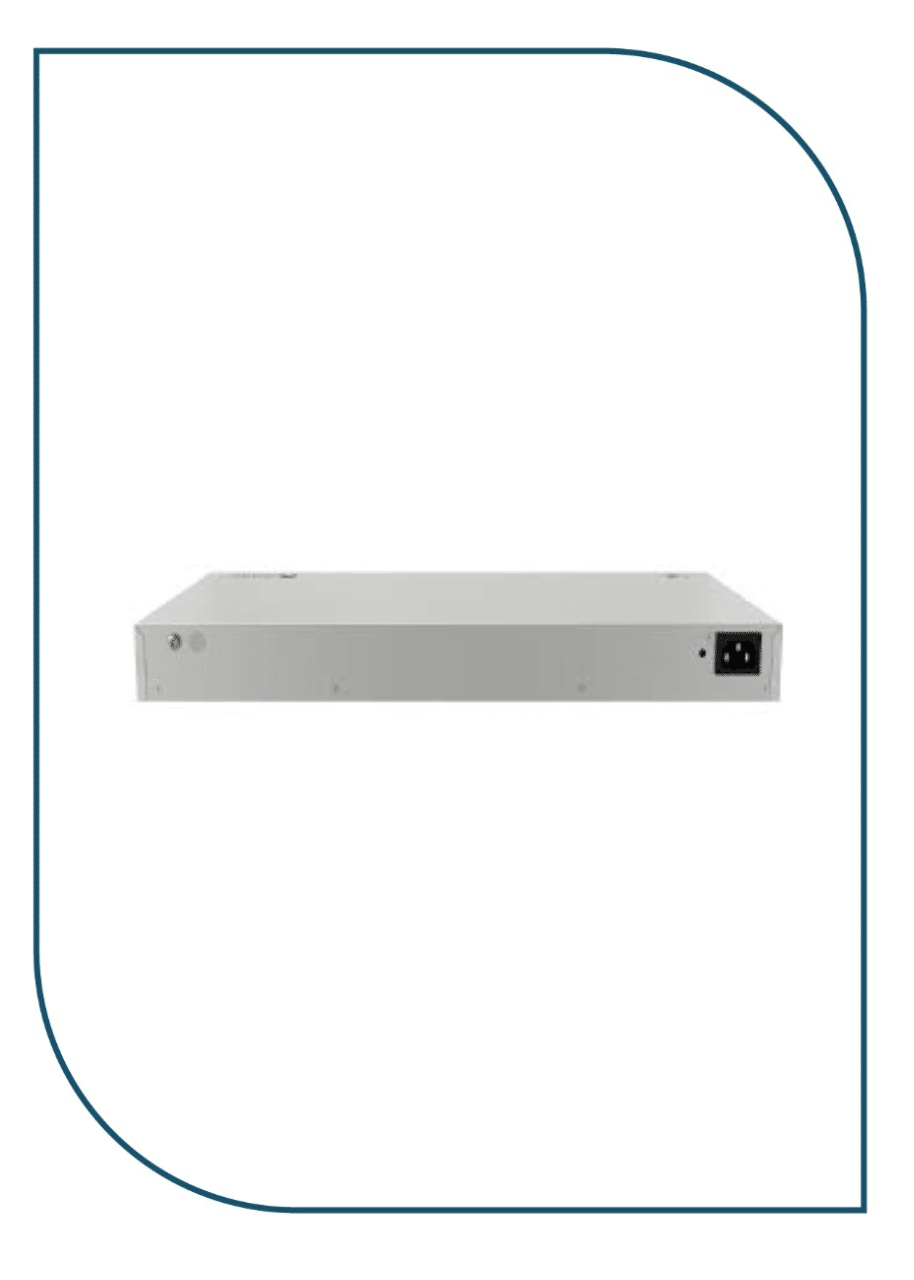

| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- Heavy-Duty 400W PoE+ Power: 24 Gigabit PoE+ ports deliver up to 30W per port with a 400W dedicated budget to power APs and PTZ cameras.
- Hybrid 10G & 2.5G Optical Uplinks: 2x 10GE SFP+ and 2x 2.5GE SFP slots provide high-speed uplinks to core network switches.
- Wire-Speed Performance: Generates 98 Gbps switching bandwidth and 73 Mpps forwarding rate for smooth business operations.
- Layer 2+ Static Routing: Hardware-based IPv4 static routing simplifies traffic flow between departmental subnets.
- Cloud & App Management: Remote network monitoring, topology visualization, and port management via Huawei eKit App.
- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKIT S220S-24P4JX Managed PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:
- Supplying PoE+ power and 10G optical uplinks for Wi-Fi 6 wireless access points in modern offices and hotels.
- Powering and connecting up to 24 high-definition commercial IP surveillance cameras with remote port rebooting.
- Corporate VoIP telephony networks requiring VLAN isolation and QoS voice traffic prioritization.
- Cloud-managed multi-branch IT deployments requiring zero-touch remote provisioning via the Huawei eKit App.
- Enterprise edge distribution providing high-speed optical backhauls to core distribution switches.
Installation & Operating Environment
The Huawei eKIT S220S-24P4JX Managed PoE+ Switch features a standard 1U 19-inch metal chassis supplied with a complete rackmount bracket kit and rubber feet for seamless installation in commercial server racks or on desktops. Powered by an internal universal AC power supply, it maintains efficient thermal dissipation for continuous operation in enterprise facilities.
