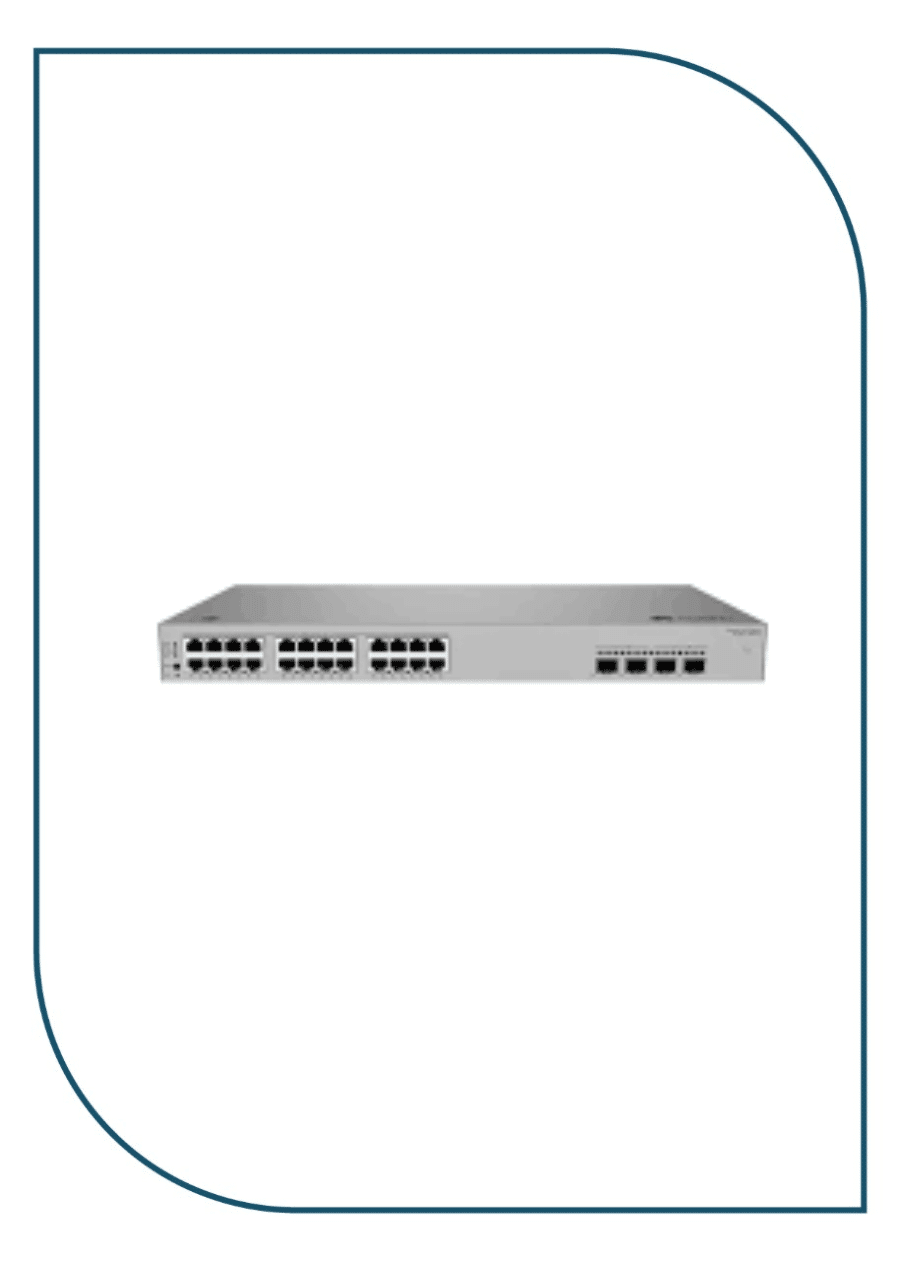

Huawei eKIT S310S-26PN4JX Multi-Gigabit Switch (Model: S220S-26PN4JX) is a versatile 26-port enterprise access switch engineered with 2.5G Combo Multi-GE ports, dual 10G SFP+ optical uplinks, and PoE+ power to support high-density wireless and data environments. It features 22 fixed 10/100/1000BASE-T PoE+ ports, 2 Gigabit RJ45 ports, 2 Multi-GE Combo PoE+ ports, and 2 dedicated 10GE SFP+ optical slots, delivering 98 Gbps switching bandwidth and 73 Mpps packet forwarding throughput.
Housed in a standard 1U 19-inch rackmount metal chassis with internal power supply, the switch delivers enterprise Layer 2+ capabilities including Static Routing, 802.1Q VLANs, Link Aggregation, and Port Security with full cloud management via Huawei eKit.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKIT S310S Series |
| Model / SKU | S220S-26PN4JX (S310S-26PN4JX) |
| Multi-Gigabit Ports | 2 × 10/100/1000/2.5GBASE-T Multi-GE Combo PoE+ Ports |
| Gigabit Downlink Ports | 22 × 10/100/1000BASE-T PoE+ Ports + 2 × 10/100/1000BASE-T RJ45 Ports |
| Uplink Interfaces | 2 × 10GE SFP+ Dedicated High-Speed Optical Slots |
| Switching Capacity | 98 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 73 Mpps |
| PoE Standard | IEEE 802.3at PoE+ / IEEE 802.3af PoE Compliant |
| Management Interface | Huawei eKit Cloud Platform, Web GUI, Full CLI via SSH/Console, SNMP |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal Power Supply |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Chassis |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Industrial-Grade Steel Housing |
| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- 2.5G Combo Multi-GE Ports: 2 Multi-GE Combo PoE+ ports deliver multi-gigabit speeds to high-performance Wi-Fi 6/7 APs.
- Dual 10G SFP+ Optical Uplinks: 2 dedicated 10GE SFP+ optical slots eliminate network bottlenecks connecting to core switches.
- Wire-Speed Performance: Generates 98 Gbps switching bandwidth and 73 Mpps forwarding rate for smooth business operations.
- Layer 2+ Static Routing: Hardware-based IPv4 static routing simplifies traffic flow between departmental subnets.
- Cloud & App Management: Remote network monitoring, topology visualization, and port management via Huawei eKit App.
- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKIT S310S-26PN4JX Multi-Gigabit Switch is engineered for access and aggregation scenarios across commercial environments:
- 2.5G Multi-GE ports delivering multi-gigabit bandwidth to flagship Wi-Fi 6/7 APs.
- Dual 10G SFP+ optical ports connecting to core aggregation switches.
- Powering up to 24 PoE+ IP cameras and IP phones on a single unified switch.
- Combining 2.5G copper, standard Gigabit, and 10G fiber seamlessly in hybrid IT networks.
- Multi-branch enterprise deployments requiring cloud-managed provisioning via Huawei eKit.
Installation & Operating Environment

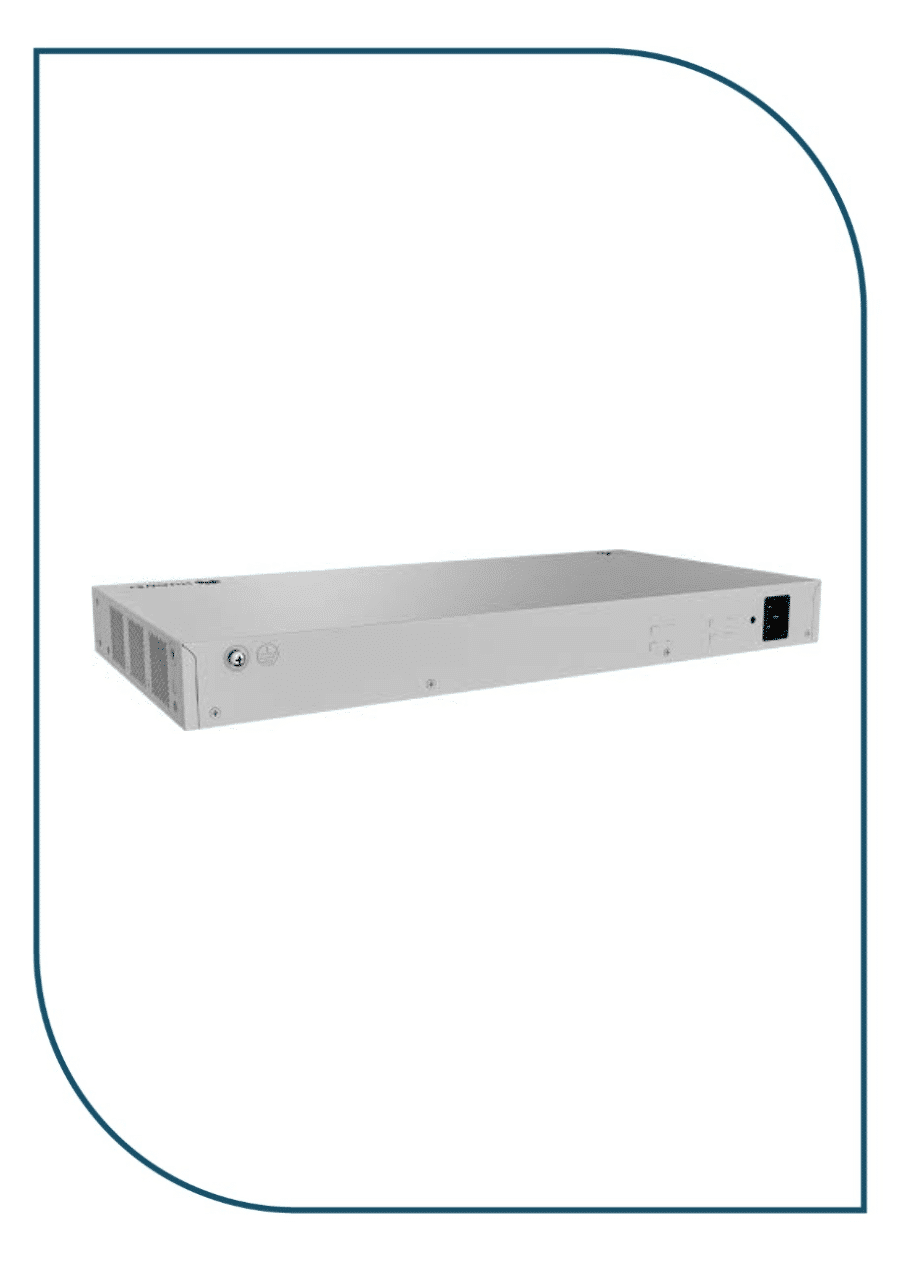

The Huawei eKIT S310S-26PN4JX Multi-Gigabit Switch features a standard 1U 19-inch metal chassis supplied with a complete rackmount bracket kit and rubber feet for seamless installation in commercial server racks or on desktops. Powered by an internal universal AC power supply, it maintains efficient thermal dissipation for continuous operation in enterprise facilities.
