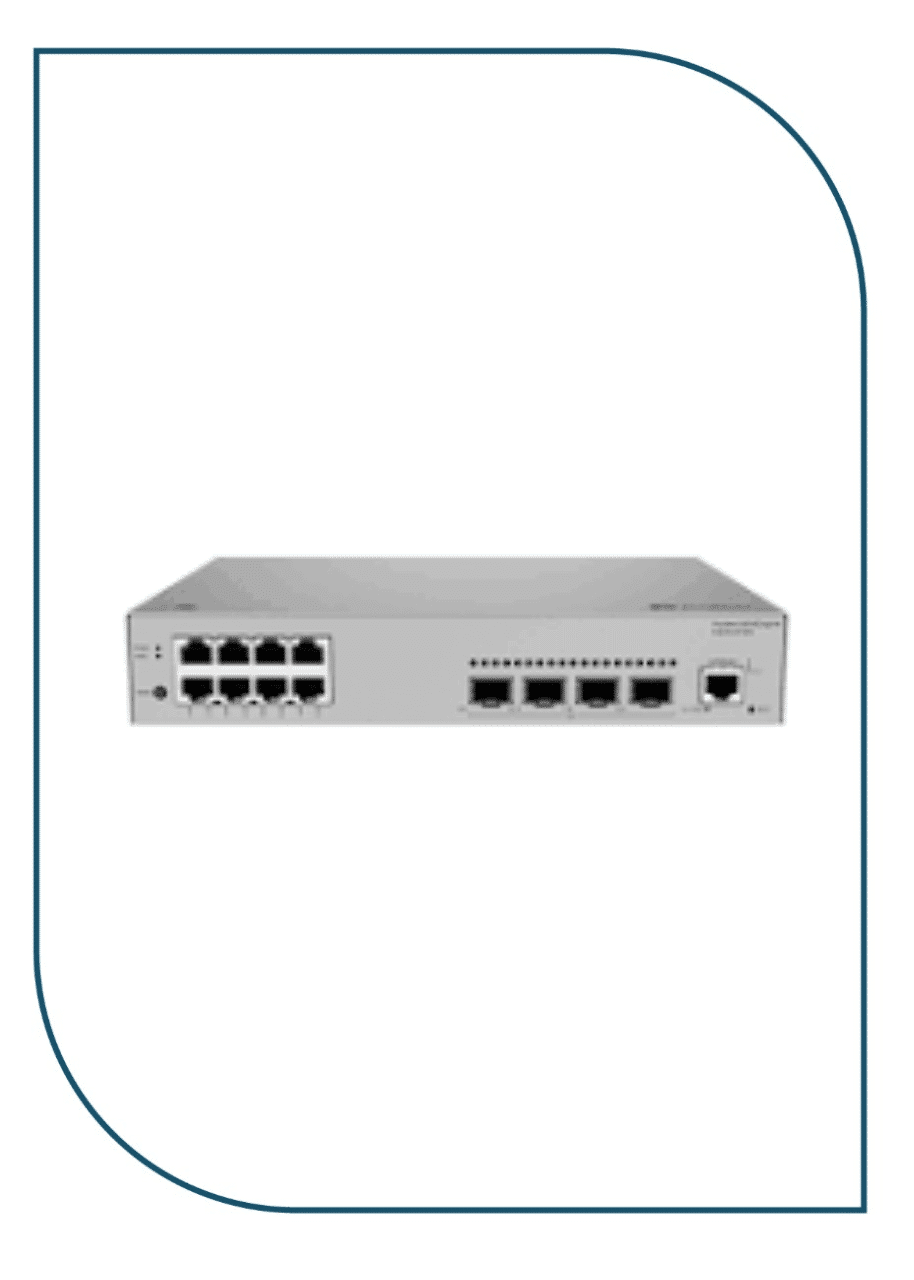

Huawei eKitEngine S220-8T4S Smart Managed Switch (Model: S220-8T4S) is a compact Gigabit access switch engineered with built-in AC power and four optical SFP uplinks to provide flexible, cloud-managed connectivity for small-to-medium enterprises. It features 8 fixed 10/100/1000BASE-T Gigabit Ethernet ports and 4 dedicated GE SFP optical transceiver slots, achieving a switching bandwidth of 24 Gbps and a packet forwarding rate of 18 Mpps.
Housed in a standard 1U 19-inch rackmount metal chassis with internal AC power and fanless natural heat dissipation, the switch delivers enterprise Layer 2 management features including 802.1Q VLANs, Link Aggregation (LACP), Port Mirroring, Loop Protection, and IGMP Snooping. Management is supported via the Huawei eKit Mobile App, Web GUI, and Cloud Management Platform.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine S220 Series |
| Model / SKU | S220-8T4S |
| Management Interface | Huawei eKit Cloud Platform, Mobile App, Web GUI |
| Downlink Ports | 8 × 10/100/1000BASE-T Gigabit Ethernet Ports |
| Uplink Interfaces | 4 × GE SFP Dedicated Optical Transceiver Slots |
| Switching Bandwidth | 24 Gbit/s Non-Blocking Wire-Speed |
| Packet Forwarding Rate | 18 Mpps |
| Power Architecture | Built-In Universal AC Power Supply |
| Smart Management | Huawei eKit Mobile App, Web GUI, VLANs, QoS, STP/RSTP |
| Form Factor | Standard 1U Rackmount / Desktop Enclosure |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Compact Desktop / 1U Rackmount Compatible |
| Heat Dissipation Mode | Fanless, Natural Heat Dissipation |
| Acoustic Profile | Noise-Free Operation |
| Chassis Construction | Heavy-Gauge Steel Enclosure |

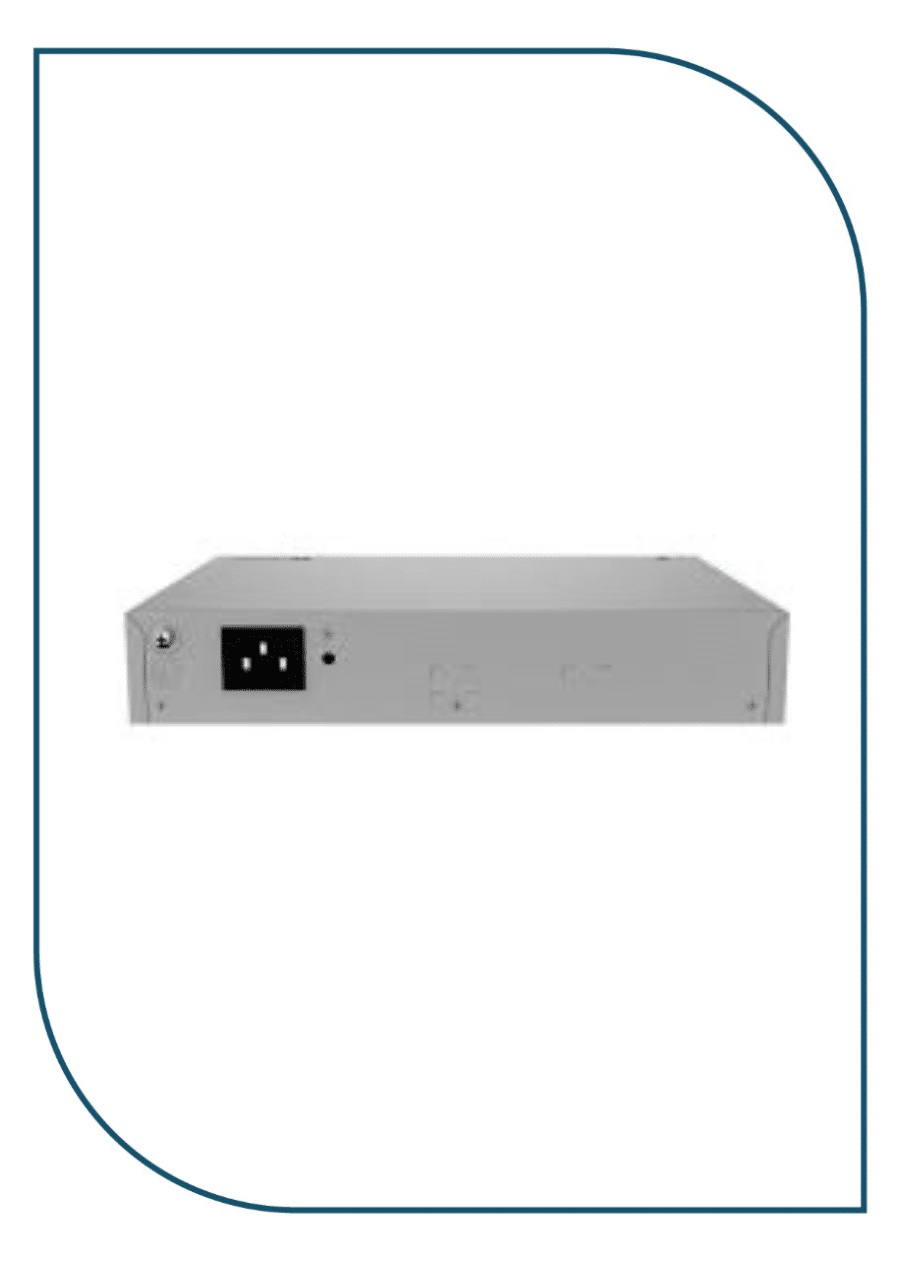

| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- Wire-Speed Gigabit Connectivity: 8 Gigabit Ethernet RJ45 ports provide 24 Gbps switching bandwidth and 18 Mpps forwarding throughput.
- Quad SFP Optical Uplinks: 4 dedicated GE SFP optical slots enable redundant fiber uplinks to core network switches.
- Fanless Quiet Operation: Passive natural heat dissipation ensures noise-free operation in open office spaces and retail shops.
- Cloud & App Management: Remote network monitoring, topology visualization, and port management via Huawei eKit App.
- Layer 2 Management Suite: Full support for 802.1Q VLANs, LACP port trunking, spanning tree protocols, and IGMP snooping.
- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKitEngine S220-8T4S Smart Managed Switch is engineered for access and aggregation scenarios across commercial environments:
- Connecting 8 office workstations with high-speed Gigabit throughput in small enterprise LANs.
- Four SFP optical slots providing redundant fiber links to core switches.
- Remote configuration, monitoring, and alerts via the Huawei eKit Mobile App.
- Quiet, dependable Gigabit switching for checkout counters and office PCs in commercial retail stores.
- Branch office edge distribution providing fiber uplinks back to enterprise core switches.
Installation & Operating Environment
The Huawei eKitEngine S220-8T4S Smart Managed Switch features a compact desktop form factor that can be placed on a desk, mounted against a wall, or installed inside standard 19-inch equipment racks using the included mounting brackets. Powered by an internal universal AC power supply, it maintains efficient natural heat dissipation for continuous, quiet operation in enterprise facilities.
