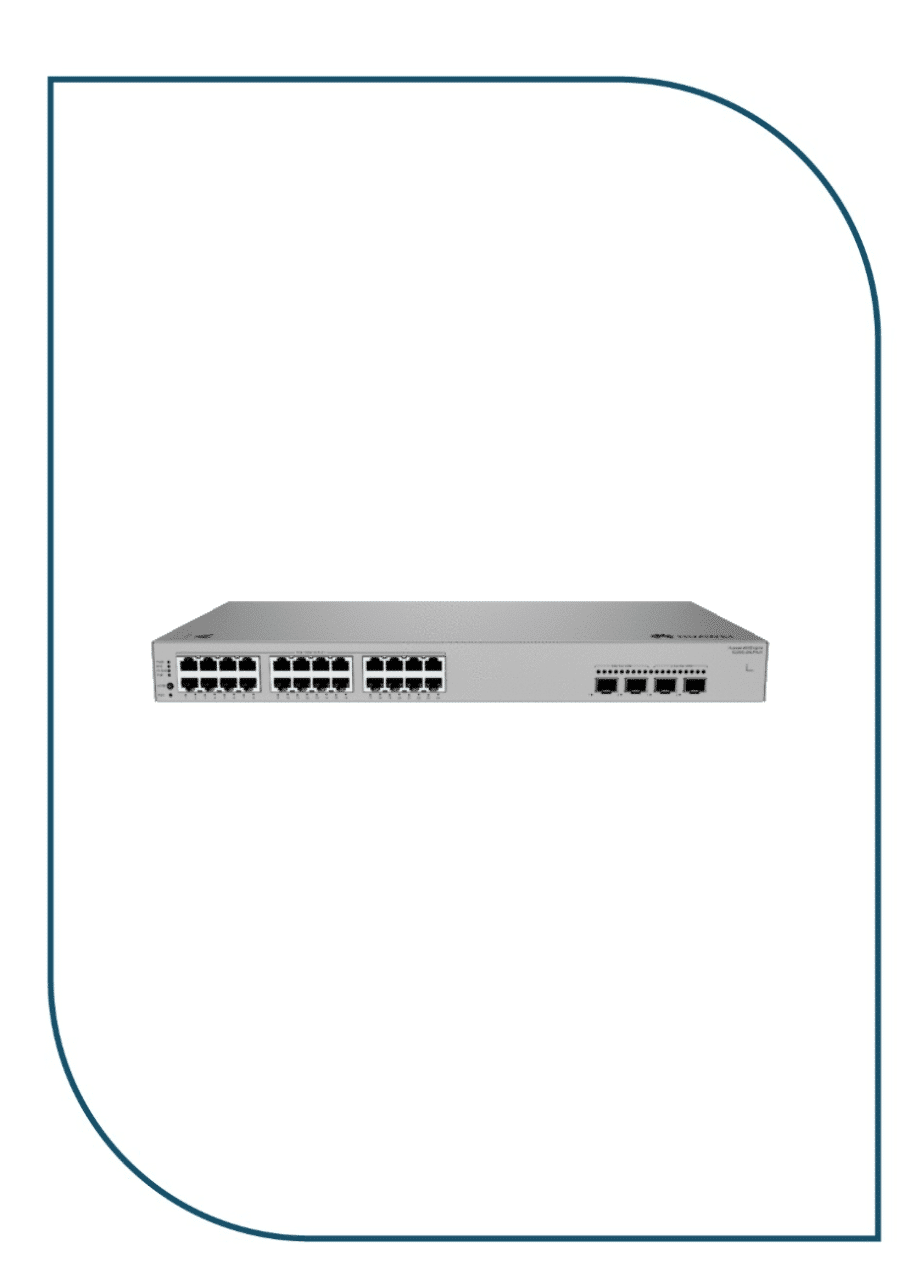

Huawei eKitEngine S220S-24LP4JX Smart Managed PoE+ Switch (Model: S220S-24LP4JX) is a high-density 24-port Gigabit switch engineered with 195W of PoE+ power and dual SFP optical uplinks to provide intelligent power and data distribution for commercial networks. It features 24 fixed 10/100/1000BASE-T Gigabit Ethernet ports compliant with IEEE 802.3at/af PoE+ sharing a 195W dedicated budget, and 2 dedicated GE SFP optical slots, achieving 52 Gbps switching bandwidth and 38.69 Mpps packet forwarding throughput.
Housed in a standard 1U 19-inch rackmount metal chassis with internal power supply, the switch delivers smart management via the Huawei eKit Cloud Platform, Mobile App Management, Web GUI, VLANs, and QoS.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine S220S Series |
| Model / SKU | S220S-24LP4JX |
| Downlink Ports | 24 × 10/100/1000BASE-T Gigabit Ethernet Ports (802.3at/af PoE+) |
| PoE Power Budget | 195W Total Dedicated PoE+ Power Budget |
| Uplink Interfaces | 2 × GE SFP Optical Transceiver Slots |
| Switching Capacity | 52 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 38.69 Mpps |
| Smart Management | Huawei eKit Cloud Platform, Mobile App Management, Web GUI, VLANs, QoS |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal Power Supply |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Chassis |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Industrial-Grade Steel Housing |

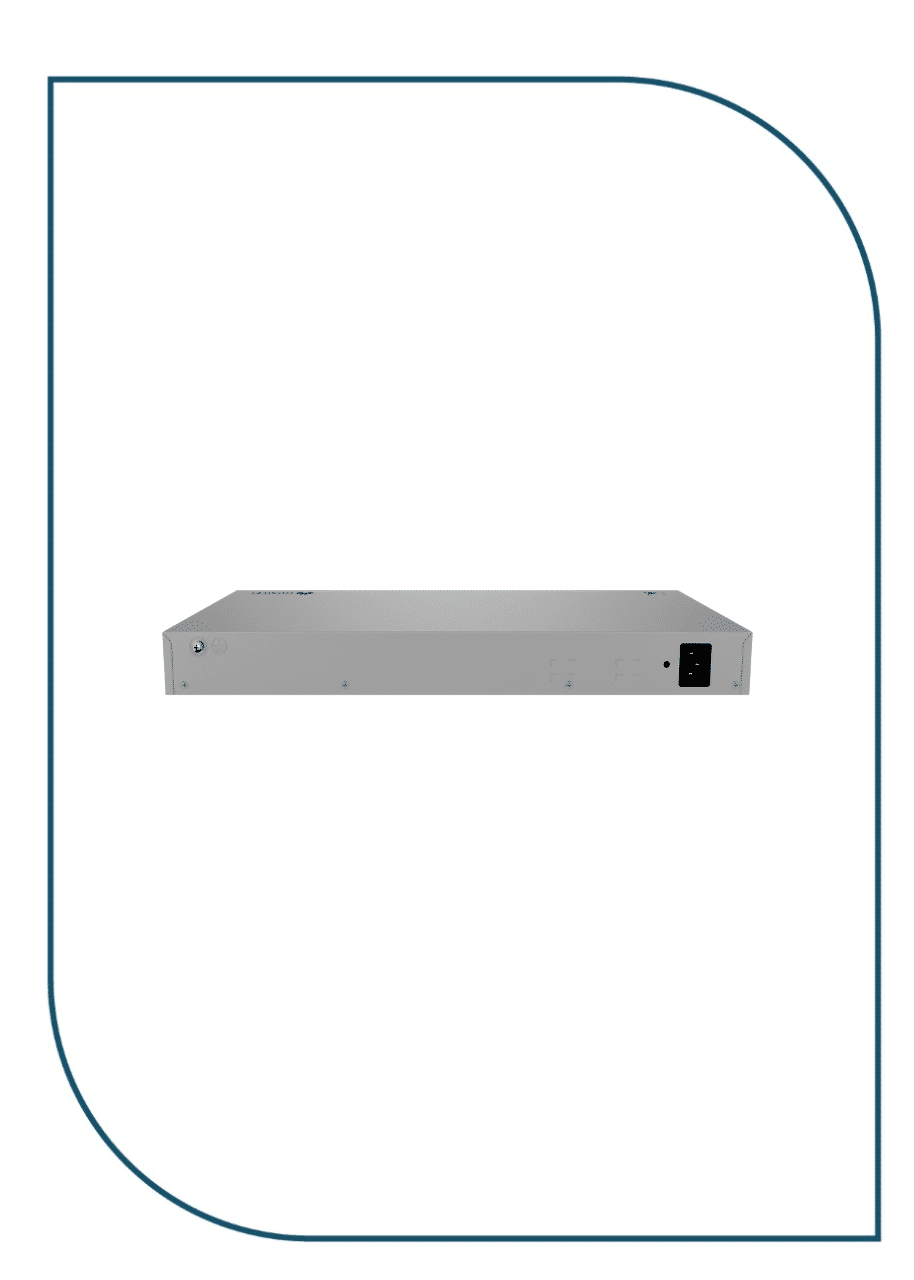

| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- 195W PoE+ Power Delivery: 24 Gigabit PoE+ ports deliver stable 802.3at/af power for IP cameras and wireless access points.
- Dual GE SFP Optical Uplinks: 2 dedicated Gigabit SFP optical slots enable long-reach fiber backhaul to core switches.
- Wire-Speed Performance: Delivers 52 Gbps switching bandwidth and 38.69 Mpps packet forwarding rate for smooth traffic.
- Cloud & App Management: Remote network monitoring, topology visualization, and port management via Huawei eKit App.
- Layer 2 Management Suite: Full support for 802.1Q VLANs, LACP port trunking, and QoS traffic prioritization.

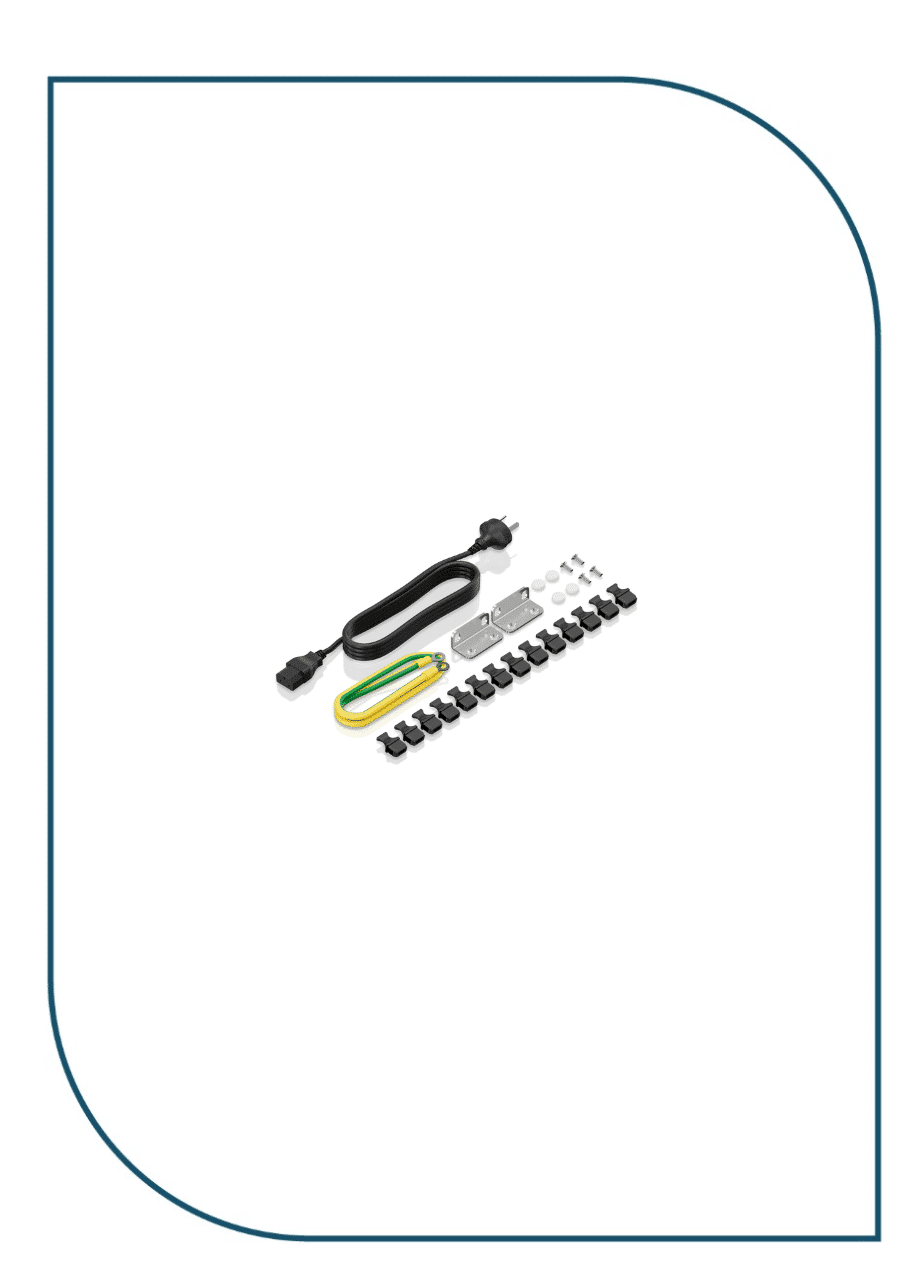

- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKitEngine S220S-24LP4JX Smart Managed PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:
- Powering up to 24 desktop IP phones with Voice VLAN prioritization in corporate offices.
- Centralizing power and data for retail and office security camera grids.
- Supplying PoE+ power to distributed office Wi-Fi 6 access points.
- Remote provisioning, health monitoring, and PoE port rebooting via mobile app for multi-site IT.
- Deploying high-density PoE access across hospitality facilities, medical clinics, and school campuses.
Installation & Operating Environment
The Huawei eKitEngine S220S-24LP4JX Smart Managed PoE+ Switch features a standard 1U 19-inch rackmount metal chassis supplied with a complete rackmount bracket kit and rubber feet for seamless installation in commercial server racks or on desktops. Powered by an internal universal AC power supply, it maintains efficient thermal management and dependable continuous operation in enterprise facilities.
