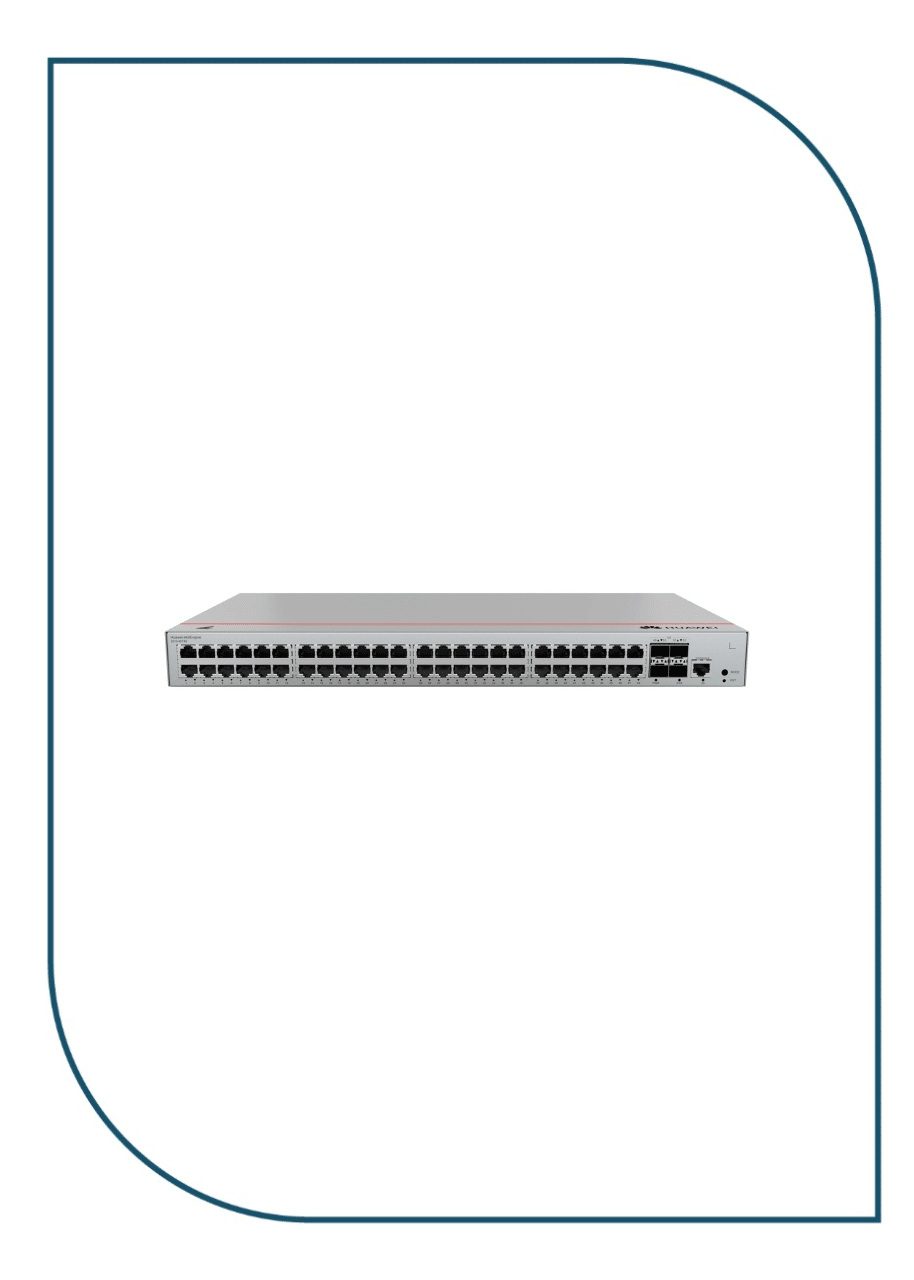

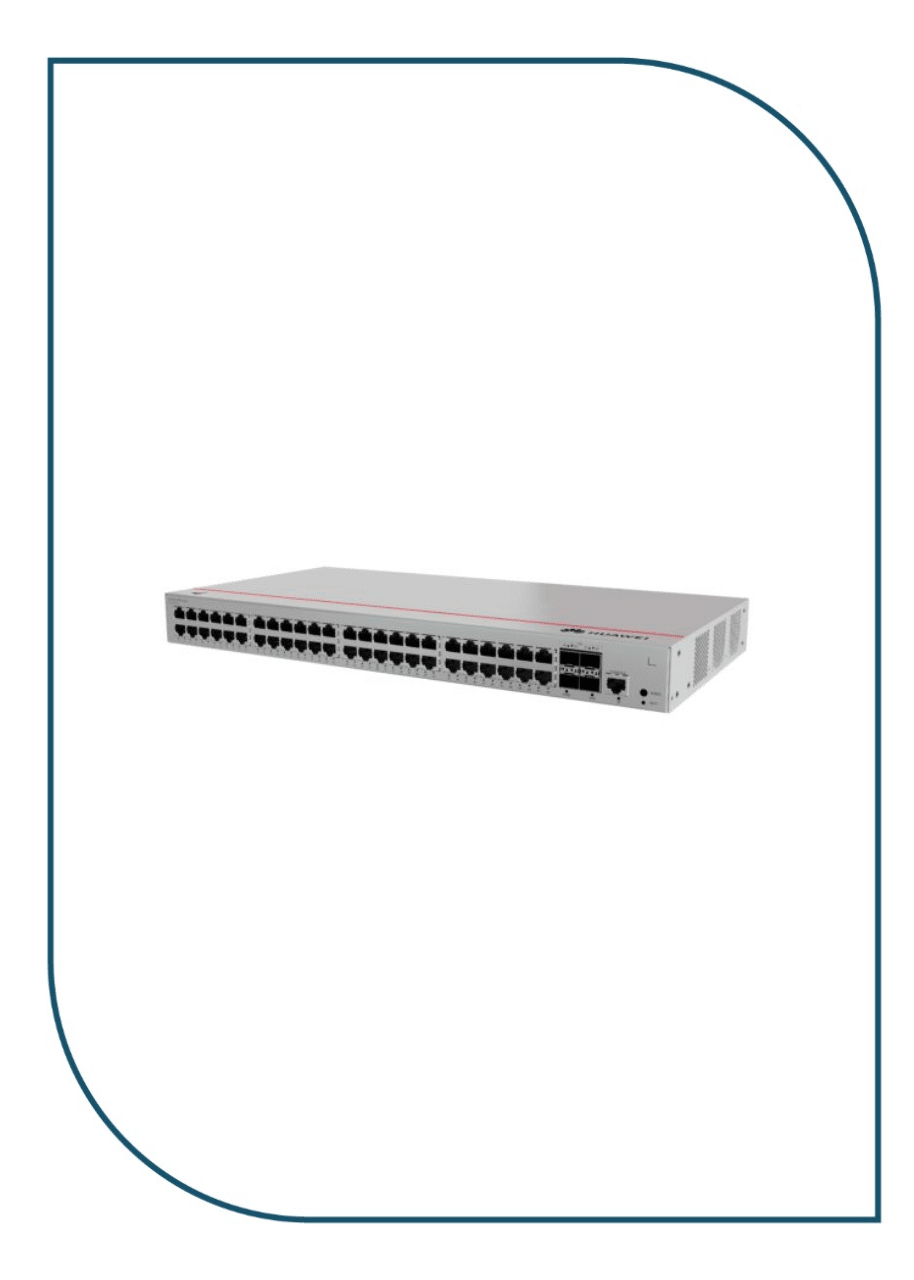

Huawei eKitEngine S310-48T4S Managed Switch (Model: S310-48T4S) is a high-density 48-port Gigabit Ethernet switch engineered with four optical SFP uplinks to provide reliable, cloud-managed connectivity for enterprise commercial facilities. It features 48 fixed 10/100/1000BASE-T Gigabit Ethernet ports and 4 dedicated GE SFP optical transceiver slots, achieving a switching bandwidth of 104 Gbps and a packet forwarding rate of 77 Mpps.
Housed in a standard 1U 19-inch rackmount metal enclosure with internal AC power, the switch provides enterprise Layer 2+ capabilities including Static Routing, 802.1Q VLANs, Link Aggregation (LACP), STP/RSTP, and IGMP Snooping. Management is supported via the Huawei eKit Cloud Platform, Web GUI, full CLI via SSH/Console, and SNMP.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine S310 Series |
| Model / SKU | S310-48T4S |
| Management Interface | Huawei eKit Cloud Platform, Web GUI, Full CLI via SSH/Console, SNMP |

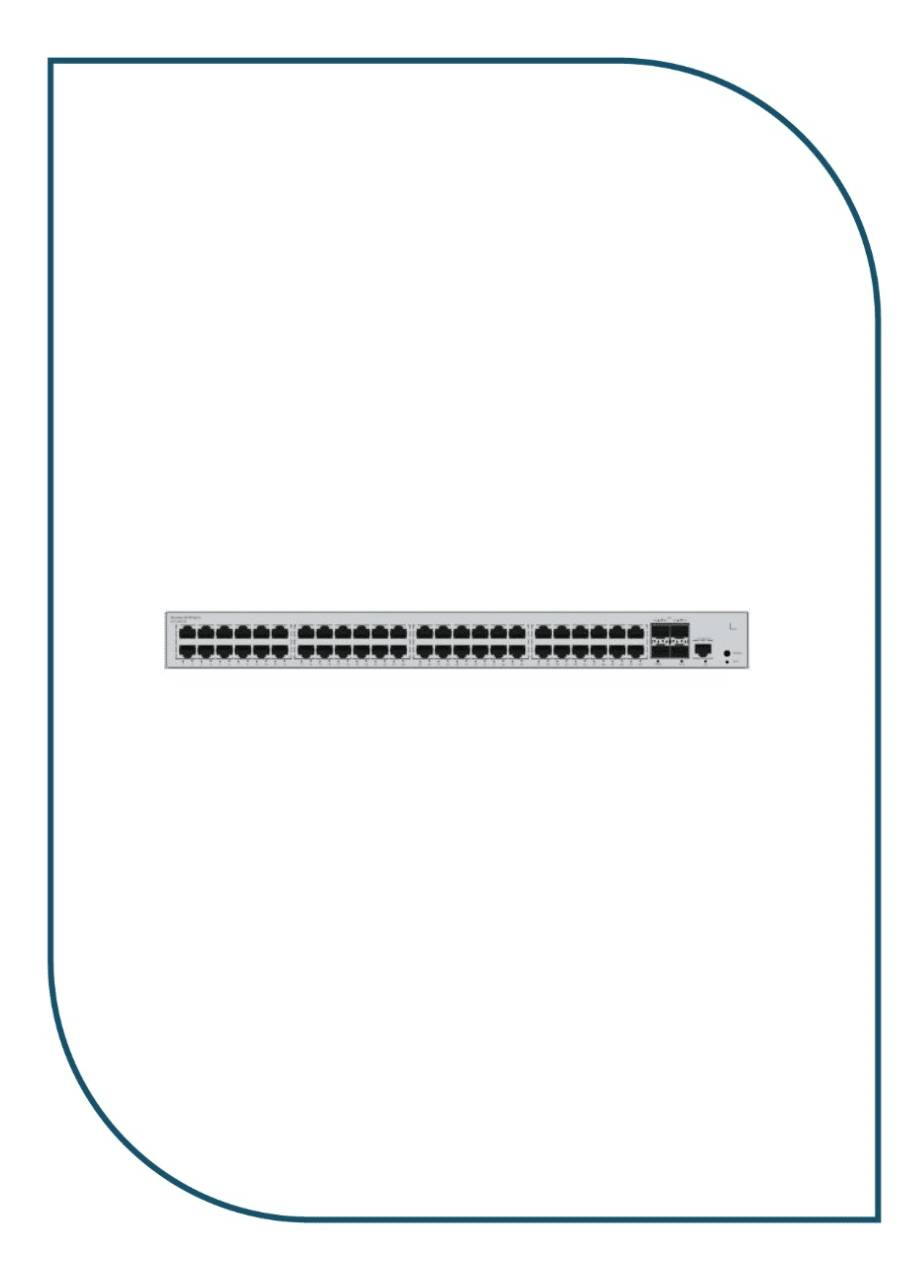

| Downlink Ports | 48 × 10/100/1000BASE-T Gigabit Ethernet Ports |
| Uplink Interfaces | 4 × GE SFP Dedicated Optical Slots |
| Switching Bandwidth | 104 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 77 Mpps |
| Layer 2+ Capabilities | Static Routing, 802.1Q VLANs, Link Aggregation (LACP), STP/RSTP, IGMP Snooping |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Enclosure with Internal AC Power |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Enclosure |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Heavy-Gauge Steel Enclosure |

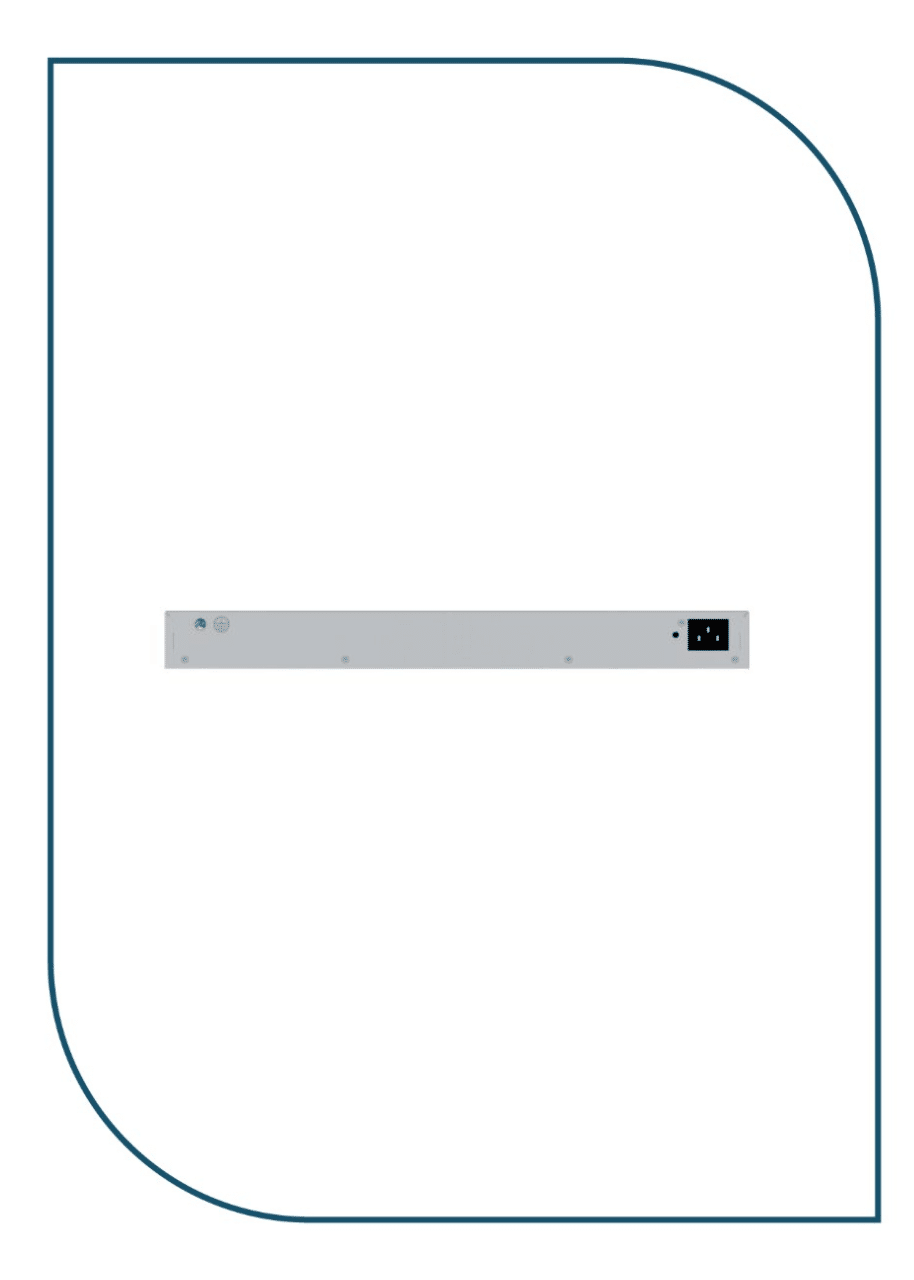

| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- High Port Density: 48 Gigabit Ethernet RJ45 ports provide 104 Gbps switching capacity and 77 Mpps forwarding for large enterprise workgroups.
- Quad SFP Optical Uplinks: 4 dedicated GE SFP optical slots enable redundant fiber uplinks to core network switches.
- Layer 2+ Static Routing: Hardware-based IPv4 static routing simplifies traffic flow between departmental subnets.
- Comprehensive Management: Full CLI via SSH/Console, SNMP monitoring, Web GUI, and cloud management via Huawei eKit.
- Layer 2 Feature Suite: Full support for 802.1Q VLANs, LACP port trunking, spanning tree protocols, and IGMP snooping.
- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKitEngine S310-48T4S Managed Switch is engineered for access and aggregation scenarios across commercial environments:
- Connecting up to 48 employee workstations and office equipment on high-density corporate floors.
- Providing quad SFP optical slots for redundant fiber links to main server rooms and distribution closets.
- Deploying high-port-count network distribution across hotel guest rooms and medical offices.
- Simplified mass provisioning and remote diagnostics for multi-branch IT via the Huawei eKit App.
- Delivering dependable, cloud-managed edge switching across commercial campuses and educational buildings.
Installation & Operating Environment
The Huawei eKitEngine S310-48T4S Managed Switch features a standard 1U 19-inch metal enclosure supplied with mounting brackets and rubber feet for seamless installation in commercial server racks. Powered by an internal universal AC power supply, it maintains efficient thermal dissipation and continuous operational uptime in enterprise facilities.
