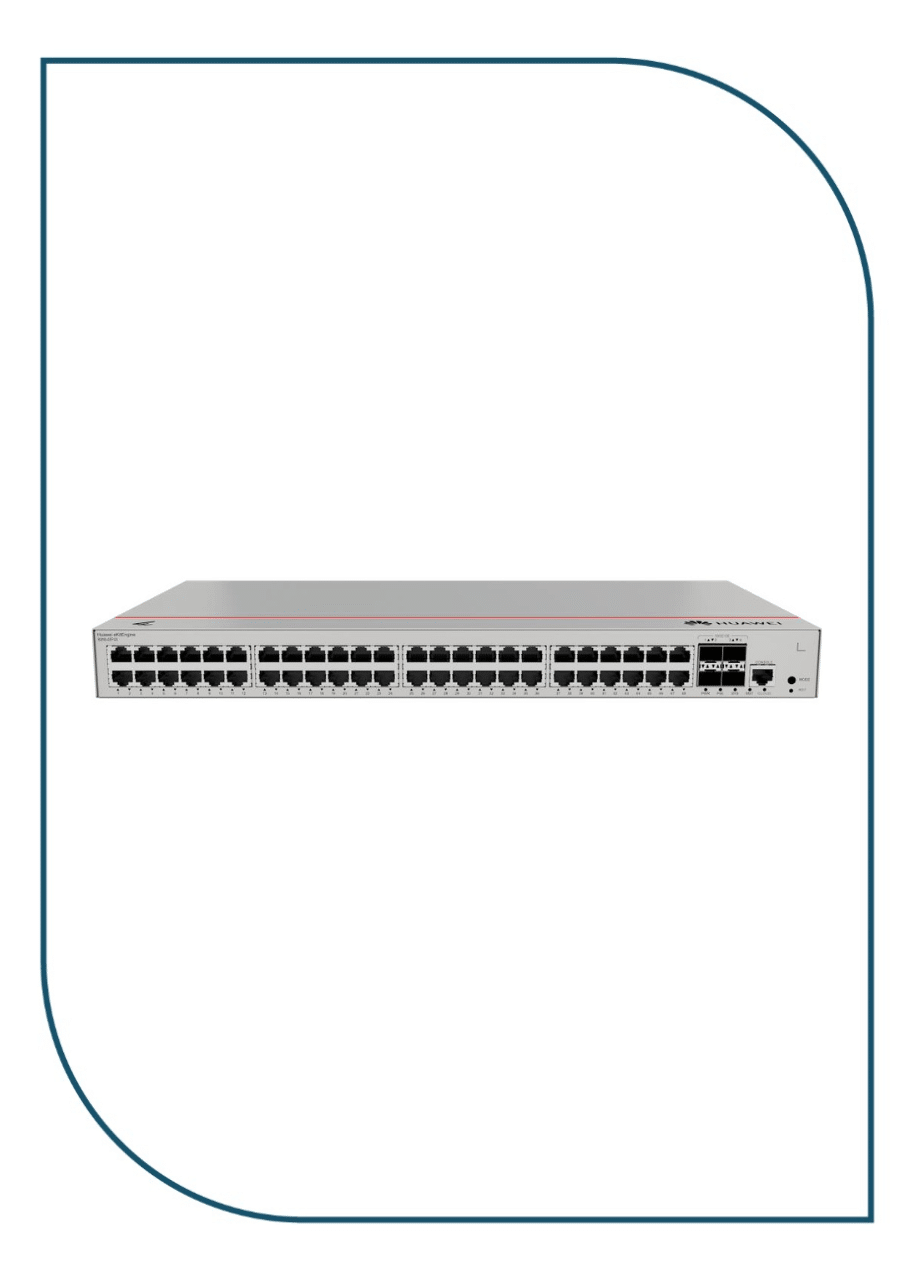

Huawei eKitEngine S310-48P4X L3 Managed PoE+ Switch (Model: S310-48P4X) is an enterprise 48-port Gigabit switch engineered with 380W of PoE+ capacity and four 10-Gigabit SFP+ optical uplinks to deliver powerful Layer 3 routing and 10G optical transport. It features 48 fixed 10/100/1000BASE-T Gigabit Ethernet ports compliant with IEEE 802.3at/af PoE+ with a 380W dedicated budget, and 4 dedicated 10GE SFP+ optical slots, delivering a switching bandwidth of 176 Gbps and a packet forwarding rate of 131 Mpps.
Housed in a standard 1U 19-inch rackmount metal chassis with internal AC power, the switch delivers enterprise Layer 3 dynamic routing capabilities including IPv4/IPv6 Static Routing, RIP, OSPF, and VLAN routing. Management is supported via the Huawei eKit Cloud Platform, Web GUI, full CLI via SSH/Console, and SNMP.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine S310 Series |
| Model / SKU | S310-48P4X |
| Management Interface | Huawei eKit Cloud Platform, Web GUI, Full CLI via SSH/Console, SNMP |
| Downlink Ports | 48 × 10/100/1000BASE-T Gigabit Ethernet Ports (802.3at/af PoE+) |
| PoE Power Budget | 380W Dedicated PoE+ Power Budget |
| Uplink Interfaces | 4 × 10GE SFP+ Dedicated High-Speed Optical Slots |
| Switching Bandwidth | 176 Gbit/s Wire-Speed Non-Blocking Bandwidth |
| Packet Forwarding Rate | 131 Mpps |
| Layer 3 Routing | IPv4/IPv6 Static Routing, RIP, OSPF, VLAN Routing |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal AC Power |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Heavy-Duty Steel Enclosure |

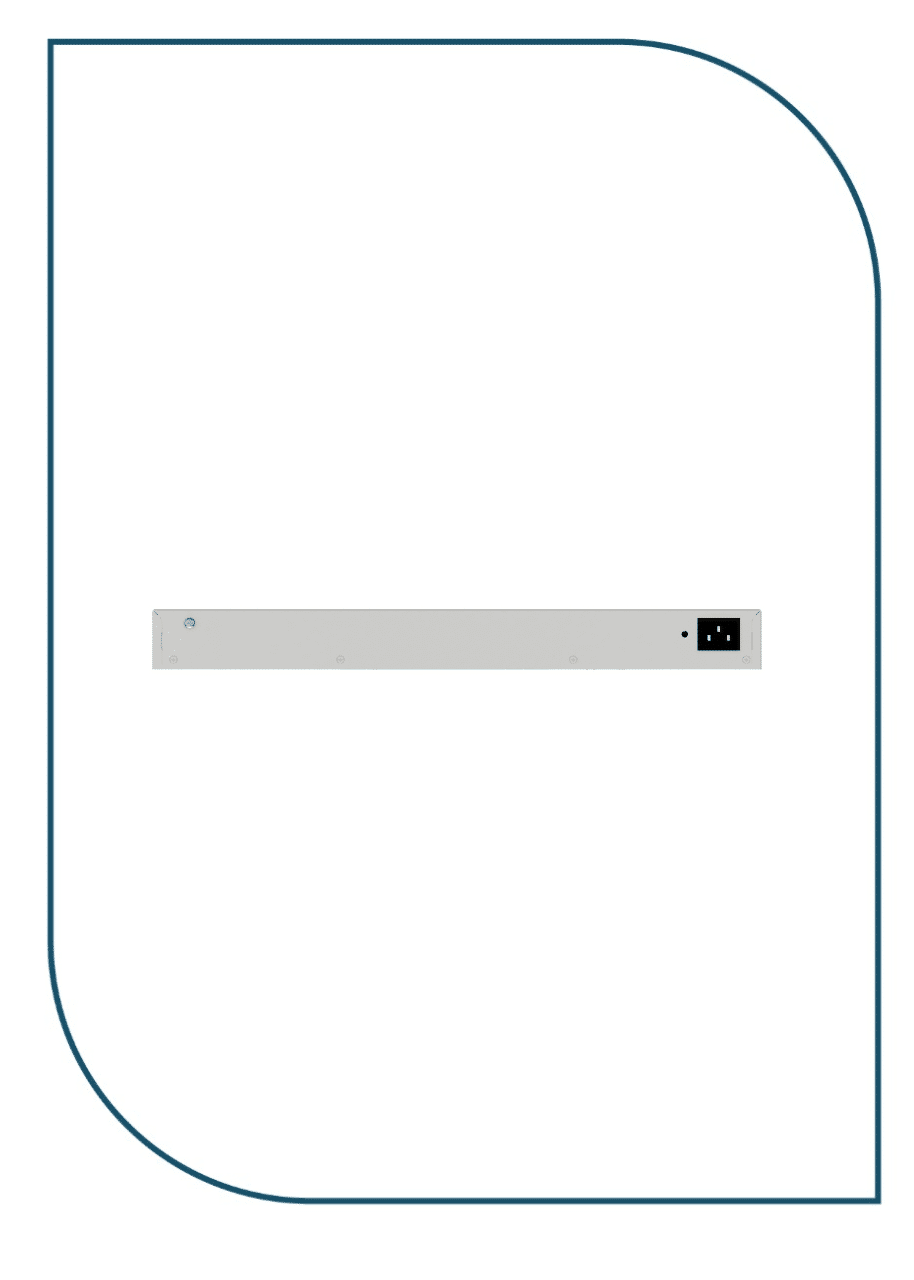

| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- Quad 10G SFP+ Optical Uplinks: 4 dedicated 10GE SFP+ optical slots eliminate network bottlenecks to campus core backbones.
- High-Density 380W PoE+ Power: 48 Gigabit PoE+ ports deliver stable 802.3at/af power for dense APs, cameras, and VoIP phones.
- Wire-Speed Performance: Generates 176 Gbps switching bandwidth and 131 Mpps forwarding rate for high-concurrency traffic flows.
- Dynamic Layer 3 Routing: Hardware-accelerated IPv4/IPv6 static routing, RIP, and OSPF deliver high-speed inter-VLAN forwarding.
- Enterprise Management: Full CLI via SSH/Console, SNMP monitoring, Web GUI, and cloud management via Huawei eKit.
- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKitEngine S310-48P4X L3 Managed PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:
- Connecting 48 PoE endpoints to campus core networks over four high-speed 10G SFP+ optical fiber uplinks.
- Supplying high-power PoE+ and 10G optical backhaul for dense enterprise Wi-Fi 6 and Wi-Fi 7 wireless networks.
- Centralizing power and multi-gigabit video streaming for up to 48 commercial CCTV security cameras.
- Providing Layer 3 enterprise access with hardware inter-VLAN routing, ACL security policies, and DHCP services.
- Deploying cloud-managed high-density PoE access across corporate offices, healthcare facilities, and universities.
Installation & Operating Environment
The Huawei eKitEngine S310-48P4X L3 Managed PoE+ Switch features a standard 1U 19-inch rackmount metal chassis supplied with mounting brackets and rubber feet for immediate rack cabinet installation. Driven by an internal universal AC power supply, it maintains efficient thermal management and dependable continuous operation in enterprise facilities.
