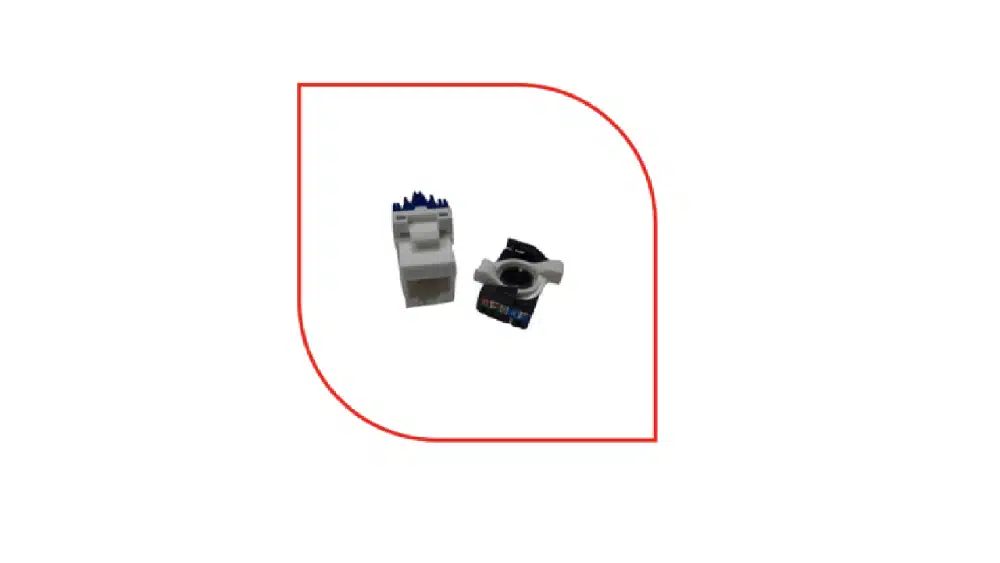

ProLink CAT6 UTP 1G Keystone Jack Rotating 500MHz (PL-KJ6-RTL) is a professional-grade Category 6 connection module purpose-built for high-density structured cabling projects. Designed to handle the rigorous demands of modern Gigabit Ethernet networks, This high-performance jack enables fast, tool-less termination while maintaining consistent Category 6 electrical performance. It integrates seamlessly into enterprise patch panels, standard wall faceplates, and telecommunication distribution racks, making it an excellent infrastructure choice for data centers, commercial offices, and complex local area networks (LANs).
Technical Specifications
| Component / Property | Technical Specification Value |
|---|---|
| Product Name | ProLink CAT6 UTP 1G Keystone Jack Rotating |
| Model / SKU | PL-KJ6-RTL |
| Hardware Performance | Category 6 Class E Hardware Performance (500 MHz) |
| Port Configuration | 1 x RJ45 Jack / 8 Signal Contacts |
| Housing Material | Polycarbonate (UL-94-V0 Rating) |
| Contact Composition | CuSn with 1.2 µm Gold over Nickel plating |
| IDC Terminal Plating | Tin-Plated / Stainless Steel Cutting Blade |
| Cable Strain Relief | Integrated through cable tie |
Mechanical Specifications
| Parameter | Operational Rating |
|---|---|
| Operating Temperature Range | -10°C to 60°C |
| Storage Temperature Range | -40°C to 70°C |
| Atmospheric Humidity | 95% (non-condensing maximum) |
| Admissible Solid Wire Ø | 0.4 mm (AWG26) to 0.65 mm (AWG22) |
| Admissible Strand Ø | AWG26/7 to AWG22/7 |
| Admissible Insulation Ø | 0.8 mm to 1.6 mm |
| Maximum Cable Diameter | 10 mm |
| Minimum Mating Cycles | > 750 (ISO/IEC 11801 2nd Edition compliant) |
| Module Re-terminations | > 20 typical cycles |
Electrical Characteristics
| Electrical Parameter | Standard Value / Test Rating | Typical Value (at 20°C) |
|---|---|---|
| Current Carrying Capacity | 1 Amp @ 60°C (IEC 60603-7-41) | Pass |
| Voltage Withstanding | 1000 V DC or AC peak | > 1000 V |
| Insulation Resistance | > 250 MΩ (100 V DC) | > 5 MΩ |
| Contact Resistance | < 200 mΩ | < 5 mΩ |
| I/O Resistance | < 200 mΩ | 60 mΩ |
| I/O Resistance Unbalance | < 50 mΩ | 30 mΩ |
Key Features
- Rotating Tool-less Module: Specially engineered with a rotating mechanism that simplifies cable routing and adjustments in confined spaces, server racks, or shallow wall outlets.
- One-Motion Termination: Terminates all 8 copper conductors simultaneously in a single, effortless operation. Built-in audio confirmation ensures a secure connection—just listen for the click.
- Fully Reusable Architecture: Avoids component waste from wiring errors. The design allows installers to easily reopen and re-terminate the module over 20 times without signal degradation.
- Optimized Signal Integrity: Mechanically designed to keep untwisted pair lengths and the distance between the conductor end and the IDC contacts to an absolute minimum, suppressing cross-talk.
- Durable Construction: Manufactured with a Polycarbonate (UL 94 V-0) housing, stainless steel cutting blades, tin-plated IDC terminals, and CuSn contacts with 1.2 µm gold plating over nickel for long-term reliability.
Recommended Applications
- Category 6 structured cabling systems
- Enterprise LAN infrastructure
- RJ45 wall outlets and patch panels
- Telecommunications distribution rooms
- Server rooms and network cabinets
- Commercial office networks
- Educational institutions
- Hospitals and healthcare facilities
- Government buildings
- Gigabit Ethernet network installations
Quality Assurance
Manufactured in accordance with strict international performance baselines, the ProLink line provides premium network hardware that meets or exceeds global standard metrics. This module heavily surpasses Category 6 / CLASS E link performance criteria down to the component level, giving engineers, installers, and corporate end-users consistent, verifiable physical layer reliability across its entire service lifecycle.
