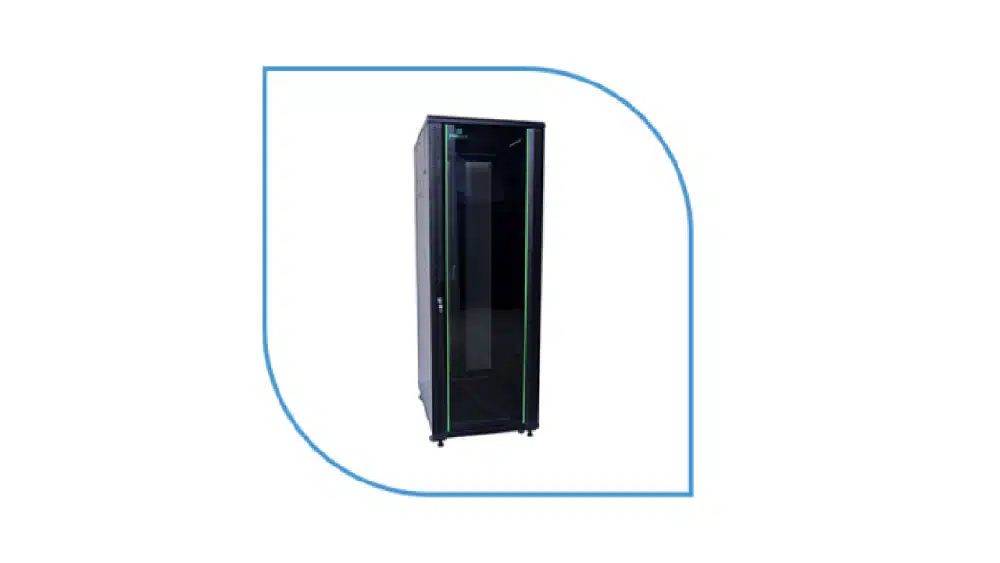

ProRack 42U Standing Network Rack (Model: PR-FG6842) is an enterprise-grade IT enclosure designed for clean, highly secure, and visible hardware management. Measuring 600mm wide by 800mm deep, this standing enclosure supports an exceptional 800KG static load rating, making it designed for enterprise server rooms, data centers, and structured cabling environments.
Premium Build Quality & Visual Security
- Tempered Glass Front Door: Outfitted with a premium 5mm tempered glass front door (Type E or B) that allows for instant visual monitoring of network diagnostic lights without exposing hardware to physical interference.
- Corrosion-Resistant Surface: The entire cold-rolled steel chassis undergoes multi-stage surface preparation, including degreasing, pickling, phosphating, laundering, and powder coating for long-term resilience.
- Dual-Panel Accessibility: Engineered with two separate, lockable side panels on each side and a cold-rolled steel back door (Type K) to simplify hardware installation and maintenance routing.
Active Ventilation & Infrastructure Optimization
- Four-Fan Cooling Network: Integrated with 4 heavy-duty cooling fans embedded into the top cover plate to actively exhaust warm air away from critical high-density hardware.
- Centralized Distribution: Includes a built-in Power Distribution Unit (PDU) socket strip providing 8 clean power outlets to minimize trailing wire clutter and organize hardware power routing.
- Simultaneous Leveling & Mobility: Heavy-duty structural casters and adjustable M12 leveling support feet can be mounted at the same time for fast positional adjustments and stable long-term deployment.

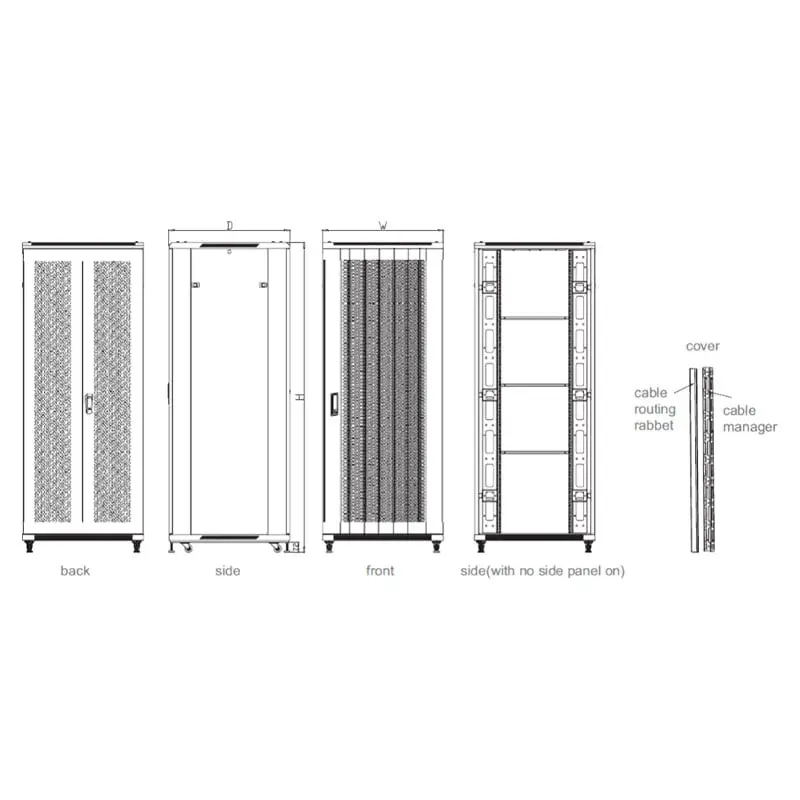

Technical Parameters & Dimensions
| Dimension / Parameter | Operational Specification |
|---|---|
| Model / SKU | ProRack 42u 600×800 (PR-FG6842) |
| Rack Capacity | 42U |
| Width / Depth | 600 mm / 800 mm |
| Overall Physical Height | 2055 mm |
| Static Load Capacity | 800 KG |
| Main Material Structure | Cold-Rolled Quality Steel |
| Front Door Assembly | 5mm Tempered Glass |
| Color Finish | Black (RAL9005) |

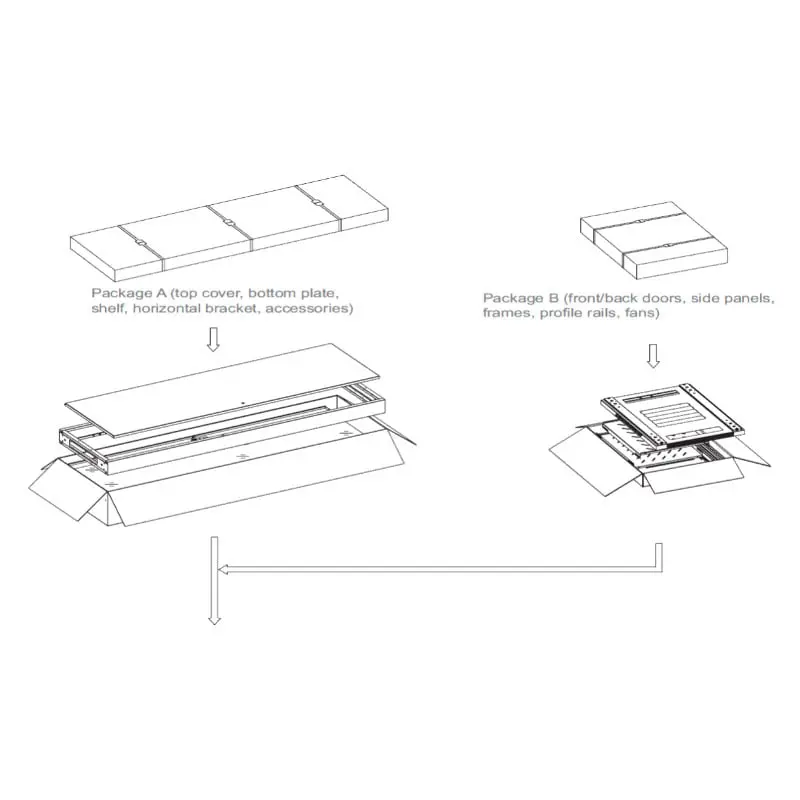

Included Accessories & Package Contents
Every standard ProRack 42U 600*800 server cabinet ships as a complete installation kit with the following components:
- Fans: 4 × Cold-Rolled Steel Cooling Fans
- Shelves: 1 × 1.2mm Cold-Rolled Steel Shelf
- Power Elements: 1 × Power Distribution Unit (PDU) Strip with 8 Outlets
- Mounting Hardware: 40 × Heavy-Duty Cage Nuts
- Structural Footings: 4 × Casters and 4 × M12 Support Feet

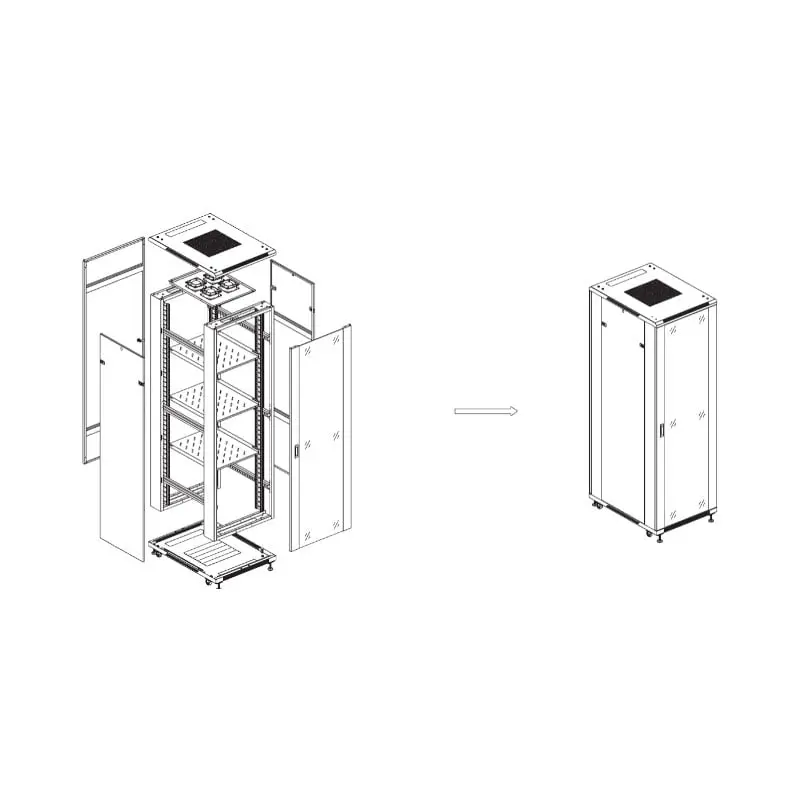

- Chassis Framing: 2 × Main Frames, 4 × Profile Rails (2.0mm), 6 × Support Beams, and 12 × Junction Boxes
