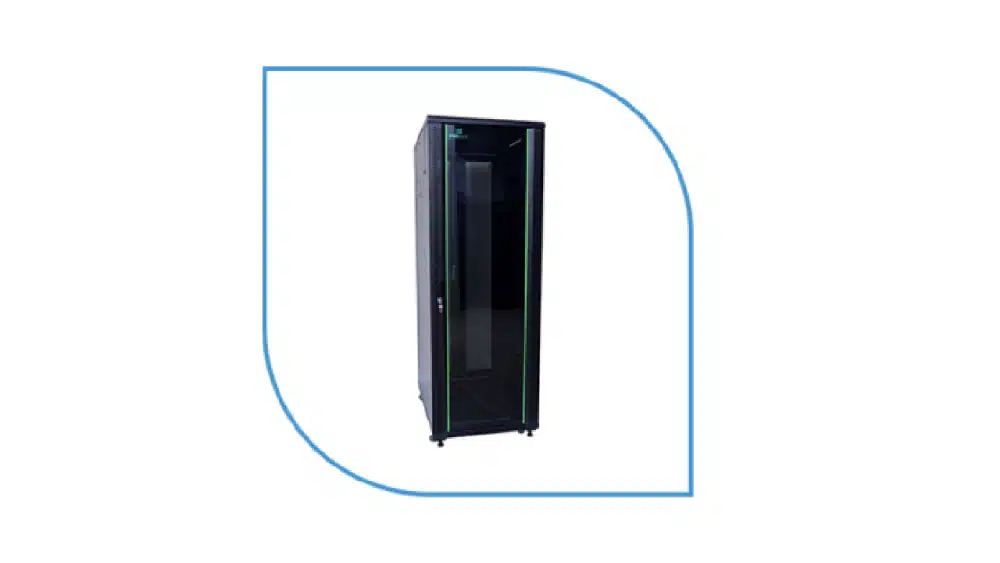

ProRack 42U Standing Server Rack (Model: PR-FG8842) is a premium, enterprise-grade enclosure engineered to centralize, organize, and safeguard heavy data infrastructure elements. Measuring 800mm wide by 800mm deep, this robust network cabinet features an 800KG static load rating, making it perfectly tailored for intensive corporate server rooms, professional data centers, and expanding IT infrastructures.
Premium Build Quality & High Visual Security
- Tempered Glass Front Door: Equipped with a 5mm tempered glass front screen door (Type E or B) that enables continuous visual monitoring of server diagnostic lights and switches without exposing hardware to unauthorized access.
- Industrial Surface Finishing: To guarantee long-term corrosion resistance and durability, the cold-rolled steel chassis undergoes multi-stage degreasing, pickling, phosphating, laundering, and powder coating treatments.
- Multi-Panel Server Access: Designed with two independent, lockable side panels on each side and a matching cold-rolled steel back door (Type K) for effortless access during hardware installations.
Thermal Control & Power Optimization
- Active Four-Fan Exhaust: Features 4 high-efficiency, top-mounted cooling fans that actively draw radiant heat out of the cabinet ceiling, preserving optimal operating climates for high-density servers.
- Integrated Power Distribution: Bundled with a built-in Power Distribution Unit (PDU) socket strip featuring 8 outlets to streamline power cabling and reduce data center wire clutter.
- Mobility & Stable Grounding: Features heavy-duty casters for smooth mobility alongside adjustable M12 leveling support feet that can be deployed simultaneously to secure the rack firmly in place.
Technical Parameters & Dimensions
| Dimension / Parameter | Operational Specification |
|---|---|
| Model / SKU | ProRack 42U 800×800 Glass Door PR-FG8842 |
| Rack Capacity | 42U |
| Width / Depth | 800 mm / 800 mm |
| Overall Physical Height | 2055 mm |
| Static Load Capacity | 800 KG |
| Chassis Material | High-Grade Cold-Rolled Steel |
| Front Door Material | 5mm Tempered Glass |
| Color Coating | Black (RAL9005) |
Included Accessories & Package Contents
Every standard PR-FG8842 server cabinet ships as a complete deployment kit containing:
- Cooling Element: 4 × Cold-Rolled Steel Active Cooling Fans
- Shelving: 1 × 1.2mm Heavy-Duty Cold-Rolled Steel Shelf
- Power Rail: 1 × Power Distribution Unit (PDU) Strip with 8 Sockets
- Mounting Gear: 40 × Heavy-Duty Cage Nuts
- Grounding Gear: 4 × Structural Casters and 4 × M12 Leveling Support Feet
- Framework Hardware: 2 × Frames, 4 × Profile Rails (2.0mm), 6 × Support Beams, 2 × Cable Managers, and 12 × Junction Boxes
