Description

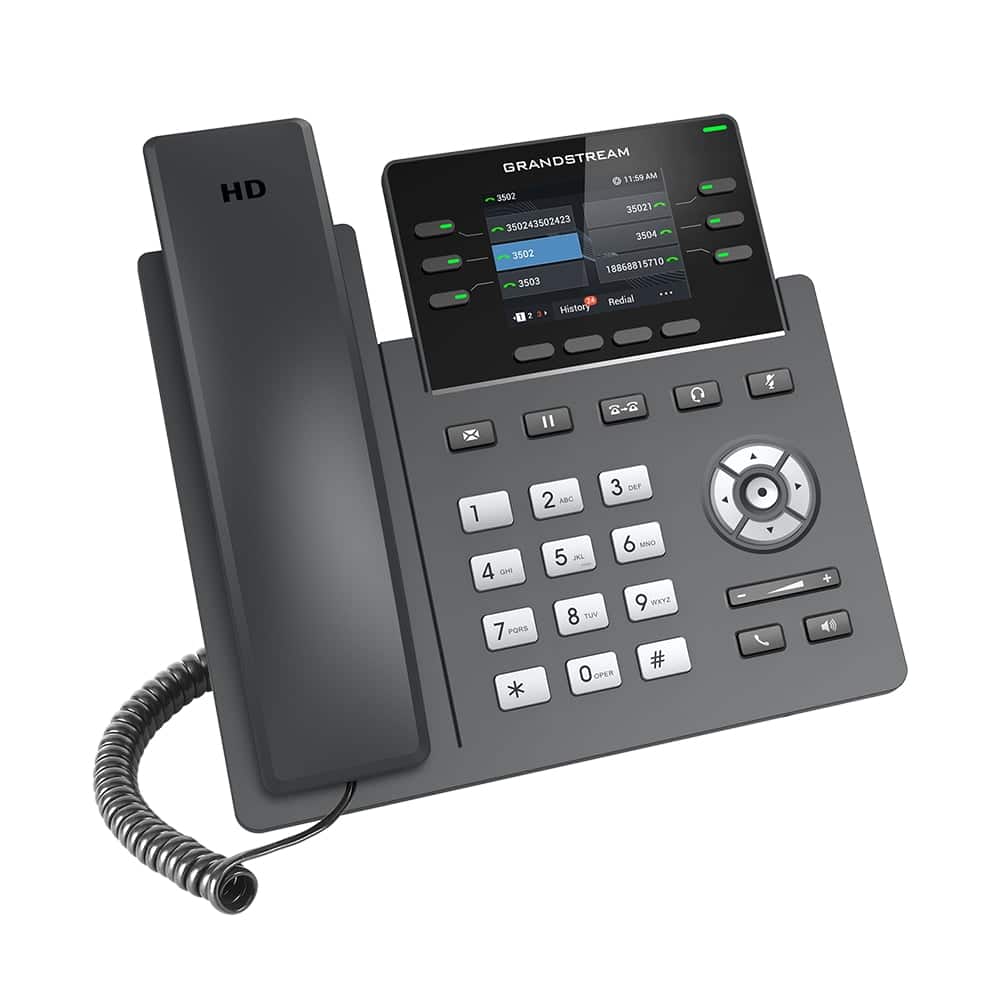

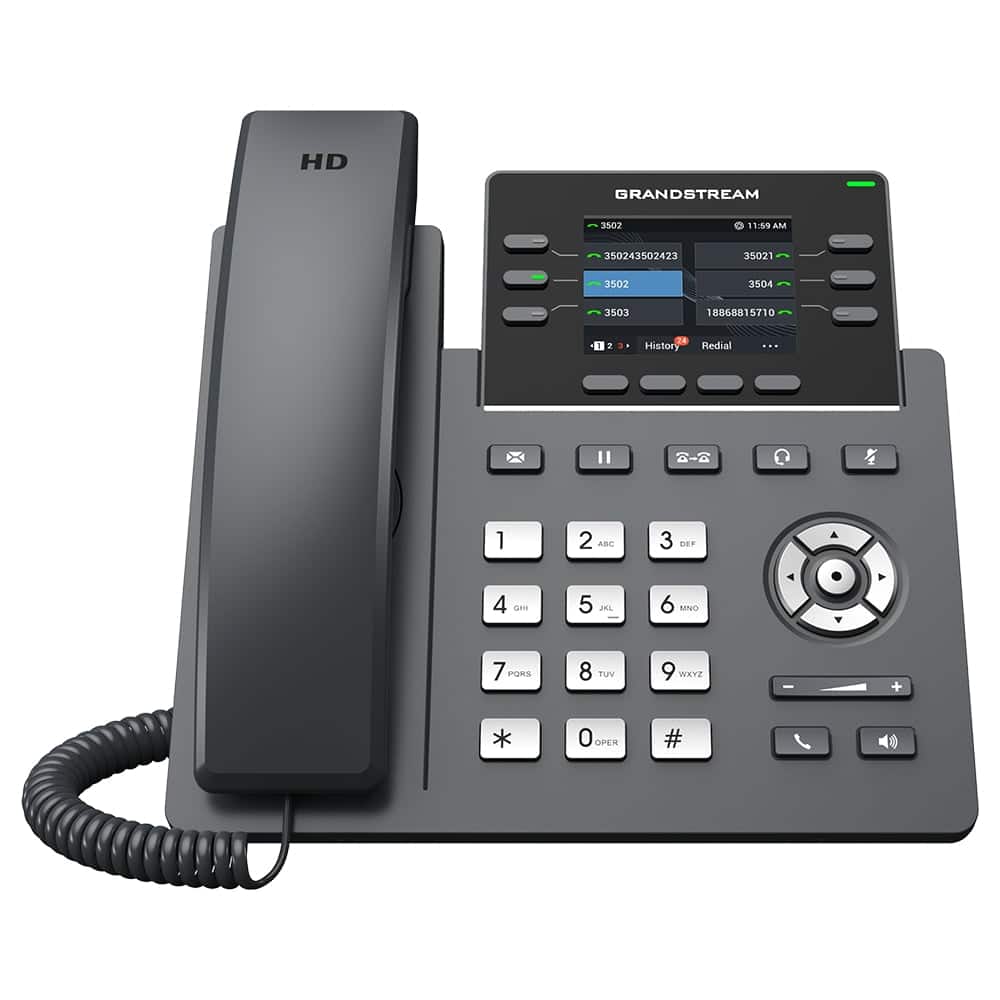

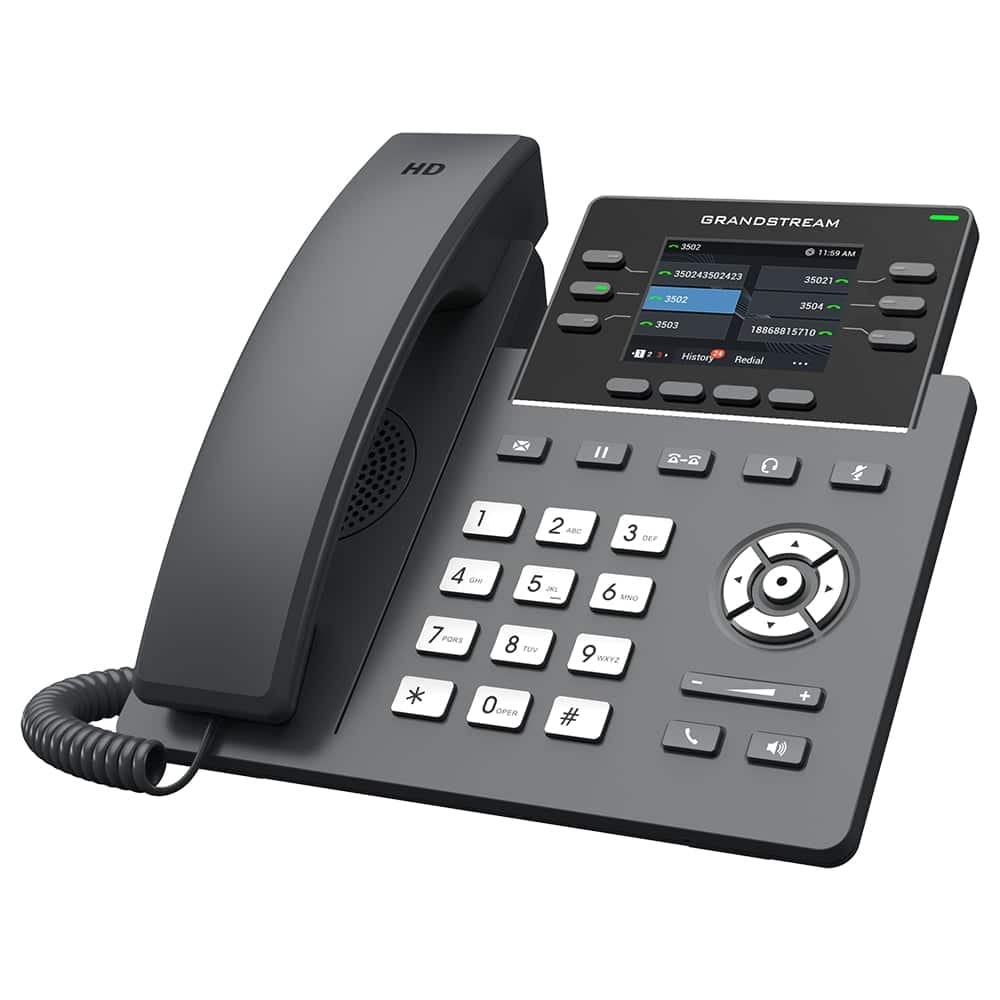

Grandstream GRP Series GRP2613 3-Line 6-SIP Gigabit IP Phone (Model: GRP2613) is a Carrier-Grade Color Screen Gigabit IP Phone engineered for enterprises, service providers, commercial offices, and multi-line workstation desks. Equipped with 3 physical line keys, 6 SIP accounts, up to 24 virtual multipurpose keys (VPKs), a 2.8-inch 320×240 color TFT LCD, dual Gigabit Ethernet ports with integrated PoE, and swappable faceplates.
Delivering wideband Opus and G.722 HD audio on both handset and speakerphone, it supports Electronic Hook Switch (EHS) for wireless headsets. The phone features zero-touch provisioning via GDMS, enterprise-grade security protocols, and fanless silent operation.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | GRP Series |
| Model / SKU | GRP2613 |
| Capacity / Scale | 6 SIP Accounts, 3 Physical Line Keys, up to 24 Virtual Multipurpose Keys (VPKs) |
| Network / Telephony Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit RJ45 Ports with integrated PoE |
| Packet / Voice Processing | Opus, G.722 (wideband), G.711u/a, G.729A/B, G.726, iLBC; Acoustic Echo Cancellation |
| Expansion & Peripheral Ports | RJ9 Headset Jack (with EHS support for Plantronics, Jabra, and Sennheiser) |
| Operating System / Management | Embedded Linux; GDMS Cloud Management, Web UI, TR-069, encrypted XML configuration |
| Power Supply Specifications | Integrated PoE (IEEE 802.3af Class 2); Optional Universal Power Adapter 5VDC 0.6A |
| Maximum Power Consumption | 3.84W |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Physical Dimensions (L × W × H) | 203 × 193 × 52.1 mm |
| Unit Weight | 554 g (0.554 kg) |
| Chassis & Display | 2.8 inch (320 × 240) color TFT LCD; 3 dual-color line keys, 4 XML soft keys |
| Heat Dissipation / Cooling | Fanless natural heat dissipation (noise-free operation) |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Operating Relative Humidity | 10% to 90% (Non-condensing) |
| Mounting Capabilities | Desktop stand (2 positions) and Wall-mount (requires GRP_WM_S bracket) |
Key Features & Capabilities
- Vivid 2.8-Inch Color Display: Rich 320×240 TFT color display provides clear viewing of caller information and digital line keys.
- 24 Virtual Multipurpose Keys: Up to 24 digitally programmable VPKs deliver flexible BLF and speed-dial monitoring.
- Dual Gigabit Interfaces: Dual switched 10/100/1000 Mbps Gigabit PoE ports support high-speed PC passthrough.
- Acoustic Noise Shield: Filters out ambient noise to deliver pristine voice quality in open commercial work areas.
- Silent Desktop Thermal Design: Fanless passive cooling ensures quiet operation across all corporate work areas.
- Centralized Cloud Control: Configured, managed, and monitored via the Grandstream Device Management System (GDMS).
Recommended Applications
The Grandstream GRP Series GRP2613 3-Line 6-SIP Gigabit IP Phone is designed for enterprise and commercial deployment scenarios, including:
- Enterprise knowledge worker desks requiring Gigabit network passthrough and color display
- Commercial office professionals managing multiple incoming telephone lines
- Telecom service providers deploying standardized carrier-grade VoIP endpoints
- Customer service workstations requiring customizable swappable faceplates
- Corporate call centers utilizing EHS wireless headsets for hands-free mobility
Installation & Operating Environment
The Grandstream GRP Series GRP2613 3-Line 6-SIP Gigabit IP Phone features a Desktop stand and Wall-mount enclosure measuring 203 × 193 × 52.1 mm and weighing 554 g (0.554 kg). It operates across an environmental temperature range of 0°C to 40°C (32°F to 104°F) and relative humidity of 10% to 90% (Non-condensing). Powered via Integrated PoE (IEEE 802.3af Class 2); Optional Universal Power Adapter 5VDC 0.6A, it ensures dependable continuous operation and structured integration into commercial networking racks and office work environments.
