Description
Grandstream UCM6300 Series UCM6301 1-Port FXO/FXS Unified IP PBX (Model: UCM6301) is a Unified Communications IP PBX Appliance engineered for small businesses, distributed branch offices, medical clinics, and retail storefronts. Equipped with 1 RJ11 FXO port, 1 RJ11 FXS port with lifeline support, supports up to 500 registered users, 75 concurrent calls, 75 SRTP calls, up to 4 video conference rooms (20 parties 1080p), and 3 Gigabit PoE+ ports.
Featuring an integrated 320×240 color LCD touch screen, it runs Asterisk 16 to deliver voice, video, instant messaging, and web collaboration. It supports the Wave desktop, web, and mobile apps, automated ZeroConfig endpoint setup, and secure cloud management through GDMS.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | UCM6300 Series |
| Model / SKU | UCM6301 |
| Capacity / Scale | 500 Registered SIP Users, 75 Concurrent Calls (75 SRTP Calls); 4 Video Rooms (20 Parties) |

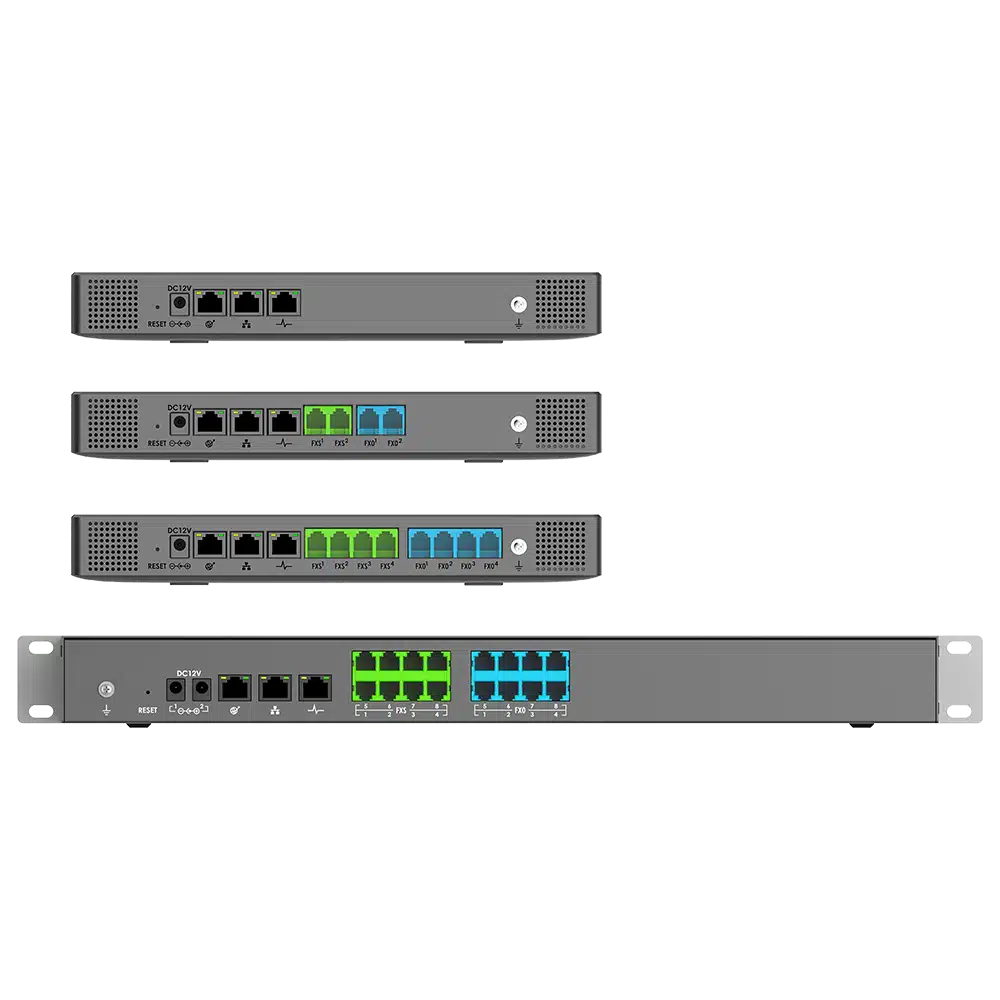

| Network / Telephony Interfaces | 1x RJ11 FXS Port, 1x RJ11 FXO Port; 3x Gigabit RJ45 Ports with PoE+ |
| Packet / Voice Processing | Opus, G.711u/a, G.722, G.726, G.729A/B, iLBC; H.264, H.265, VP8; 128ms Echo Cancellation |

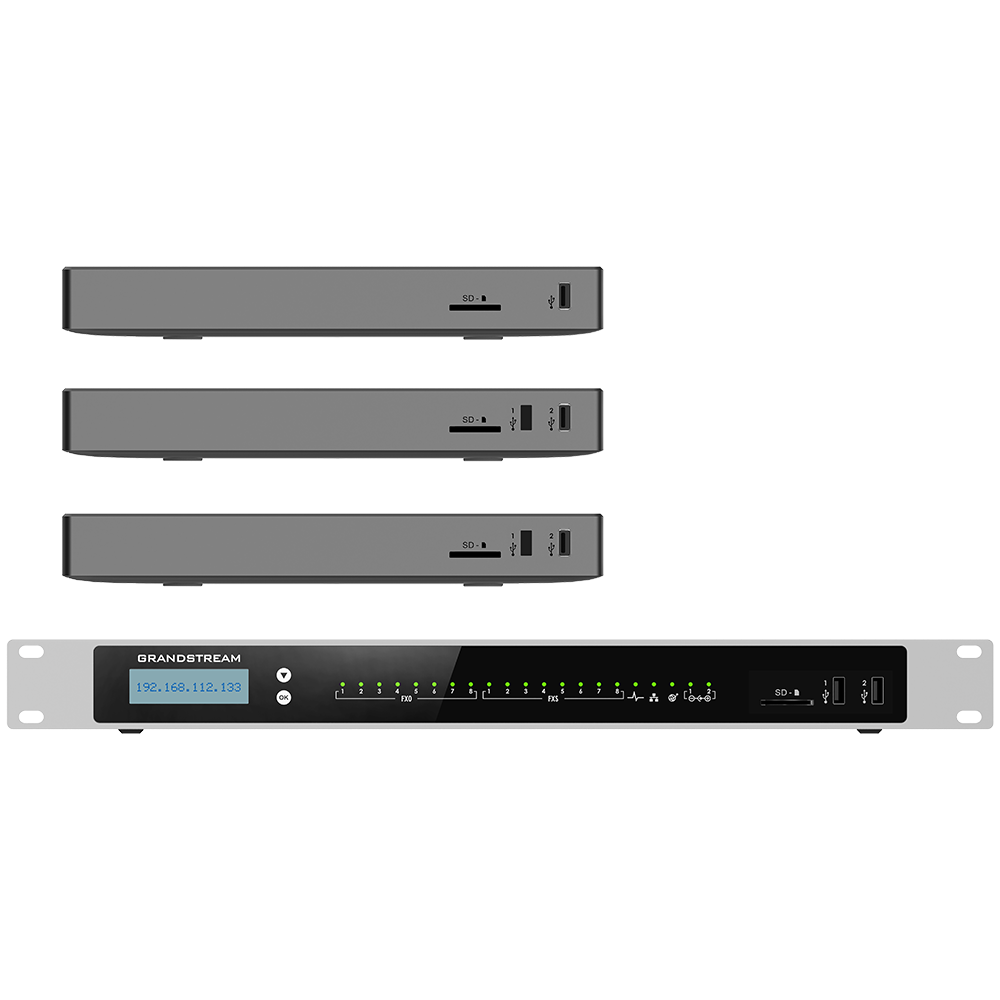

| Expansion & Peripheral Ports | 1x USB 3.0 Port, 1x SD Card Slot (up to 128GB) |
| Operating System / Management | Asterisk Version 16; Web UI, GDMS Cloud, UCM RemoteConnect, Wave App, ZeroConfig |
| Power Supply Specifications | External Universal Power Adapter 100-240VAC 50/60Hz, Output 12VDC 1.5A; Integrated PoE+ (802.3at) |
| Maximum Power Consumption | 10.5W |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Physical Dimensions (L × W × H) | 270 × 175 × 36 mm |
| Unit Weight | 725 g (0.725 kg) |
| Chassis & Display | 320 × 240 color LCD with touch screen; Status LEDs for Power, Run, Network, FXS, FXO |
| Heat Dissipation / Cooling | Smart speed-adjusting cooling fan architecture |
| Operating Temperature Range | 0°C to 45°C (32°F to 113°F) |
| Operating Relative Humidity | 10% to 90% (Non-condensing) |
| Mounting Capabilities | Desktop and Wall-mount |
Key Features & Capabilities
- 500-User UC Capacity: Engineered to deliver high throughput for 500 users and 75 simultaneous voice calls.
- Integrated Video Meetings: Built-in video collaboration engine hosts up to 4 Full-HD video rooms with 20 participants.
- Triple Gigabit Interfaces: 3 Gigabit RJ45 ports with integrated PoE+ provide flexible routing, switching, and dual-WAN modes.
- Smart Thermal Fan Cooling: Intelligent speed-adjusting cooling fan dynamically regulates thermal dissipation based on workload.
- Defense-in-Depth Security: Built with Secure Boot, unique digital security certificates per device, and SRTP/TLS encryption.
- Zero-Touch Cloud Deployment: Rapid automated provisioning is supported through GDMS and Grandstream ZeroConfig automated discovery.
Recommended Applications
The Grandstream UCM6300 Series UCM6301 1-Port FXO/FXS Unified IP PBX is designed for enterprise and commercial deployment scenarios, including:
- Small business corporate offices requiring unified on-premise voice, video, and messaging
- Branch office deployments requiring secure automated interconnection to headquarters
- Hybrid workplace telephony utilizing Wave mobile, desktop, and web softphone clients
- Professional clinics, legal firms, and consultancies needing secure SIP voice
- PSTN trunk failover integration alongside VoIP SIP trunking via single FXO port
Installation & Operating Environment
The Grandstream UCM6300 Series UCM6301 1-Port FXO/FXS Unified IP PBX features a Desktop and Wall-mount enclosure measuring 270 × 175 × 36 mm and weighing 725 g (0.725 kg). It operates across an environmental temperature range of 0°C to 45°C (32°F to 113°F) and relative humidity of 10% to 90% (Non-condensing). Powered via External Universal Power Adapter 100-240VAC 50/60Hz, Output 12VDC 1.5A; Integrated PoE+ (802.3at), it ensures dependable continuous operation and structured integration into commercial networking racks and office work environments.
