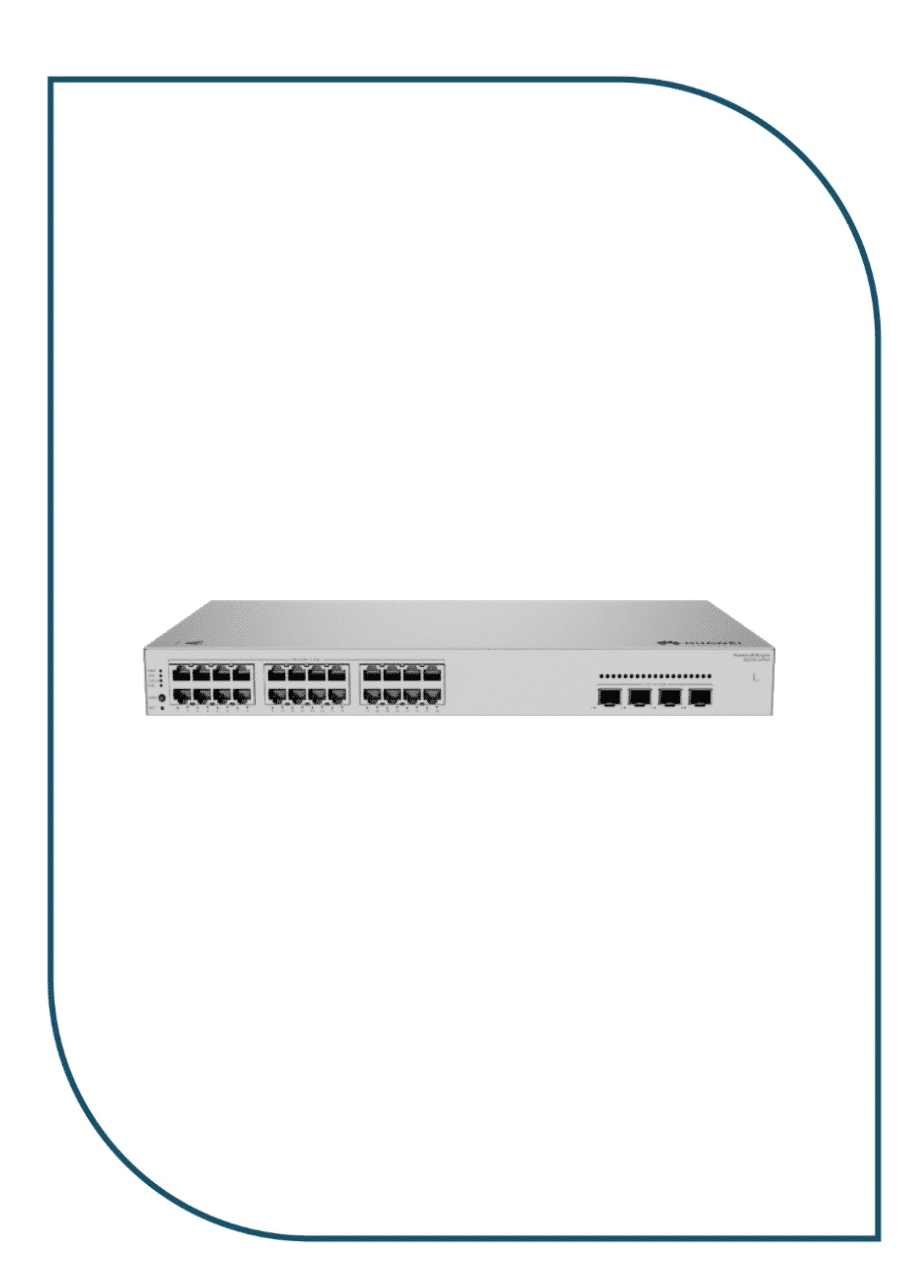

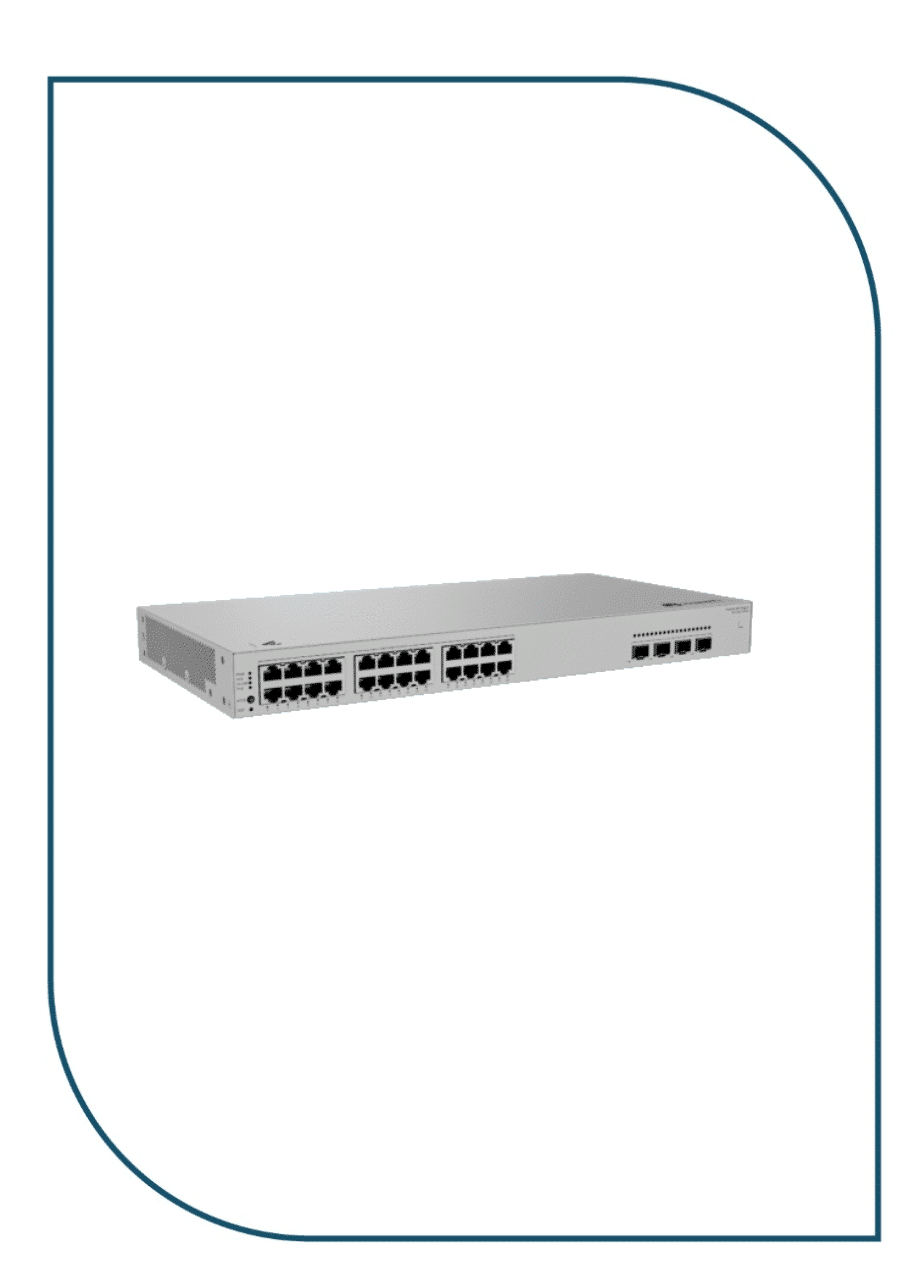

Huawei eKIT S310S-24P4J Managed PoE+ Switch (Model: S220S-24P4J) is a high-performance 24-port Gigabit switch engineered with PoE+ power and four 2.5-Gigabit SFP optical uplinks to deliver high-speed power and data for enterprise networks. It features 24 fixed 10/100/1000BASE-T Gigabit Ethernet ports compliant with IEEE 802.3at/af PoE+, and 4 dedicated 2.5GE SFP optical slots, delivering 68 Gbps switching bandwidth and 51 Mpps forwarding performance.
Housed in a standard 1U 19-inch rackmount metal chassis with internal power supply, the switch delivers enterprise Layer 2 management features including 802.1Q VLANs, Link Aggregation (LACP), QoS, and STP with full cloud management via Huawei eKit.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKIT S310S Series |
| Model / SKU | S220S-24P4J (S310S-24P4J) |
| Downlink Ports | 24 × 10/100/1000BASE-T Gigabit Ethernet Ports (802.3at/af PoE+) |
| PoE Capability | IEEE 802.3at PoE+ / IEEE 802.3af PoE Compliant |
| Uplink Interfaces | 4 × 2.5GE SFP Dedicated Optical Slots |
| Switching Bandwidth | 68 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 51 Mpps |
| Layer 2 Management | Huawei eKit Cloud Platform, Web GUI, VLANs, Link Aggregation, QoS, STP |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal Power Supply |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Chassis |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Industrial-Grade Steel Housing |

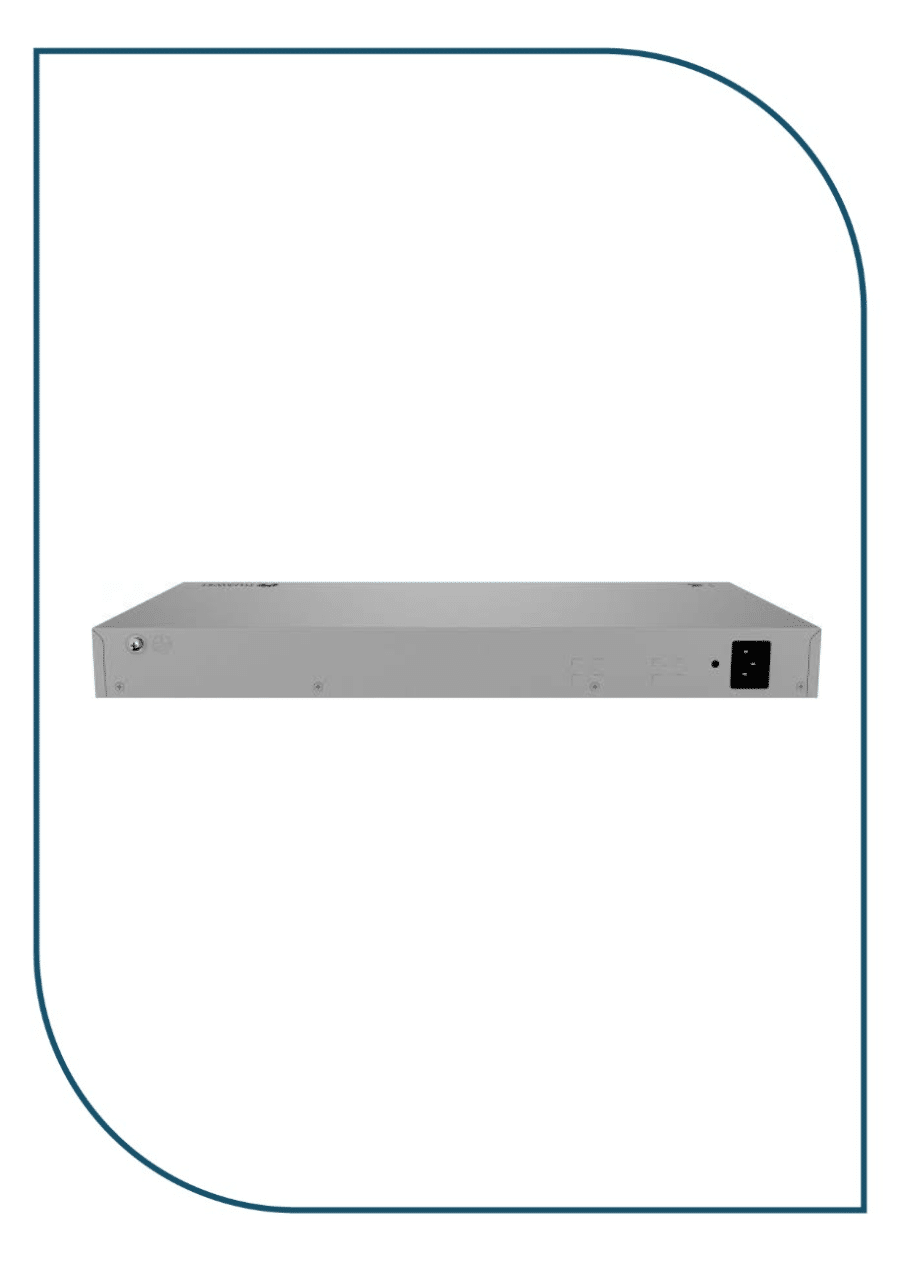

| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- Quad 2.5G SFP Optical Uplinks: 4 dedicated 2.5GE SFP optical slots deliver high-capacity backhauls for Wi-Fi 6 access points.
- 24-Port PoE+ Power Delivery: 24 Gigabit PoE+ ports deliver stable 802.3at/af power for PTZ cameras and APs.
- Wire-Speed Performance: Generates 68 Gbps switching bandwidth and 51 Mpps forwarding rate for smooth business operations.
- Cloud & App Management: Remote network monitoring, topology visualization, and port management via Huawei eKit App.
- Layer 2 Management Suite: Full support for 802.1Q VLANs, LACP port trunking, spanning tree protocols, and IGMP snooping.
- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets, screws, and rubber feet.
Recommended Applications
The Huawei eKIT S310S-24P4J Managed PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:
- Supplying PoE+ power and 2.5G optical uplinks for multi-gigabit Wi-Fi 6 APs.
- Consolidating 24 IP cameras with high-speed fiber uplinks to NVRs.
- Four 2.5G SFP ports providing resilient ring and redundant uplink topologies.
- Powering smart lighting, access control keypads, and IoT sensors in smart buildings.
- Deploying high-density PoE access across hospitality facilities, medical clinics, and school campuses.
Installation & Operating Environment
The Huawei eKIT S310S-24P4J Managed PoE+ Switch features a standard 1U 19-inch metal chassis supplied with a complete rackmount bracket kit and rubber feet for seamless installation in commercial server racks or on desktops. Powered by an internal universal AC power supply, it maintains efficient thermal dissipation for continuous operation in enterprise facilities.
