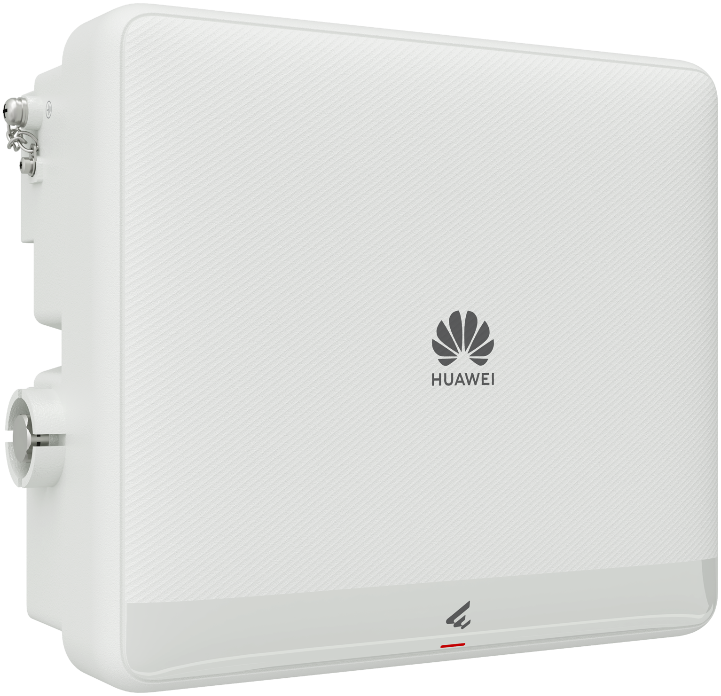

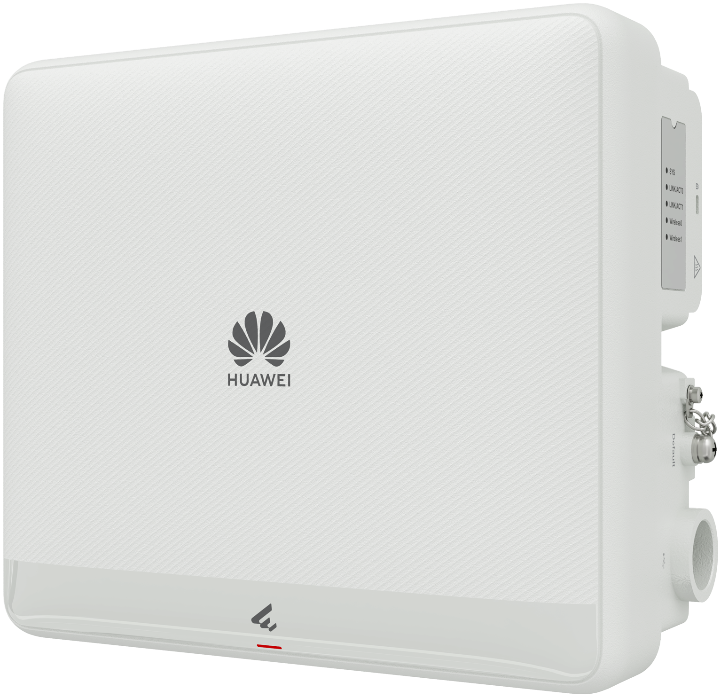

Huawei eKitEngine AP772 Outdoor Wi-Fi 7 Access Point (Model: AP772) is an IP68-rated access point engineered with 30 dBm output power, smart antennas, and 6.45 Gbps wireless speeds to deliver exceptional coverage and throughput for demanding outdoor deployments. It features outdoor dual-radio IEEE 802.11be architecture with 30 dBm ultra-high RF power output, 6kV surge protection, and a smart omnidirectional antenna array providing a 160-meter optimal coverage distance.
Housed in an IP68 weatherproof, dustproof, waterproof, and corrosion-resistant metal enclosure, the access point operates across an industrial operating temperature range of -40°C to +65°C. It supports 130 recommended concurrent users (up to 1024 access users) with management through the Huawei eKit Cloud Platform, Leader AP, and hardware AC controllers.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine Series |
| Model / SKU | Huawei eKitEngine AP772 |
| Protection Rating | IP68 Weatherproof, Dustproof, Waterproof, and Corrosion-Resistant Metal Enclosure |
| Wi-Fi Standard | Outdoor Wi-Fi 7 (IEEE 802.11be) Dual-Radio Architecture |
| Maximum Wireless Speed | Up to 6.45 Gbps Aggregate Wireless Throughput |
| RF Transmit Power | 30 dBm Ultra-High Power Output with 6kV Surge Protection |
| Antenna & Range | Smart Omnidirectional Antenna Array with 160-Meter Optimal Coverage Distance |
| User Concurrency | Recommended: 130 Concurrent Users | Maximum: 1024 Access Users |
| Operating Conditions | -40°C to +65°C Industrial Operating Range |
| Management Interface | Huawei eKit Cloud Platform, Leader AP, Hardware AC Management |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Ingress Protection | IP68 Waterproof, Dustproof, and Corrosion-Resistant Enclosure |
| Operating Temperature Range | -40°C to +65°C Industrial Operating Range |
| Surge Protection | 6kV Port Surge Protection |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Mounting Support | Heavy-Duty Pole and Wall Mounting Bracket Assembly |
Key Features & Highlights
- Ultra-High 6.45 Gbps Wi-Fi 7: Blazing-fast wireless speeds with Multi-Link Operation (MLO) support high-bandwidth outdoor streaming.
- 30 dBm Ultra-High RF Power: Maximum transmit power delivers long-range signal penetration across large outdoor venues.
- Smart Omnidirectional Array: Engineered antenna array provides consistent 160-meter coverage radius in all directions.
- IP68 Corrosion-Resistant Chassis: Heavy-duty metal housing survives heavy rain, salt fog, dust storms, and extreme sunlight.
- 6kV Port Surge Protection: Built-in lightning and electrical surge suppression ensures uninterrupted outdoor uptime.
- 1024 User Concurrency: High-capacity hardware supports 130 recommended active users and up to 1024 total connected devices.
Recommended Applications
The Huawei eKitEngine AP772 Outdoor Wi-Fi 7 Access Point is engineered for access and aggregation scenarios across commercial environments:
- Outdoor stadiums and arenas utilizing 30 dBm ultra-high power and 6.45 Gbps speed to handle dense crowd concurrency.
- Expansive commercial campus perimeters with smart omnidirectional antennas covering 160-meter radii per access point.
- Industrial ports and freight terminals handling high-concurrency automated machinery, vehicles, and handheld scanners.
- Municipal smart city networks requiring high-reliability outdoor Wi-Fi 7 infrastructure with centralized cloud control.
- Outdoor recreation parks, festival grounds, and fairgrounds delivering uninterrupted high-bandwidth public wireless.
Installation & Operating Environment

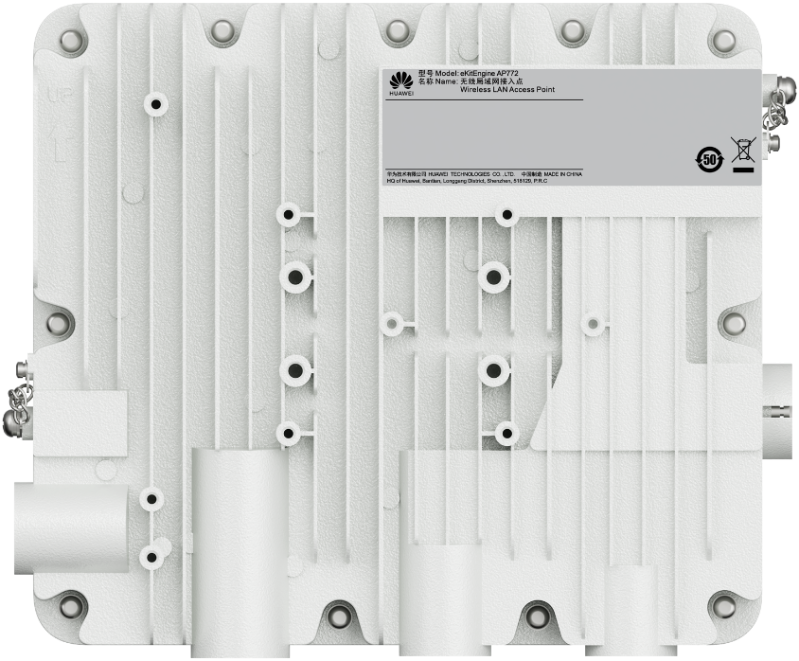

The Huawei eKitEngine AP772 Outdoor Wi-Fi 7 Access Point features an IP68 corrosion-resistant metal enclosure supplied with a heavy-duty pole and wall mounting bracket assembly, waterproof RJ45 glands, SFP caps, and grounding wire. Operating across -40°C to +65°C with 6kV surge protection, it ensures reliable 24/7 continuous operation in severe outdoor environments.
