Huawei eKitEngine S210I-8P4SX Industrial DIN-Rail PoE+ Switch with 2x 10GE SFP+ (S210I-8P4SX)

Name: Huawei eKitEngine S210I-8P4SX Industrial DIN-Rail PoE+ Switch with 2x 10GE SFP+ (S210I-8P4SX)
SKU: S210I-8P4SX

0,00 EGP

SKU: S210I-8P4SX Category: Industrial Switches Tags: eKIT, Huawei, Huawei eKit, S210I-8P4SX, Switch

The Huawei eKitEngine S210I-8P4SX is a rugged DIN-rail industrial PoE+ switch engineered for harsh environments. It features 8 Gigabit PoE+ ports, 2 GE SFP slots, and 2x 10GE SFP+ optical uplinks with dual redundant 48-57V DC input and fanless cooling. Operating reliably from -40°C to +75°C with IP40 protection, it powers outdoor industrial PoE devices reliably.

10 People watching this product now!

Get More Info

Compare

Pick up from the Our Store

To pick up today from 9 am to 6 pm

Free

Courier, UBER, DiDi delivery

Our courier will deliver to the specified address

30-45 Minutes

with Fees

DHL Courier delivery

DHL courier will deliver to the specified address

1-2 Days

with Fees

Payment Methods:

Description

Huawei eKitEngine S210I-8P4SX Industrial PoE+ Managed Switch (Model: S210I-8P4SX) is a rugged DIN-rail switch engineered with 8 Gigabit PoE+ ports, dual 10G SFP+ optical uplinks, and a fanless metal enclosure to deliver hardened power and high-speed data in harsh environments. It features 8 fixed 10/100/1000BASE-T industrial ports compliant with IEEE 802.3at/af PoE+, 2 GE SFP optical slots, and 2 dedicated 10GE SFP+ optical slots for industrial data distribution.

Housed in an IP40-rated aluminum chassis with standard 35mm DIN-rail and wall-mounting options, the switch operates reliably within an extreme temperature range of -40°C to +75°C. It features 6kV surge protection, dual redundant DC power inputs (48V DC to 57V DC for PoE), Industrial Fast Ring Protection (ERPS), and Huawei eKit Cloud Platform management.

Technical Specifications

Component / Parameter	Technical Specification
Product Line	Huawei eKitEngine S210I Series
Model / SKU	S210I-8P4SX
PoE Downlink Ports	8 × 10/100/1000BASE-T Industrial Ports with IEEE 802.3at/af PoE+
Optical Uplink Ports	2 × GE SFP Slots + 2 × 10GE SFP+ High-Speed Optical Slots
Mounting Architecture	Standard 35mm DIN-Rail Mounting and Wall-Mount Installation
Power Input Architecture	Dual Redundant DC Power Inputs (48V DC to 57V DC Voltage Range for PoE)
Thermal Management	Fanless Passive Heat-Dissipation Industrial Aluminum Chassis
Operating Temperature	-40°C to +75°C Extreme Industrial Operating Range
Protection & Durability	IP40 Metal Enclosure, 6kV Surge Protection, High Shock & Vibration Resistance
Management Capabilities	Huawei eKit Cloud Platform, Industrial Fast Ring Protection (ERPS), Web GUI

Mechanical & Environmental Specifications

Parameter / Feature	Specification / Rating
Ingress Protection	IP40 Hardened Metal Enclosure
Operating Temperature Range	-40°C to +75°C Industrial Temperature
Heat Dissipation Mode	Fanless, Natural Heat Dissipation
Acoustic Profile	Noise-Free Operation
Surge Protection	6kV Port Surge Protection
Power Inputs	Dual Redundant DC Screw Terminals (48V to 57V DC)

Key Features & Highlights

8-Port Industrial PoE+ Powering: 8 Gigabit IEEE 802.3at/af PoE+ ports power outdoor PTZ cameras and wireless access points.
Dual 10G Optical Uplinks: 2 dedicated 10GE SFP+ and 2 GE SFP optical slots deliver high-speed backbone connectivity.
Extreme Temperature Operation: Certified for reliable continuous operation in harsh climates from -40°C to +75°C.
Fanless Industrial Design: Passive aluminum heat dissipation ensures noise-free and reliable thermal performance.
Dual Redundant DC Power: Dual 48V to 57V DC power inputs ensure continuous PoE operation during supply failures.
Industrial Fast Ring (ERPS): Ethernet Ring Protection Switching ensures sub-50ms network failover in industrial ring topologies.

Recommended Applications

The Huawei eKitEngine S210I-8P4SX Industrial PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:

Powering outdoor PTZ security cameras and infrared illuminators in extreme desert or winter environments.
Supplying PoE+ power to industrial Wi-Fi access points, cellular gateways, and IoT sensor arrays.
Intelligent transportation systems powering roadside radar units, ANPR cameras, and message signs.
Railway, oil, and gas facility networking requiring extreme temperature and vibration-resistant PoE+ distribution.
Harsh industrial automation environments requiring ERPS ring recovery and dual redundant DC power.

Installation & Operating Environment

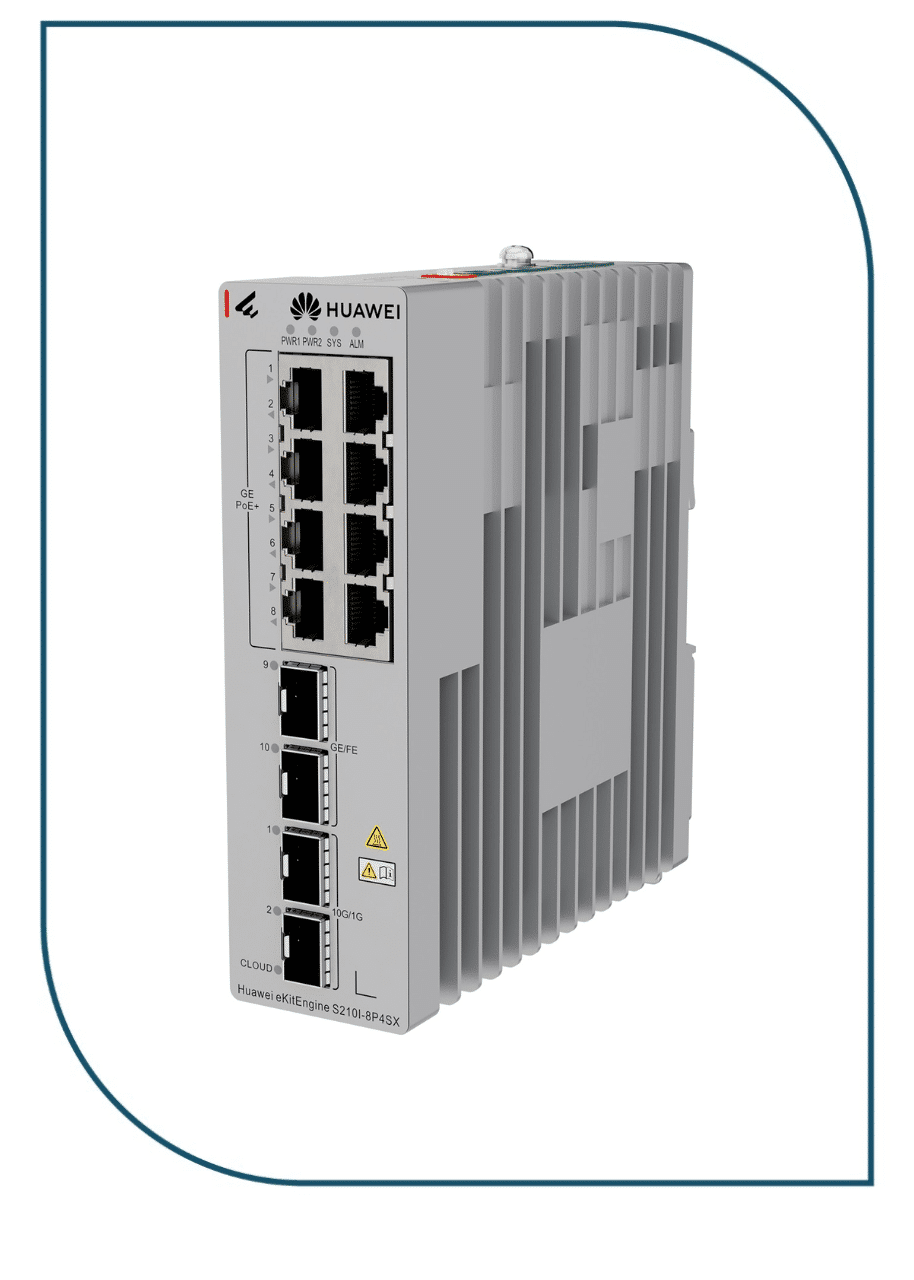

The Huawei eKitEngine S210I-8P4SX Industrial PoE+ Switch features an IP40-rated heavy-duty aluminum chassis equipped with a standard 35mm DIN-rail clip, wall-mount brackets, and pluggable screw terminal blocks. Powered by dual redundant 48V to 57V DC inputs and cooled through fanless passive heat dissipation, it ensures reliable continuous operation in harsh industrial environments.
