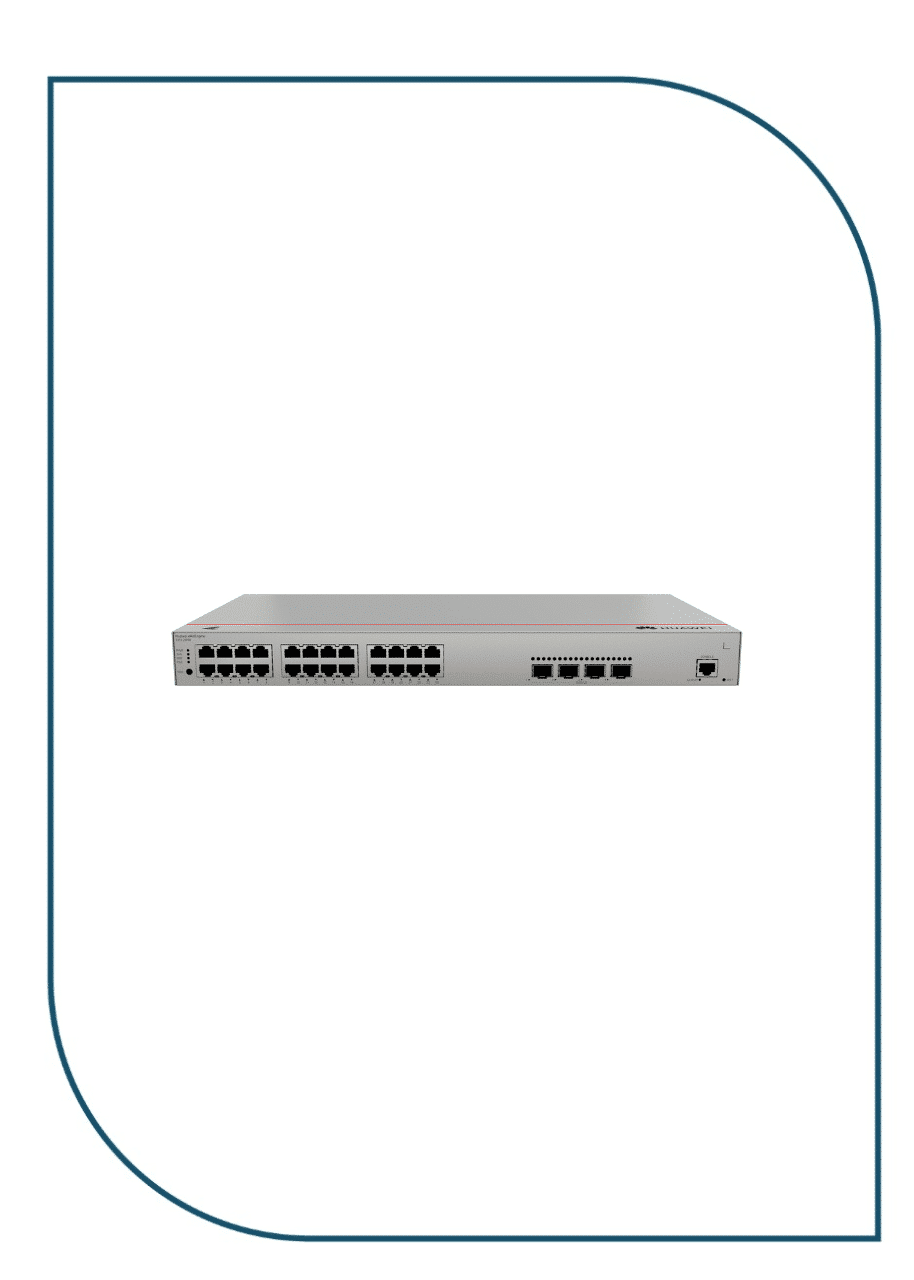

Huawei eKitEngine S310-24P4X 24-Port L3 Managed PoE+ Switch with 4x 10GE SFP+ (S310-24P4X)

Huawei eKitEngine S310-24P4X L3 Managed PoE+ Switch (Model: S310-24P4X) is a high-bandwidth enterprise access switch engineered with 400W of PoE+ capacity and four 10-Gigabit SFP+ optical uplinks to deliver powerful Layer 3 routing and 10G optical connectivity. It incorporates 24 fixed 10/100/1000BASE-T Gigabit Ethernet ports compliant with IEEE 802.3at/af PoE+ with a 400W dedicated budget, and 4 dedicated 10GE SFP+ optical slots, delivering a switching bandwidth of 128 Gbps and a packet forwarding rate of 95 Mpps.

Housed in a standard 1U 19-inch rackmount metal chassis with internal AC power, the switch provides enterprise Layer 3 dynamic routing protocols including IPv4/IPv6 Static Routing, RIP, OSPF, and VLAN routing. Management is supported via the Huawei eKit Cloud Platform, Web GUI, full CLI via SSH/Console, and SNMP.

Technical Specifications

Mechanical & Environmental Specifications

Key Features & Highlights

• Quad 10G SFP+ Optical Uplinks: 4 dedicated 10GE SFP+ optical slots provide high-speed uplinks to core network backbones.
• Massive 400W PoE+ Power: 24 Gigabit PoE+ ports deliver stable 802.3at/af power for high-density APs, cameras, and VoIP phones.
• Wire-Speed Performance: Generates 128 Gbps switching bandwidth and 95 Mpps forwarding rate for high-throughput enterprise traffic.
• Dynamic Layer 3 Routing: Hardware-accelerated IPv4/IPv6 static routing, RIP, and OSPF deliver high-speed inter-VLAN forwarding.
• Enterprise Management: Full CLI via SSH/Console, SNMP monitoring, Web GUI, and cloud management via Huawei eKit.
• Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets, screws, and rubber feet.

Recommended Applications

The Huawei eKitEngine S310-24P4X L3 Managed PoE+ Switch is engineered for access and aggregation scenarios across commercial environments:

• Connecting 24 PoE endpoints to campus core networks over four high-speed 10G SFP+ optical fiber uplinks.
• Supplying high-power PoE+ and 10G optical backhaul for dense enterprise Wi-Fi 6 and Wi-Fi 7 wireless deployments.
• Providing Layer 3 enterprise access with hardware inter-VLAN routing, ACL security policies, and DHCP services.
• Centralizing power and multi-gigabit video streaming for 24 commercial CCTV security cameras.
• Deploying cloud-managed network infrastructure across corporate offices, healthcare facilities, and universities.

Installation & Operating Environment

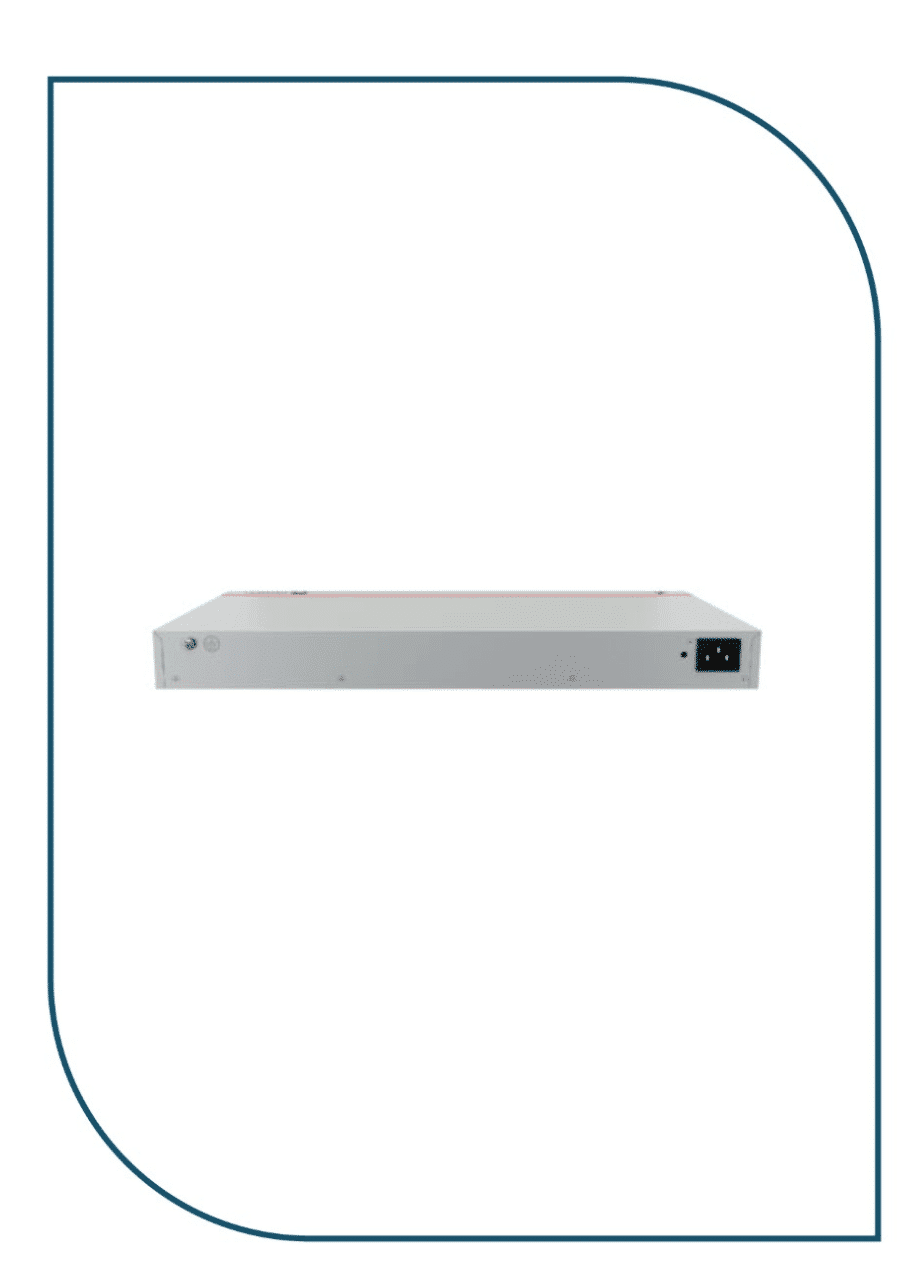

The Huawei eKitEngine S310-24P4X L3 Managed PoE+ Switch features a standard 1U 19-inch rackmount metal enclosure supplied with mounting brackets and rubber feet for immediate rack cabinet installation. Driven by an internal universal AC power supply, it maintains efficient thermal management and dependable continuous operation in enterprise facilities.
