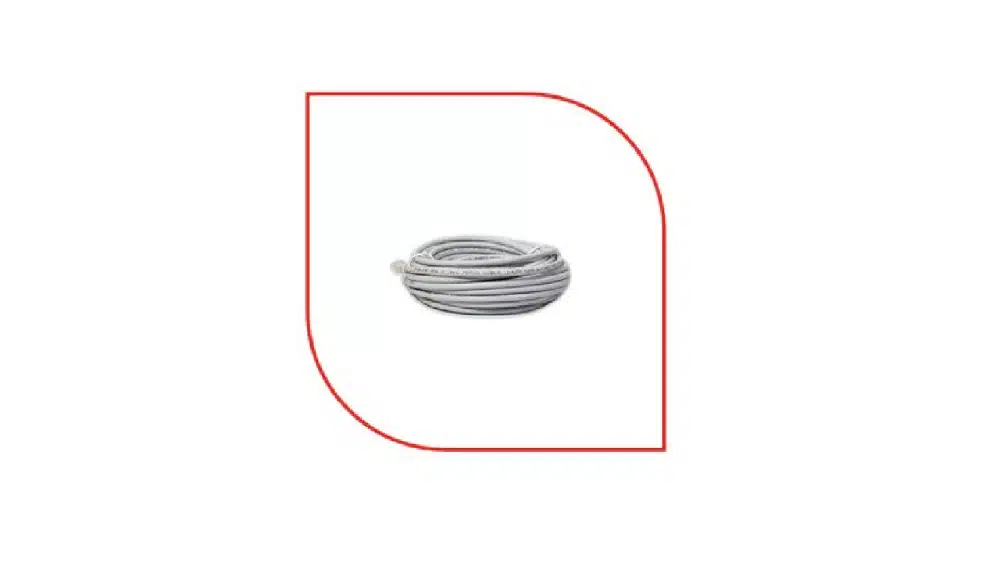

The ProLink CAT6A Patch Cord 10m LSZH Gray (Model: PL-PC-U6A-10G) is a professional Category 6A U/UTP Ethernet patch cord designed for structured cabling systems. It connects network equipment to patch panels and telecommunications outlets while supporting operating frequencies up to 500 MHz. The Low Smoke Zero Halogen (LSZH) jacket enhances fire safety, making it suitable for enterprise LANs, commercial buildings, and data center environments.
Technical Specifications
| Component / Property | Technical Specification Value |
|---|---|
| Product Name | ProLink CAT6A Patch Cord 10m LSZH Gray |
| Model / SKU | PL-PC-U6A-10G |
| Cable Length & Color | 10 Meters / Gray |
| Wiring Configuration | T568B Standard |
| Cable Type / Shielding | U/UTP (Unshielded) |
| Conductor Gauge | AWG23/7 Stranded Conductor |
| Number of Pairs | 4 Pairs |
| Nominal Impedance | 100 Ohms |
| Outer Cable Diameter | Maximum 6.0 mm |
Mechanical Specifications
| Component / Material | Operational Rating / Property |
|---|---|
| Plug Housing Material | Polycarbonate |
| Contact Blade Material | Phosphor Bronze (CuSn6) |
| Contact Area Plating | 0.7 µm Selective Gold Plate |
| Connector Shield Material | Tin-Plated Brass |
| Jacket Material Type | Low Smoke Zero Halogen (LSZH) |
| Interface Standard | Compliant with IEC 60603-7 parameters |
| Environmental Operating Range | -10°C to +60°C |
| Integrated Cable Boot | Wide-function strain relief area |
Electrical Characteristics
| Electrical Parameter | Standard Industry / Test Rating | Performance Value |
|---|---|---|
| Current Rating | Maximum @ 25°C | 1.5 Amps |
| Voltage Rating | Maximum capacity | 150 VAC |
| Dielectric Withstanding | 1 Minute test threshold (60 Hz) | 1000 VAC |
| Insulation Resistance | Minimum threshold | 650 MΩ |
Key Features
- Category 6A Performance: Fulfills the strict requirements of Category 6A Class E (650MHz) under the ISO/IEC 11801 standard, delivering reliable high-frequency Ethernet connectivity.
- LSZH Fire Protection: The low-smoke zero-halogen jacket provides critical environmental safety by minimizing the release of toxic fumes and heavy smoke if exposed to high heat or fire.
- Universal Backward Compatibility: Seamlessly integrates with existing Cat5e architectures, allowing network administrators to deploy scalable, supports migration from existing Cat5e structured cabling systems.
- Wide-Function Strain Relief:The integrated strain relief boot supports cable labeling and color identification while helping protect the cable termination.
- Individual Factory Verification: Each patch cord is subjected to comprehensive quality testing and carries a unique quality stamp to guarantee consistent operational integrity.
Recommended Applications
- Enterprise-grade LAN infrastructure
- High-density server racks and data center cross-connects
- Telecommunications rooms and wall-mounted patch panels
- Commercial office networking grids
- Facilities with strict fire safety codes, such as schools and hospitals
- High-speed Gigabit Ethernet networking solutions
- Mixed Cat5e and Category 6A deployment environments
Quality Assurance
Manufactured in accordance with internationally recognized structured cabling standards, every ProLink CAT6A Patch Cord 10m LSZH Gray is individually factory-tested to deliver reliable Category 6A performance, consistent electrical characteristics, and long-term durability for professional networking environments.
