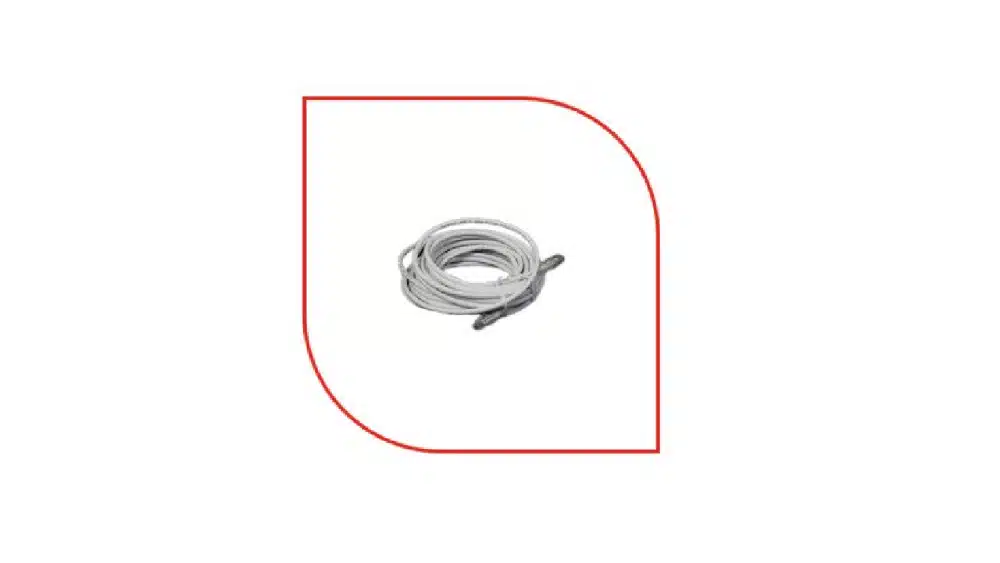

The ProLink CAT6A Patch Cord 10m LSZH White (Model: PL-PC-U6A-10W) is an enterprise-grade Category 6A U/UTP Ethernet cable built to seamlessly connect active network hardware to patch panels and telecommunications outlets. Engineered to support operating frequencies up to 500 MHz, this 10-meter white patch cord ensures high-speed, reliable data transmission across modern LAN infrastructures. Featuring a Low Smoke Zero Halogen (LSZH) jacket, it provides enhanced fire safety, making it an ideal solution for commercial networks, data centers, and enterprise environments.
Technical Specifications
| Component / Property | Technical Specification |
|---|---|
| Product Name | ProLink CAT6A Patch Cord 10m LSZH White |
| Model / SKU | PL-PC-U6A-10W |
| Cable Length / Color | 10 Meters / White |
| Wiring Configuration | T568B Standard |
| Cable Type / Shielding | U/UTP (Unshielded) |
| Conductor Gauge | AWG23/7 Stranded Copper Conductor |
| Number of Pairs | 4 Pairs |
| Nominal Impedance | 100 Ohms |
| Outer Cable Diameter | Maximum 6.0 mm |
Mechanical Specifications
| Component / Material | Operational Rating / Property |
|---|---|
| Plug Housing Material | Polycarbonate |
| Contact Blade Material | Phosphor Bronze (CuSn6) |
| Contact Area Plating | 0.7 µm Selective Gold Plate |
| Connector Shield Material | Tin-Plated Brass |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Interface Standard | Compliant with IEC 60603-7 |
| Operating Temperature | -10°C to +60°C |
| Integrated Cable Boot | Wide-Function Strain Relief |
Electrical Characteristics
| Electrical Parameter | Standard / Test Rating | Performance Value |
|---|---|---|
| Current Rating | Maximum @ 25°C | 1.5 Amps |
| Voltage Rating | Maximum Capacity | 150 VAC |
| Dielectric Withstanding | 1 Minute Test (60 Hz) | 1000 VAC |
| Insulation Resistance | Minimum Threshold | 650 MΩ |
Key Features
- Category 6A Performance:Meets Category 6A Class E performance requirements in accordance with ISO/IEC 11801 while supporting operating frequencies up to 500 MHz for reliable high-speed Ethernet connectivity.
- Fire-Retardant LSZH Jacket: The Low Smoke Zero Halogen jacket minimizes toxic gas emissions and smoke generation during fire incidents, improving safety in enclosed environments.
- Backward Compatibility: Fully compatible with existing Cat5e infrastructures, allowing easy migration to higher-performance network installations.
- Optimized Strain Relief: Features a wide-function cable boot that protects the cable from bending stress while providing space for identification labels.
- Quality Tested:Each patch cord is individually factory-tested and marked with a quality stamp to verify compliance with published performance specifications.
Recommended Applications
- Enterprise LAN Infrastructure
- Corporate Data Networks
- High-Density Data Centers
- Server Rack Interconnections
- Patch Panel to Telecommunications Outlet Connections
- Network Switches, Routers, and Firewalls
- Commercial Office Structured Cabling Systems
- Educational Institutions
- Healthcare Facilities
- Category 6A and Backward-Compatible Cat5e Network Installations
Quality Assurance
Manufactured in accordance with internationally recognized structured cabling standards, the ProLink CAT6A Patch Cord 10m LSZH White is factory-tested to deliver consistent Category 6A performance, stable electrical characteristics, and long-term durability for professional networking environments.
