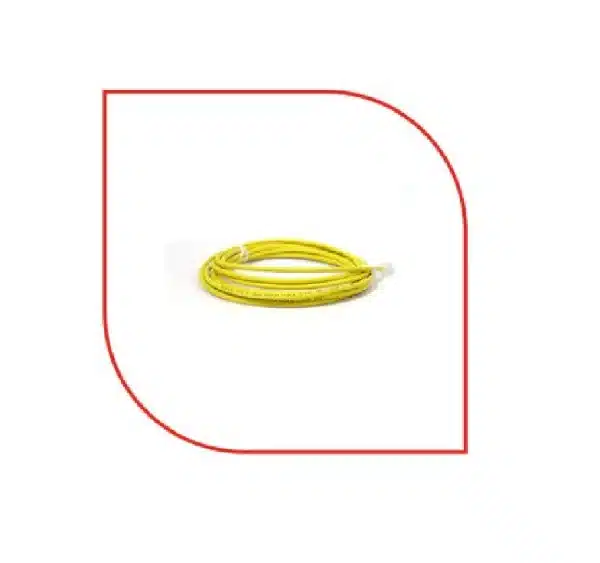

The ProLink CAT6A Patch Cord 10m LSZH Yellow (Model: PL-PC-U6A-10Y) is a professional Category 6A U/UTP Ethernet patch cord designed for structured cabling systems. It is engineered to connect network equipment with patch panels and telecommunications outlets while supporting high-speed Ethernet applications up to 500 MHz. The Low Smoke Zero Halogen (LSZH) jacket enhances indoor fire safety, while the 10-meter cable length provides flexible deployment for enterprise LAN infrastructure, commercial networks, and data center environments.
Technical Specifications
| Component / Property | Technical Specification Value |
|---|---|
| Product Name | ProLink CAT6A Patch Cord 10m LSZH Yellow |
| Model / SKU | PL-PC-U6A-10Y |
| Cable Length & Color | 10 Meters / Yellow |
| Wiring Configuration | T568B Standard |
| Cable Type / Shielding | U/UTP (Unshielded) |
| Conductor Gauge | AWG23/7 Stranded Conductor |
| Number of Pairs | 4 Pairs |
| Nominal Impedance | 100 Ohms |
| Outer Cable Diameter | Maximum 6.0 mm |
Mechanical Specifications
| Component / Material | Operational Rating / Property |
|---|---|
| Plug Housing Material | Polycarbonate |
| Contact Blade Material | Phosphor Bronze (CuSn6) |
| Contact Area Plating | 0.7 µm Selective Gold Plate |
| Connector Shield Material | Tin-Plated Brass |
| Jacket Material Type | Low Smoke Zero Halogen (LSZH) |
| Interface Standard | Compliant with IEC 60603-7 parameters |
| Environmental Operating Range | -10°C to +60°C |
| Integrated Cable Boot | Wide-function strain relief area |
Electrical Characteristics
| Electrical Parameter | Standard Industry / Test Rating | Performance Value |
|---|---|---|
| Current Rating | Maximum @ 25°C | 1.5 Amps |
| Voltage Rating | Maximum capacity | 150 VAC |
| Dielectric Withstanding | 1 Minute test threshold (60 Hz) | 1000 VAC |
| Insulation Resistance | Minimum threshold | 650 MΩ |
Key Features
- Category 6A Compliance: Supports Category 6A Class E performance requirements in accordance with ISO/IEC 11801 while supporting operating frequencies up to 500 MHz for reliable high-speed Ethernet connectivity.
- LSZH Fire Safety Rating: The advanced low-smoke zero-halogen jacket prevents the emission of heavy smoke and toxic gases during fire exposure, protecting both personnel and facility hardware.
- Legacy Network Compatibility: Fully compatible with existing Cat5e structured cabling systems, allowing seamless migration to higher-performance network installations.
- Enhanced Strain Relief: Built with a wide-function strain relief boot that supports color-coded clips and direct labeling, greatly simplifying wire management and cable tracing.
- Strict Quality Control: Every unit is subjected to rigorous signal testing and receives a distinct quality stamp, ensuring premium functionality directly from the factory.
Recommended Applications
- High-density patching in enterprise data centers
- Interconnecting routers, switches, and telecommunications hardware
- Commercial office networks and corporate LAN systems
- Healthcare and educational facilities demanding stringent fire safety compliance
- Color-coding network segments utilizing the high-visibility yellow jacket
- Seamless integration into Gigabit Ethernet environments
Quality Assurance
Engineered to align with globally recognized structured cabling protocols, ProLink CAT6A Patch Cord 10m LSZH Yellow is rigorously factory-tested. It guarantees consistent Class E electrical characteristics, high-speed Category 6A performance, and the physical durability required for advanced professional networking ecosystems.
