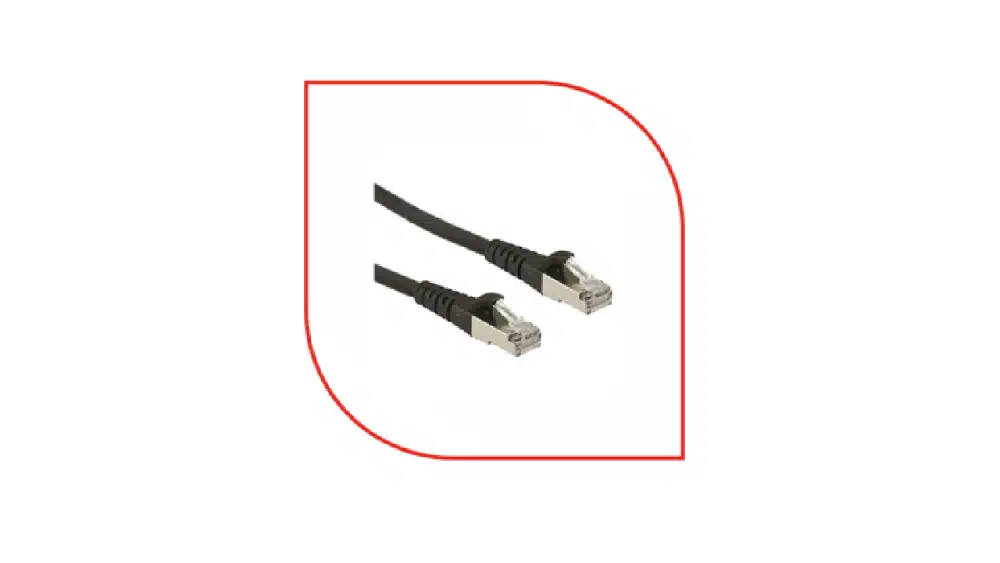

ProLink CAT6A S/FTP Patch Cord 3m LSZH Black (Model: PL-PC-S6A-3BK) is a professional Category 6A S/FTP Ethernet patch cord designed for structured cabling systems. With a 3-meter cable length, this black shielded patch cord provides reliable connections between patch panels, network switches, routers, servers, and telecommunications outlets while supporting organized cable routing inside racks, network cabinets, and enterprise installations.
It supports Ethernet applications operating at frequencies up to 650 MHz and meets Category 6A Class E (650 MHz) requirements according to ISO/IEC 11801. Featuring a Low Smoke Zero Halogen (LSZH) jacket and an integrated wide-function strain relief boot, it is ideal for enterprise LANs, commercial office networks, data centers, and other professional networking environments where dependable shielded connectivity and flexible cable routing are required.
Technical Specifications
| Component / Property | Technical Specification |
|---|---|
| Product Line | ProLink CAT6A S/FTP Patch Cord 3m LSZH Black |
| Model / SKU | PL-PC-S6A-3BK |
| Cable Length / Color | 3 Meters / Black |
| Wiring Configuration | T568B Standard |
| Cable Type / Shielding | S/FTP (Shielded) |
| Conductor Gauge | AWG26/7 Stranded Conductor |
| Number of Pairs | 4 Pairs |
| Nominal Impedance | 100 Ohms |
| Operating Frequency | Up to 650 MHz |
| Category Compliance | Category 6A Class E (650 MHz) according to ISO/IEC 11801 |
| Outer Cable Diameter | Maximum 6.5 mm |
Mechanical Specifications
| Component / Material | Operational Rating / Property |
|---|---|
| Plug Housing Material | Polycarbonate |
| Contact Blade Material | Phosphor Bronze (CuSn6) |
| Contact Area Plating | 0.7 μm Selective Gold Plate |
| Connector Shield Material | Tin-Plated Brass |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Interface Standard | Compliant with IEC 60603-7 |
| Operating Temperature | -10°C to +60°C |
| Integrated Cable Boot | Wide-Function Strain Relief |
Electrical Characteristics
| Electrical Parameter | Standard / Test Rating | Performance Value |
|---|---|---|
| Current Rating | Maximum @ 25°C | 1.5 Amps |
| Voltage Rating | Maximum Capacity | 150 VAC |
| Dielectric Withstanding Voltage | 1 Minute Test (60 Hz) | 1000 VAC |
| Insulation Resistance | Minimum Threshold | 650 MΩ |
Key Features
- Category 6A Shielded Performance: Supports Ethernet applications operating at frequencies up to 650 MHz while meeting Category 6A Class E (650 MHz) requirements according to ISO/IEC 11801, providing dependable Gigabit and multi-gigabit network performance.
- Shielded S/FTP Construction: S/FTP shielding helps reduce electromagnetic interference (EMI) and crosstalk, making the patch cord suitable for high-density networking environments and mission-critical enterprise applications.
- LSZH Jacket: The Low Smoke Zero Halogen (LSZH) jacket minimizes smoke and hazardous emissions during fire incidents, making it suitable for commercial buildings, healthcare facilities, educational institutions, and enclosed networking installations.
- Optimized Cable Management: The 3-meter cable length and integrated wide-function strain relief boot simplify cable routing, connector protection, labeling, and organized cable management inside racks, cabinets, and structured cabling systems.
- Backward Compatibility: Fully compatible with existing Category 6 and Category 5e structured cabling systems, allowing seamless infrastructure upgrades without replacing existing network equipment.
- Factory Tested Quality: Every patch cord is individually tested and marked with a quality stamp to verify compliance with Category 6A performance requirements before shipment.
Compatibility & Recommended Applications
The ProLink CAT6A S/FTP Patch Cord 3m LSZH Black is designed for Category 6A structured cabling systems and is backward compatible with Cat6 and Cat5e installations. It supports a wide range of networking equipment and is recommended for professional networking environments including:
- RJ45 Ethernet interfaces
- Patch panels and telecommunications outlets
- Network switches, routers, and firewalls
- Servers and server rack interconnections
- Enterprise LAN infrastructure
- Commercial office structured cabling systems
- High-density data center patching
- Rack-to-rack network connections
- Gigabit and multi-gigabit Ethernet network installations
- Educational institutions and healthcare facilities
- Category 6A and backward-compatible Cat6/Cat5e structured cabling systems
Quality Assurance
Manufactured using premium-quality materials and in accordance with internationally recognized structured cabling standards, PL-PC-S6A-3BK is individually factory tested to verify electrical performance and Category 6A compliance. Featuring phosphor bronze contacts with 0.7 μm selective gold plating, a durable LSZH jacket, S/FTP shielding, and compliance with IEC 60603-7, it delivers dependable long-term performance for enterprise networks, commercial installations, and professional data center environments.
