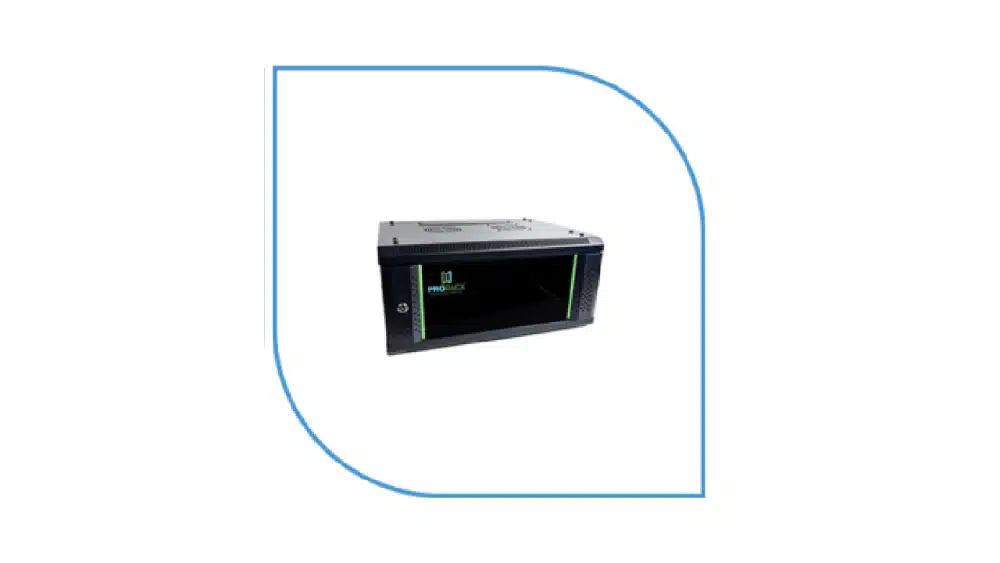

ProRack 4U Wall Mount Cabinet (Model: PR-W6404) is a premium, compact IT enclosure engineered for secure and efficient network management in environments with limited floor space. Measuring 600mm wide by 450mm deep, this robust cold-rolled steel wall cabinet supports up to 800KG static load capacity according to manufacturer specifications. This cabinet is suitable for switches, patch panels, routers, and structured cabling installations.
Premium Build Quality & Visual Security
- Tempered Glass Front Door: Outfitted with a premium 5mm tempered glass front door (Type B) that allows for instant visual monitoring of equipment without exposing hardware to unauthorized access.
- Industrial Surface Protection: The entire cold-rolled steel chassis undergoes a multi-stage surface treatment including degreasing, pickling, phosphating, laundering, and powder coating for premium corrosion resistance.
- Flexible Access: Engineered with two separate, lockable side panels that can be easily opened to simplify hardware installation and cable maintenance.
Thermal Management & Infrastructure Organization
- Active Cooling: Integrated with a heavy-duty cooling fan embedded into the top cover plate to actively exhaust warm air and maintain stable operating climates for your hardware.
- Clean Power Distribution: Includes a built-in Power Distribution Unit (PDU) socket strip providing 6 clean power outlets to minimize wire clutter and organize hardware power routing.
- Cable Routing: Designed with multi-functional cable routing panels on the back sides to ensure clean vertical and horizontal cable organization.
Technical Parameters & Dimensions
| Dimension / Parameter | Operational Specification |
|---|---|
| Model / SKU | ProRack 4u Wall Mount (PR-W6404) |
| Rack Capacity | 4U |
| Width / Depth | 600 mm / 450 mm |
| Overall Physical Height | 230 mm |
| Static Load Capacity | 800 KG |
| Main Material Structure | Cold-Rolled Steel |
| Front Door Assembly | 5mm Tempered Glass |
| Color Finish | Black (RAL9005) |
Included Accessories & Package Contents
Every standard ProRack 4U Wall Mount Cabinet (PR-W6404) ships as a complete installation kit with the following components:
- Cooling Elements: 1 × Cold-Rolled Steel Cooling Fan
- Shelving: 1 × 1.2mm Cold-Rolled Steel Shelf
- Power Elements: 1 × Power Distribution Unit (PDU) Strip with 6 Outlets
- Mounting Hardware: 20 × Cage Nuts and 1 × 1.2mm Wall Hanging Panel
- Chassis Framing: 2 × Main Frames, 4 × Profile Rails (1.5mm), 4 × Horizontal Brackets, and 2 × L-Shaped Panels
