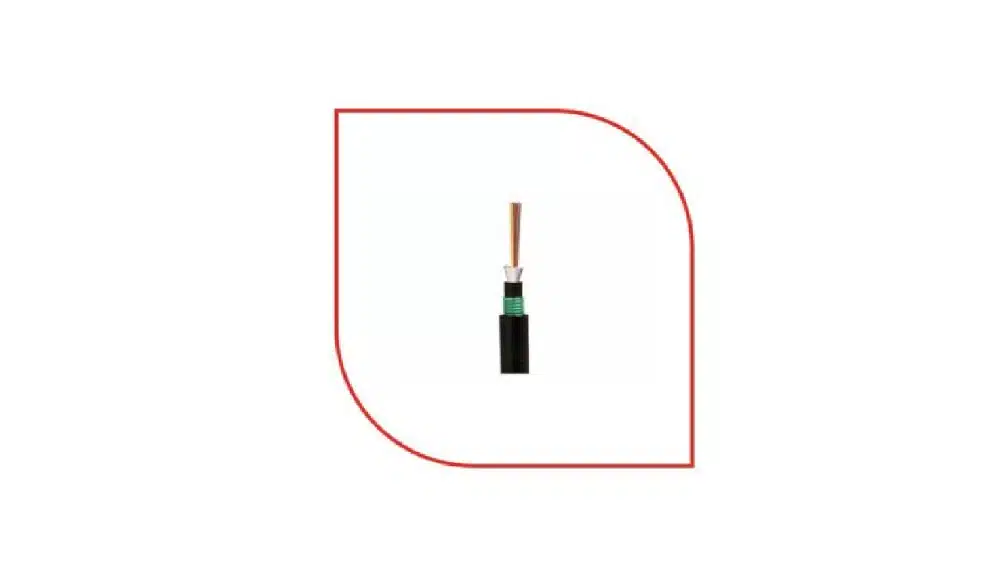

ProLink Single Mode (SM) Fiber System (PL-FOC12D-SM) is an industrial-grade, 12-core optical cable engineered for severe environments. Featuring a robust double-armored design with corrugated steel tape and parallel wire reinforcement, this cable delivers exceptional crush resistance and long-term durability.
Engineered for Extreme Environments
- Maximum Protection: Protected by double corrugated steel tape and a heavy-duty HDPE (High-Density Polyethylene) black sheath.
- Moisture Defense: The PBT loose tube is filled with a water-blocking gel and jelly to prevent water penetration and protect the optical fibers.
- High Tensile Strength: Reinforced with 1.0 mm phosphating steel wire, supporting short-term tension up to 1500 N and long-term tension up to 600 N.
- Weather Resilience: Capable of operating flawlessly in extreme temperatures ranging from -40°C to +70°C.
Technical Cable Parameters
| Feature | Specification |
|---|---|
| Model / SKU | PL-FOC12D-SM |
| Fiber Count | 12 Cores (Single Loose Tube) |
| Fiber Dimension | 250 μm ± 15 μm |
| Loose Tube Material | PBT (2.0 mm ± 0.1 mm) |
| Inner / Outer Jacket Material | HDPE (High-Density Polyethylene) |
| Sheath Outer Diameter | 12.5 mm ± 0.2 mm |
| Reinforcement Material | Phosphating Steel Wire (1.0 mm) |
Optical Performance Specifications (9/125 μm)
| Parameter | Specification |
|---|---|
| Attenuation (Max) | ≤ 0.36 dB/km (1310 nm) / ≤ 0.22 dB/km (1550 nm) |
| Cladding Diameter | 124.8 ± 0.7 μm |
| Core-Cladding Concentricity Error | ≤ 0.5 μm |
| Cable Cutoff Wavelength | λcc ≤ 1260 nm |
| Mode Field Diameter | 9.2 ± 0.4 μm (1310 nm) / 10.4 ± 0.5 μm (1550 nm) |
Mechanical & Environmental Characteristics
- Crush Resistance: 1000 N/100 mm (Short Term) / 300 N/100 mm (Long Term).
- Minimum Bend Radius: 20D (Dynamic) / 10D (Static).
- Operating / Storage Temperature: -40°C to +70°C.
- Installation Temperature: -20°C to +60°C.
- Standards Compliance: IEC and EIA/TIA 455.
