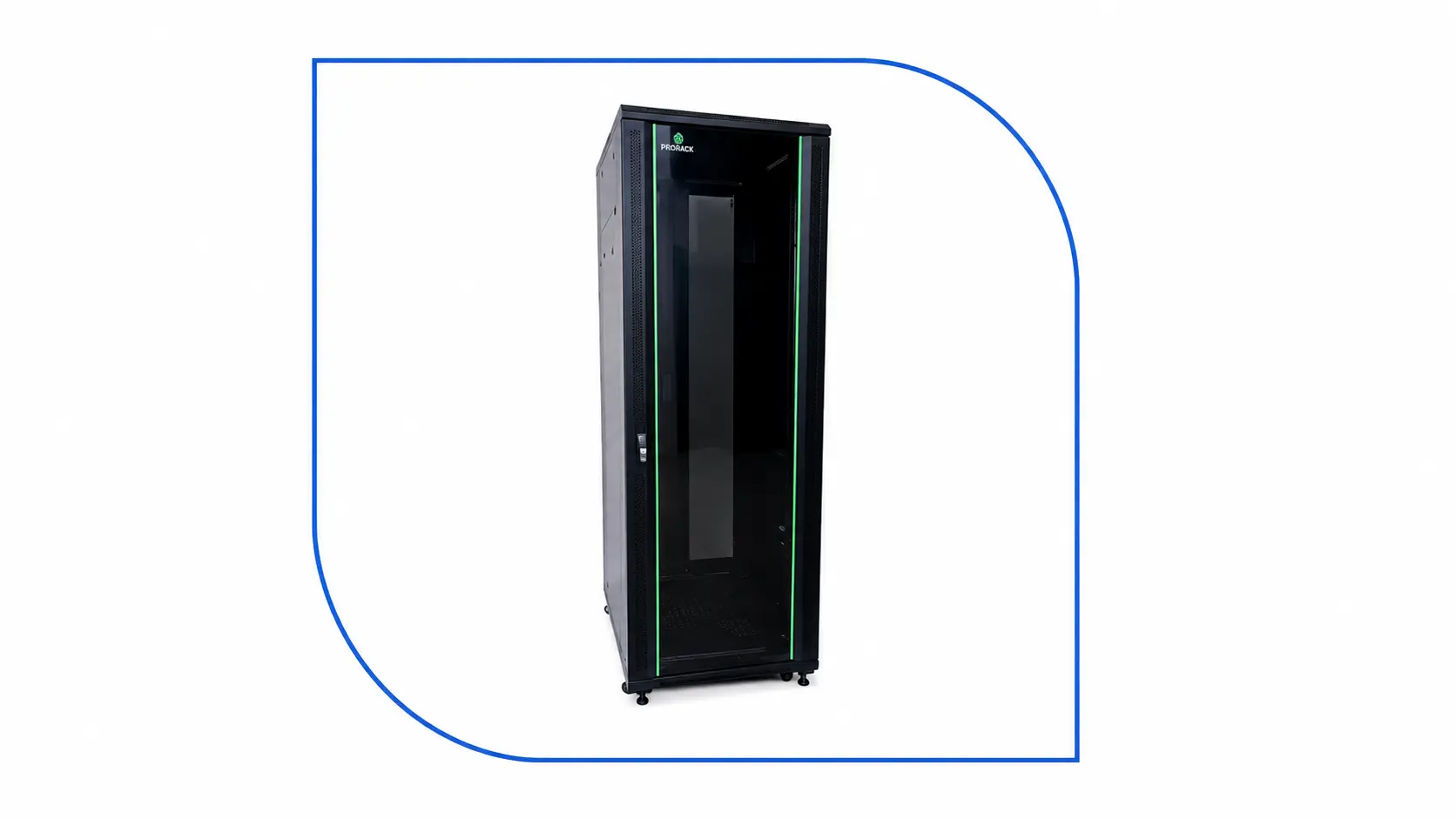

ProRack 27U Standing Server Rack with Glass Door, 600×600mm (PR-FG6627)

ProRack 27U Standing Server Rack (Model: PR-FG6627) is an enterprise-grade, space-efficient IT enclosure engineered to centralize, organize, and safeguard heavy network infrastructure hardware. Measuring 600mm wide by 600mm deep, this robust floor-standing cabinet supports up to 800KG static load capacity according to manufacturer specifications and cabinet design.
The cabinet is compatible with standard 19-inch rack-mounted servers, enterprise network switches, routers, fiber optic patch panels, UPS systems, CCTV equipment, network video recorders (NVRs), structured cabling hardware, enterprise storage devices, and rack-mounted power distribution units.

Premium Build Quality & High Visual Security

• Tempered Glass Front Door: Features a high-durability 5mm tempered glass front door assembly (Glass Door Type E or B) equipped with a premium mechanical lock, allowing network teams to monitor status lights without exposing live hardware to physical tampering.
• Rigid Anti-Corrosion Treatment: The high-grade cold-rolled steel framework undergoes a comprehensive automated chemical surface preparation including degreasing, pickling, phosphating, laundering, and a fine powder coating finish for maximum structural longevity.
• Fast Flank Access: Engineered with two separate, lockable, and removable side panels on each side that streamline on-site equipment provisioning and cable management routing.

Thermal Dynamics & Power Integration

• Active Cooling Array: Integrated with 2 high-performance active cooling fans embedded directly into the top cover plate to continuously draft warm exhaust away from enclosed network appliances.
• Clean Power Distribution: Bundled with a built-in Power Distribution Unit (PDU) socket strip providing 8 clean power outlets to minimize trailing wire clutter and consolidate power routing.
• Simultaneous Leveling & Mobility: Heavy-duty structural casters for site mobility and adjustable M12 leveling support feet can be deployed simultaneously to securely support high-weight enterprise equipment.

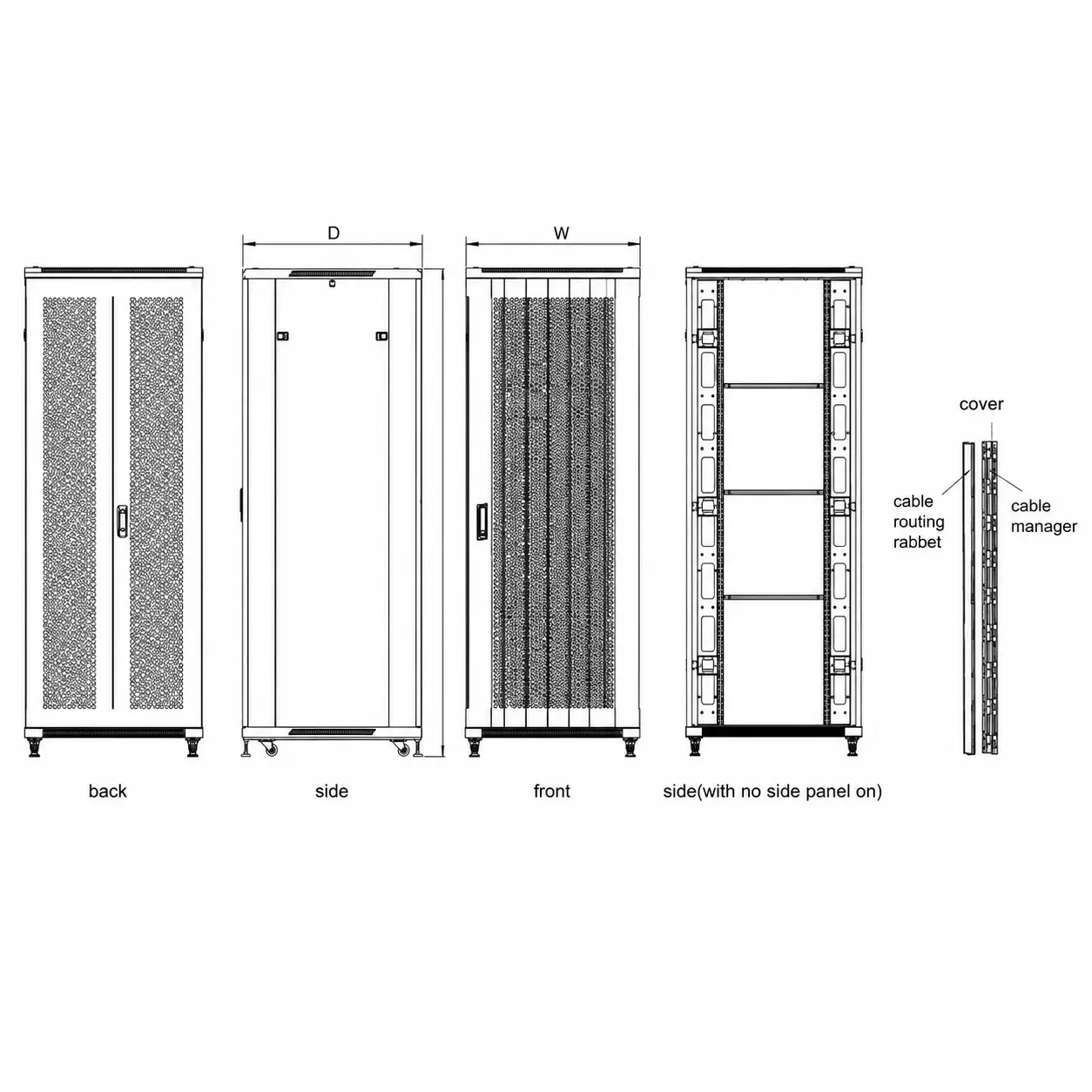

Technical Parameters & Dimensions

The following table summarizes the primary technical specifications and physical dimensions of the ProRack 27U Standing Server Rack for quick product comparison, rack planning, and installation.

Recommended Applications

• Enterprise Server Rooms
• Data Centers
• Structured Cabling Installations
• Core Network Distribution
• Enterprise IT Infrastructure
• Cloud Computing Environments
• Security & CCTV Systems
• Telecommunication Facilities

Included Accessories & Package Contents

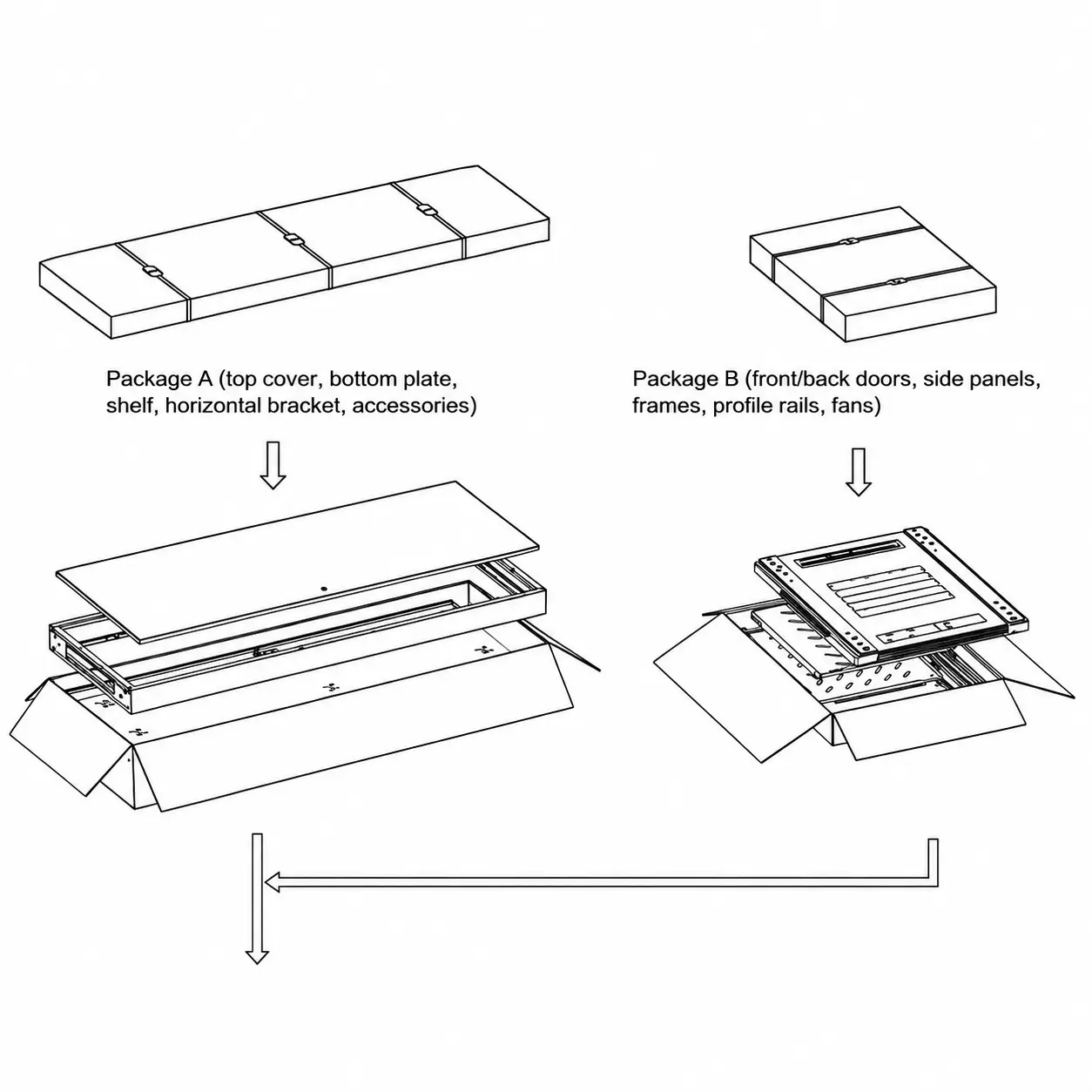

Every standard PR-FG6627 standing server cabinet ships as an all-inclusive integration kit packed with the following internal hardware components:

• Active Accessories: 2 × Cold-Rolled Steel Exhaust Fans and 1 × Rigid Steel Shelf
• Power Elements: 1 × Power Distribution Unit (PDU) Strip with 8 Outlets
• Mounting Hardware: 40 × Heavy-Duty Cage Nuts
• Grounding Gear: 4 × Structural Casters and 4 × M12 Support Feet

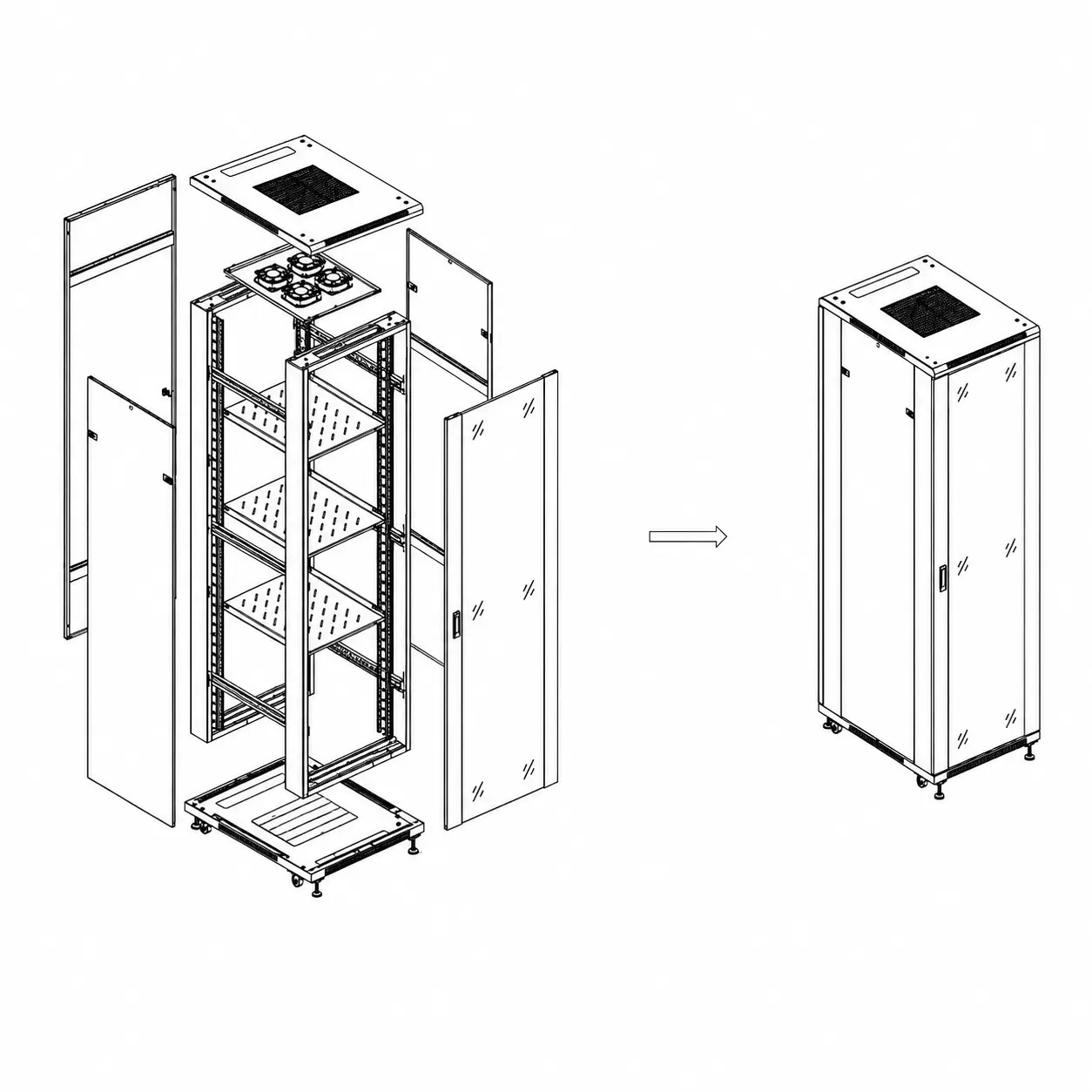

• Chassis Framing: 2 × Main Frames (1.2mm), 4 × Profile Rails (2.0mm), 6 × Support Beams, and 12 × Junction Boxes
