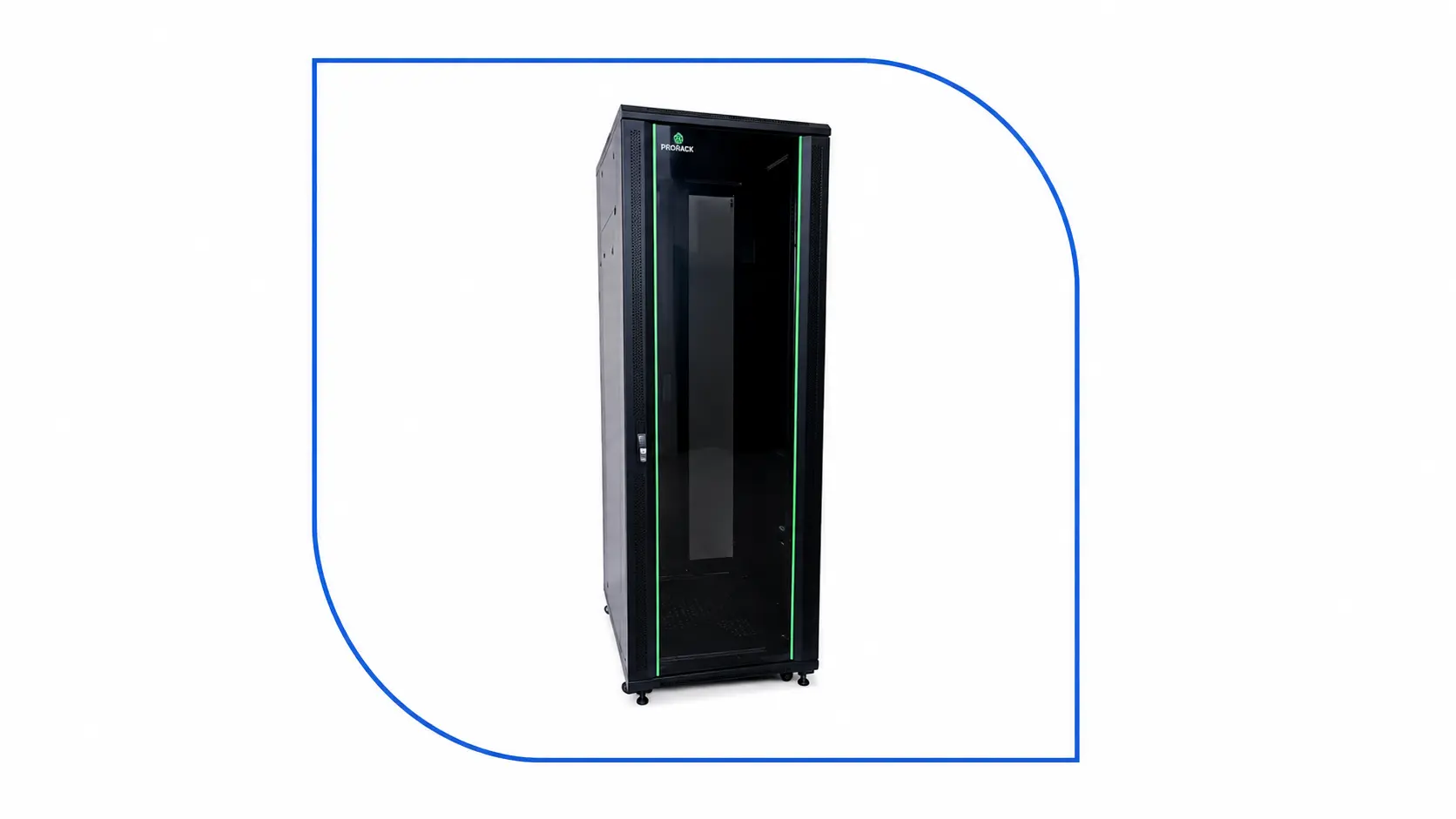

ProRack 27U 600×800 Standing Network Rack (SKU: PR-FG6827) is an enterprise-grade IT enclosure designed for organized, secure, and highly visible server management. Measuring 600mm wide by 800mm deep, this heavy-duty cabinet supports an impressive 800KG static load capacity, making it the ideal solution for small to medium-sized data centers and corporate server rooms.
Premium Security & Build Quality
- Tempered Glass Front Door:
Features a highly durable 5mm tempered glass front door (Type E or B) offering visual monitoring of your equipment without compromising physical security.
- Advanced Surface Treatment:
The cold-rolled steel structure undergoes rigorous degreasing, pickling, phosphating, laundering, and powder coating to ensure long-term protection against corrosion.
- Flexible Accessibility:
Includes two removable, independently lockable side panels on each side for fast and secure hardware adjustments, alongside a cold-rolled steel back door (Type K).
Thermal Management & Cable Routing
- Active Cooling System:
Integrated with 4 heavy-duty cooling fans on the top cover to actively pull heat away from critical networking hardware.
- Multi-Functional Cable Management:
Built with dedicated cable routing panels on both back sides to ensure clean vertical and horizontal cable organization.
- Simultaneous Mobility:
Heavy-duty casters and adjustable M12 support feet can be installed simultaneously, ensuring both effortless mobility and secure, leveled positioning.

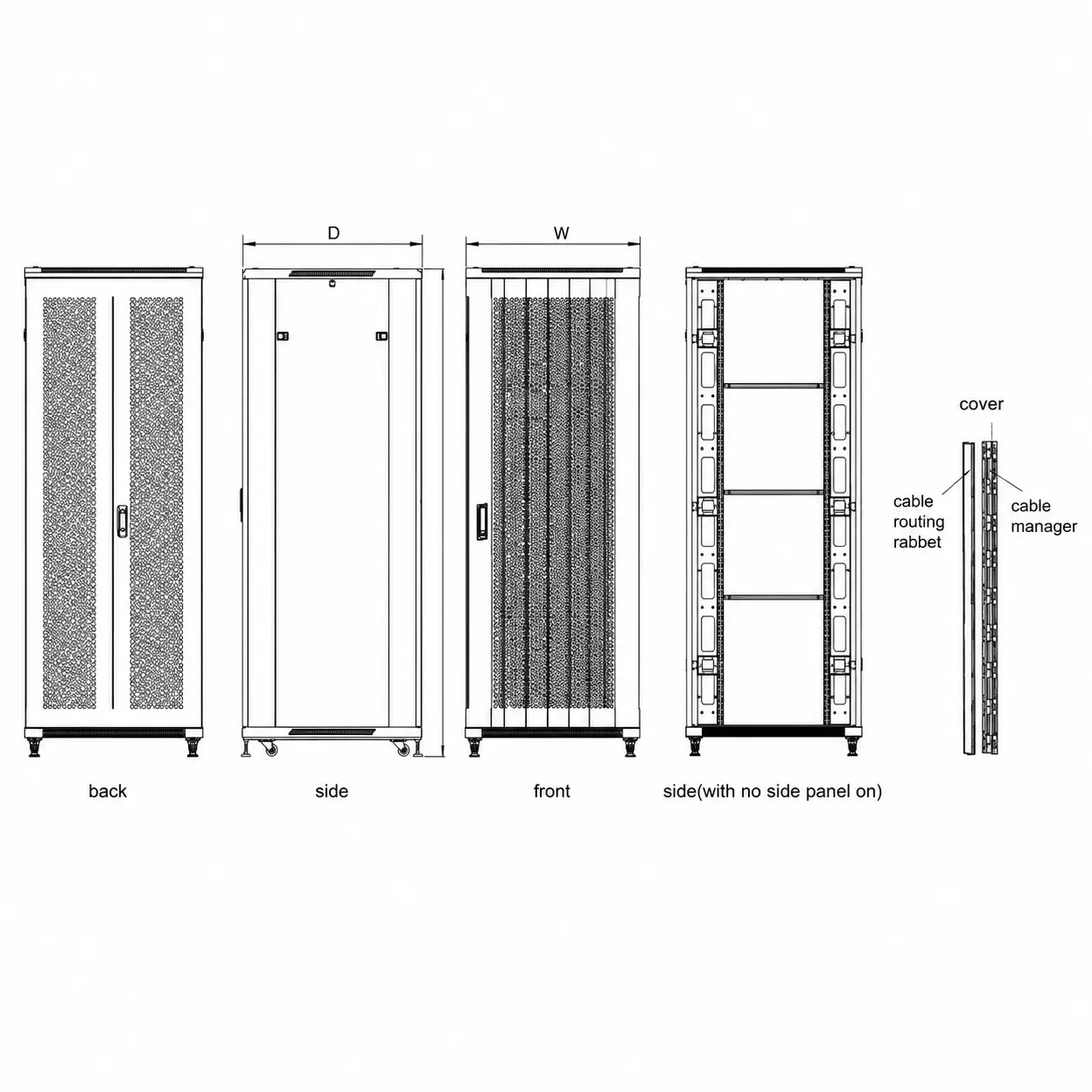

Technical Parameters & Dimensions
| Dimension / Parameter | Operational Specification |
|---|---|
| Model / SKU | ProRack 27U 600×800 (PR-FG6827) |
| Rack Capacity | 27U |
| Width / Depth | 600 mm / 800 mm |
| Physical Height | 1388 mm |
| Static Load Capacity | 800 KG |
| Main Material | High-Grade Cold-Rolled Steel |
| Front Door Type | 5mm Tempered Glass |
| Color Finish | Black (RAL9005) |

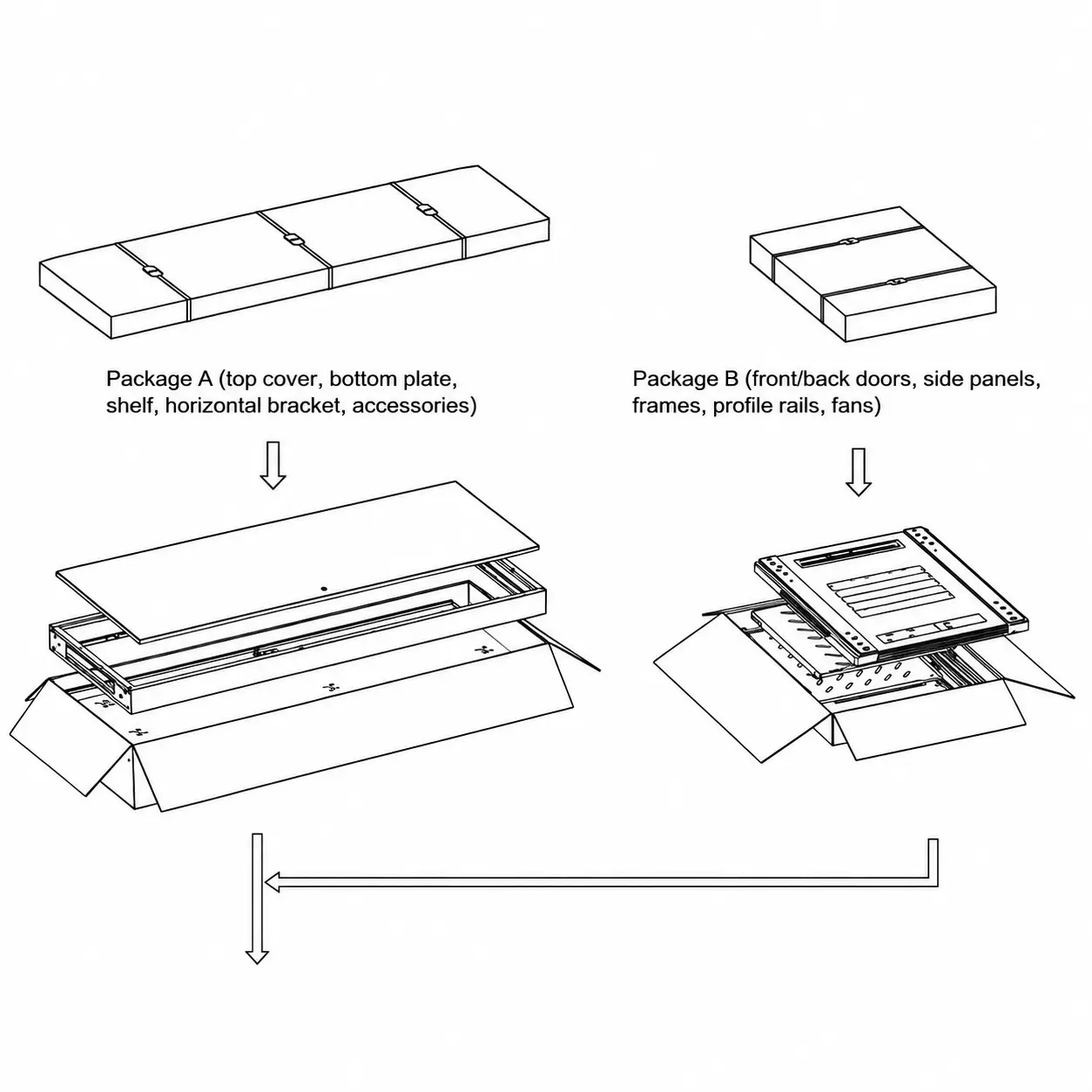

Included Accessories & Package Contents
Every standard ProRack 27U 600*800 cabinet comes bundled with a comprehensive set of installation accessories:
- Fans: 4 × Cold-Rolled Steel Fans
- Shelves: 1 × 1.2mm Cold-Rolled Steel Shelf
- Power Distribution: 1 × Power Distribution Unit (PDU) Socket Strip with 8 Outlets
- Mounting Hardware: 40 × Heavy-Duty Cage Nuts
- Structural Supports: 4 × Casters and 4 × M12 Support Feet

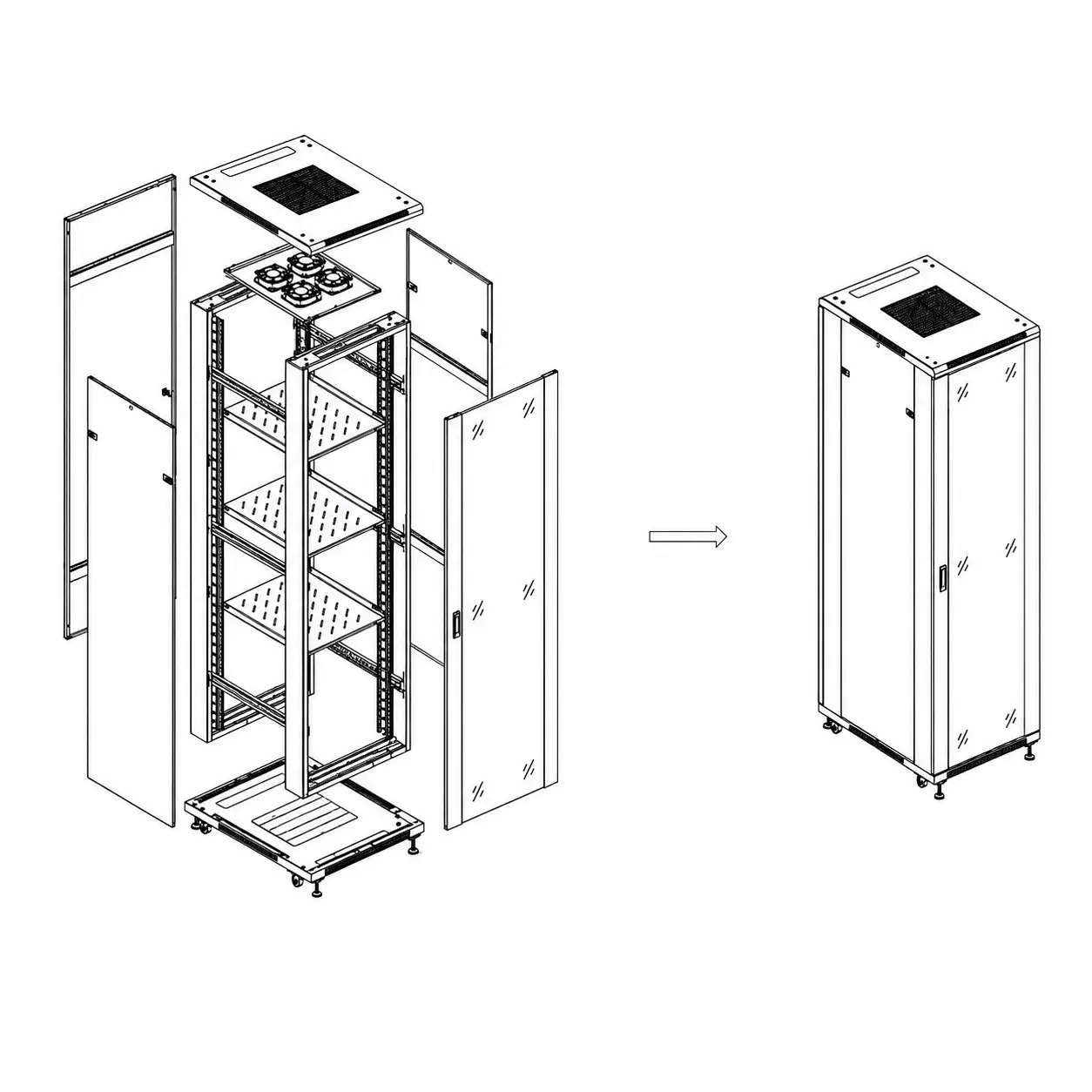

- Framework Panels: 2 × Frames, 4 × Profile Rails (2.0mm), 6 × Support Beams, and 12 × Junction Boxe
