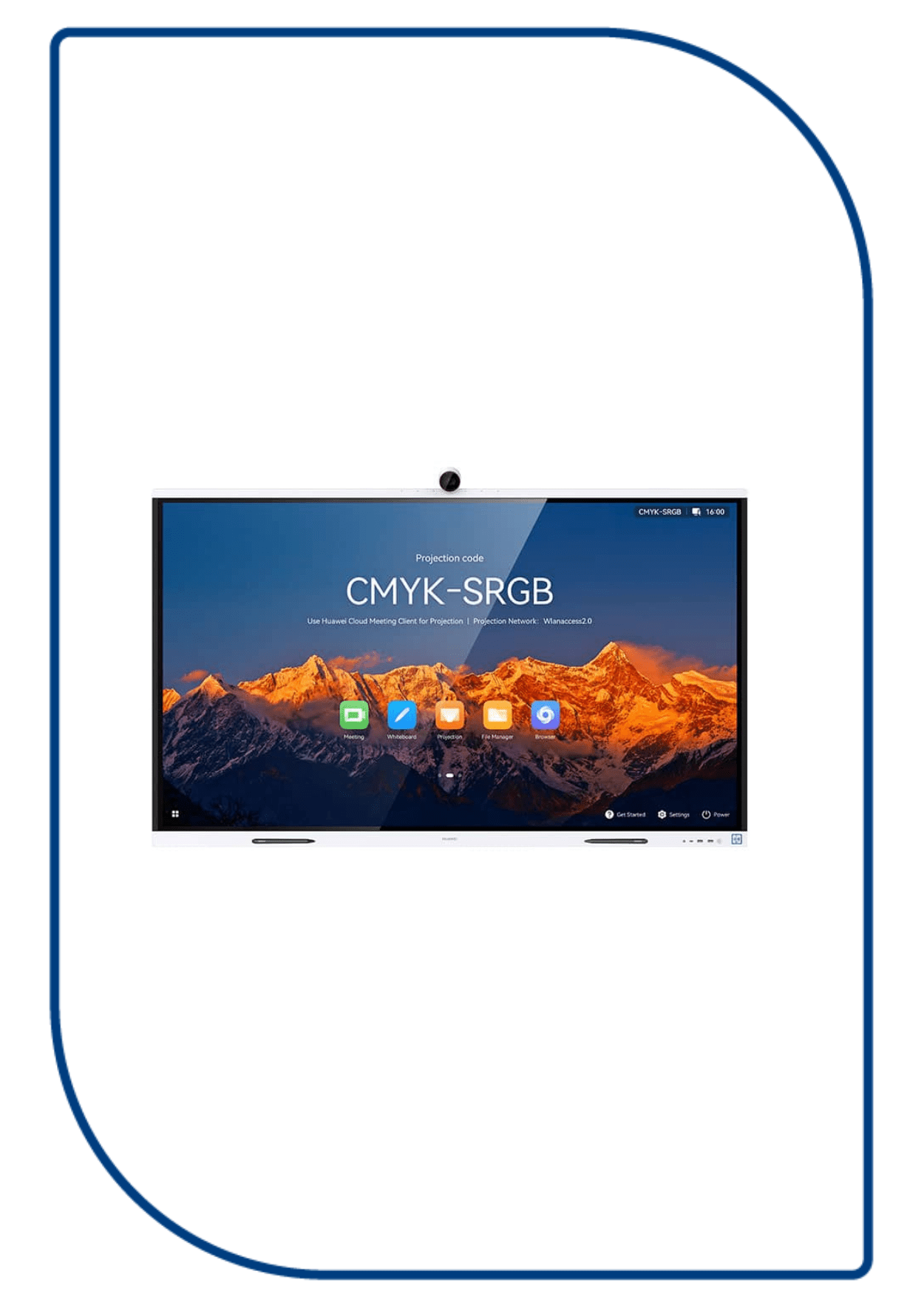

Huawei IdeaHub S2 65-Inch Smart Collaboration Board (Model: IHS2-65SA) is a 65-inch interactive display engineered with a 4K soft light screen, an AI-powered 4K video camera, and 16ms writing latency to deliver seamless hybrid collaboration in modern meeting rooms. It features 3840 × 2160 resolution, optical anti-blue light protection, zero-gap bonding, and an integrated beamforming microphone array with 12-meter sound pickup.
Running HarmonyOS with optional modular Windows OPS PC support, the board provides BYOM (Bring Your Own Meeting) wireless conferencing, Wi-Fi 6 wireless projection, smart handwriting recognition, and enterprise cloud video meetings. Connectivity includes full-function USB Type-C, HDMI 2.0 In/Out, USB 3.0, and Gigabit Ethernet.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei IdeaHub S2 Series |
| Model / SKU | IHS2-65SA |
| Screen Size & Type | 65-Inch 4K UHD (3840 × 2160) Anti-Glare Soft Light Panel |
| Whiteboard Writing | 16ms Ultra-Low Latency Intelligent Handwriting Recognition |
| Integrated Camera | 4K UHD AI Video Camera with Auto-Framing and Voice Tracking |
| Audio Architecture | Beamforming Microphone Array (12-Meter Pickup) + Hi-Fi Stereo Speakers |
| Wireless Sharing | Wi-Fi 6 Wireless Projection, IdeaShare Key, BYOM Conferencing |
| Operating System | HarmonyOS + Optional Modular Windows OPS PC Slot |
| Connectivity Ports | USB Type-C (Full Function), HDMI 2.0 In/Out, USB 3.0, Gigabit LAN |
| Eye Protection | TÜV Rheinland Certified Optical Anti-Blue Light Display |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | 65-Inch Wall Mount or Rolling Floor Stand Installation |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Noise-Free Operation |
| Chassis Construction | Aviation-Grade Aluminum Frame and Anti-Glare Glass |
| Power Supply | Internal Universal AC Power Supply (100V to 240V AC) |
Key Features & Highlights
- 65-Inch 4K Soft Light Display: 3840 × 2160 anti-glare screen prevents reflections with optical anti-blue light eye protection.
- AI 4K Speaker Tracking: Auto-framing and voice tracking keep the active speaker centered during video calls.
- 16ms Ultra-Low Writing Latency: Delivers pen-on-paper smoothness with intelligent OCR text and shape conversion.
- Wi-Fi 6 Wireless Projection: High-speed wireless screen mirroring from laptops, tablets, and phones with one tap.
- BYOM Wireless Conferencing: Route display cameras and microphones directly to personal laptop collaboration apps.
- Dual-System Modular OS: Runs smooth HarmonyOS with optional plug-in Windows OPS PC for enterprise applications.
Recommended Applications
The Huawei IdeaHub S2 65-Inch Smart Collaboration Board is engineered for access and aggregation scenarios across commercial environments:
- Corporate meeting rooms and executive huddle spaces conducting hybrid video conferences.
- BYOM wireless conferencing allowing employees to use their preferred meeting platform seamlessly.
- Collaborative team workshops utilizing 16ms whiteboard and instant graphic conversion.
- Executive private offices requiring an all-in-one display for video calls and computer mirroring.
- Medical clinics and consult offices displaying medical images with remote clinical collaboration.
Installation & Operating Environment
The Huawei IdeaHub S2 65-Inch Smart Collaboration Board is designed for wall mounting or mobile rolling floor stand deployment. Supplied with two magnetic stylus pens, power cable, and wall-mounting bracket kit, it operates from 100V to 240V AC with natural heat dissipation for quiet, continuous operation in executive meeting environments.
