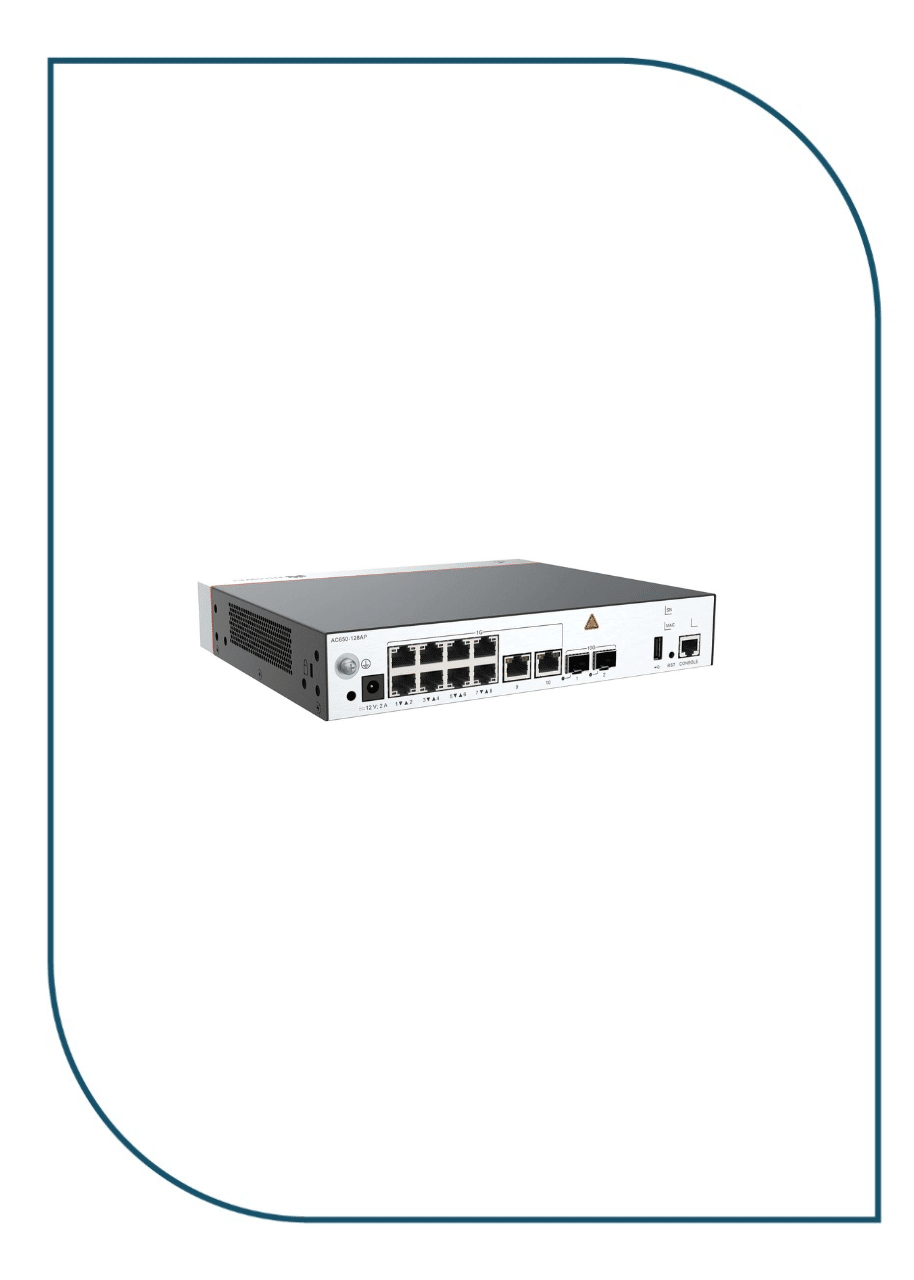

Huawei AC650-128AP Wireless Access Controller (Model: AC650-128AP) is an enterprise-grade hardware wireless controller engineered to manage up to 128 access points with dual 10G SFP+ optical uplinks and carrier-grade RF optimization. It features 10 fixed 10/100/1000BASE-T Gigabit RJ45 ports and 2 dedicated 10GE SFP+ optical slots, supporting both direct local forwarding and centralized CAPWAP tunnel forwarding.
Constructed in a standard 1U 19-inch rackmount metal chassis with internal AC power, the controller delivers dynamic channel and power allocation, fast roaming (802.11k/v/r), band steering, WPA3-Enterprise security, 802.1X authentication, and rogue AP detection for enterprise campus networks.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei AC650 Series |
| Model / SKU | Huawei AC650-128AP |
| Managed AP Capacity | Controls and Manages up to 128 Wireless Access Points (Huawei Fit APs) |
| Ethernet Downlink Ports | 10 × 10/100/1000BASE-T Gigabit RJ45 Ports |
| High-Speed Optical Uplinks | 2 × 10GE SFP+ Optical Transceiver Slots |
| Forwarding Architecture | Supports Direct Forwarding and Tunnel Forwarding (CAPWAP) |
| RF & Roaming Features | Dynamic Channel & Power Allocation, Fast Roaming (802.11k/v/r), Band Steering |
| Security Protocols | WPA3-Enterprise, 802.1X Authentication, Rogue AP Detection, Portal Auth |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal AC Power |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard 1U 19-Inch Rackmount Enclosure |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Industrial-Grade Steel Housing |
| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- 128 AP Management Capacity: Orchestrates up to 128 Huawei Fit APs with centralized configuration and RF calibration.
- Dual 10G SFP+ Optical Uplinks: 2 dedicated 10GE SFP+ optical slots handle high-throughput CAPWAP tunnel traffic.
- Flexible Forwarding Architecture: Supports both local direct line-rate forwarding and centralized CAPWAP tunnel forwarding.
- Intelligent RF Calibration: Dynamic channel and power allocation minimizes co-channel interference across dense AP grids.
- Fast Roaming & Security: Standard 802.11k/v/r fast roaming and WPA3-Enterprise ensure seamless, secure client mobility.
- Standard 1U Rack Chassis: Heavy-duty 19-inch metal enclosure includes complete rackmount brackets and screws.
Recommended Applications
The Huawei AC650-128AP Wireless Access Controller is engineered for access and aggregation scenarios across commercial environments:
- Enterprise campus Wi-Fi networks requiring centralized RF calibration, firmware updates, and fast roaming for 128 APs.
- Hotel and resort wireless infrastructure managing multi-floor guest networks with captive portal authentication.
- 10G core network integration with dual 10G SFP+ uplinks handling high-throughput wireless traffic.
- Hospital and healthcare facility networks ensuring fast, zero-drop roaming for medical tablets and VoIP devices.
- Corporate commercial offices deploying secure 802.1X enterprise wireless authentication and rogue AP containment.
Installation & Operating Environment
The Huawei AC650-128AP Wireless Access Controller features a standard 1U 19-inch rackmount metal chassis supplied with mounting brackets and screws for immediate rack cabinet installation. Powered by an internal universal AC power supply, it maintains efficient thermal dissipation and continuous operational uptime in enterprise facilities.
