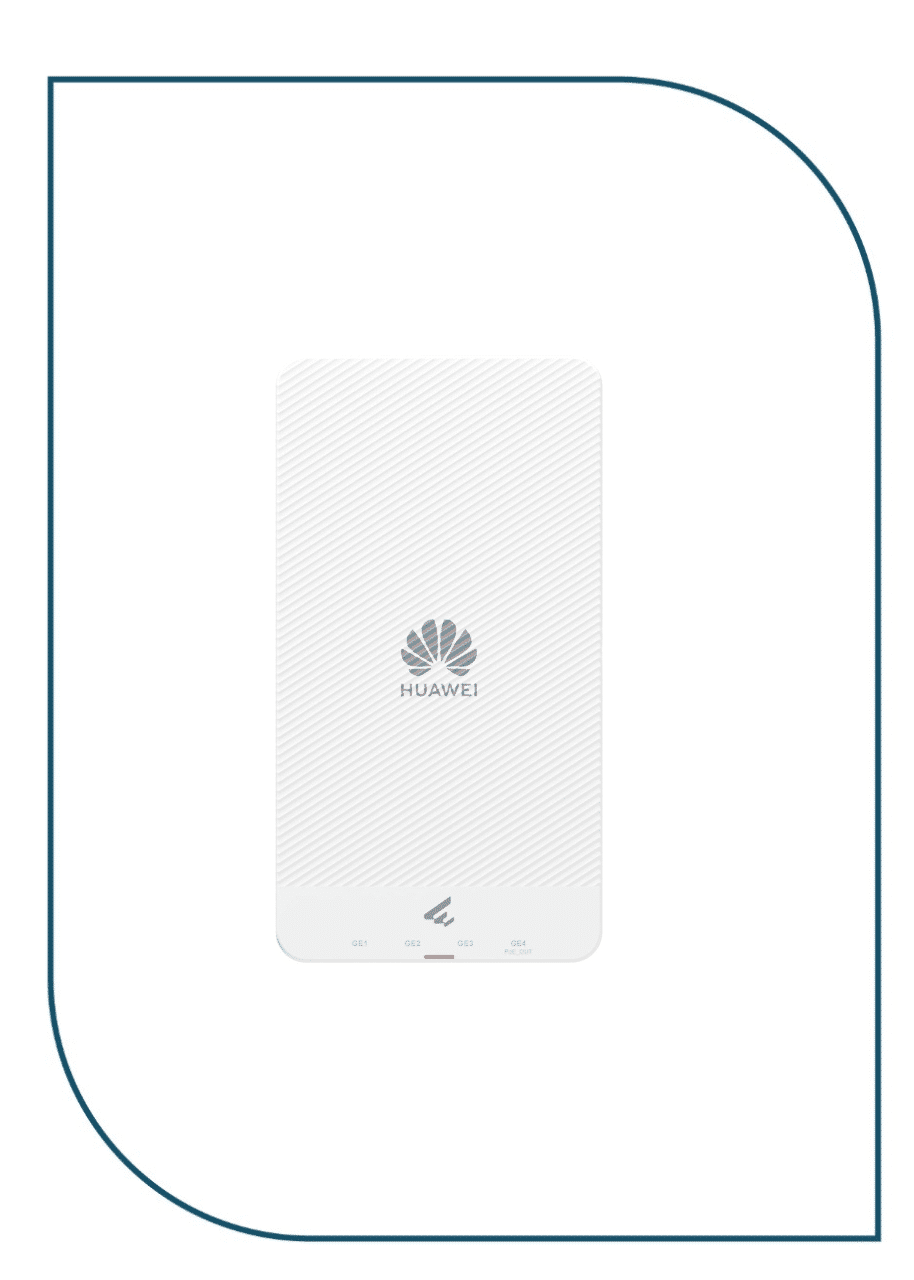

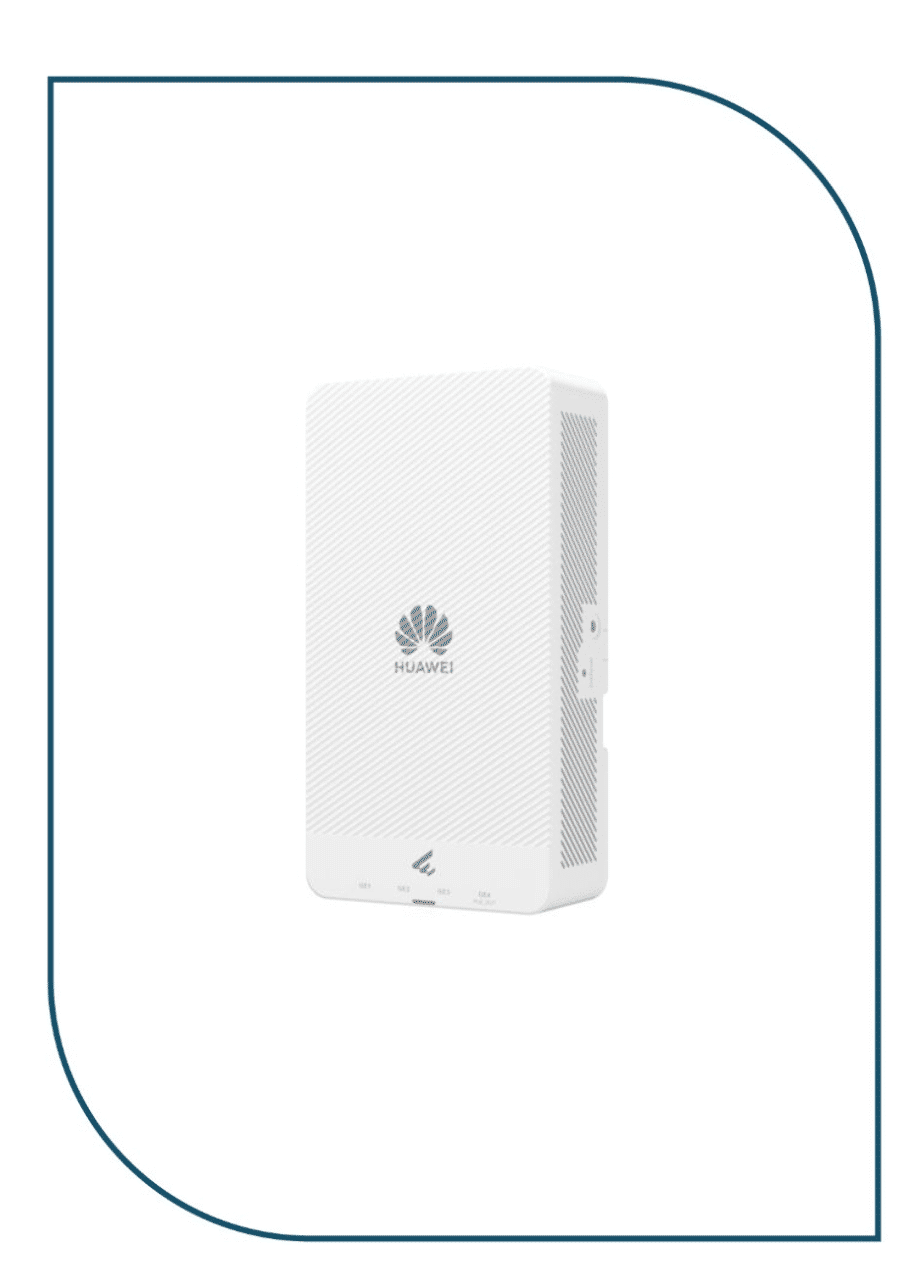

Huawei eKITEngine AP266 Wi-Fi 6 Access Point (Model: AP266) is a high-speed wireless access point engineered with 2.975 Gbps throughput, four Gigabit Ethernet ports, and Leader AP controllerless clustering for commercial workgroups. It supports concurrent dual-radio operation (2.4 Gbps on 5GHz + 575 Mbps on 2.4GHz) with integrated smart antennas providing a 13-meter optimal coverage range and 23 dBm maximum output power.
Equipped with 4 fixed 10/100/1000BASE-T Gigabit Ethernet electrical ports (supporting PoE input), the access point features Leader AP functionality, enabling it to act as an embedded hardware controller managing adjacent APs without requiring an external AC. Management is supported via Huawei eKit Cloud Platform, mobile app, and Web management.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKITEngine Series |
| Model / SKU | Huawei eKITEngine AP266 |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) Dual-Radio (2.4 GHz & 5 GHz Concurrent) |
| Maximum Wireless Speed | Up to 2.975 Gbps Aggregate Data Rate (2.4 Gbps on 5GHz + 575 Mbps on 2.4GHz) |
| Ethernet Interfaces | 4 × 10/100/1000BASE-T Gigabit Electrical Ports (PoE In Supported) |
| Antenna & Coverage | Integrated Smart Antennas with 13-Meter Optimal Coverage Range |
| Transmit Power | 23 dBm Maximum Output Power |
| User Capacity | Recommended: 64 Concurrent Users | Maximum: 128 Access Users |
| Leader AP Feature | Acts as an Embedded Hardware Controller Managing Adjacent APs without Extra AC |
| Management Interface | Huawei eKit Cloud Platform, Mobile App, Web Management |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Wall and Desktop Mountable Enclosure |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Noise-Free Operation |
| Chassis Material | High-Durability Polymer Housing |
| Power Input | PoE In (IEEE 802.3af/at) Support |
Key Features & Highlights
- High-Speed 2.975 Gbps Wi-Fi 6: Delivers 2.4 Gbps on 5 GHz and 575 Mbps on 2.4 GHz for high-throughput client concurrency.
- Quad Gigabit Ethernet Ports: 4 Gigabit ports provide direct wired connectivity for VoIP phones, IPTVs, and desktop PCs.
- Leader AP Controller Functionality: Manages and coordinates adjacent Huawei APs automatically without a standalone AC controller.
- 23 dBm Transmit Power: High-power RF output and smart antennas cover a 13-meter radius reliably through office partitions.
- Flexible Dual Mounting: Wall-mount and desktop-mount brackets included for versatile conference room or desk placement.
- Cloud App Management: Remote network setup, client status monitoring, and optimization via the Huawei eKit Mobile App.
Recommended Applications
The Huawei eKITEngine AP266 Wi-Fi 6 Access Point is engineered for access and aggregation scenarios across commercial environments:
- Executive meeting rooms providing 2.975 Gbps Wi-Fi and 4 wired Gigabit ports for video conferencing hardware.
- Leader AP multi-AP deployments managing small office AP networks automatically without extra AC controllers.
- Hotel suites and premium workspaces supplying both high-bandwidth Wi-Fi 6 and wired Ethernet for IPTV and PC.
- Commercial branch offices requiring rapid zero-touch deployment and diagnostics via the Huawei eKit Mobile App.
- Healthcare consultation rooms and training studios needing combined wired and wireless client access.
Installation & Operating Environment

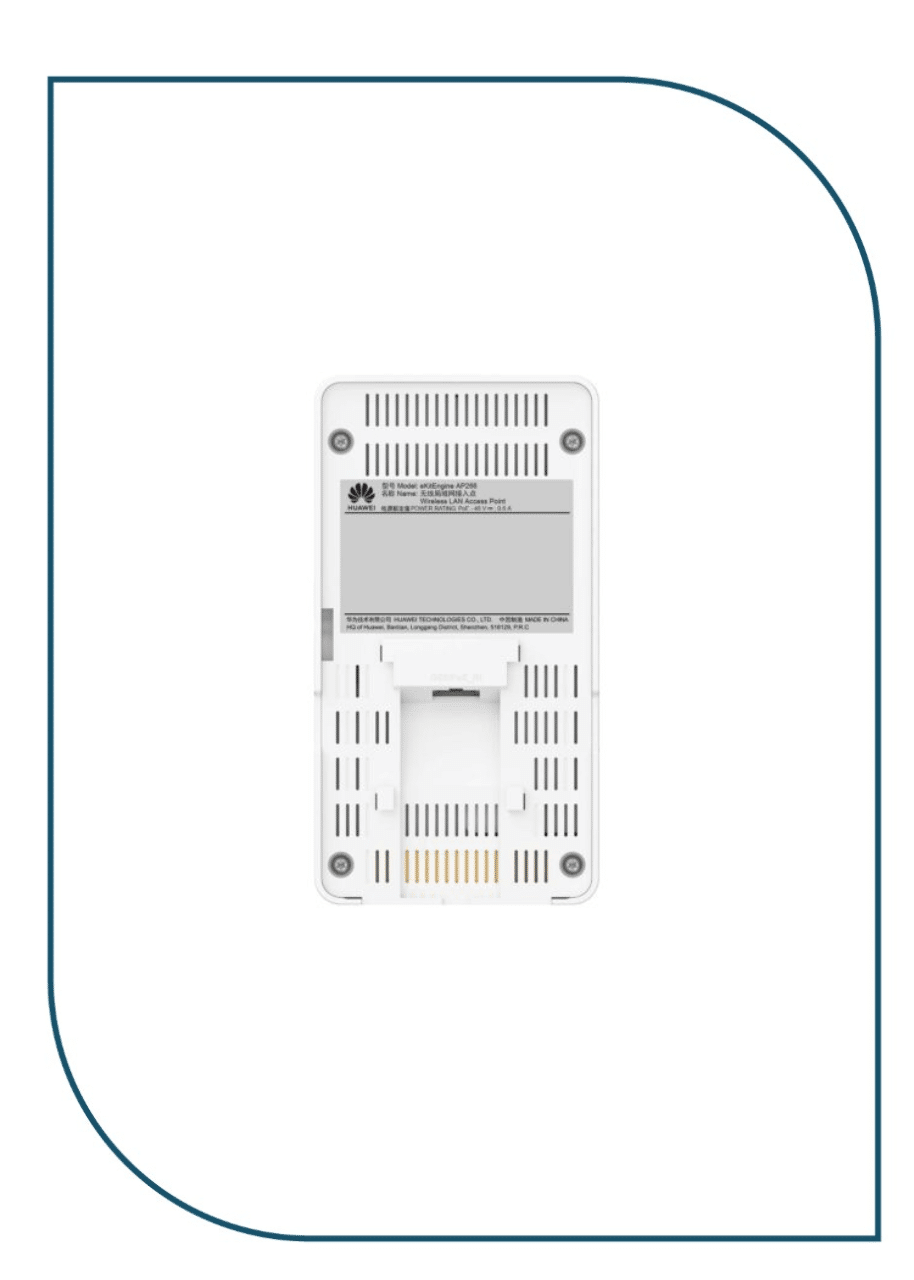

The Huawei eKITEngine AP266 Wi-Fi 6 Access Point features a versatile enclosure supplied with wall and desktop mounting brackets and screws. Powered via PoE input over its Ethernet port, it utilizes natural heat dissipation for quiet, continuous operation across commercial workspaces.
