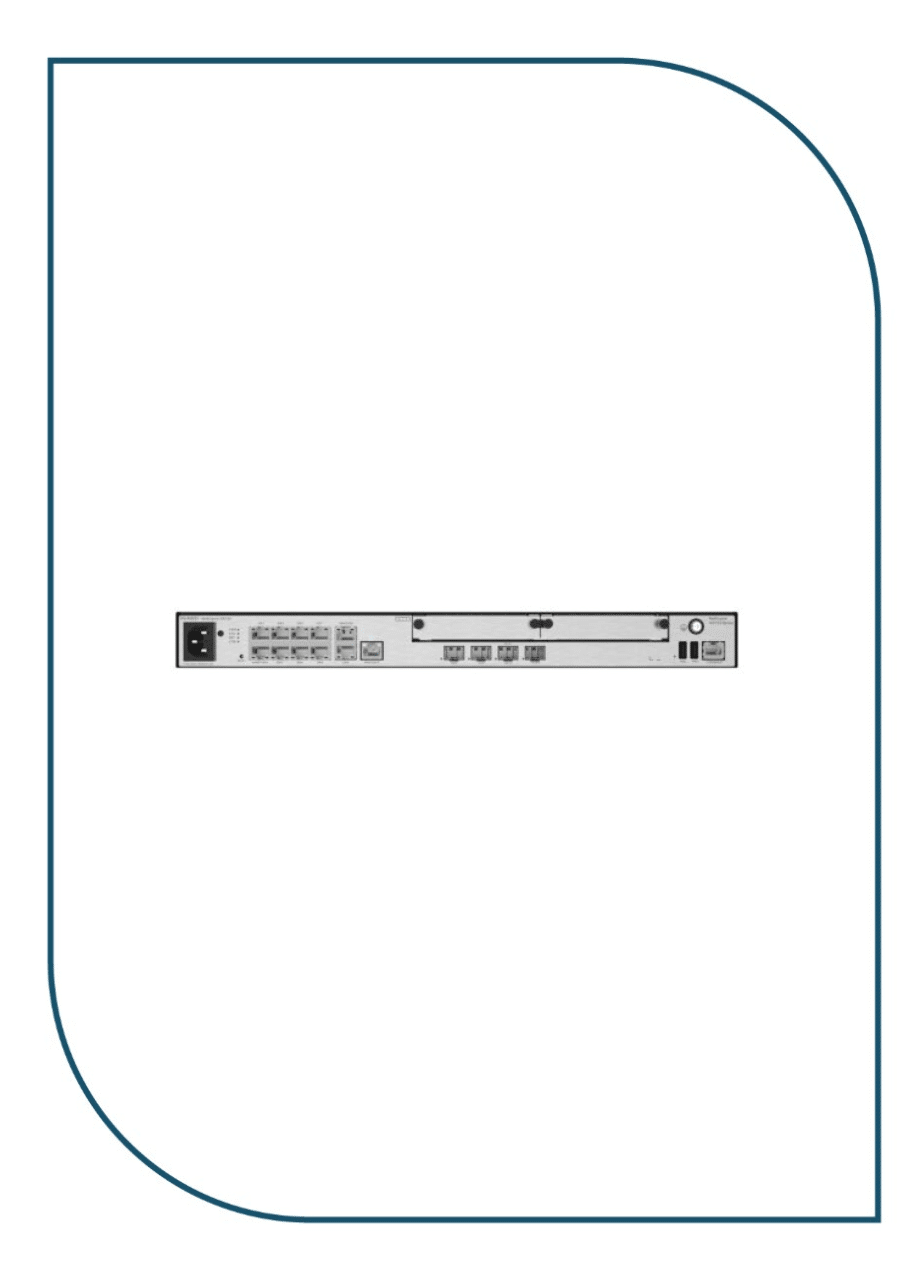

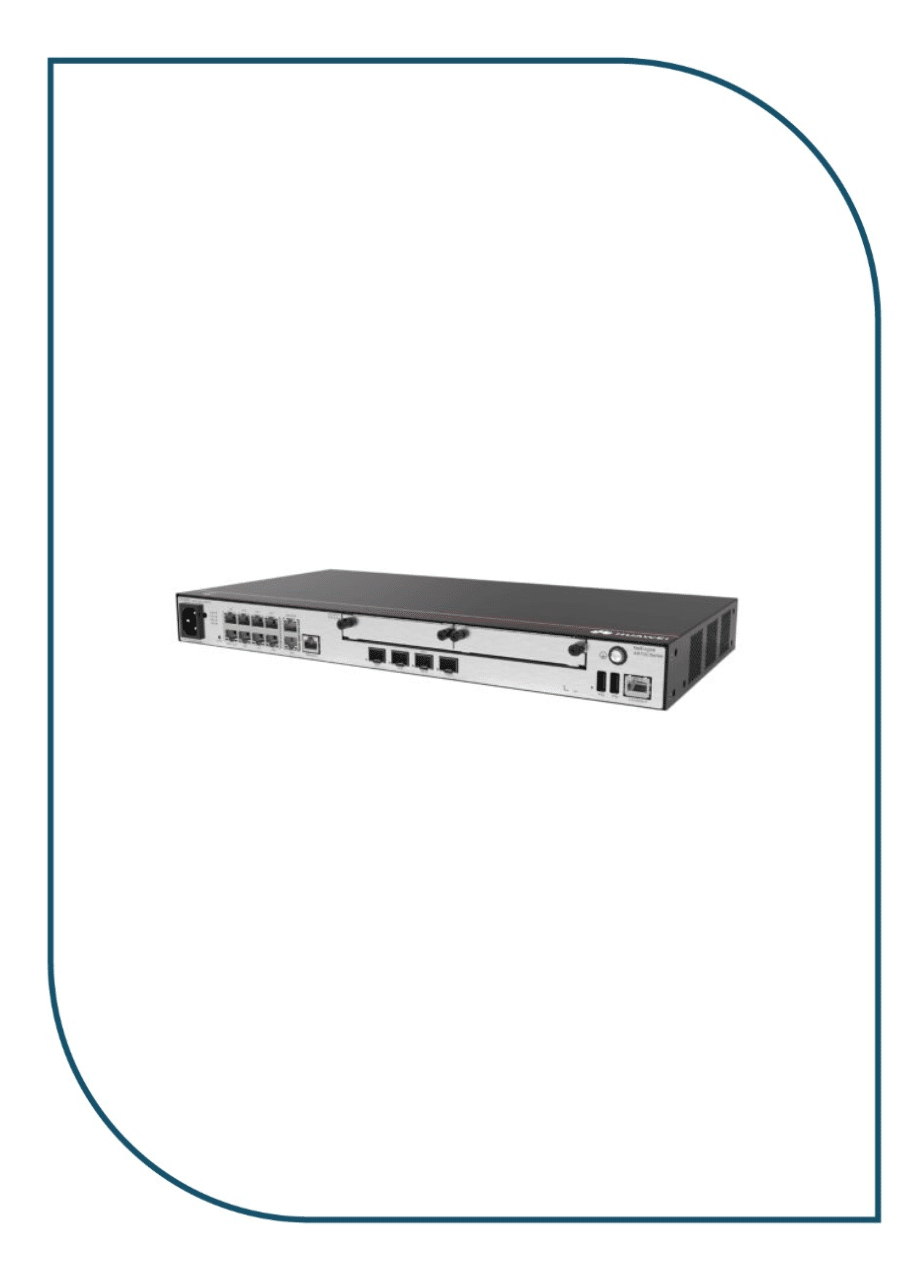

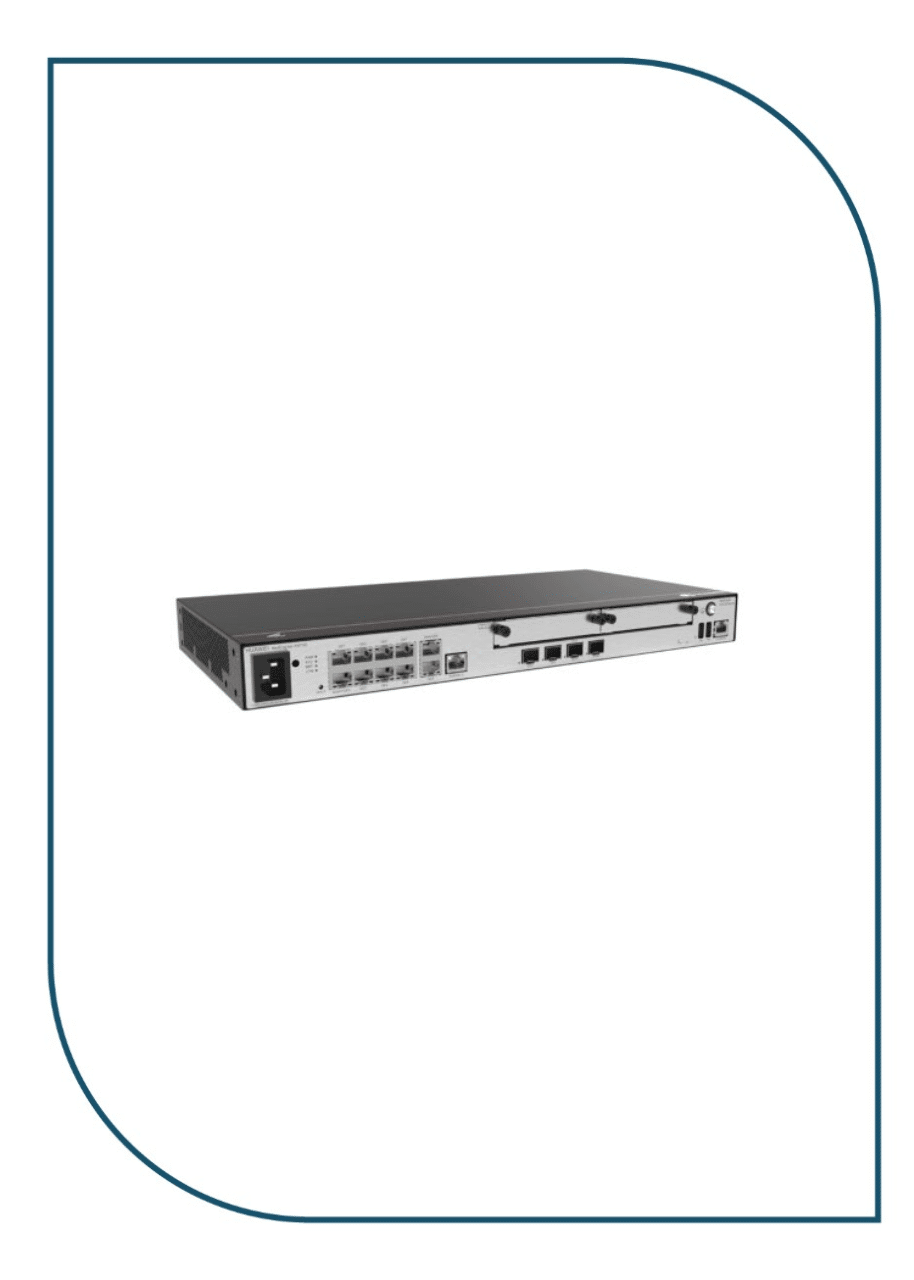

Huawei NetEngine AR730 Enterprise Router (Model: AR730) is a next-generation aggregation router engineered with a dedicated 10-Gigabit optical uplink and 1200-terminal capacity to deliver powerful SD-WAN routing and enterprise security. It features 1 fixed 10GE SFP+ optical port (compatible with GE optical modules), 2 fixed GE combo (RJ45 / SFP Optical) WAN ports, 1 GE combo port, and 8 fixed GE electrical ports (LAN/WAN switchable), achieving 9 Mpps to 25 Mpps forwarding performance.
Constructed in a standard 1U 19-inch rackmount metal chassis measuring 43.6 mm × 442 mm × 220 mm with internal heavy-duty AC power, the router delivers SD-WAN, Multi-WAN aggregation, 10G routing, stateful enterprise firewall, IPSec VPN, and application QoS. Management is supported via Huawei iMaster NCE Cloud Platform, Web GUI, CLI via SSH, and SNMP.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei NetEngine AR Series |
| Model / SKU | Huawei NetEngine AR730 |
| Forwarding Performance | 9 Mpps to 25 Mpps Forwarding Performance |
| Terminal Capacity | Supports up to 1200 Concurrent Connected Terminals |
| High-Speed Optical Uplink | 1 × 10GE SFP+ Optical Port (Compatible with GE Optical Modules) |
| Fixed WAN Interfaces | 2 × GE Combo (RJ45 / SFP Optical) WAN Ports |
| Fixed LAN Interfaces | 1 × GE Combo Port + 8 × GE Electrical Ports (LAN/WAN Switchable) |
| Dimensions (H x W x D) | 43.6 mm × 442 mm × 220 mm (Standard 1U Rackmount) |
| Core Capabilities | SD-WAN, Multi-WAN Aggregation, 10G Routing, Enterprise Firewall, IPSec VPN |
| Management Architecture | Huawei iMaster NCE Cloud Platform, Web GUI, CLI via SSH, SNMP |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 220 mm (1U Rackmount) |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Heavy-Duty Steel Enclosure |
| Power Supply | Internal Universal AC Power Supply |
Key Features & Highlights
- Dedicated 10G SFP+ Optical Uplink: 10GE optical interface provides high-speed backbone connectivity and eliminates WAN bottlenecks.
- 1200 Terminal Capacity: High-concurrency architecture supports up to 1200 connected user terminals simultaneously.
- 9 to 25 Mpps Forwarding: Wire-speed packet forwarding ensures low latency across demanding multi-site corporate networks.
- Triple-WAN Resilience: 10G SFP+, dual GE combo, and switchable electrical ports provide resilient multi-carrier WAN aggregation.
- Advanced SD-WAN & Security: Deep packet inspection (DPI), stateful firewall, and IPSec VPN protect business data assets.
- Standard 1U Rackmount Build: Standard 19-inch metal enclosure includes heavy-duty rackmount rail kit and screws.
Recommended Applications
The Huawei NetEngine AR730 Enterprise Router is engineered for access and aggregation scenarios across commercial environments:
- 10G campus gateway connecting up to 1200 users to high-speed enterprise backbone networks.
- Enterprise SD-WAN headquarters hub aggregating multiple regional branch office VPN tunnels seamlessly.
- High-density corporate offices requiring deep packet inspection, traffic classification, and security filtering.
- Multi-carrier WAN resilience across 10G fiber, Gigabit SFP, and copper broadband connections.
- Deploying centralized cloud-managed routing across regional headquarters, universities, and commercial complexes.
Installation & Operating Environment
The Huawei NetEngine AR730 Enterprise Router features a standard 1U metal chassis measuring 43.6 mm × 442 mm × 220 mm supplied with a 19-inch 1U rackmount rail kit and screws. Powered by an internal heavy-duty AC power supply, it maintains efficient thermal dissipation and continuous uptime in enterprise server rooms.
