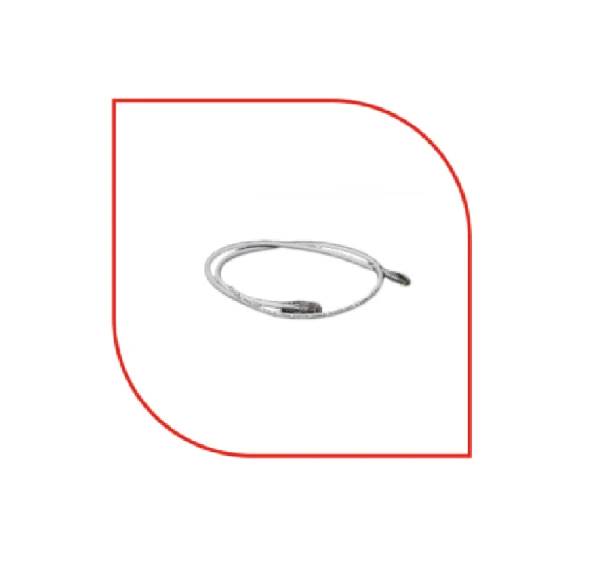

ProLink CAT6 Unshielded Patch Cord with T568B Wiring, 0.25M, LSZH Gray (Model: PL-PC-U6-0.25G) is a professional-grade Category 6 patch cable engineered for high-speed network connectivity. Designed for short-distance interconnections inside server racks, structured cabling systems, and enterprise LAN environments, it delivers delivers reliable Gigabit Ethernet connectivity through high-quality RJ45 connectors, an LSZH jacket, and Category 6 Class E performance.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Name | ProLink CAT6 U/UTP Patch Cord |
| Model / SKU | PL-PC-U6-0.25G |
| Cable Category | Category 6, Class E (250MHz) |
| Shielding Type | U/UTP (Unshielded) |
| Connector Configuration | RJ45 with Polycarbonate Plug Housing |
| Cable Length | 0.25 m |
| Characteristic Impedance | 100 Ohms |
| Wiring Standard | T568B Wiring |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Conductor Specification | AWG23/7 |
| Contact Plating | 0.7 µm Selective Gold Plate |
| Current Rating | 1.5 A (Maximum at 25°C) |
Key Features & Engineering
- Class E Standard Compliance: Meets the full requirements of Category 6 Class E (250MHz) according to ISO/IEC 11801, ensuring reliable data transmission and minimizing signal interference.
- Industrial-Grade Build Quality: Manufactured using durable polycarbonate connector housings, phosphor bronze (CuSn6) contacts, and 0.7 µm selective gold plating to maximize durability and electrical conductivity.
- Backward Compatibility: Fully compatible with existing Cat5e network infrastructures, providing flexibility during structured cabling upgrades.
- LSZH Safety Jacket: Features a Low Smoke Zero Halogen jacket that significantly reduces toxic smoke and corrosive gas emissions in the event of fire.
Compatible Equipment & Applications
- Enterprise Network Switches
- Patch Panels
- Enterprise Server Cabinets
- Data Center Enclosures
- Telecommunications Distribution Systems
- Network Outlets
- Distribution Modules
- Hardware Firewalls
- VoIP Telephone Systems
- IP Surveillance Infrastructure
- Power over Ethernet (PoE) Access Points
