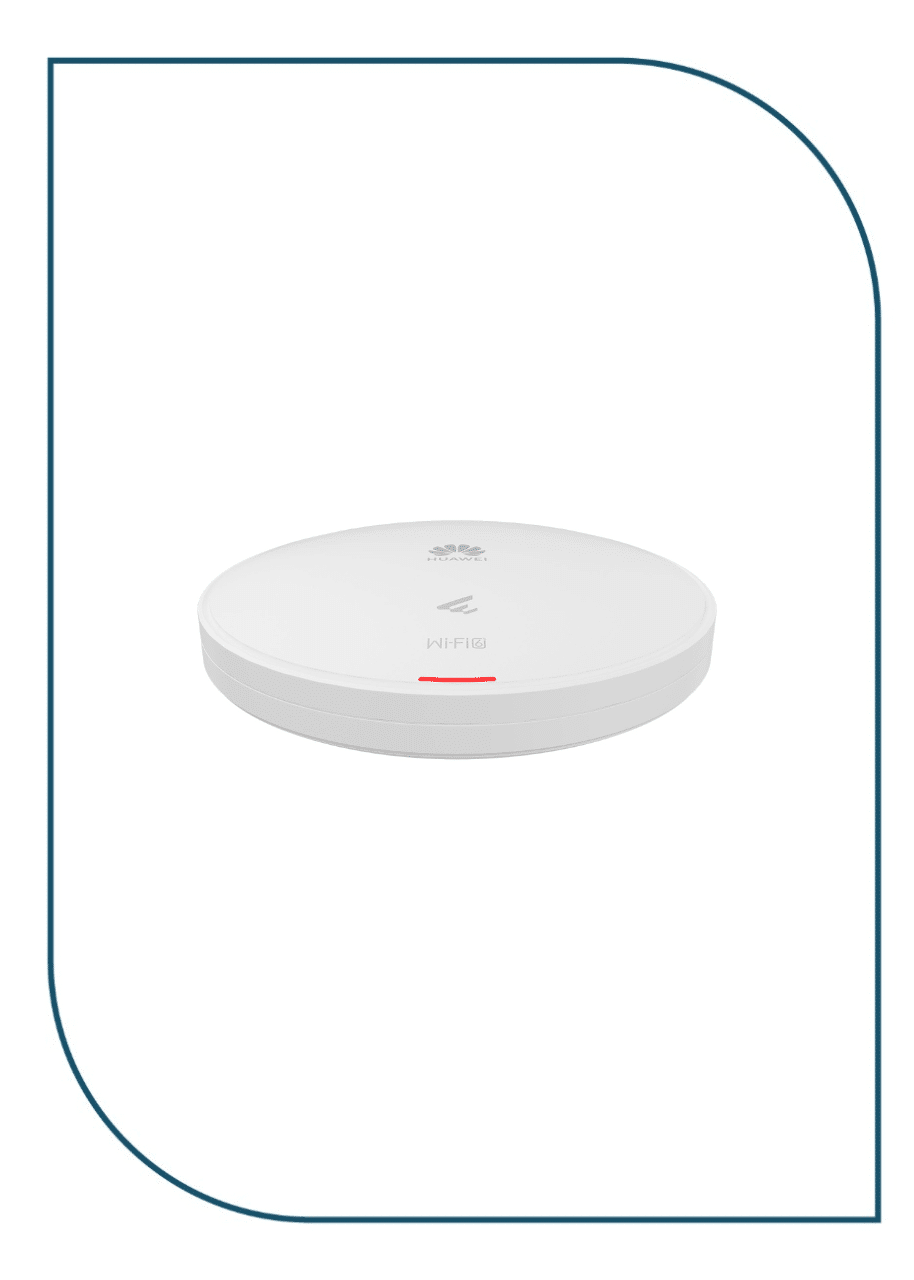

Huawei eKITEngine AP661 Tri-Radio Wi-Fi 6 Access Point (Model: AP661) is an ultra-high-density enterprise access point engineered with tri-radio technology, a 2.5GE multi-gigabit port, and 6.575 Gbps throughput to deliver massive concurrency across enterprise campuses. It features concurrent tri-radio Wi-Fi 6 operation (2.4 GHz + 5 GHz + 5 GHz) with a smart antenna array delivering an expansive 40-meter optimal coverage radius and 26 dBm high output power.
Equipped with 1 fixed 100M/1G/2.5GE Multi-Gigabit port and 1 fixed 10/100/1000M GE port, the access point supports PoE+ (IEEE 802.3at) or 12V DC external power. It supports 300 recommended concurrent users (up to 1536 access users) with management via the Huawei eKit Cloud Platform, Leader AP, and hardware AC controllers.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKITEngine Series |
| Model / SKU | Huawei eKITEngine AP661 |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) Tri-Radio Architecture (2.4 GHz + 5 GHz + 5 GHz Concurrent) |
| Maximum Wireless Speed | Up to 6.575 Gbps Aggregate Wireless Throughput |

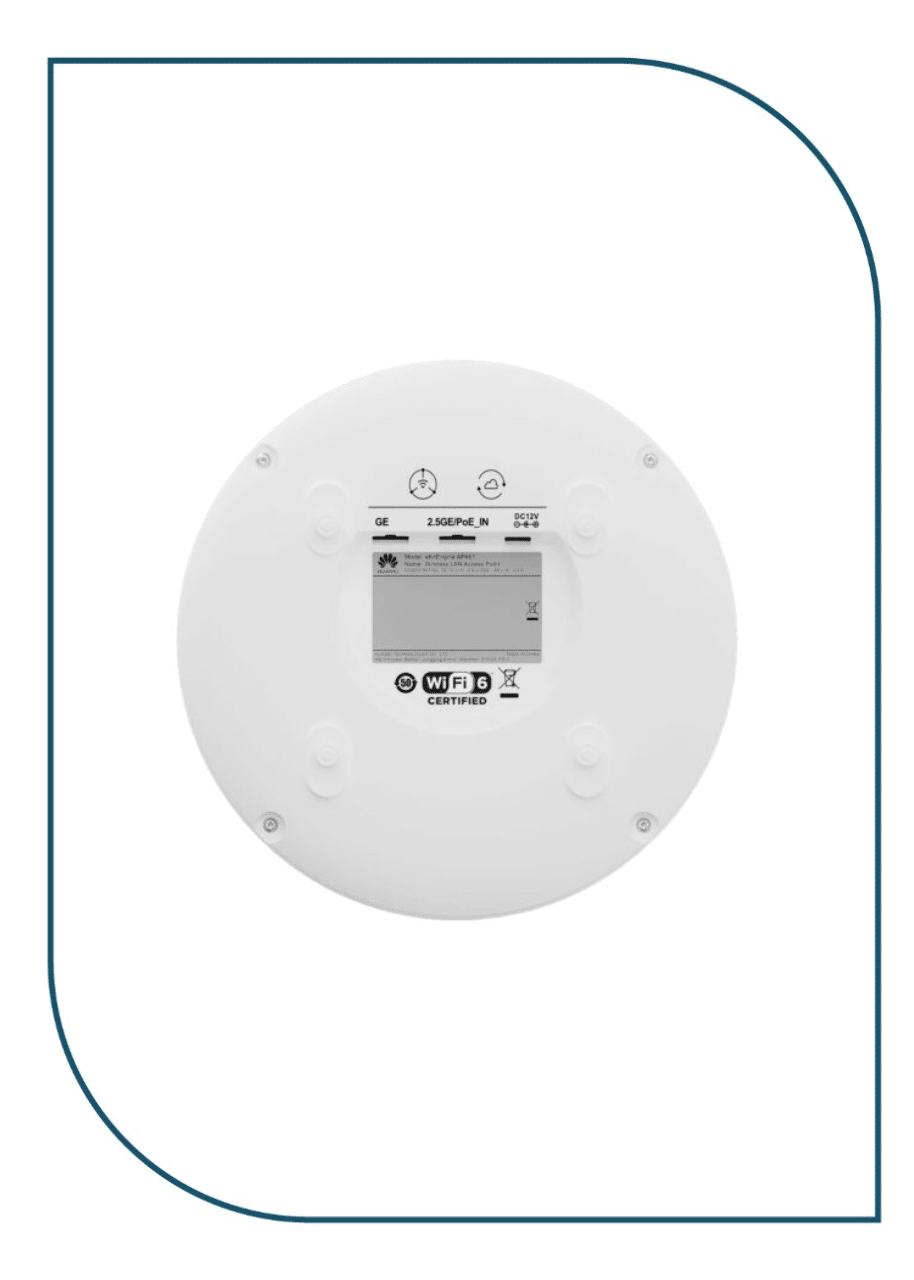

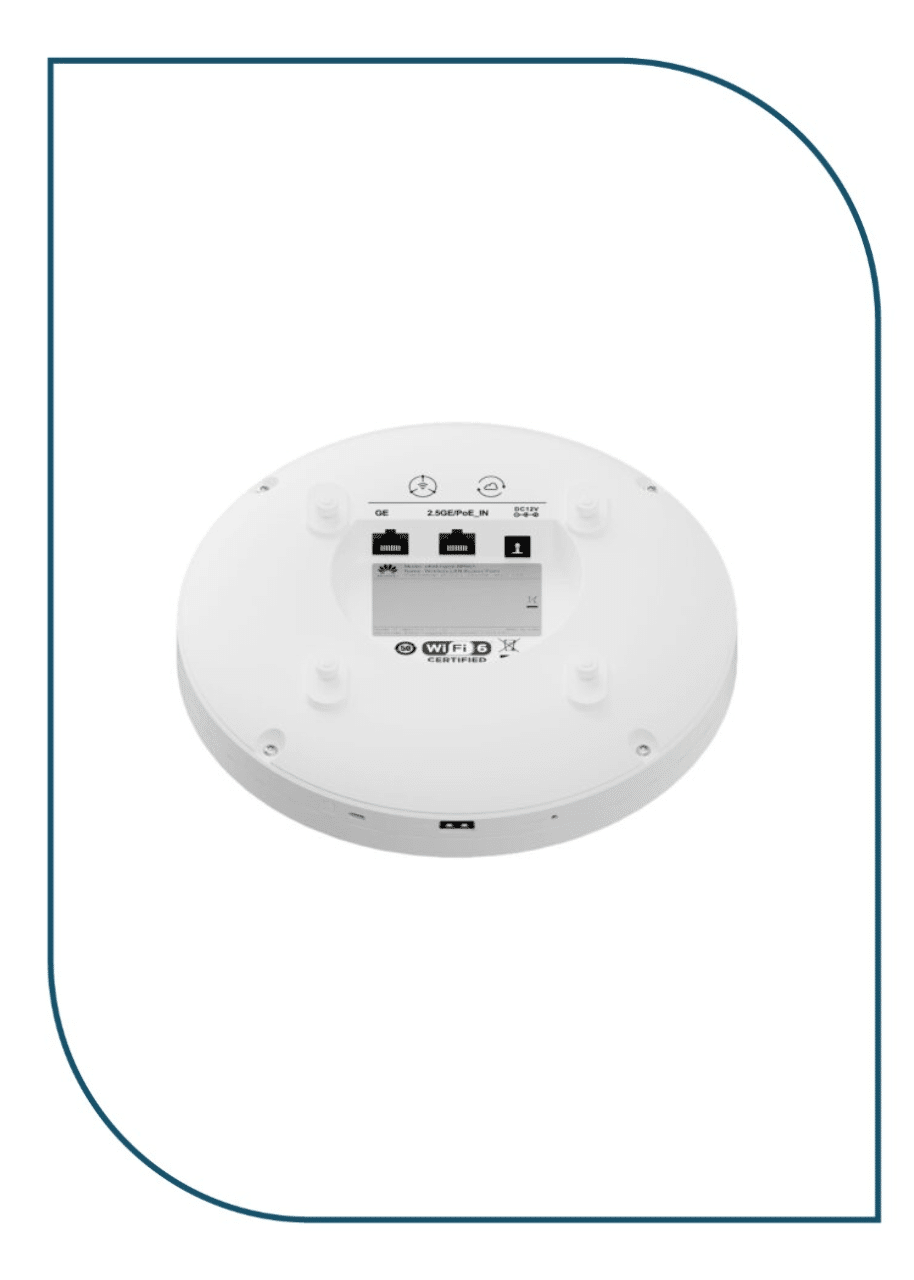

| Ethernet Interfaces | 1 × 100M/1G/2.5GE Multi-Gigabit Port + 1 × 10/100/1000M GE Port |
| Transmit Power | 26 dBm High Output Power |
| Antenna & Coverage | Smart Antenna Array with Expansive 40-Meter Optimal Coverage Radius |
| User Capacity | Recommended: 300 Concurrent Users | Maximum: 1536 Access Users |
| Power Supply | PoE+ (IEEE 802.3at) or 12V DC External Input |
| Management Capabilities | Huawei eKit Cloud Platform, Leader AP, Hardware AC Management |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Heavy-Duty Ceiling / Wall Mount Commercial Chassis |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Noise-Free Operation |
| Chassis Construction | Industrial-Grade Metal and Polymer Housing |
| Power Modes | PoE+ (802.3at) or 12V DC Input |
Key Features & Highlights
- Tri-Radio 6.575 Gbps Architecture: Three concurrent radios (2.4 GHz + 5 GHz + 5 GHz) eliminate spectrum congestion in dense venues.
- 2.5GE Multi-Gigabit Uplink: 2.5GE port eliminates copper uplink bottlenecks to modern multi-gigabit PoE+ switches.
- Massive 1536 User Capacity: High-density hardware supports 300 recommended active users and up to 1536 total connected clients.
- Expansive 40-Meter Range: 26 dBm high-power RF output and smart antenna array provide wide-area campus coverage.
- PoE+ Power Simplicity: Operates via standard IEEE 802.3at PoE+ power or 12V DC adapter input.
- Leader AP & Cloud Control: Zero-controller Leader AP clustering or centralized enterprise management via Huawei eKit.
Recommended Applications
The Huawei eKITEngine AP661 Tri-Radio Wi-Fi 6 Access Point is engineered for access and aggregation scenarios across commercial environments:
- High-density convention centers utilizing tri-radio architecture supporting up to 1536 users with 6.575 Gbps capacity.
- University auditoriums and lecture theaters handling massive student laptop concurrency without channel congestion.
- Multi-gigabit campus LANs utilizing the 2.5GE uplink port to eliminate bottlenecks to PoE+ switches.
- Expansive 40-meter commercial venues including hotel ballrooms, airports, and transport terminals.
- Large corporate headquarters and multi-floor commercial facilities requiring high-density wireless access.
Installation & Operating Environment
The Huawei eKITEngine AP661 Tri-Radio Wi-Fi 6 Access Point features a heavy-duty ceiling and wall mounting bracket kit with screws for secure installation. Powered by PoE+ (IEEE 802.3at) or 12V DC, it utilizes natural heat dissipation for quiet, reliable continuous operation across commercial campuses.
