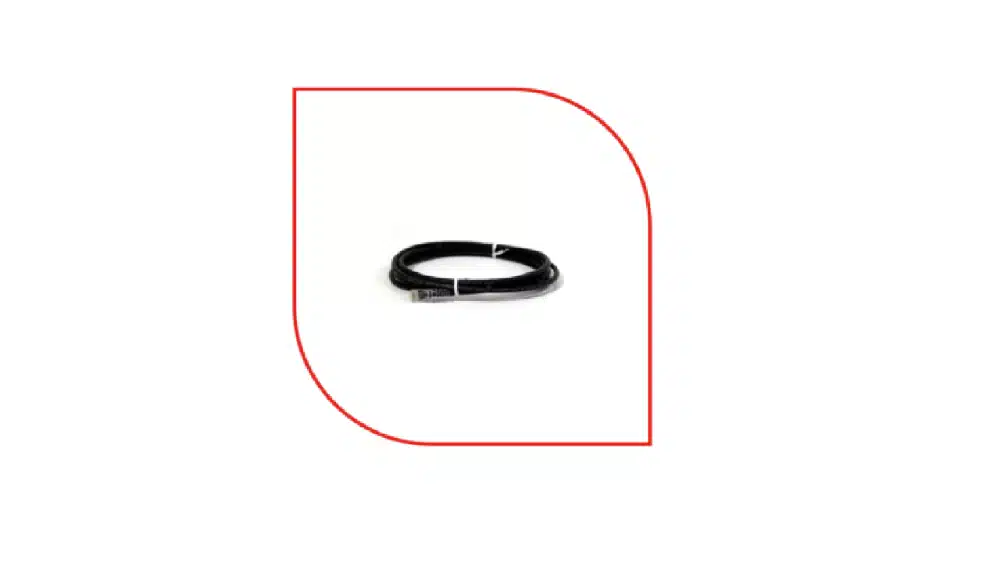

The ProLink CAT6A Patch Cord 1m LSZH Black (Model: PL-PC-U6A-1BK) is an enterprise-grade Category 6A U/UTP Ethernet cable designed for structured cabling systems. This 1-meter black patch cord provides reliable connections between network devices, server racks, and telecommunications outlets while minimizing cable clutter. Supporting frequencies up to 500 MHz and featuring a Low Smoke Zero Halogen (LSZH) jacket, it is an ideal solution for corporate LANs, commercial buildings, and high-density data centers.
Technical Specifications
| Component / Property | Technical Specification |
|---|---|
| Product Line | ProLink CAT6A Patch Cord 1m LSZH Black |
| Model / SKU | PL-PC-U6A-1BK |
| Cable Length / Color | 1 Meter / Black |
| Wiring Configuration | T568B Standard |
| Cable Type / Shielding | U/UTP (Unshielded) |
| Conductor Gauge | AWG23/7 Stranded Conductor |
| Number of Pairs | 4 Pairs |
| Nominal Impedance | 100 Ohms |
| Outer Cable Diameter | Maximum 6.0 mm |
Mechanical Specifications
| Component / Material | Operational Rating / Property |
|---|---|
| Plug Housing Material | Polycarbonate |
| Contact Blade Material | Phosphor Bronze (CuSn6) |
| Contact Area Plating | 0.7 µm Selective Gold Plate |
| Connector Shield Material | Tin-Plated Brass |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Interface Standard | Compliant with IEC 60603-7 |
| Operating Temperature | -10°C to +60°C |
| Integrated Cable Boot | Wide-Function Strain Relief |
Electrical Characteristics
| Electrical Parameter | Standard / Test Rating | Performance Value |
|---|---|---|
| Current Rating | Maximum @ 25°C | 1.5 Amps |
| Voltage Rating | Maximum Capacity | 150 VAC |
| Dielectric Withstanding | 1 Minute Test (60 Hz) | 1000 VAC |
| Insulation Resistance | Minimum Threshold | 650 MΩ |
Key Features
- Category 6A Compliance: Supports Category 6A Class E performance requirements in accordance with ISO/IEC 11801 while supporting operating frequencies up to 500 MHz for reliable Gigabit Ethernet connectivity.
- LSZH Fire Safety: The Low Smoke Zero Halogen jacket minimizes toxic gas emissions and smoke generation during fire incidents, improving safety in commercial and enterprise installations.
- Backward Compatibility: Fully compatible with existing Cat5e infrastructures, enabling smooth migration to higher-performance Category 6A networks.
- Enhanced Strain Relief: Features a wide-function cable boot that protects against cable stress while allowing easy color-coding and identification.
- Factory-Tested Quality: Every patch cord undergoes rigorous electrical and signal integrity testing before shipment to ensure consistent performance and long-term reliability.
Recommended Applications
- High-Density Data Center Patching
- Server Rack Interconnections
- Network Switches and Routers
- Telecommunications Equipment
- Commercial Office LAN Networks
- Healthcare Facilities
- Educational Institutions
- Gigabit Ethernet Installations
- Structured Category 6A Cabling Systems
Quality Assurance
Manufactured in accordance with internationally recognized structured cabling standards, the ProLink CAT6A Patch Cord 1m LSZH Black is factory-tested to ensure consistent Category 6A performance, stable electrical characteristics, and long-term durability for professional networking environments.
