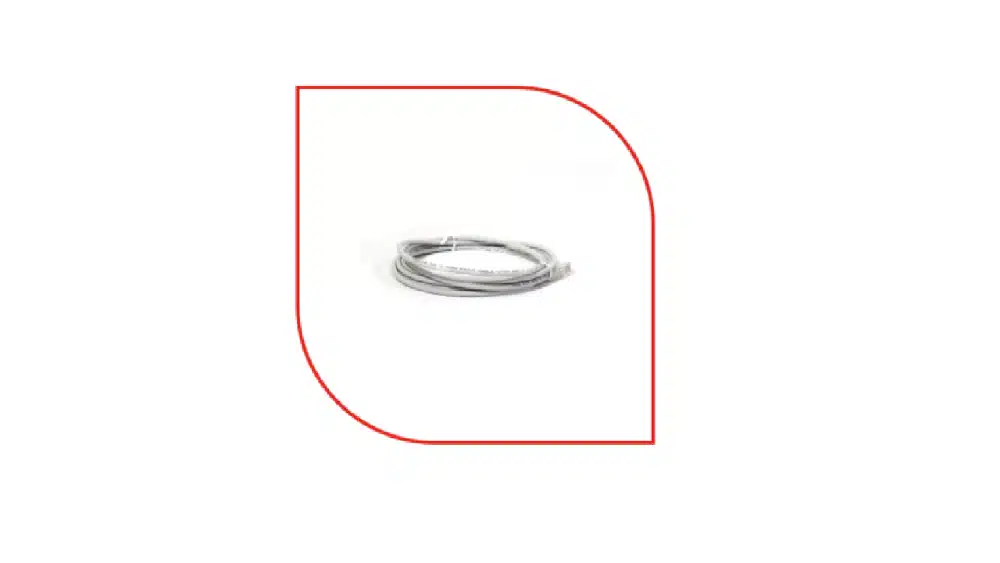

The ProLink CAT6A Patch Cord 3m LSZH Gray (Model: PL-PC-U6A-3G) is a commercial-grade Category 6A U/UTP Ethernet patch cord engineered for professional structured cabling systems. Measuring 3 meters in length, this gray patch cord provides reliable connections between network equipment, patch panels, and telecommunications outlets across standard rack distances while supporting Ethernet applications operating up to 500 MHz. Featuring a Low Smoke Zero Halogen (LSZH) jacket, it enhances fire safety and is well suited for enterprise LANs, commercial buildings, and high-density data centers.
Technical Specifications
| Component / Property | Technical Specification |
|---|---|
| Product Name | ProLink CAT6A Patch Cord 3m LSZH Gray |
| Model / SKU | PL-PC-U6A-3G |
| Cable Length / Color | 3 Meters / Gray |
| Wiring Configuration | T568B Standard |
| Cable Type / Shielding | U/UTP (Unshielded) |
| Conductor Gauge | AWG23/7 Stranded Conductor |
| Number of Pairs | 4 Pairs |
| Nominal Impedance | 100 Ohms |
| Outer Cable Diameter | Maximum 6.0 mm |
Mechanical Specifications
| Component / Material | Operational Rating / Property |
|---|---|
| Plug Housing Material | Polycarbonate |
| Contact Blade Material | Phosphor Bronze (CuSn6) |
| Contact Area Plating | 0.7 µm Selective Gold Plate |
| Connector Shield Material | Tin-Plated Brass |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Interface Standard | Compliant with IEC 60603-7 |
| Operating Temperature | -10°C to +60°C |
| Integrated Cable Boot | Wide-Function Strain Relief |
Electrical Characteristics
| Electrical Parameter | Standard / Test Rating | Performance Value |
|---|---|---|
| Current Rating | Maximum @ 25°C | 1.5 Amps |
| Voltage Rating | Maximum Capacity | 150 VAC |
| Dielectric Withstanding | 1 Minute Test (60 Hz) | 1000 VAC |
| Insulation Resistance | Minimum Threshold | 650 MΩ |
Key Features
- Category 6A Compliance: Meets Category 6A Class E requirements in accordance with ISO/IEC 11801 while supporting Ethernet applications operating up to 500 MHz.
- LSZH Fire Safety: The Low Smoke Zero Halogen jacket helps reduce smoke density and toxic gas emissions during fire incidents, improving safety for personnel and network infrastructure.
- Backward Compatibility: Fully compatible with existing Cat5e network infrastructures, allowing cost-effective migration to Category 6A networks.
- Enhanced Strain Relief: Features a wide-function strain relief boot that supports cable labeling and color identification while protecting against cable stress.
- Factory-Tested Quality: Each patch cord is individually tested for electrical performance and signal integrity before shipment to ensure consistent reliability.
Recommended Applications
- Enterprise LAN Infrastructure
- High-Density Data Center Patching
- Server Rack Interconnections
- Patch Panels and Telecommunications Outlets
- Network Switches, Routers, and Firewalls
- Commercial Office Networks
- Educational Institutions
- Healthcare Facilities
- Category 6A Structured Cabling Systems
Quality Assurance
Manufactured in accordance with internationally recognized structured cabling standards, the ProLink CAT6A Patch Cord 3m LSZH Gray is factory-tested to deliver consistent Category 6A performance, reliable electrical characteristics, and long-term durability for professional networking environments.
