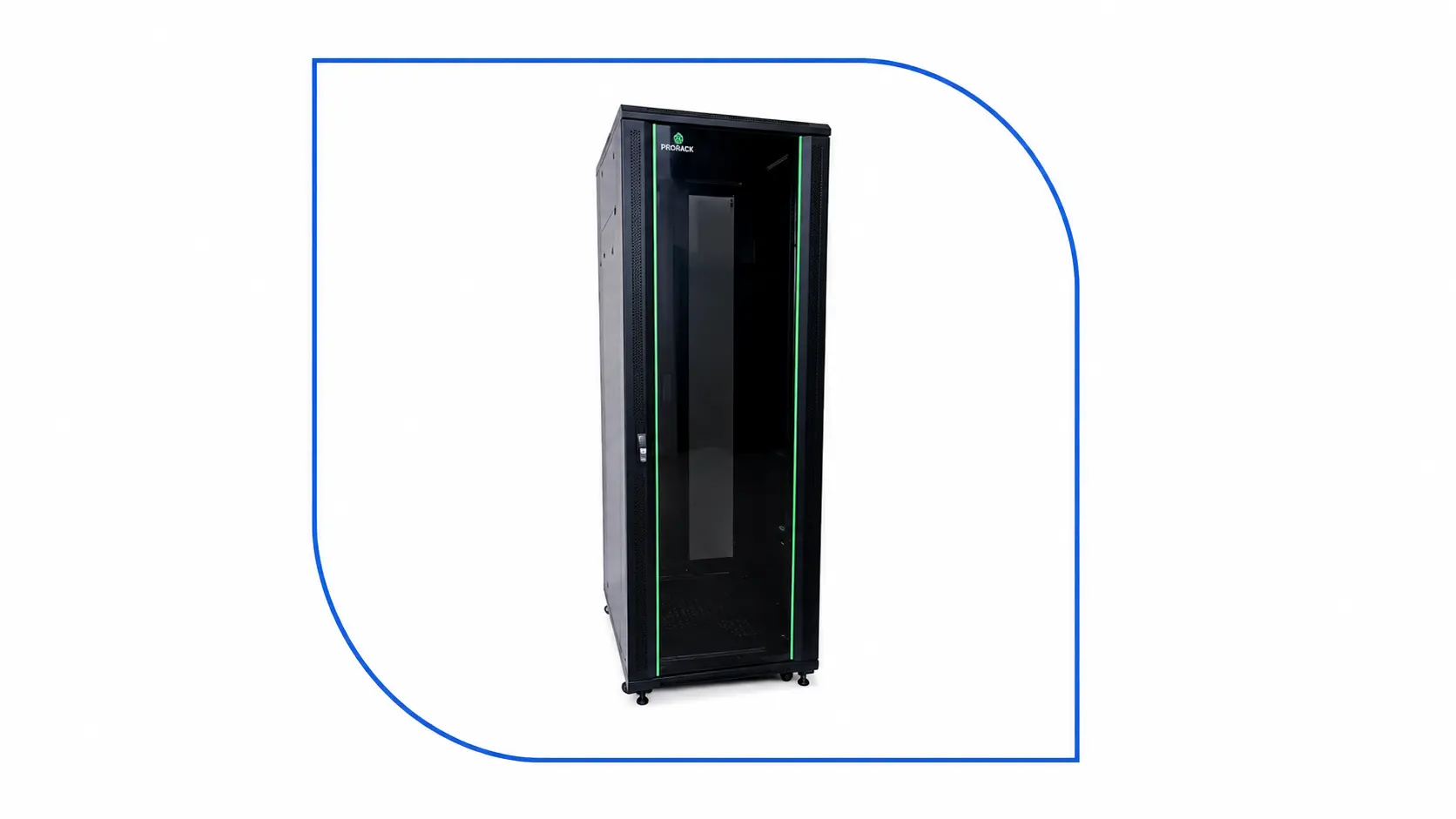

ProRack 42U Standing Server Rack (Model: PR-FV6142) is a premium, heavy-duty IT enclosure engineered to house and protect high-density networking equipment. Measuring 600mm wide by 1000mm deep, this robust cold-rolled steel cabinet supports an 800KG static load capacity, making it the definitive choice for enterprise data centers and large-scale corporate server rooms.
Advanced Thermal Management & Airflow
- Optimized Ventilation: Features a curved front vented screen door and a double screen back door to facilitate exceptional passive airflow, preventing equipment overheating.
- Active Cooling System: Integrated with 4 high-performance, top-mounted cooling fans designed to maintain stable operating temperatures for densely packed servers and switches.
- Long-Term Durability: The cold-rolled steel undergoes rigorous surface treatment including degreasing, pickling, phosphating, laundering, and powder coating for premium corrosion resistance.
Enterprise Accessibility & Cable Routing
- Flexible Maintenance: Equipped with two removable, independently lockable side panels on each side to ensure fast and secure hardware adjustments.
- Clean Cable Management: Built with multi-functional cable routing panels on both back sides to maintain clean horizontal and vertical cable organization.
- Simultaneous Mobility: Heavy-duty casters and adjustable M12 support feet can be installed simultaneously, allowing for secure positioning and effortless adjustments within the server room.

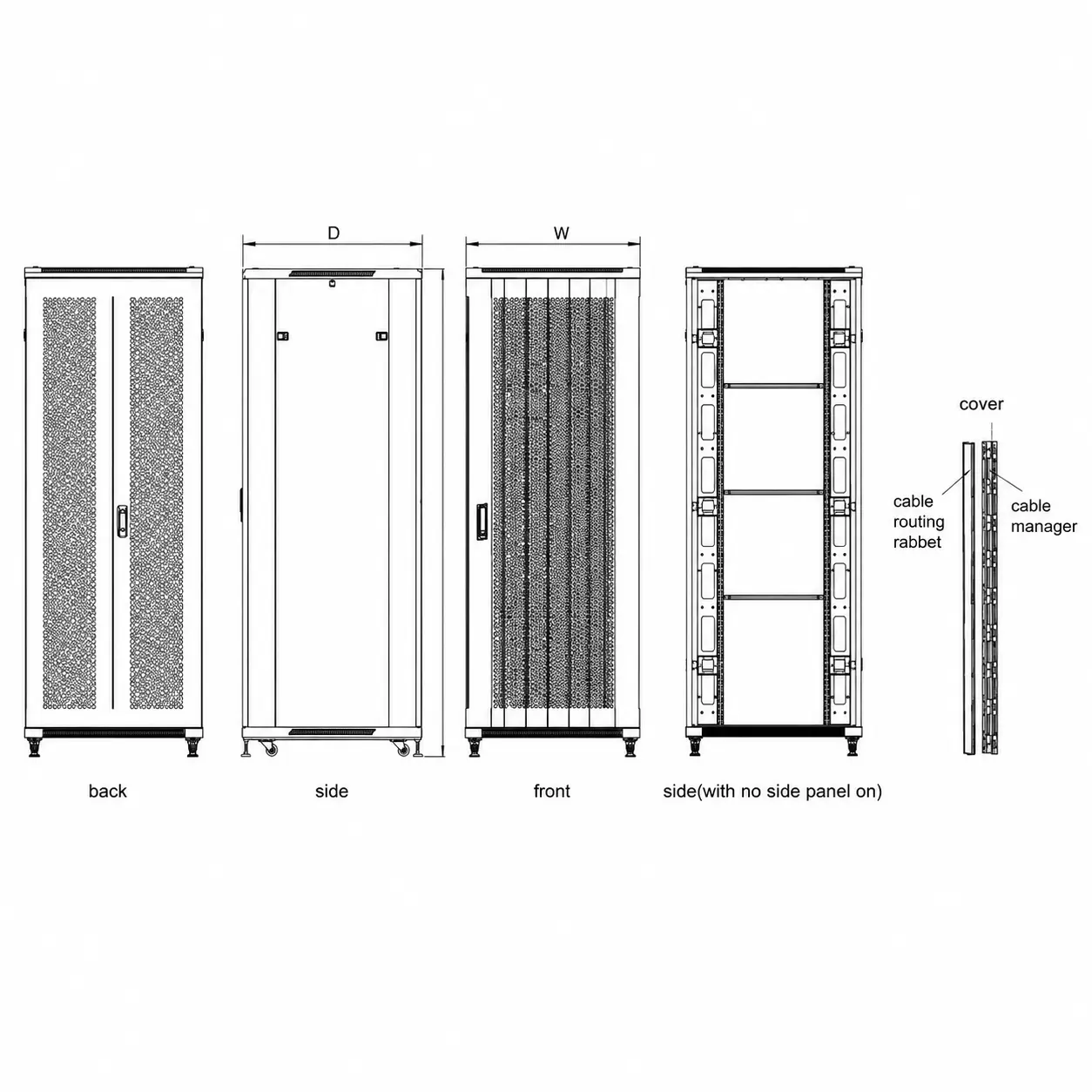

Technical Parameters & Dimensions
| Dimension / Parameter | Operational Specification |
|---|---|
| Model / SKU | ProRack 42U 600×1000 vented door (PR-FV6142) |
| Rack Capacity | 42U |
| Width / Depth | 600 mm / 1000 mm |
| Physical Height | 2055 mm |
| Static Load Capacity | 800 KG |
| Main Material | High-Grade Cold-Rolled Steel |
| Front Door Type | Vented Screen Door |
| Color Finish | Black (RAL9005) |
Included Accessories (Bill of Materials)
Every standard ProRack 42U 600*1000 cabinet comes fully bundled with a comprehensive set of installation hardware:
- Fans: 4 × Cold-Rolled Steel Fans
- Shelves: 1 × 1.2mm Cold-Rolled Steel Shelf
- Power Distribution: 1 × Power Distribution Unit (PDU) Socket Strip with 8 Outlets
- Mounting Hardware: 40 × Heavy-Duty Cage Nuts
- Structural Supports: 4 × Casters and 4 × M12 Support Feet
- Framework Panels: 2 × Frames, 4 × Profile Rails (2.0mm), 6 × Support Beams, and 12 × Junction Boxes
